M

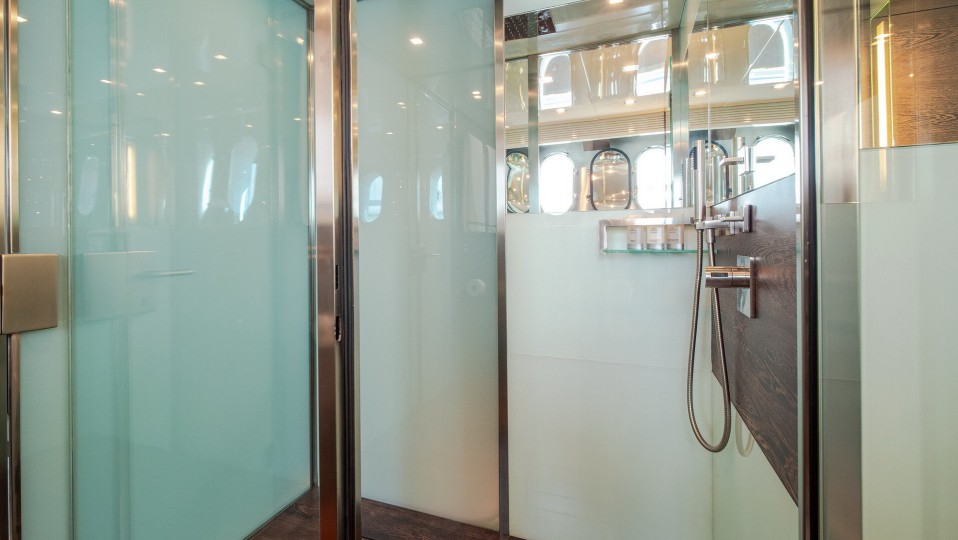

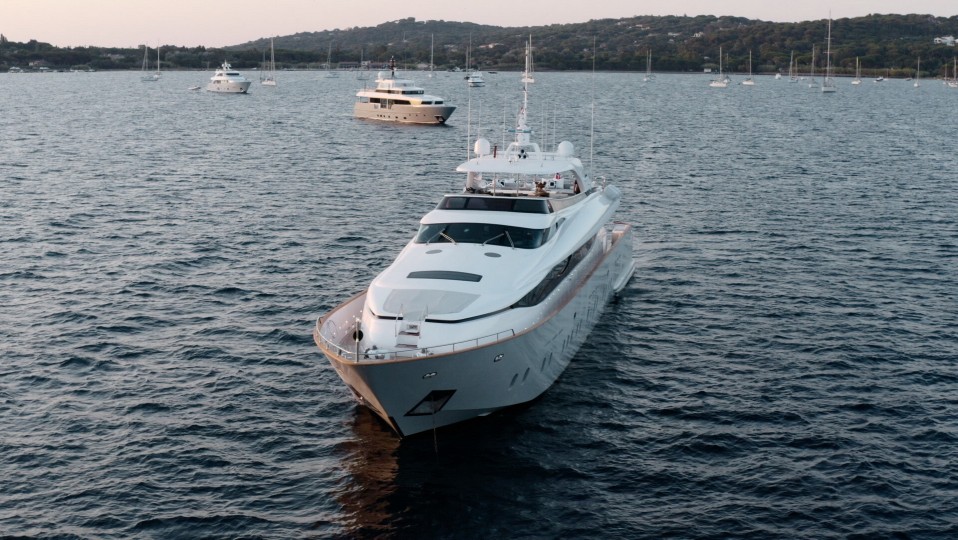

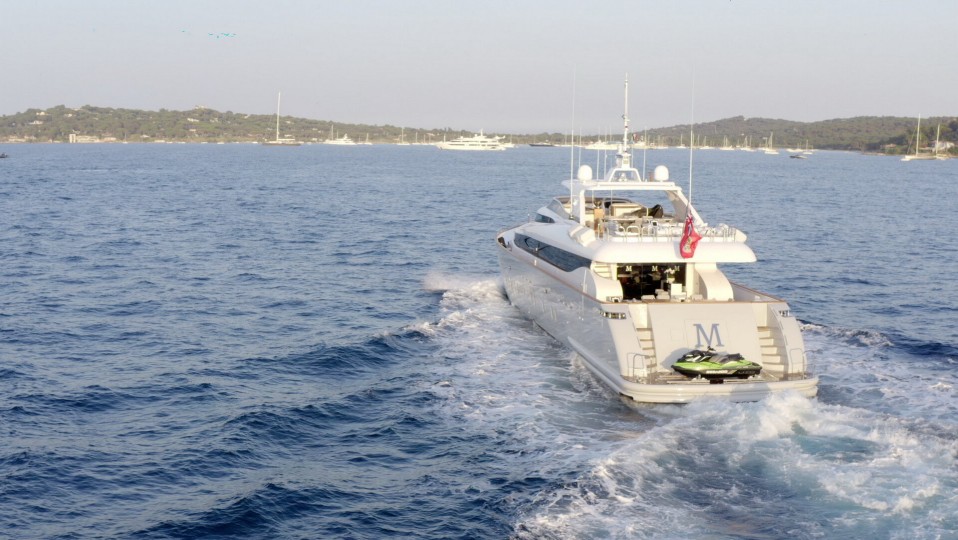

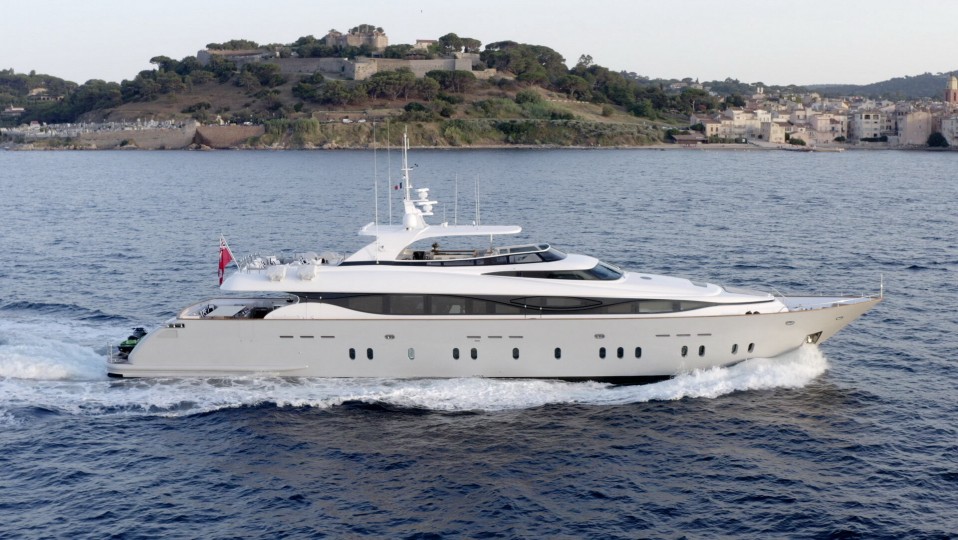

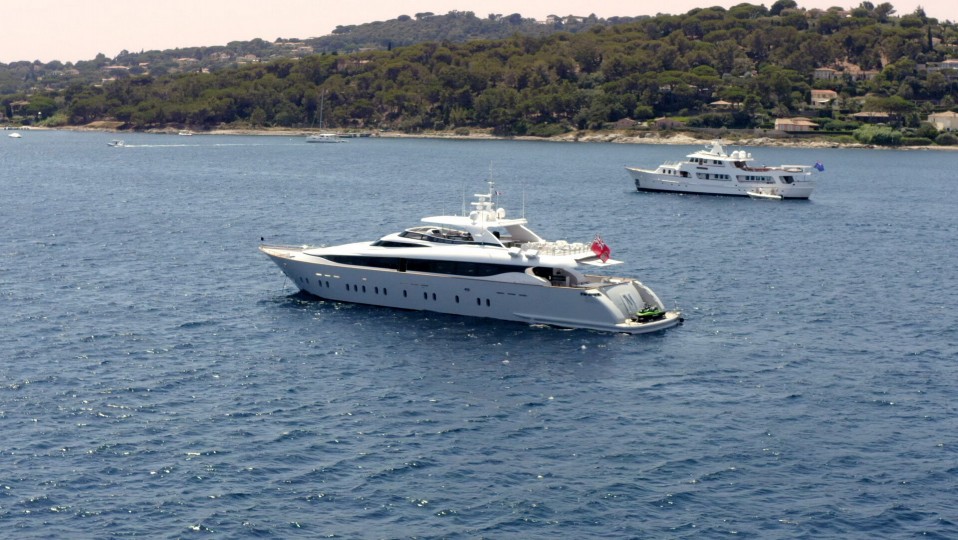

M is a 40m luxury yacht, built by Maiora and completed in 2008. The yacht features the attractive well-known sleek lines of a Maiora along with a stylish and modern interior. She can comfortably accommodate up to 14 guests in total within one master cabin, one VIP cabin, two double cabins, two twin cabins with Pullman berths, all of which are equipped with ensuite bathroom. She has a GRP hull and superstructure and is driven by two MTU’s, allowing her to reach speeds between 23-28 knots.

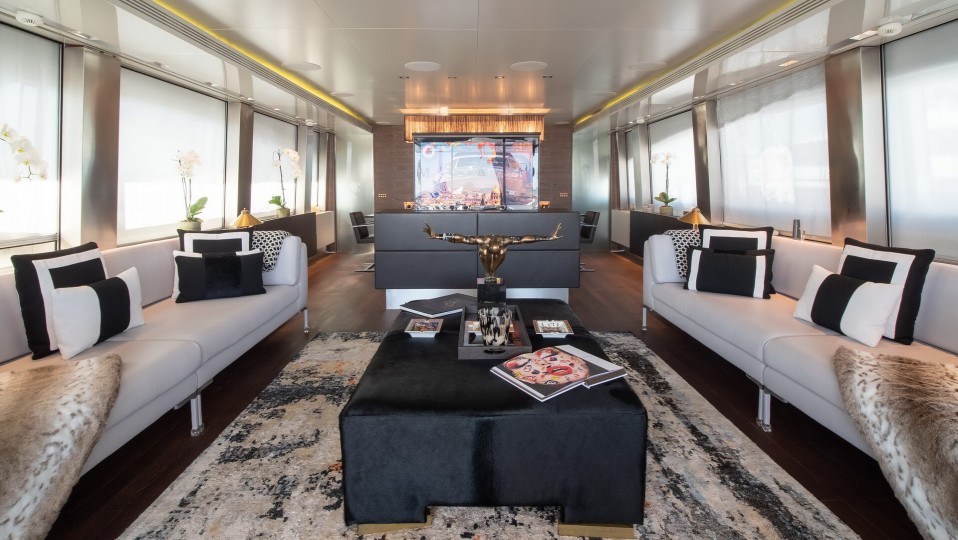

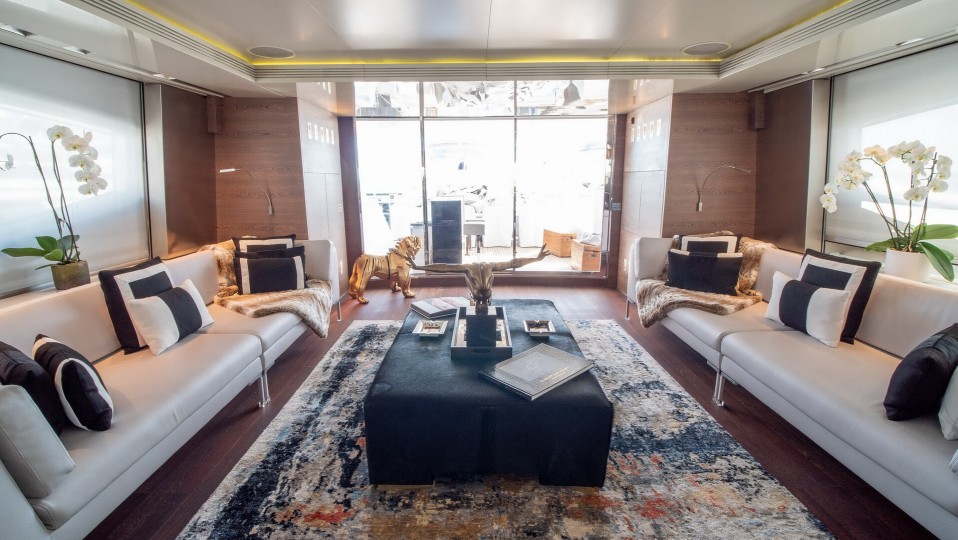

M has a gorgeous interior that has been carefully designed with attention to detail by Micheller Land & Sea Designs. The decor combines comfort, elegance and stunning colour coordination along with a modern minimal approach.

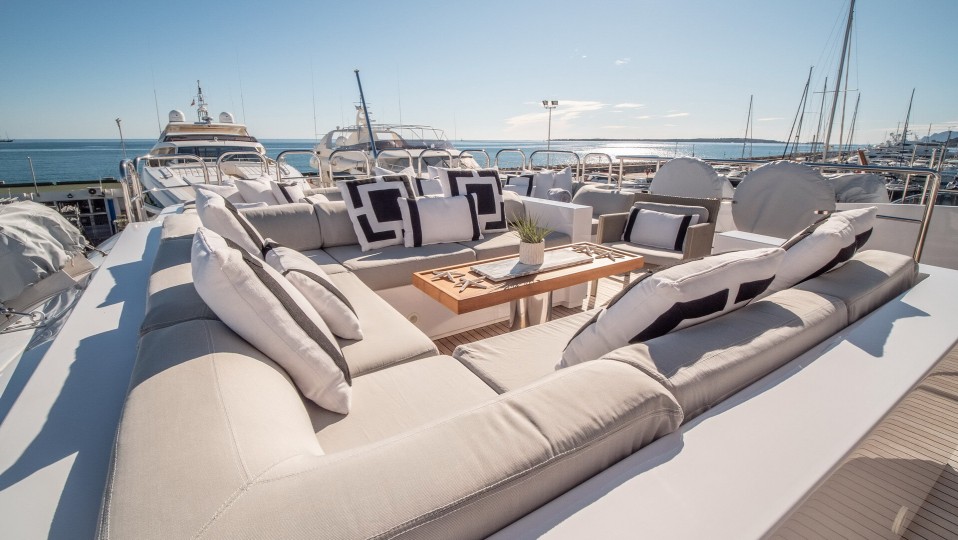

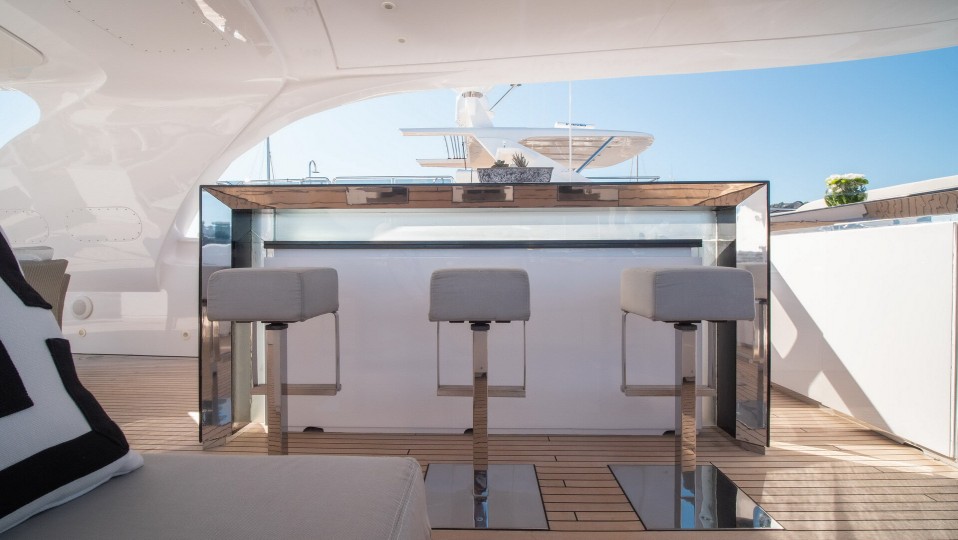

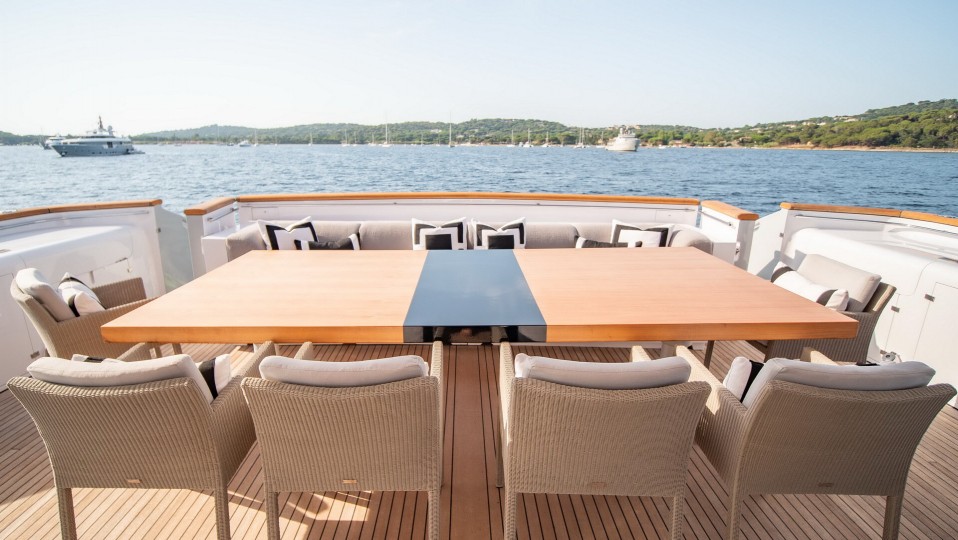

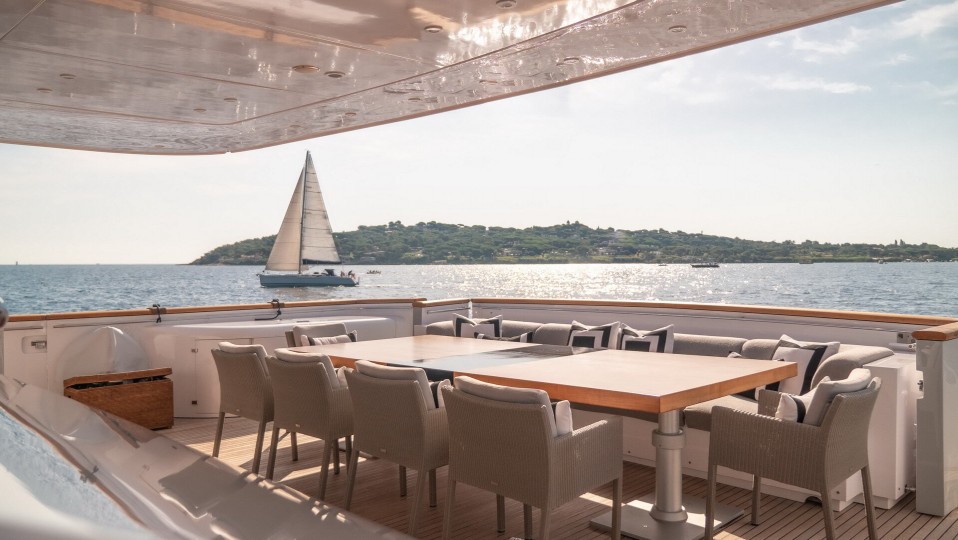

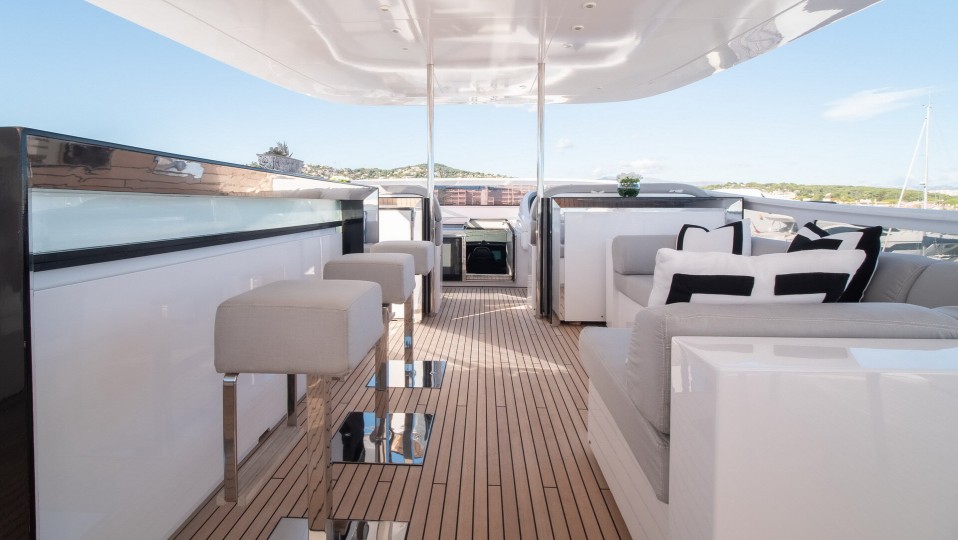

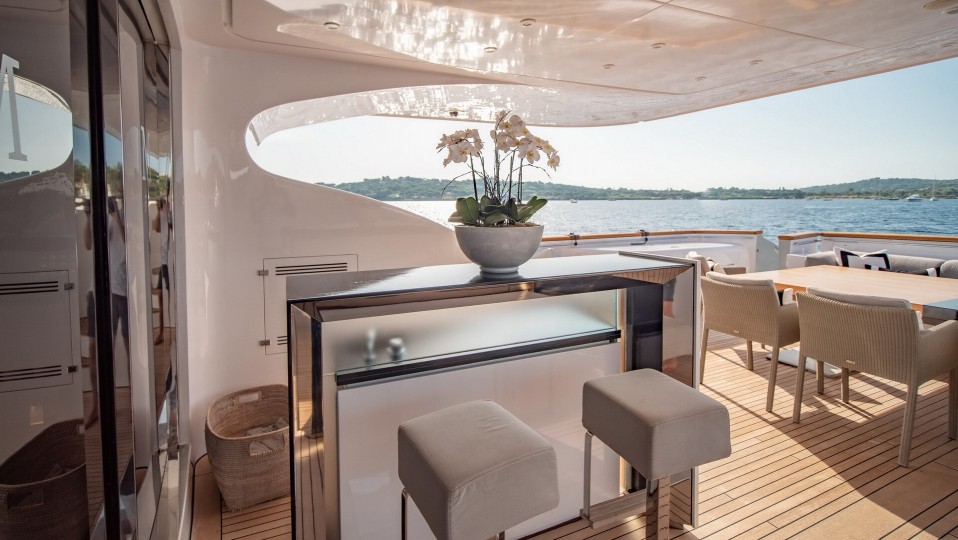

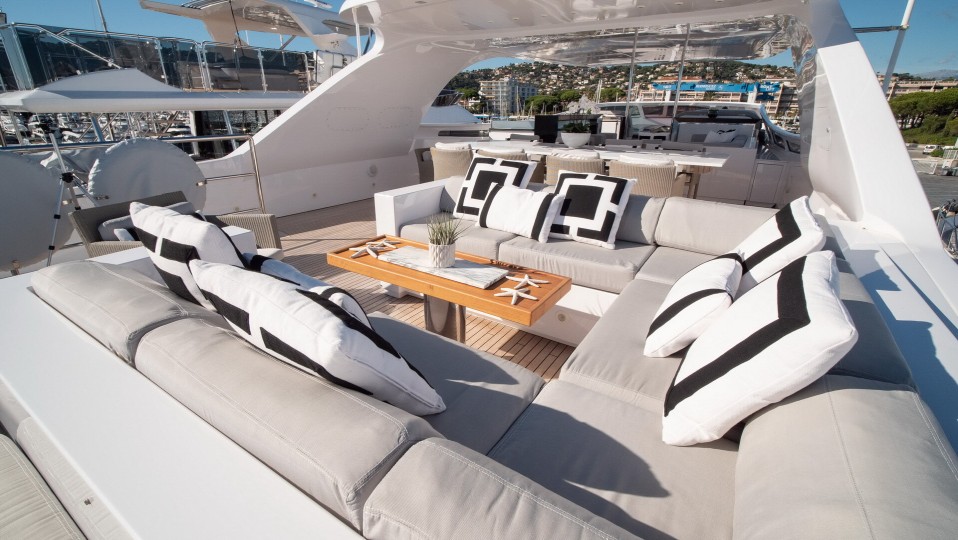

M has fabulous outdoor entertaining areas including an aft deck and sundeck both featuring beautiful dining areas for al fresco dining. The sundeck has a full-service bar and dining table along with a comfortable couch for lounging and soaking up the stunning scenery with sun lounging pads aft.
Tenders & Watersports Equipment

1 x Seadoo 4 stroke Waverunner
General
Length Overall: 39.80m/130’58”
Length at Waterline: 35.06m/115’03”
Beam: 7.36m/24’15”
Max Draught: 2.72m/8’92”
Classification: RINA +100-A-1.1-Nav short range; Ych
Gross Tonnes: 271
Displacement: 190 Tonnes
Designer: Roberto Del Re
Naval Architect: Roberto Del Re
Interior Design: Micheller Land & Sea Designs

Class Surveys
10-year Class Survey Completed in 2018

Construction GRP hull & superstructure

Capacities
Max Speed: 28 Knots
Cruise Speed: 21 Knots
Range: 1000 nm (Approx)
Fuel Capacity: 32,830 Litres
Water Capacity: 5,000 Litres
Black Water Capacity: 1,435 Litres
Grey Water Capacity: 1,000 Litres

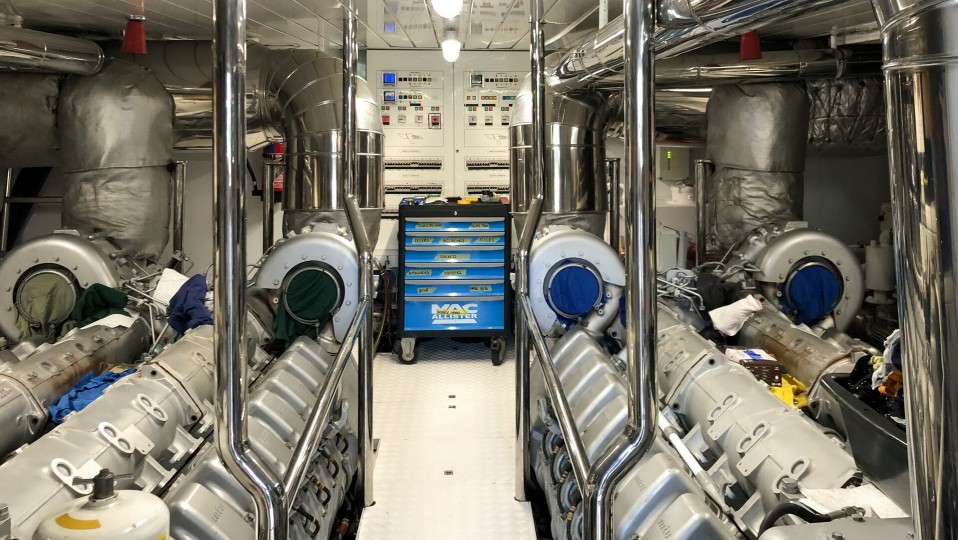

Engines: 2 x 3,770 HP MTU
Engine Model: 16V 4000 M90
Engine Hours: Port: 2728 (September 2020)
Engine Hours: Stbd: 2731 (September 2020)
Fuel: Diesel
Propulsion: Prop Shaft V-drive
Gearboxes: ZF Gearboxes
Steering: Electro/Hydraulic steering system with full redundancy.
Stabilisers: Rodriquez zero speed fin Stabiliser system

Generators
Generators: 2 x Kholer 55kw 1 x Kholer 28kw
Generator Hours: Port: 6808 (September 2020)
Stbd: 6896 (September 2020)
Aft: 710 (September 2020)

Electricity
Shore Power: 1 x ASEA 400 V 50 HZ 70 KW
Frequency Converter: 1 x ASEA
Batteries: 2 x Engine start batteries 24V 100 AH
3 x Generator start batteries
Service Batteries 24V 800 AH
Emergency Radio Batteries 24V 65 AH
Chargers: 4 x Mastervolt Battery chargers
Invertor: Mastervolt charger/invertor

Air Conditioning
Condria 4 compressor reverse cycle chilled water system throughout the yacht with fan coils and thermostats in all cabins.

Other Machinery
● 1 x Idromar watermakers
● Hydraulic bow and stern thrusters
● Hydraulic passerelle and Trim Tabs
● Flybridge Control Station
● Compressed air system
● Hamann sewage treatment
● 3 x Hot water Boilers

Galley & Laundry Equipment

Aft deck Bar
1 x Ice machine

Main Deck Galley
1 x Fridge Freezer
1 x Gaggenhau 5 burner induction hob
1 x Gaggenhau Tepinyaki plate
1 x Miele Oven
1 x Miele Dishwasher
2 x Gaggenhau extractor
1 x Grease trap

Sun Deck Bar
1 x Fridge
1 x Ice machine

Crew Mess
1 x Miele Dishwasher
1 x Gaggenhau Fridge Freezer
1 x Gaggenhau Wine fridge

Laundry
2 x Miele Washing Machine
2 x Miele Dryer

Communication, Navigation & Entertainment Equipment

Communications Equipment
• 3 x Foruno VHF
• Foruno MF
• Selcom Sat C
• Foruno ISDN Satellite Telephone System
• Cellular internet system with 3 x 4G routers and mast mounted antenna

Navigation Equipment
● 2 x Foruno X band Radar
● 2 x Foruno Depth Sounder
● 1 x Foruno Navtex
● 1 x Foruno AIS
● 2 x Foruno GPS
● BNWAS alarm system
● UNIPROG monitoring system with 2 screens and alarm repeater
● 1 x Chart Plotter – Admiral Navi Sailor 4000.
● CMAP Chart Plotter
● 2 x Auto Pilot – Sperry marine, interfaced to Sperry marine Gyro Compass with display in wheelhouse
● 2 x Magnetic Compass

Entertainment Equipment

Following a refit in 2018/2019 there is IPTV in the Saloon, Master Cabin and Crew area. In addition, there is an Apple TV in the Main saloon and each cabin handling music and TV.

Audio

Saloon – Denon amplifier
Sun Deck – Denon amplifier
All Guest Cabins – Marantz amplifier with Bluetooth connections

TV Screens

Saloon – 55” Pioneer HD Rise & Fall TV
Master Suite – 50” Samsung HD TV
VIP – 40” Concealed Mirror HD TV
Twins Cabins – 32” Sharp HD TVs
Double Cabins – 36” Sony HD TV
Crew Mess – 36” Samsung HD TV

Deck equipment

● Underwater lights x 6
● LED exterior lighting
● Side boarding ladder
● 140 metres galvanised chain on both anchors
● Gates at top of sidedeck stairs on wheelhouse deck
● Aft deck Sun Awning
● Sun deck Sun Awning
● Large wetbar on Sun deck
● 2 x Fore deck windlasses
● 2 x Aft Deck Winches

Safety & security equipment

● Fire extinguishers
● 4 x Zodiac 10-man SOLAS A life rafts
● 25 lifejackets
● Flare kit
● 1 x EPIRB
● 1 x SART
● 4 x fire fighting masks and tanks

Winter Works 2019/2020

● Full Paint Job Hull and Superstructure
● MTU Engine and Gearbox service
● Generator Service
● New 3x4G Routers with mast antenna
● New High Speed Wifi network and access points
● Bowthruster and Sternthruster serviced
● All new Batteries and UPS
● All new potable fresh water system with high spec filters
● AC system serviced
● Wooden floors revarnished
● New Galley floor
● New dimmable exterior lights
● New Engine room fire protection
● Watermaker service
● MEGA test
● Running gear laser aligned
● Hamann System fully serviced
● Fire pumps rebuilt
● New exterior cushion covers
● New exterior rain covers
● New Antifouling and anodes etc.
● New Miele washing machines and dryers

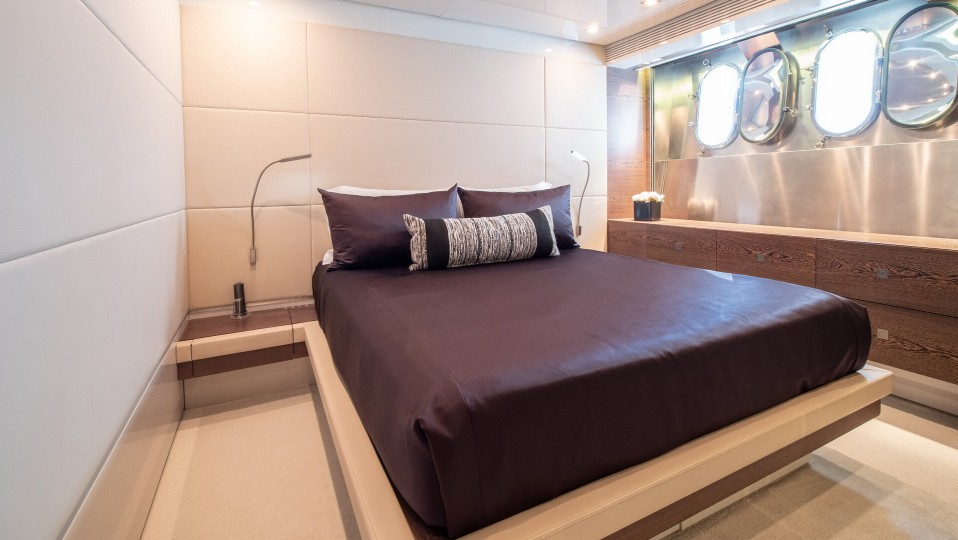

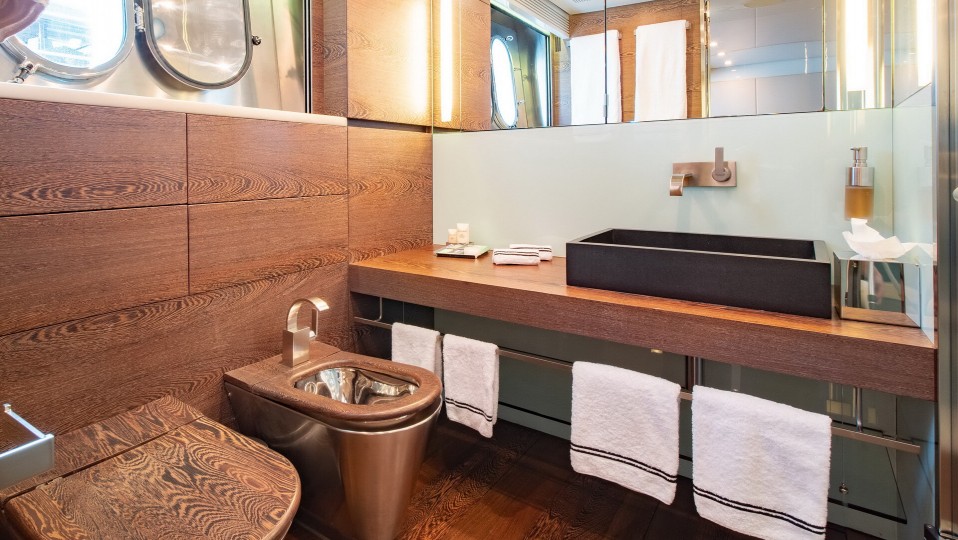

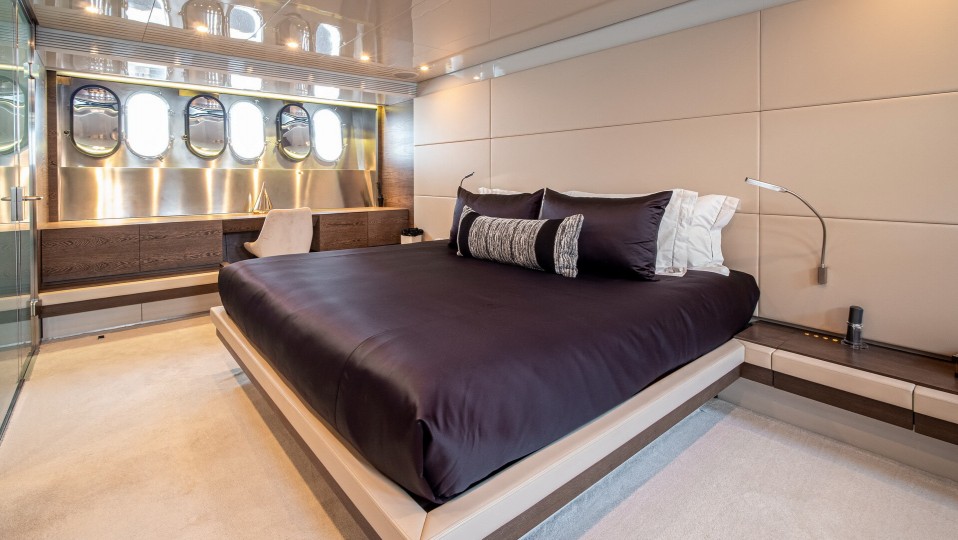

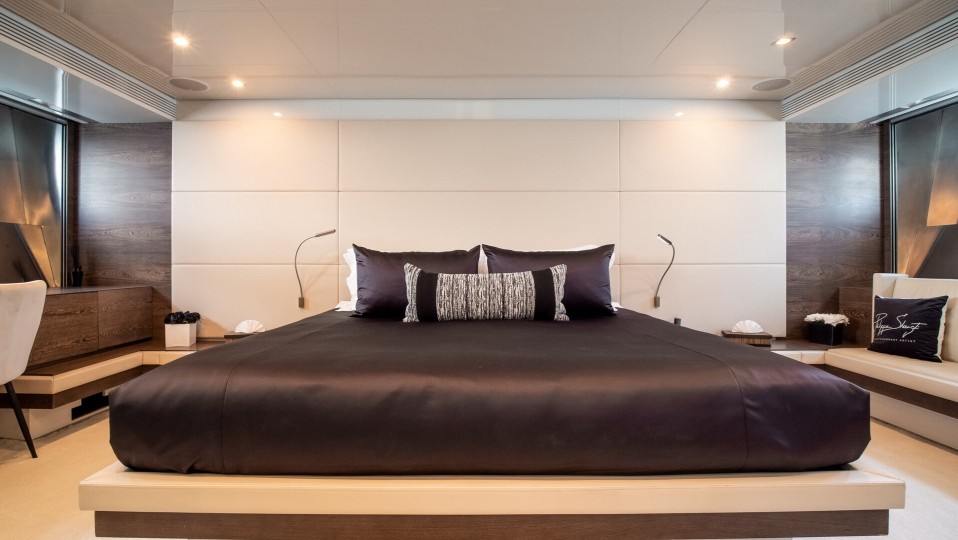

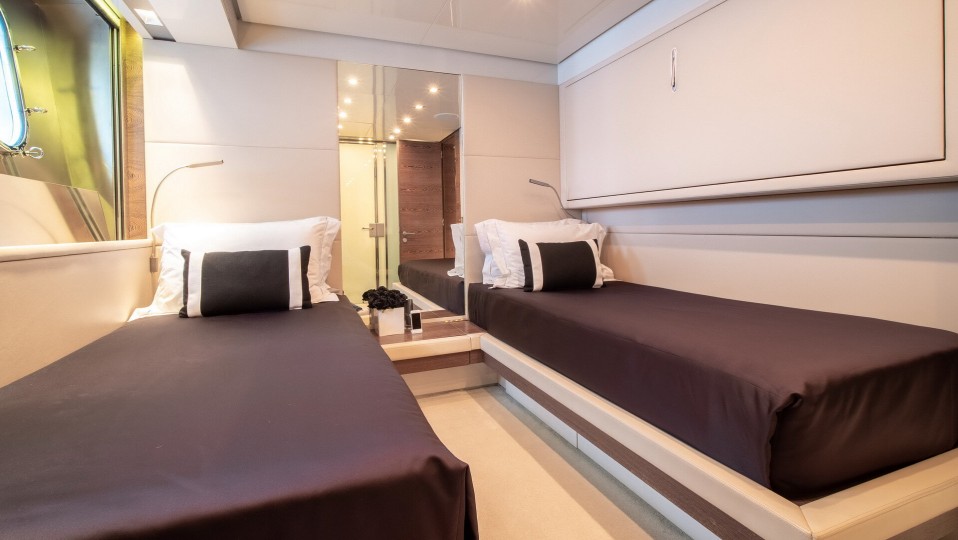

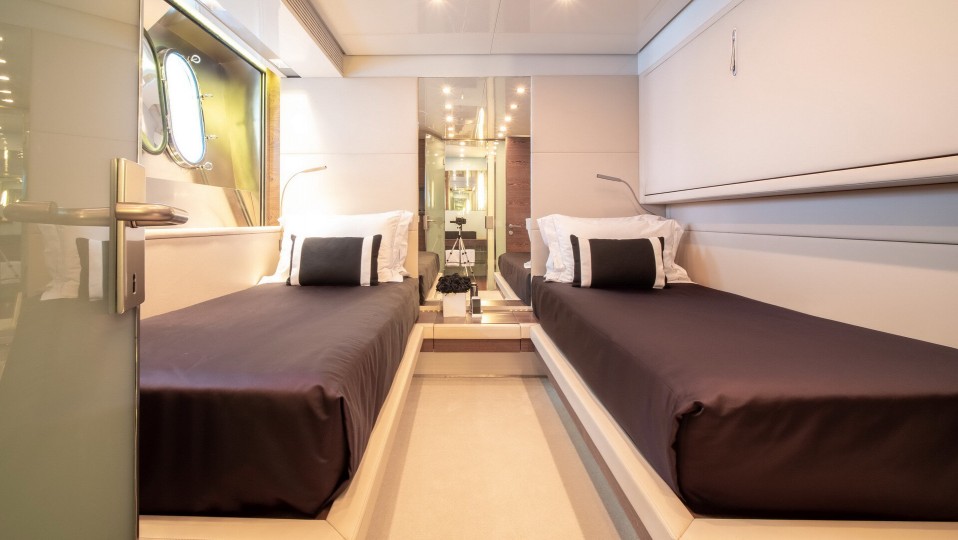

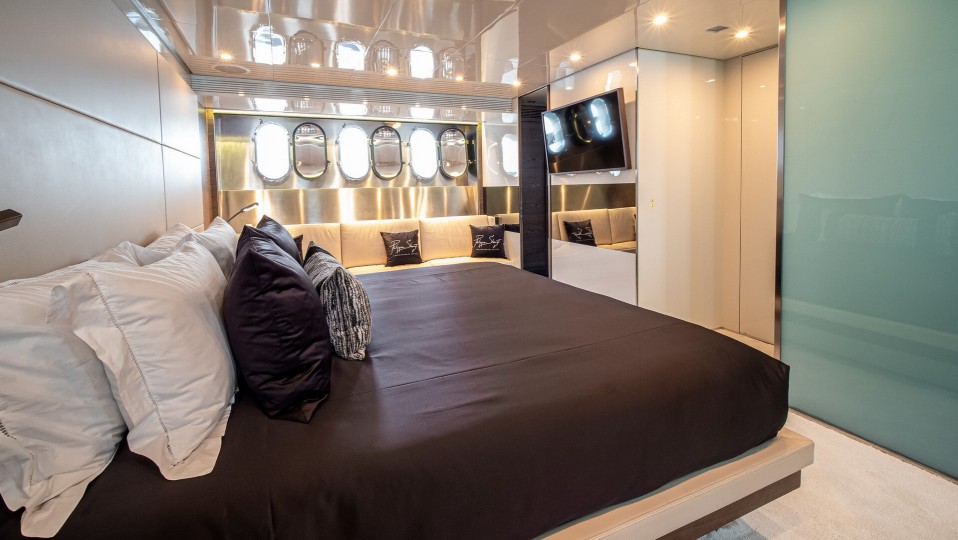

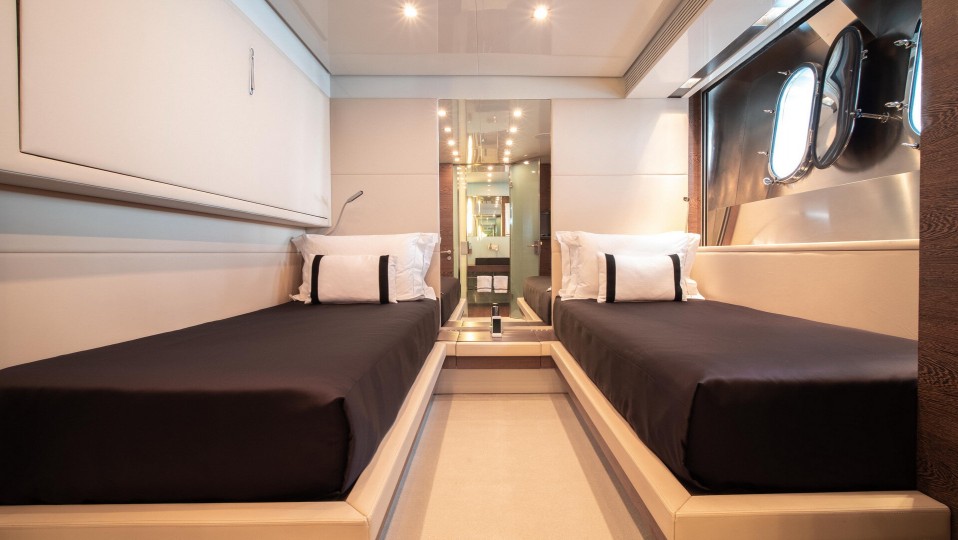

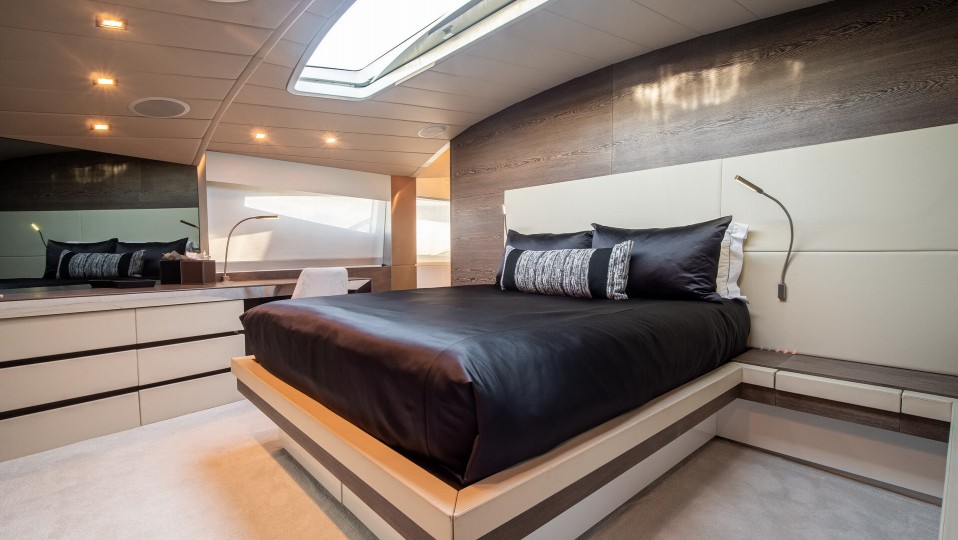

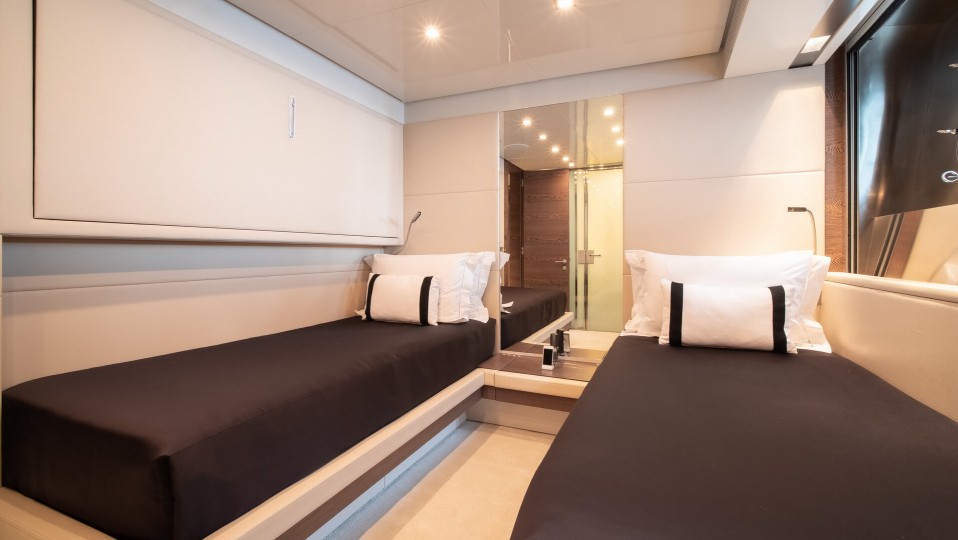

For up to 14 guests in 6 cabins and comprises of a vast main deck with full beam Master suite forward with ensuite bathroom. The guest accommodation is all on the lower deck and comprises a full beam VIP, 2 double cabins and 2 twin cabins both with additional Pullman berths. All guest cabins are en suite. There are separate crew quarters, with accommodation for 7 crew.
SPECIFICATIONS
Type
Motor
Build
Hull
GRP
Guests
12(Sleeping)
Year
2008 (Refit in 2018)
Cabins
6
Length
39.8m (131ft)
Crew
7
Beam
7.6m (25ft)
Speed
21(Cruising)
Draft
2.72m (9ft)
