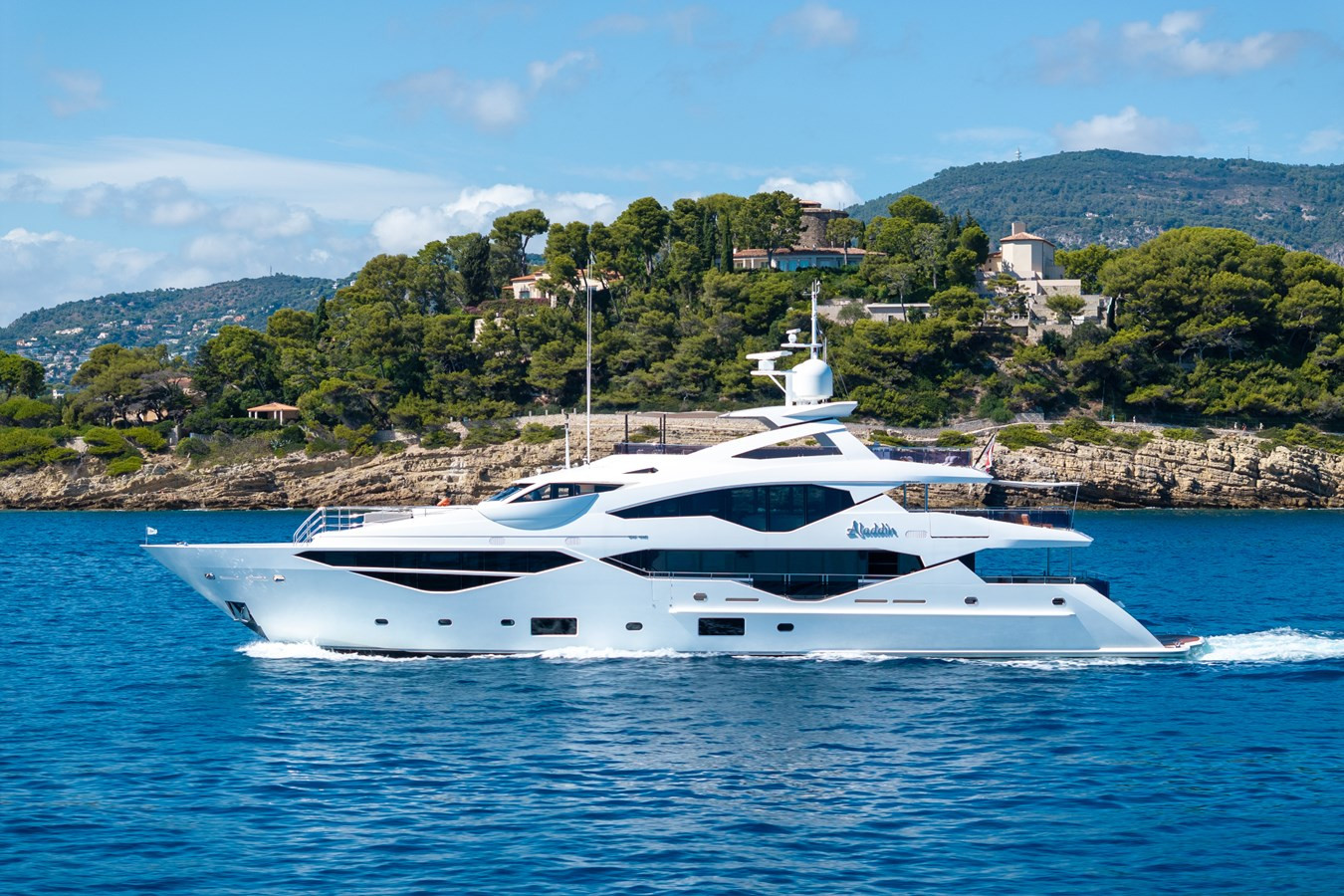

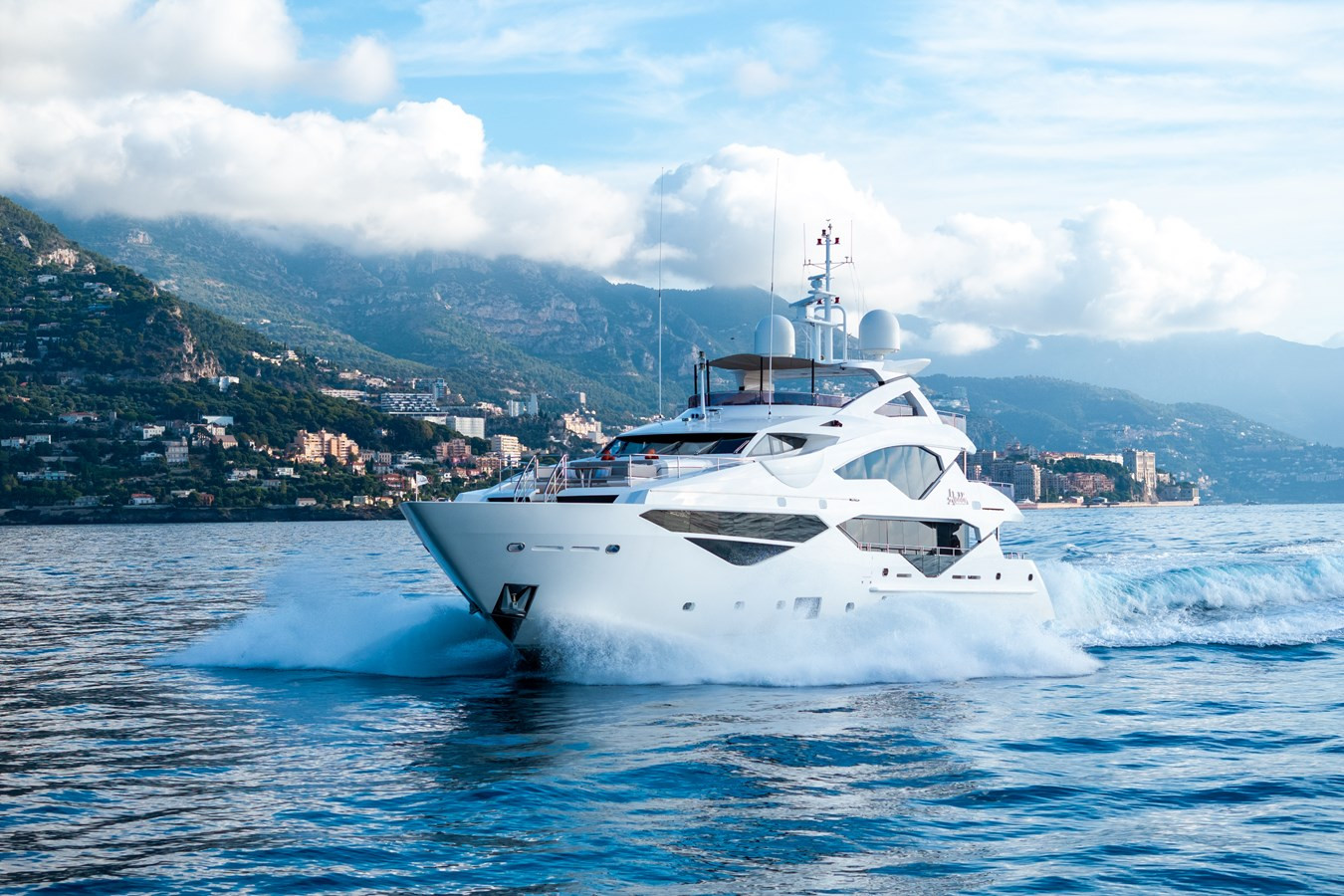

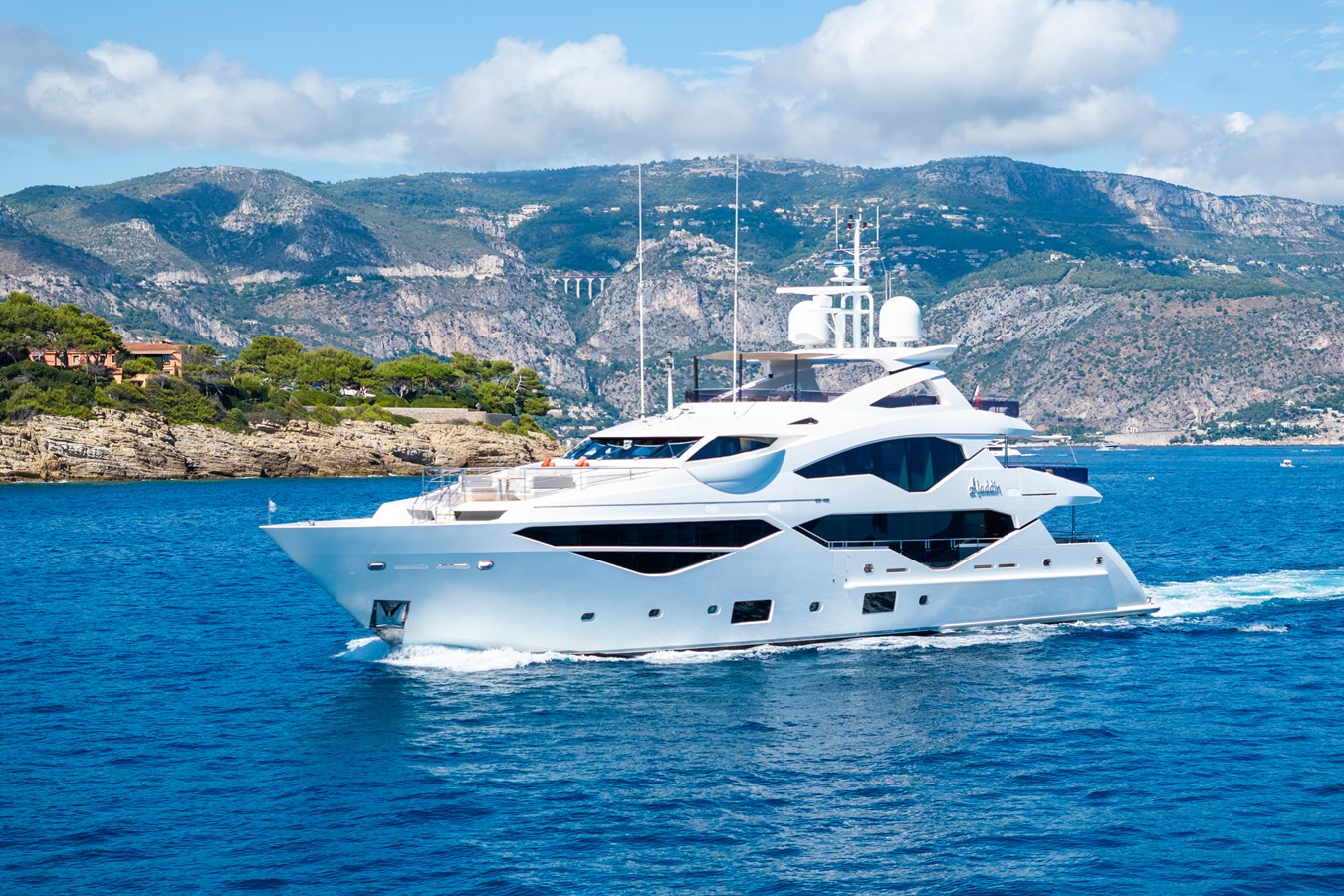

Builder: Sunseeker

Model: 131 Yacht

Year: 2017

VAT: Paid

Length: 40.05m / 131’ 5”

Beam: 8.09m / 26’ 7”

Draft: 2.70m / 8’ 10”

Hull: GRP

Classification: RINA

Flag: Malta

Port of Registry: Valletta

Guests:12

Guest Accomodation: 1x Master, 2x VIP, 2x Convertible Twins with pullmans

Crew: 8

Crew Accomodation: 3 x Twin Crew Cabins + 2 single cabins

Exterior Designer: Sunseeker

Interior Designer: Sunseeker

Engines: 2 x MTU 12V 4000 M93

Max Speed: 22 Knots

Cruising Speed: 16 Knots

Economic Speed: 12.5 Knots

Fuel Capacity: 26,700 Litres

Fresh Water Capacity: 4,950 Litred

- Most lightly used Sunseeker 131 yacht on today‘s brokerage market

- Only ever used privately with VAT paid status

- Long list of upgrades over the standard specification

- Accommodation for up to 12 guests in 5 staterooms including Master suite, 2x VIP suites, 2x Convertible Twin cabins

- Designed to accommodate a crew of up to 8

- Expansive outdoor leisure zones

- Distinctive profile with large floor-to-ceiling windows

- Equipped with zero-speed and underway stabilizers

- A blend of powerful top speed of 22 knots

- Full list of of tenders & toys as part of the sales inventory

- Certified RYA training center

Economic Speed                 12.5 Knots / 260l/h

Cruising Speed                    16 Knots / 540l/h

Max Speed                           22 Knots / 1180l/h

Hull - White

Hull Band - White

Boot Top - Grey

Superstructure - White

Cabinetry - Gloss American Walnut

Roof Linings - Shimmer Polar White

Interior Upholstery - Ice

Exterior Upholstery - Shingle

Flooring - Satin Walnut 140mm Wide

Plank Timber and Carpet

Built to RINA Rules for the Classification of Yachts Designed for Commercial Use 2013 and the MCA Large Yacht Code (LY3) with the following operational Class notation. PLEASURE VESSEL - RINA: C + HULL . MACH Y Unrestricted navigation EFP (Enhanced fire protection)

Certification - International tonnage certificate

Certification - Panama canal tonnage certificate

Certification - Suez canal tonnage certificate

Flag registered in Malta

Electric - Main Deck Saloon Stern Sliding Patio Doors

Electric - Upper Deck Saloon stern sliding patio doors

Lower Deck Cabins - Electric Blackout Blinds

Main Deck Saloon full height glass on the port side

Main Deck Saloon full height glass on the starboard side

Master Stateroom - Dometic HiPro Mini-Bar

Master Stateroom - Dometic Safe MD 281C concealed in cabinetry

Master Stateroom - Powered Blinds for port and starboard windows

Medium Tinted film to side windows and sliding doors

Port Forward Stateroom - Pullman berth

Port Forward Stateroom - Sliding Berths to create Double or Twin Beds

Powered Blinds for the Main Deck Master Stateroom, the Port Aft Guest Stateroom, the Starboard Aft Guest

Stateroom, the Port Forward Guest Stateroom and the Starboard Forward Guest Stateroom

Second helmseat in Wheelhouse

Sprung mattress for all beds

Starboard Forward Stateroom - Pullman berth

Starboard Forward Stateroom - Sliding Berths to create Double or Twin Beds

Turnstyle Leather and polished Chrome door handles

Upper Deck Saloon - Icemaker Victrofrigo Classic

Upper Deck Saloon - Miele undercounter Refrigerator

Upper Deck Saloon - Wine Cooler

Vimar ByMe Lighting controllable also from Wheelhouse Bridge Touch Screen

Vimar ByMe Lighting controlled from internal Touch Screens

Upper Deck Saloon - Wine Cooler

Kahlenberg Chimetone D1 chrome twin trumpet fitted on forward brow

Navigation Halogen lights - Aquasignal series 55

Preparation for future fitment of V-Sat, including all associated wiring and power supplies – Starlink maritime antenna installed and in use

Professional Appliances - Second set of Miele Professional laundry Appliances. Miele Washing

machine and Miele Tumble dryer

Professional Appliances. Miele Washing machine and Miele Tumble dryer

Shore power configuration is a single 125A plugged flexible 20M cable on an electric reeling system.

Second Shore power configuration is a single 125A plugged loose flexible 20M cable via a fixed inlet.

Connected to a shore power converter Atlas 90 kVA-SPA-II Series 50Hz. Input 180-530V three phase

phase up to 90kVA. Output 230/400V 50Hz 3 phase 90kVA

Shore power converter Atlas 90 kVA-SPA-II Series 50Hz. Input 180-530V three phase up to

90kVA. Output 230/400V 50Hz 3 phase 90kVA

Sockets - Interior AC 220V 50Hz sockets - Euro 2 pin

Tijssen - Display of the main generator parameters.

Tijssen - Remote Access via internet VPN for Tijseen Elektro factory (captain approve access only)

 Fire Alarm Monitoring. Pop up alarm in the event of active fire alarm

Tijssen - AC Electrical system power monitoring and display.

Tijssen - CCTV camera system with eight dedicated cameras.

Camera 1 Main deck Aft viewing aft stern entry point

Camera 2 Engine room (PTZ-360°)

Camera 3 Engine room (PTZ-360°)

Camera 4 Port Main deck side deck (viewing aft)

Camera 5 Starboard Main deck side deck (viewing aft)

Camera 6 Tender Garage.

Camera 7 Upper Deck Aft Cockpit.

Camera 8 Sky Deck deck (viewing aft)

+CCTV recorder installed onboard

Tijssen - DC System Power monitoring and display.

Tijssen - Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring

and control system. Tijssen Master MPA 17” touchscreen display.

Tijssen - Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring

and control system. Tijssen Master MPA 19” touchscreen display in the Wheelhouse.

Tijssen - Master MPA 15” touchscreen display in the Crew Mess.

Tijssen - Master MPA 17” touchscreen display in the Tech Room.

Tijssen - Monitoring and Control of all major fluid pumps (Fuel Transfer, Black and Grey)

Monitoring of status of all the main circuit breakers.

Tijssen - Monitoring and Control of engine room ventilation.

Tijssen - Monitoring and control of navigation lights.

Tijssen - Monitoring and display of DC switch gear status.

Tijssen - Monitoring exhaust temperature

Tijssen - Monitoring of Diesel fuel, fresh water, grey water and black water and Oil tank levels.

Tijssen - Monitoring of Portlight and Hatch Status.

Tijssen - Monitoring via a single float switch of bilge water level in 13 bilge compartments.

Tijssen - MPA Generator Control and Monitoring System Upgrade. Additional feature allowing

complete control and monitoring of generator parameters and alarms via the Tijssen Touch

Screen.

Tijssen - Slave MPA 15” touchscreen display in the Engine Room.

Tijssen - Status monitoring and control of AC switch gear.

Tijssen - Swipe card security alarm Integrated to MPA system

Two LED up lighters for navigation mast

Two Shorelines are provided for connection to the PABX and an external Ethernet Network connection

ABT.TRAC provides the hydraulic system for the Thruster system, Stabilisers if specified, foredeck windlasses and aft deck capstans Each engine turns a 140cc load sense hydraulic pump via a SAE-C PTO on the gearbox. A 75cc load sense hydraulic pump via a SAE-C24 volt clutched PTO on the main generator and a 75cc load sense hydraulic pump via a SAE-C24 volt clutched PTO on the second generator.

Air Conditioining - Marine Air MCG V120 Modular Chiller 4 x 120000BTU

Air Conditioning for the engine room. Two Marine Air VCD27K (54,000 Btu) Self-contained units

Alfa Laval MIB303 Fuel cleaning centrifugal separator 240V 1 Phase 50Hz 760 l/h

Auto Troll for Transmissions for slow speed manoeuvring

Bilge pump system with primary engine room pump being the Gianneshi self priming centrifugal 400V 3 Phase 50Hz 7.5kW and a secondary (as shared with the Hydrant suction system) Gianneshi self priming centrifugal pump powered by an independent diesel engine located in the pump room. Both are coupled to bilge manifould valve blocks which are connected to the strum boxes throughout the boat.

MTU fitted Stbd engine direct bilge pump with strum box.

Black water holding tank is an integral GRP tank of 1340 litre capacity. Discharge via a Gianneshi 400V 3 Phase 50Hz self priming centrifugal macerating pump to either a shore facility when available or directly overboard (refer to MARPOL regulations) or the Sewage treatment.

Diesel fuel day tank is an integral GRP tank of 3,900 litre capacity with an AC transfer pump to replenish from the main tank.

Diesel fuel long range overload integral GRP tank of 5,700 litre capacity

Diesel fuel main tank is an integral GRP tank of 19,000 litre capacity

Fire Hydrant primary engine room pump being the Gianneshi self priming centrifugal 400V 3 Phase 50Hz 7.5kW and a secondary Yanmar self priming centrifugal pump powered by an independent diesel engine located in the pump room. Fire Hydrant hose station located in the pump room.

Fireboy-Xintex Fire alarm detection system. Model Syncro ASM control panel with dedicated Apollo smoke/heat detectors in all accomodation areas and heat detector in the galley. Connected to the MPA system to repeat alarm.

Fresh water tank is an integral GRP tank, WRAS approval for portable water of 5200 litre capacity.

Pressure system via Twin Gianneshi Duplex 400V 3 Phase 50Hz self priming pumps 100 l/m each and mounted with inlet/discharge manifold.

General Ecology Seagull IV X-2BK in-line freshwater purifier serving the galley, upper deck servery, crew mess and 2 independent icemakers

Generators - Two Kohler 75kw 400/230V 3 Phase 50Hz - 80EFOZDJ with sound shields

Grey water from showers, wash basins washing machines and galley services will drain to Tecma transfer units 240V 1 Phase 50Hz to large diameter gravity fed pipes into the Grey water integral GRP holding tank of 1250 litre capacity. Discharge is via a Gianneshi 400V 3 Phase 50Hz self priming centrifugal macerating pump to directly over board or the black water tank to that the waste can be removed via a shore side facility when available or to the sewage treatment system.

Hot water calorifiers. Two x Surejust horizontal 200 litre stainless steel cased tanks, each with 3 x 2kW 230V 3 phase immersion heaters. 60 litre expansion tank.

Hot/Cold water circuit ring main throughout the lower and main decks with permanently running circulation pumps 230V 1 Phase 50Hz - 120W

Hydraulic Bow thruster system 100HP ABT.TRAC 20‘‘ twin blades opposite opposed

Hydraulic Stern thruster system 65HP ABT.TRAC 16‘‘ twin blades opposite opposed

Hydrosil dosing unit. Will disinfect the freshwater supply from the connection point in the starboard aft service locker or from the watermaker. Located on the garage the Octo Marine Compact Fresh Water Softener

Portable air compressor OP20P stored in the engine room with AC 220v power supply

Reverso portable electric transfer pump Oil change system for engines gearboxes and generators with quick coupling connection pipes

Sea-Fire FM-200 H-Series fixed machinery space fire extinguishing system.

Sewage Treatment plant. ECOmar 32 SX-R (3200 l/day) 230V 1 Phase 50Hz Trailing Pumps. Used to supply oil pressure for gearbox lubrication during windmilling situations, this may include running on one engine or when under tow

Water Maker - Idromar Water Maker 375 litres per hour

4 x Zodiac 10 Person SOLAS A Life rafts

6x 65mm LED lights on moulded return of garage door

All teak decks have GREY caulking in lieu of the standard black

Besenzoni Hydraulic three stage Telescopic stainless steel Passerella 5.8m

Carbon fibre and polished stainless steel ensign staff suitable for 2.5 yard ensign

Exterior AC 220v sockets in the following areas. 1. Sky Deck wet bar 2. Forepeak Locker 3. Upper Deck Aft Cockpit Servery. 4. Wheelhouse Deck Seating.

Four (4x) Summit SD345 sun loungers on Sky Deck. Upholstery colour - Sunbrella Shingles

Hot and Cold water wash down outlets for exterior

Hydraulically rise, fall and tilt platform with maximum lift capacity of 2000 kg

Main Deck Aft Cockpit furniture - Fischer Mobel loose fit in lieu of standard taken from the SUITE collection.

Marquip 8 step side mount stairway with hull fittings port and starboard with dedicated stowage

Morton Marine Monte Carlo 3m Parasol with offset post and two sockets with dedicated stowage

Natural teak plinths either side of tender recovery recess in tender garage aperture with teak infill. Teak

features GREY caulking in lieu of black.

Port and Starboard stainless steel stern hausers through aft bulwarks for stern too mooring or towing

Operations

Radar in white and blue epoxy coated finish and navigation mast in white epoxy coated finish

Removable overhead shower stand on the platform

Removable polished stainless steel bathing ladder with teak treads

Retractable electric sun awning to cover the aft sky deck in Sunbrella Plus – Silver

Sail Canopies for forward section of Sky Deck with stainless steel poles and integrated rope tensioning

System

Seawater pressure washing of anchor chain with outlet in each hawse pipe

Second pair of Mooring Bollards on Forepeak

Sky Deck - Refrigerator. Waeco Coolmatic

Sky Deck- Icemaker Victrofrigo Classic

Sky Deck GRP Hard top

Special circular 10x seat dining table with lazy susan required for forward section of Sky Deck

Stern capstan winches - two Lewmar C10 Hydraulic fitted port and starboard

Tender diesel fuelling station with transfer pump from day tank and fuel hose reel

Two lengths of 17.5mm high tensile galvanised studlink chain. Both at 165m long

Two Manson Ray 210kg galvanised bow anchors

Underwater lights. Lumishore LED underwater lights required x 21. 5x across transom and 8x either side - Lumishore TIX601-FF-W WHITE

Upper Deck Aft - Four (4x) Summit teak chairs upholstered in Sunbrella Shingles and four (4x) Summit side tables

Wing station control - port and starboard of main wheelhouse

AIS - Furuno FA170 Class A AIS Transponder with GPS and VHF antenna.

Autopilot - Simrad AP70, including follow-up levers on wing stations.

Bridge Navigational Watch Alarm - Furuno BR510.

Captains helm seat has Simrad QS80 and trackball mounted in the arms

Central Navigation Display - FT Nav-vision Navigation data display with trackball and wireless

keyboard.

Echo Sounder. Furuno FE8010 50KHz with 50B-6B Transducer.

Electronic Chart System upgrades – TimeZero Professional, ARPA and Radar intergration.

Electronic Chart System - Transas Navi-Sailor 4000 ECDIS (installed but not operational)

EPIRB – Ocean Signal EPIRB 1 Pro.

Five x Hatteland Series X 19” Maritime multi Displays for Radar, Plotter, central navigation (CCTV

and second radar when specified) (Sixth standard display for the Tijssen monitoring system)

Furuno Radar FAR2837S-BB S-Band 3GHz 30Kw with 10’ Open Scanner with Furuno processor

RPU-013 and Furuno keyboard RCU-14.

Furuno ultra sonic wind sensor connected to the Central Navigation Display.

GPS - Furuno GP170 GPS Navigator with GPS antenna.

Handheld Portable VHFs - 2x Icom IC M37 and 2x emergency Simrad Axis 50.

Iridium 9555 Satellite Phone system with docking station and external passive antenna

Magnetic Compass - A magnetic compass with 6” card.

Measuring Log - Sperry Naviknot 350E with FNFII through hull sensor.

MF Radio - Sailor 6301 MF/HF 150W Radio Telephone.

MFD display per engine.

MTU - LOP-14 Local operating panel with display in engine room per engine.

MTU BlueVision Basic New Generation ships automation systems. MFD display per engine.

MTU RCS Engine propulsion control levers.

MTU Stop/start operating panel per engine

Navigation and Communication Equipment is Type Approved to comply with LY3 Large

Commercial Yacht Code

Navtex Receiver - Furuno NX700B.

Panasonic PABX telephone exchange fixed Phone handset

Rudder Angle Indicator - Navitron RT290 RAI.

Sanshin Twin Beam remote controlled Searchlight HR-1012 dual station control

SART – Ocean Signal S100.

Satellite Gyro Compass - Hemisphere GNSS V103.

Second Furuno Radar FAR2117-BB High speed X-Band 9GHz 12kW with 4’ Open Scanner with Furuno

processor RPU-013 and Furuno keyboard RCU-14.

Tijssen Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring

and control system. Tijssen Master MPA 19” touchscreen console display.

Tijssen MPA Generator Control and Monitoring System Upgrade. Additional feature allowing complete

control and monitoring of generator parameters and alarms via the Tijssen Touch Screen.

Tijssen SMS Paging facility allowing MPA alarms to be sent to up to five GSM accounts (Sim card and

subscription not included)

VHF Radio - Sailor 6222 Class A VHF - DSc.

VHF Radio - Simrad HS90 Class D VHF/DSc with Handsets in Wheelhouse, Crew Mess and Emergency Steering. Position. Inmarsat C with LRIT. Sailor 6006.

Audio for Main Deck Aft Cockpit - Four Sonance VP65R XT Extreme Speakers with Sonos Connect and amplifier

Audio for the Sky Deck - Six Sonance VP65R XT Extreme Speakers with Sonos Connect and amplifier

Audio for Upper Deck Aft Cockpit - Four Sonance VP65R XT Extreme Speakers with Sonos Connect and amplifier

Audio for Wheelhouse Deck - Four Sonance VP65R XT Extreme Speakers with Sonos Connect and amplifier

Captains Cabin AV - Samsung 32’’ HD LED Television. Fusion DVD/CD/FM Tuner with Bluetooth function. Fusion Speakers x 2. 0

Crew Mess AV - Samsung 40’’ HD LED 3D Television. Harmon Kardon 280 2.1-3D Blueray surround system. B&W Speakers x 2. B&W Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI socket. Apple TV

Galley - Fusion CD/FM Tuner with Bluetooth function. Fusion Speakers x 2

Integrated Sonos System allows audio streaming throughout outside areas, saloons, master stateroom and all guest cabins.

Audio streaming can be via any Apple or Android equipment with Wi-fi capability. Sonos Control App needs to be installed.

One Apple iPad is supplied as standard. . Main Deck Saloon AV - Samsung 65’’ HD LED Television. Harmon Kardon 580

5.1 -3D Blueray surround system. B&W Speakers x 5. B&W Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI and USB. .

Upper Deck Saloon AV - Samsung 75’’ HD LED Television. Harmon Kardon 580 5.1 -3D Blueray surround system. B&W Speakers

x 5. B&W Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI and USB. . Master Stateroom AV - Samsung 55’’ HD LED 3D

Television. Harmon Kardon 580 5.1 - 3D Blueray surround system. B&W Speakers x 5. B&W Sub-Woofer. Sonos Connect wired

to AV Receiver. HDMI socket. .

 Starboard Aft Stateroom AV - Samsung 40’’ HD LED 3D Television. Harmon Kardon 280 2.1-3D

Blueray surround system. B&W Speakers x 2. B&W Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI socket. .

Port Aft Stateroom AV -Samsung 40’’ HD LED 3D Television. Harmon Kardon 280 2.1-3D Blueray surround system. B&W Speakers x 2.

B&W Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI socket. . Starboard Stbd Forward Stateroom AV - Samsung 40’’ HD

LED 3D Television. Harmon Kardon 280 2.1-3D Blueray surround system. B&W Speakers x 2. B&W Sub-Woofer. Sonos Connect

wired to AV Receiver. HDMI socket. .

Port Forward Stateroom AV - Samsung 40’’ HD LED 3D Television. Harmon Kardon 280

2.1-3D Blueray surround system. B&W Speakers x 2. B&W Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI socket. .

B&W Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI socket. .

Fusion DVD/CD/FM Tuner with Bluetooth function. Fusion Speakers x 2. 0. Each of the four Crew Cabins, the Wheelhouse and

the Galley have the following Audio. Fusion CD/FM Tuner with Bluetooth function.

Main Deck Saloon AV - Samsung 65’’ HD LED Television on rise and fall. Harmon Kardon 580 5.1 -3D Blueray

Superyacht Custom Commercial Galley Refrigeration by Frigoboat with polished stainless steel interiors - Four units giving 1440 litres fridge capacity and two units giving 646 litres freezer capacity. Increases volume and performance with remote sea water cooled refrigeration Plant.

Custom integrated galley extraction. Extraction fan - Systemair KE 50-25-4 - 230V 1 Phase 50Hz with Actionair AirShield control damper. This draws air from the stainless steel galley hood,through a single rectangular duct to the exterior of the vessel.

Food warming heat lamps in main deck galley

Galley waste disposal – Insinkerator

Miele KM6879 Induction hob 5 zone - 900mm

Miele M6260TC Microwave oven 46 litre capacity

Professional Appliance Miele dishwasher PG8056

Two x Miele H6460BP single convection ovens

Dumb waiter linked to the lower deck servery

Miele stainless steel front Refrigerator

Dumb waiter linked to the upper deck servery

Icemaker Victrofrigo Classic

Sub-Zero ICB427G -LH Built in full height Wine Cooler. 132 bottles

Miele undercounter Refrigerator

Miele 220V Slimline Dishwasher

Miele H7240BM Combination Microwave convection oven

2 x jetskis Sea doo RXP 300-RS

1x Jet tender Williams 565 (diesel jet Yanmar engine 180HP)(Raymarine plotter and depht sounder installed)

1x rescue tender Aero Marine with outboard Yamaha engine 9.9HP

3x Seabobs F5S

3x Jobe electrical paddle boards

2x non electrical paddle boards

1x Jobe 3 seaters sea donut

1x set of diving gear

10x PFDs

Beach set up equipment (beach chairs, umbrellas, kids beach toys,beach mats, snorkling gear

5 x electrical scooters

3x hover boards

Aladdin is also a certified RYA training center.

We also have a dispensation from Malta and Rina for a static charter with an extra 35 guests onboard. New stability booklet was issued by a naval architect.
