Communications and Navigation Equipment
- Radar x-band black box 6kW-64nm
- AIS transponder class B
- Depth, speed and temperature data
- 3 x display LCS 19"
- 4.3" multifunction display for GPS data
- 4.3" multifunction display for weather station data
- Satellite compass system
- Autopilot
- Magnetic compass
- VHF
- EPIRB
- Rudder tiller
- Analogic rudder angle indicator
- 1 x Weather Station
- 1 x Searchlight
- Automatic pilot: Sperry 4000
- Log: Furuno DS80
- Echo Sounder: Furuno FE800
- Radar: Furuno RCU 014
- GPS: Furuno GP170
- AIS: Furuno FA 170
- Navtex: Furuno
- Wind Instruments: Furuno RD93
- Navigation lights
- Air horn
- Loudhailer
- Ship’s bell
- Terrestrial TV antenna
- 2 x VHF antennas
- 3 x GPS antennas
Mechanical, Propulsion and Engine Room
Main engines: MTU 12V 2000 M72 (1448 HP)
Engine hours: 1520 hrs
Gear Boxes: 2 x ZF BW 3350
(Manufacturer extended warranty on engine & gearbox)
Main Engines Exhaust system: Main submersed exhaust at normal speed and secondary Bulwarks exhaust above water line level
Shafts: Stainless Steel Marinox17
Propeller system: 2 x 5-fixed blades propellers
2 x Stainless steel rudders
Steering system: CMC Directa 100 with 2 independent Electric power steering systems Rudder Angle indicator: CMC
Bow thruster: CMC Marine BTM 60EA-52 Bow Thruster
Stabilizers: CMC Marine SE 80At anchor and underway “Zero speed”
Fuelseparator: AlfaLavalMIB303S-13/33fuelcleaningsystem
Oil/Water separator: NON
Fire/Bilge pump: Self-priming pump in engine room
Spare Emergency diesel pump for the firefighting system
Automatic bilge system in each watertight compartment
Air-conditioning: Dometic 360,000 BTU/h
Sewage treatment system: Tecnicomar 70
Boilers: 3 x Gianneschi 200 liters Tri phases double Element
WC system: T ecma T oilette 220 Vac
Water makers: Idromar MC9S 600 L/H
Hot water: Circulation Pump Wilo
Electrical Equipment
400Vac / 50Hz / 3 ph main power;
230Vac / 50 Hz / 1 ph for small users and technical area lights;
Generators: 2 x Diesel generators Kohler 70 EFOZDJ 400Vac /50Hz / 3ph + neutral, 70kW (140 Amp) Aprox Hours: 3300 Hrs.
Emergency generator: NON
Electricity: On Board 380 and 220 Volts AC
Converters: Asea Converters 2*45 KVA
The Asea shore power converter allows SOSA to use shore power both in Europe and the Carribean / USA.
Batteries:
24Vdc battery set of 480 Ah approx. (2Vdc elements) incontrol room
Main engine ignition batteries: 24Vdc batteries of 220 Ah approx. (12Vdc elements)
- Gen set ignition batteries: 24Vdc batteries of 110 Ah approx. (12Vdc elements)
- RTF emergency batteries: 24Vdc batteries of 210 Ah approx. (12Vdc elements) gel batteries feeding the radio communication systems.
- Emergency batteries: 24Vdc batteries of 630 Ah (12Vdc elements) gel
Battery chargers:
- 1 x battery charger for services, 24Vdc 75 A
- 1 x battery charger for main engine start-up, 24Vdc 50 A
- 1 x battery charger for gen set start-up, 24Vdc 25 A and 1 Spare Same capacity - 1 x RTF battery charger, 24Vdc 25 A
- 1 x emergency battery charger 24Vdc 75 A
Galley, Domestic and Laundry Equipment
1 x Oven
1 x Microwave
1 x Miele steam oven
1 x Full induction stove
1 x Zanussi professional hood
2 x Refrigerators
1 x Freezer
1 x Ice maker
1 x Dishwasher
1 x Wine cooler (34 bottles)
Coffee machine: Nespresso Delonghi
2 x Miele Washing machines 2 x Miele Tumble dryers
Refrigerator in Main deck salon
Cold garbage storage on foredeck
Skylounge Equipment
1 x Ice maker
1 x Wine cooler 1 x Dishwasher

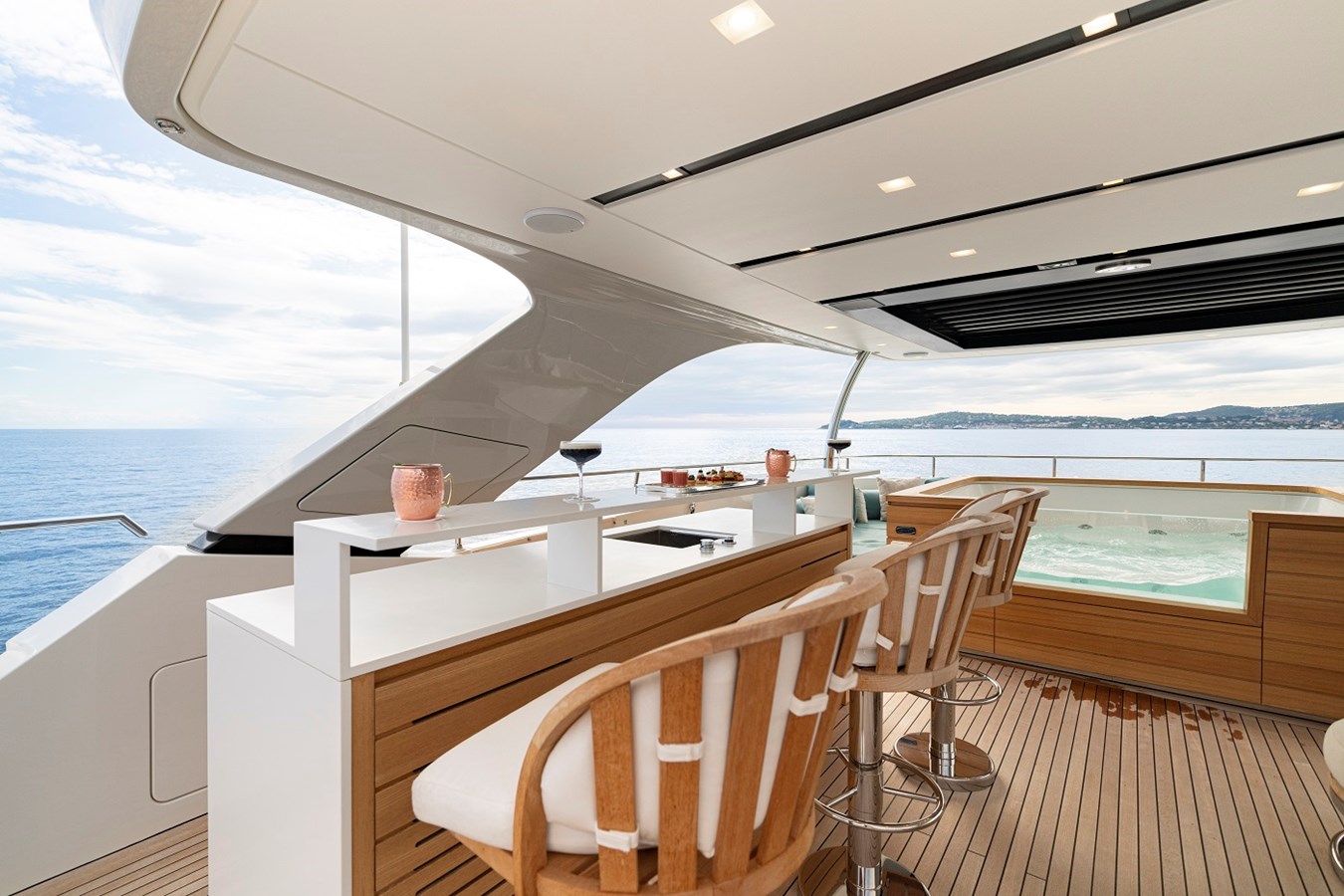

Flybridge Equipment
1 x Refrigerator 1 x Ice maker
Crew Mess Equipment
1 x Refrigerator
A/V Entertainment Equipment
TV Sat Antenna Seatel TV 100
Radome Seatel TV 100
4G Wifi with harbor hot spot antenna
Land TV antenna and AM/FM antenna
Sealux System available in guests areas, staterooms and Captain’s cabin

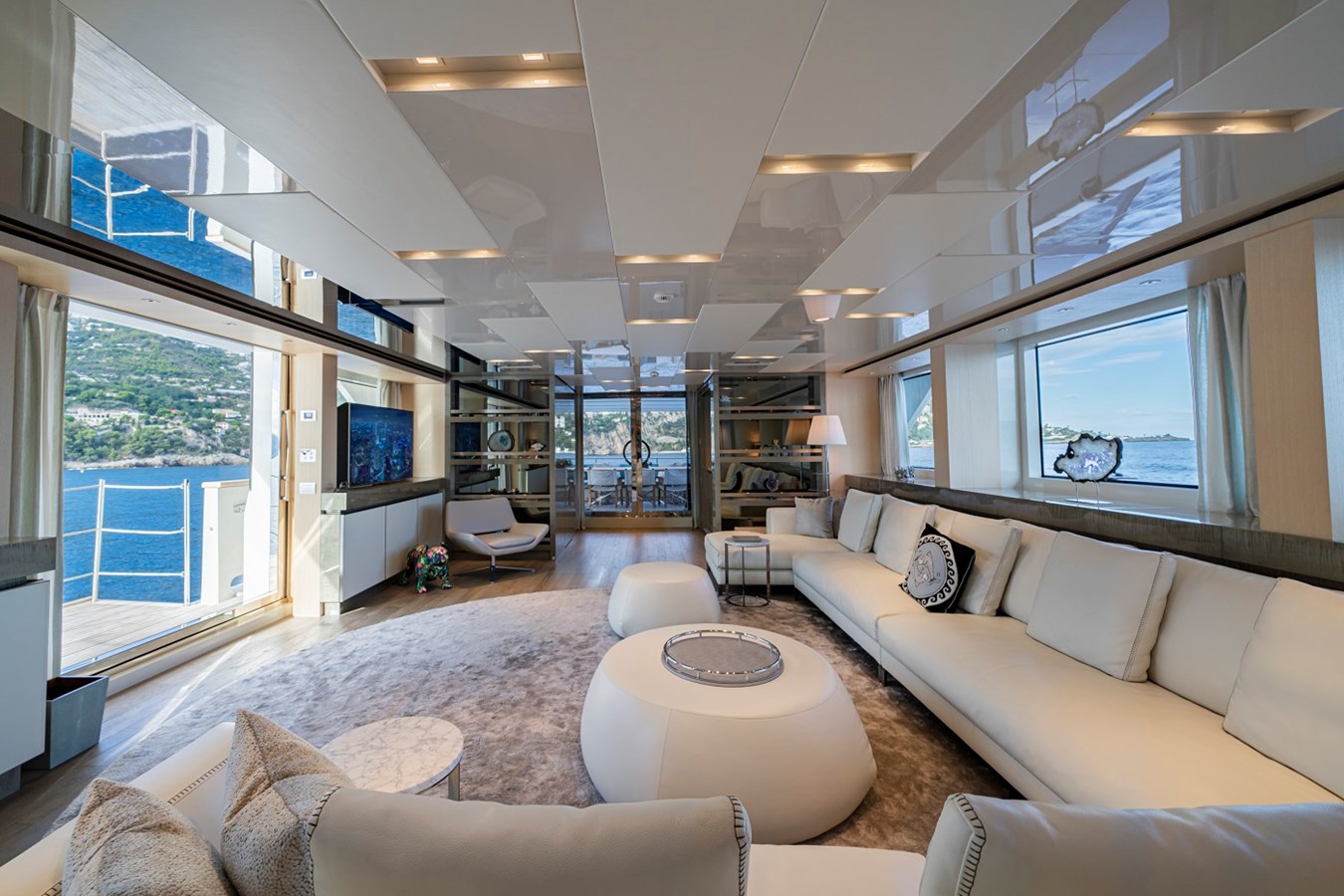

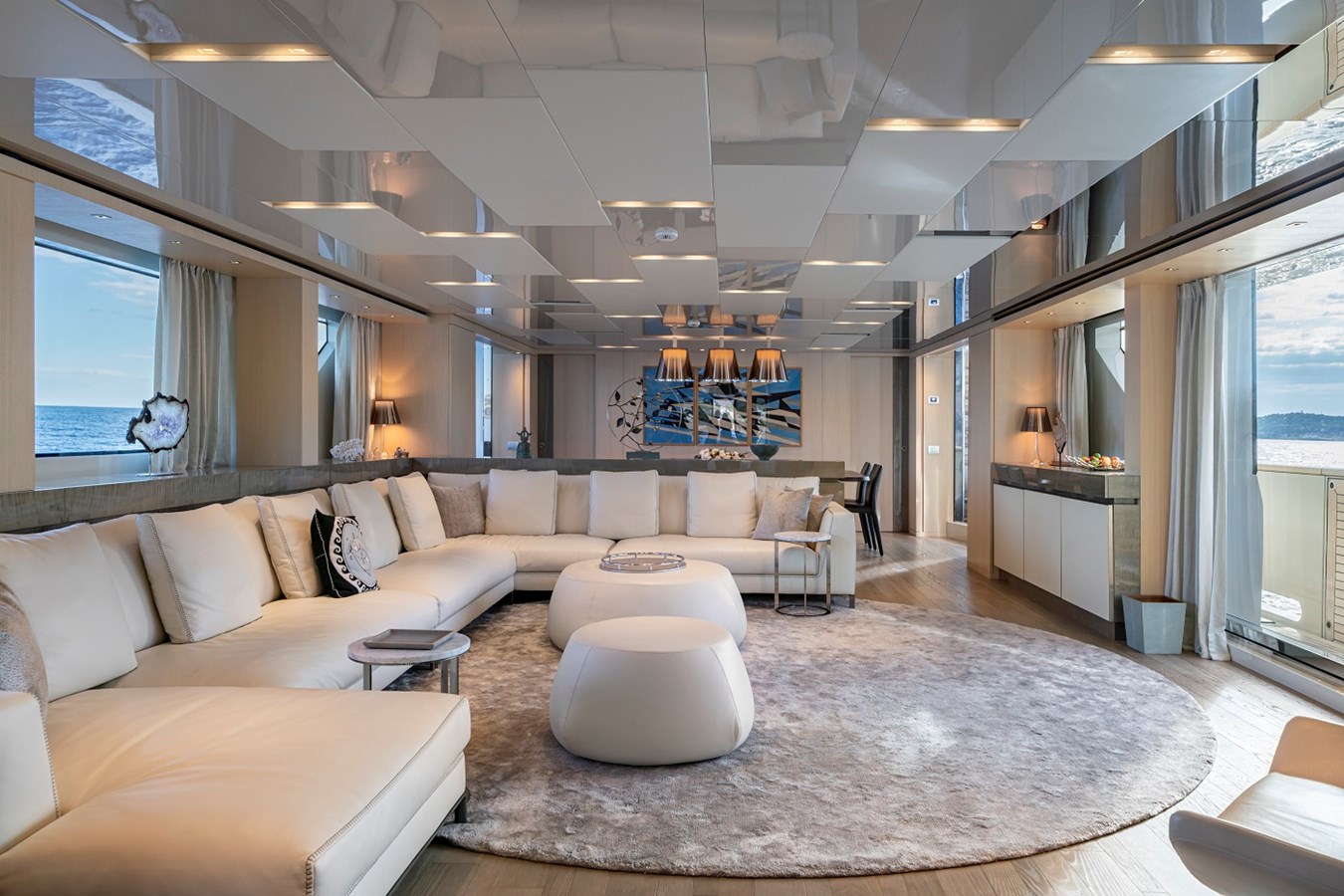

Main Salon:
50” Smart Samsung TV
B&W amplifier with 5.1 home theater
DVD Blu-ray Samsung player
iPad Mini controller
Dining Room:
2 x B&W Speakers

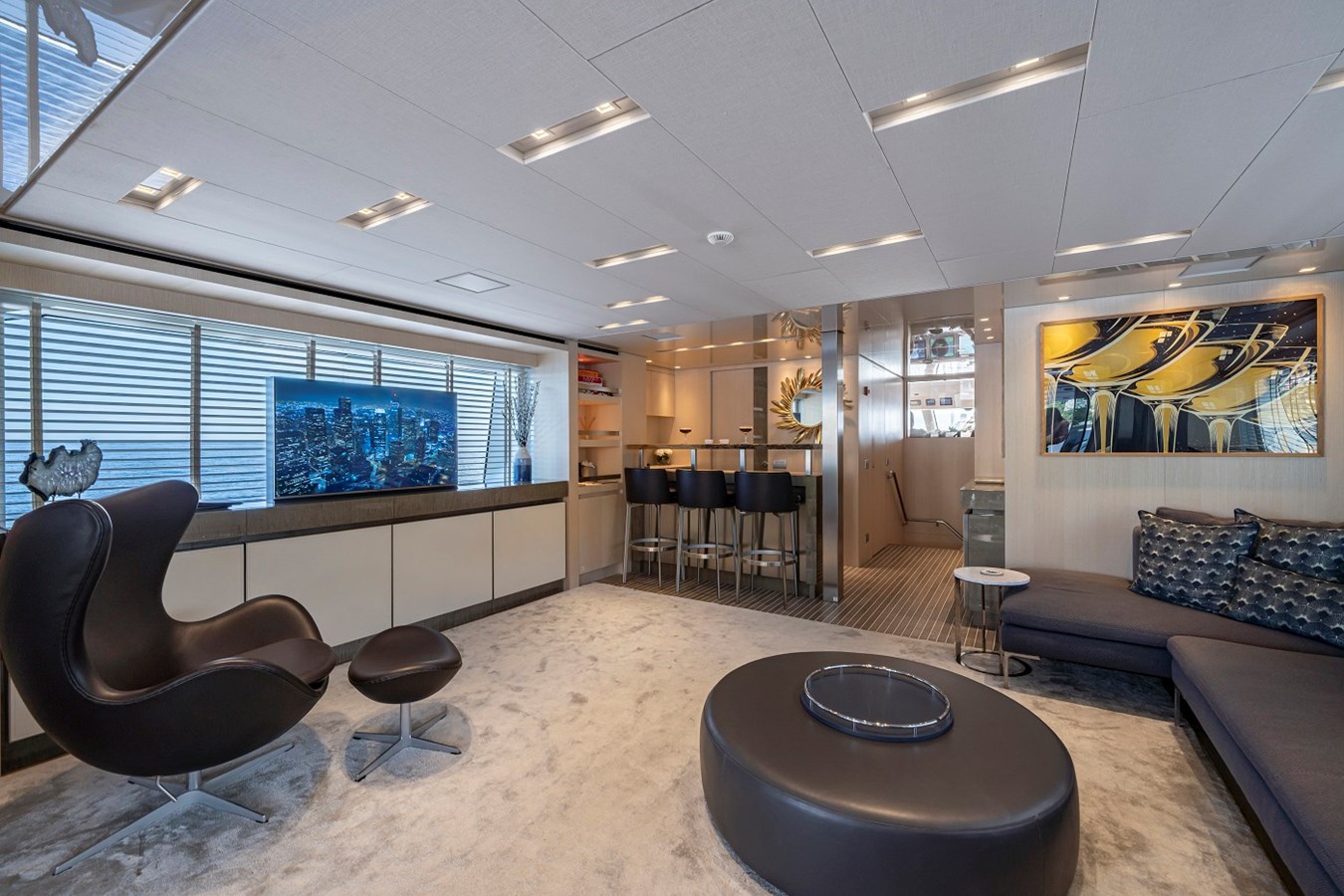

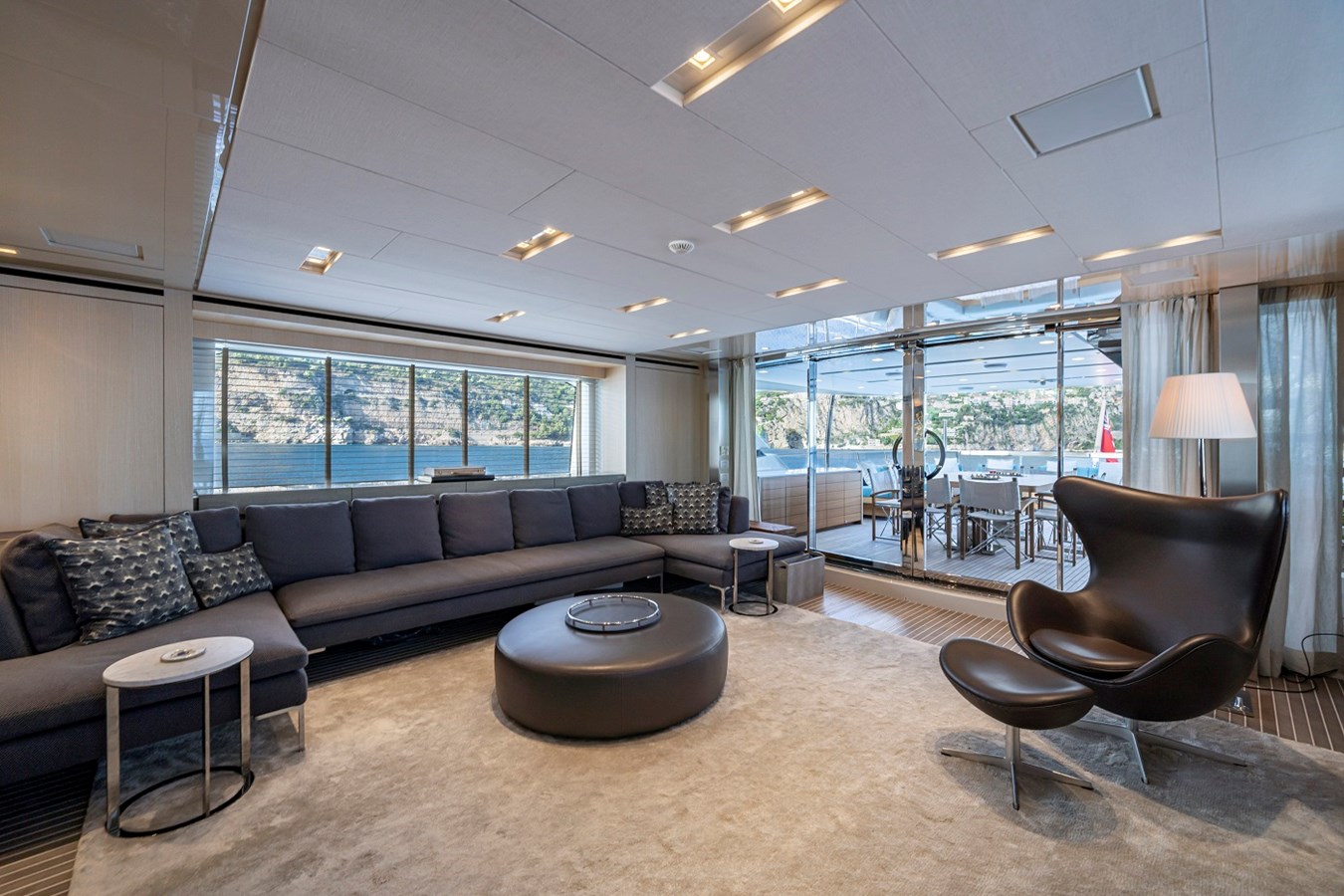

Skylounge:
50” Smart Samsung TV
B&W amplifier with 5.1 home theater Sky TV
IPTV
DVD Blu-ray Samsung player
iPad Mini controller

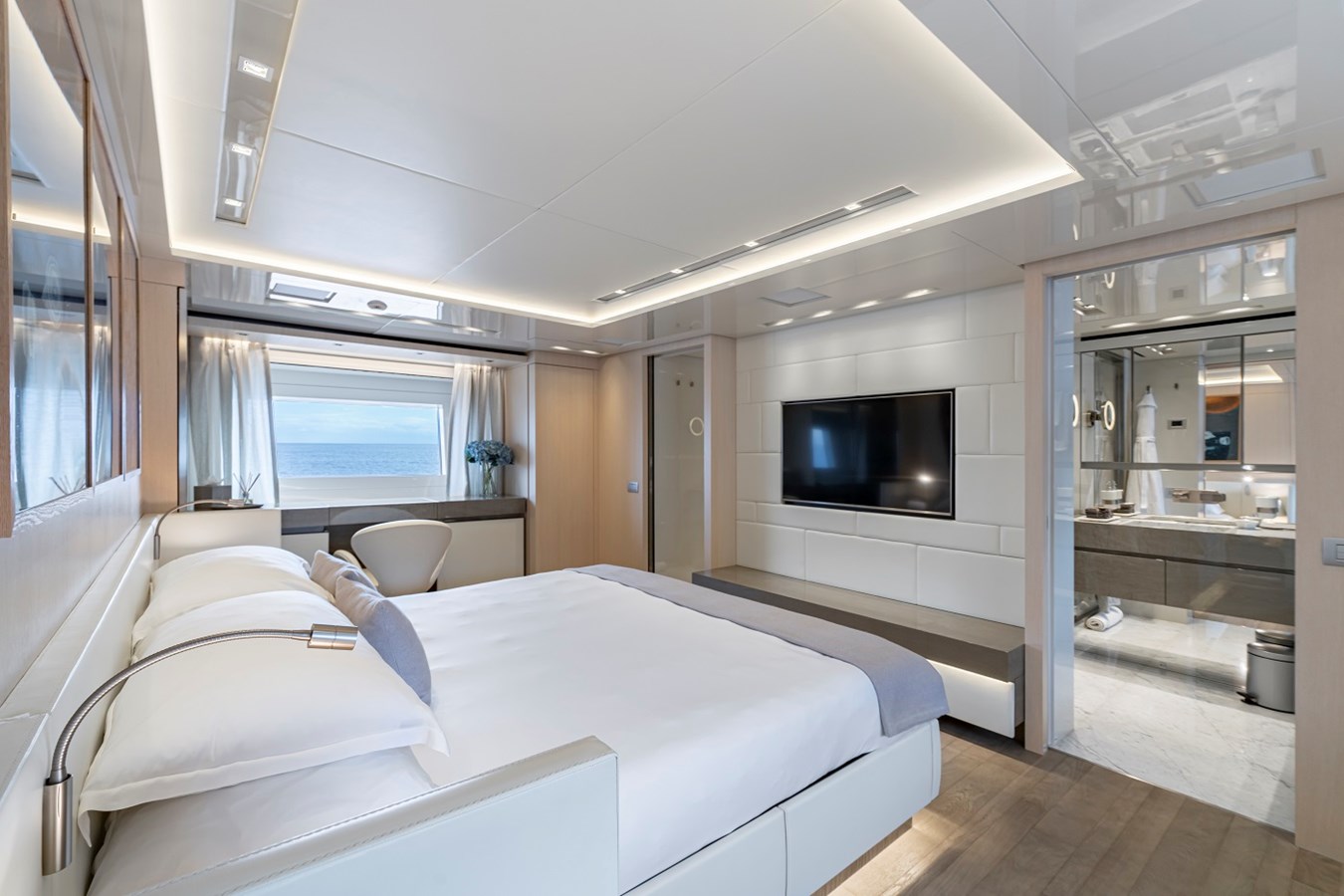

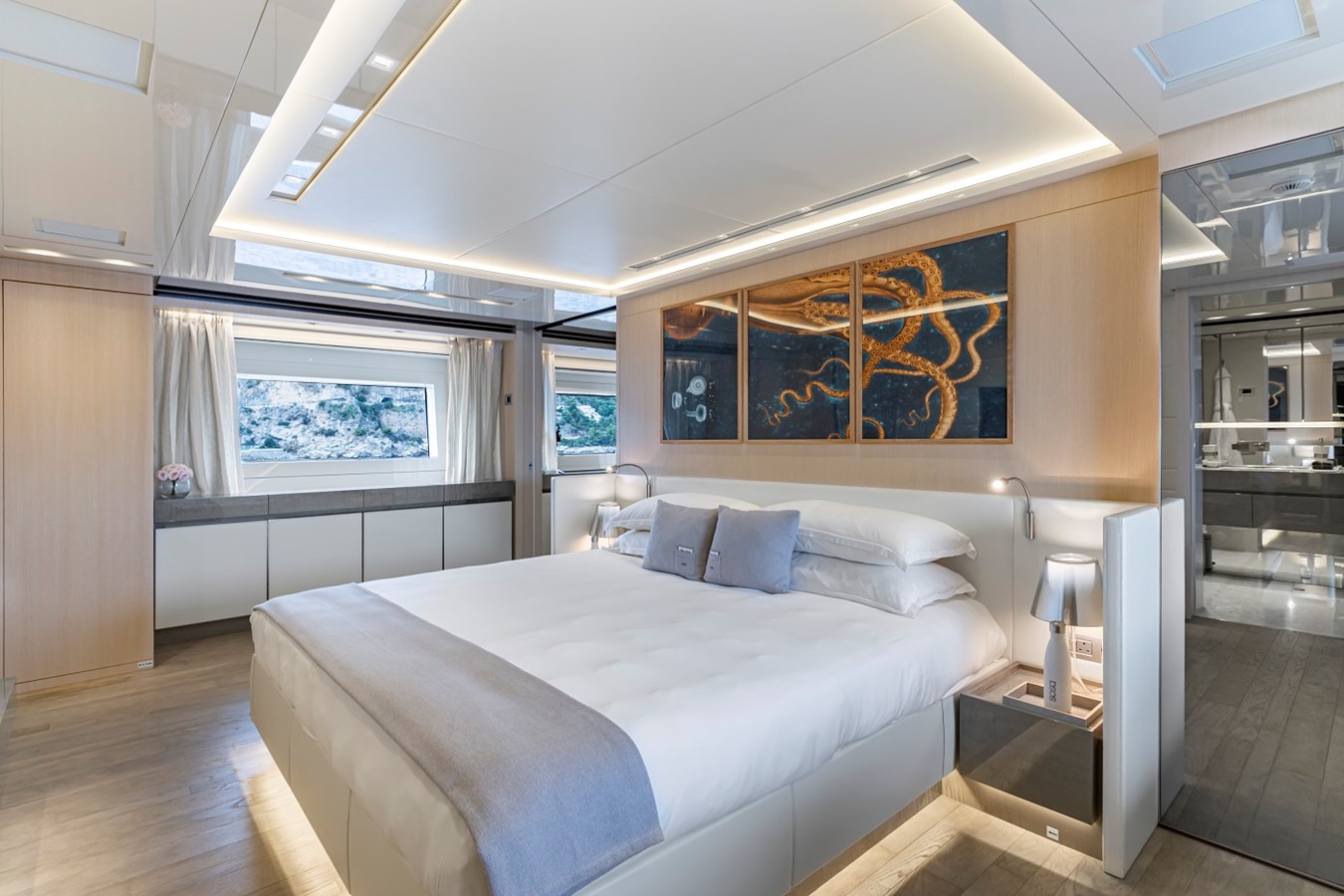

Master stateroom:
46” Smart Samsung TV
B&W amplifier with 5.1 home theater DVD Blu-ray Samsung player
iPad Mini controller
VIP Staterooms x2
1 x 40” and 1 x 32” LED Smart Samsung TV
B&W Amplifier with 2 speakers
DVD Blu-ray Samsung player
Infrared signal repeater

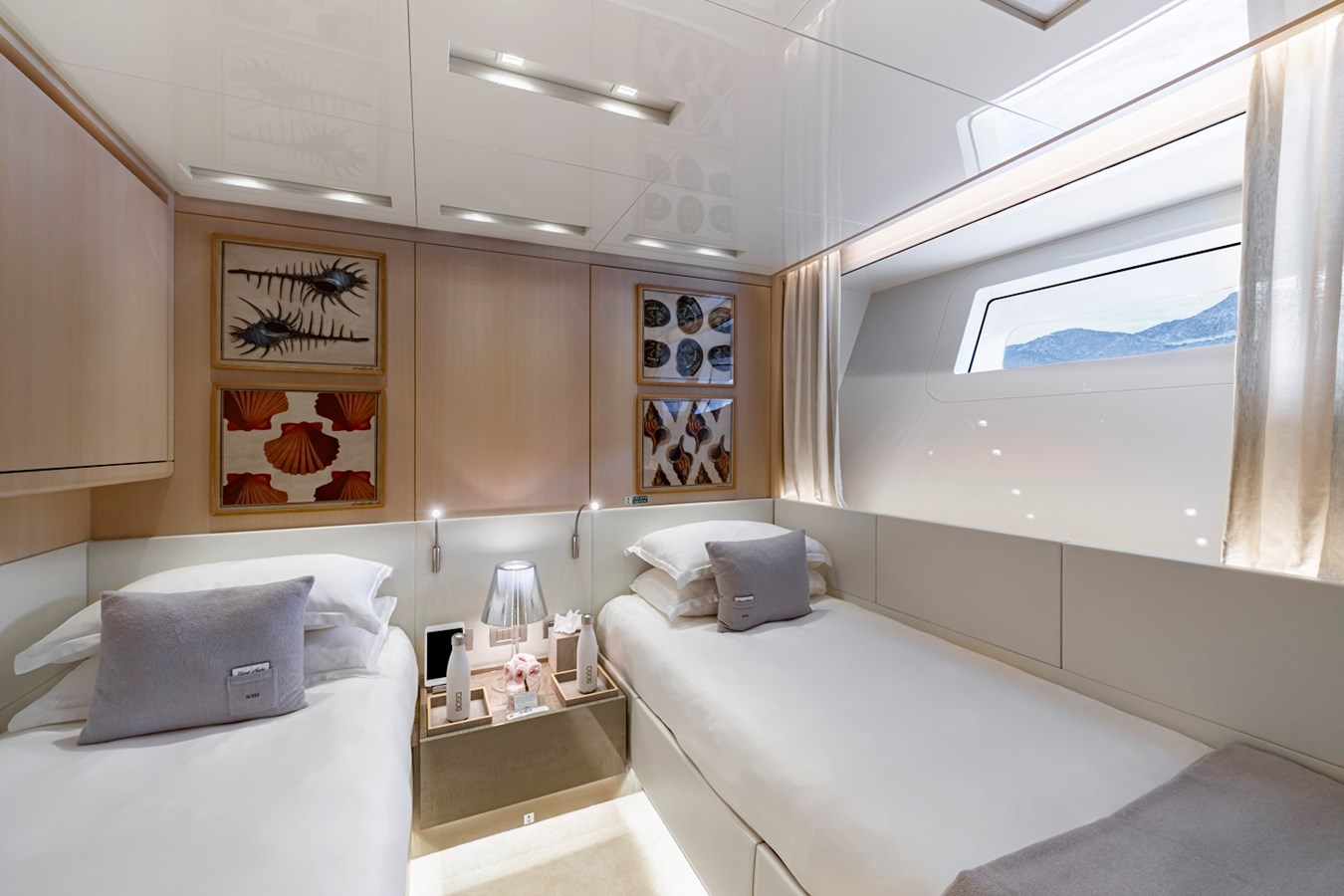

Double staterooms x2:
28” LED Smart TV Amplifier with 2 speakers
DVD Blu-Ray player Infrared signal repeater
Sundeck:
40” Samsung TV (Removable for outdoor viewing of sports events etc.)
4 x Speakers and amplifier
iPad Mini controller

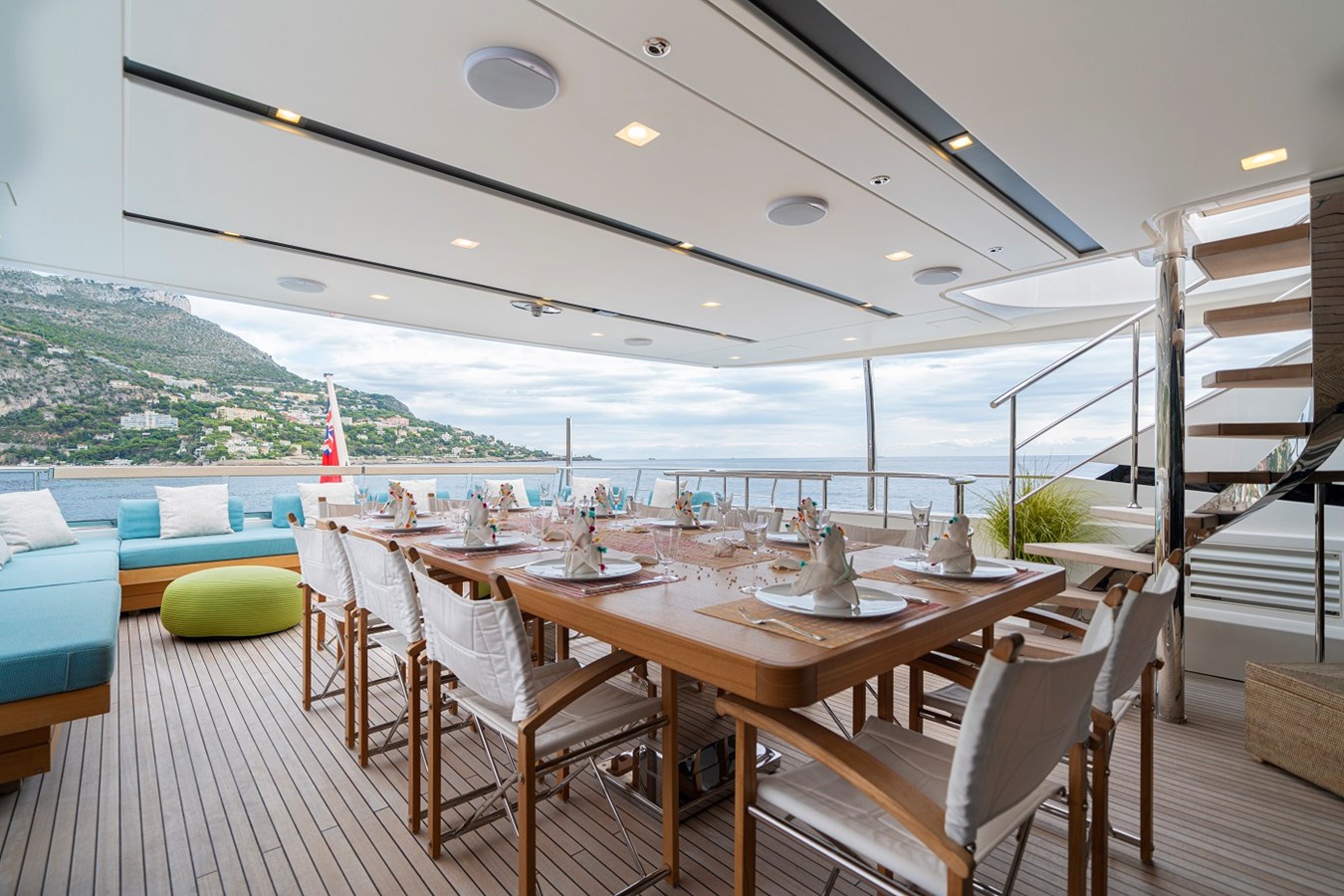

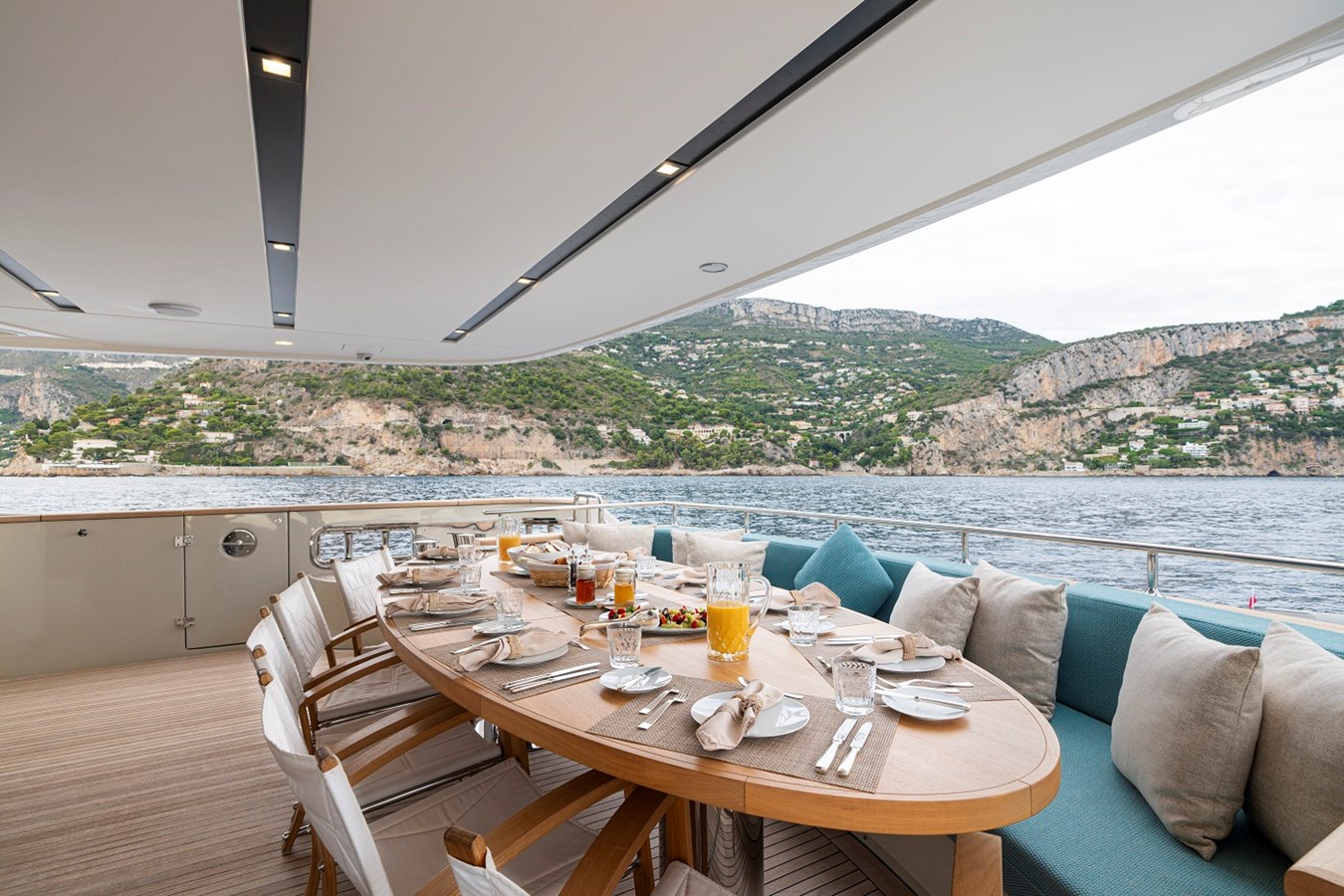

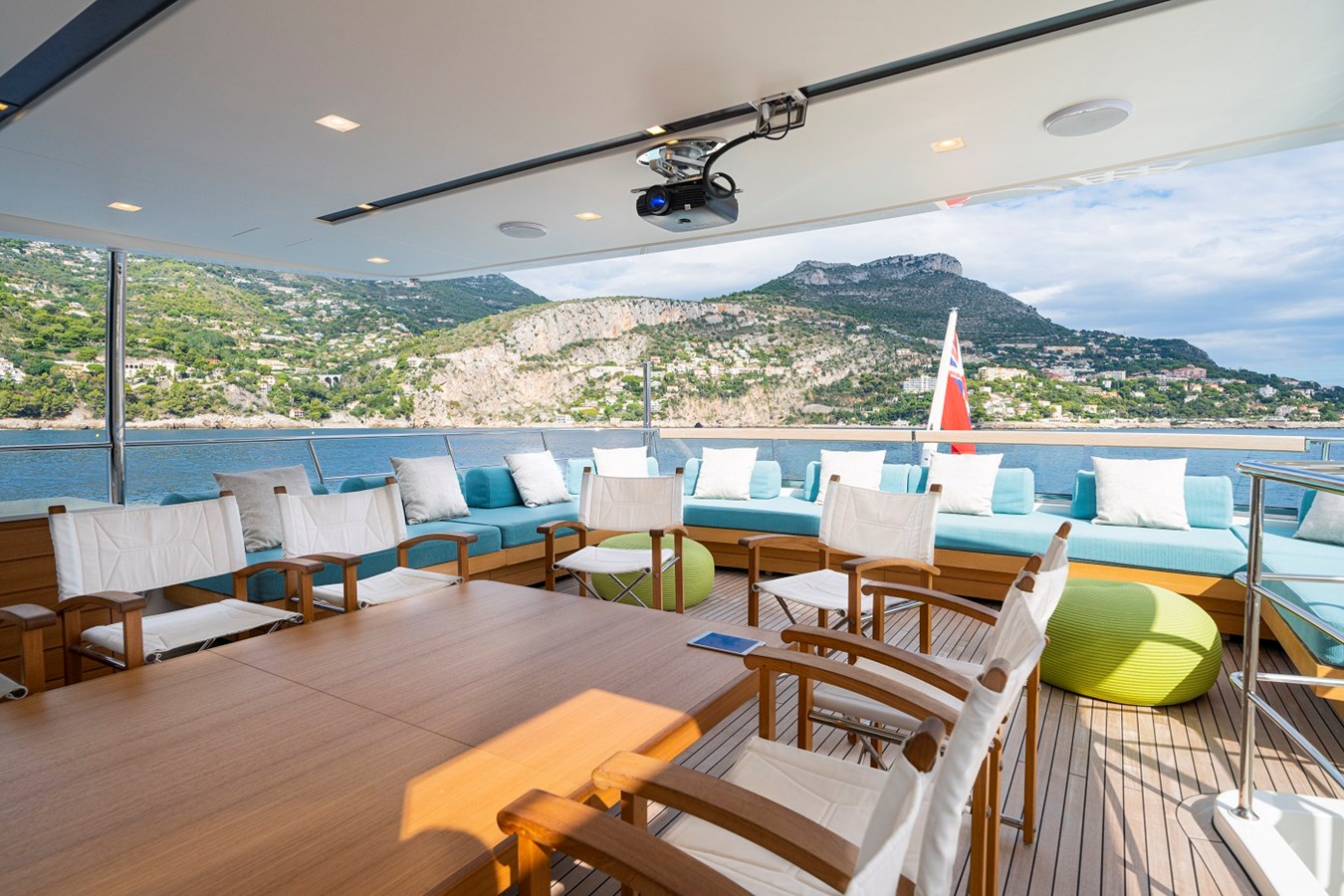

Upper deck aft:
4 Speakers
iPad Mini controller Video projector + Screen
Forward Seating Area:
4 Speakers
Captain’s cabin:
22” LED Samsung TV
Sony car stereo with DVD player 2 x Speakers
Crew cabins:
Car stereo with 2 speakers
Crew Mess:
28” LED Samsung TV Amplifier with 2 speakers
DVD Blu-Ray player Infrared signal repeater
Office Equipment:
Computer: Lenovo ships Laptop
Printer: HP Inkjet
Ship’s safes: Juwel digital safes
Deck Equipment
Telescopic gangway with two remote controls
2 x Electrical capstans
2 x Electrical windlasses
Stainless steel chain stopper
2 x 225kg anchors with 165m anchor chain
Rescue Crane on the foredeck Underwater lights
Marquip sea stairs
Safety and Security Equipment
Sea-water hose system
Fire extinguishers FM200 for engine room, garage and control room
Powder, foam and CO2 fire extinguishers
4 x Life rafts for a total of 20 pax. 4 x Lifesaving rings
Life jackets
First aid kit
CCTV: 2 in Cockpit, 3 in Engine room, 1 in Wheelhouse
