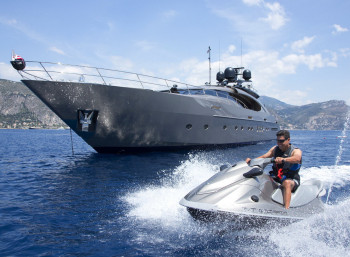

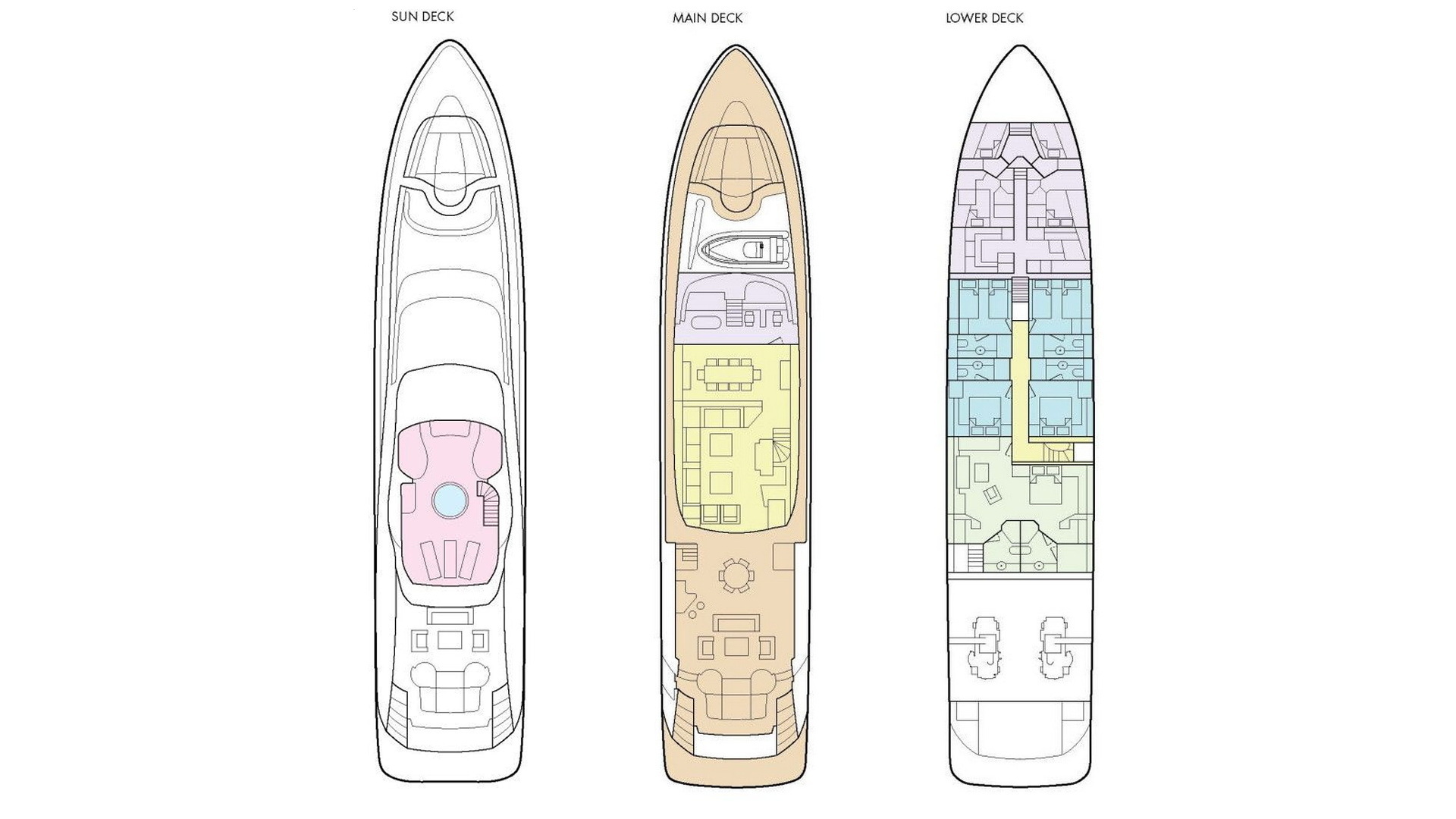

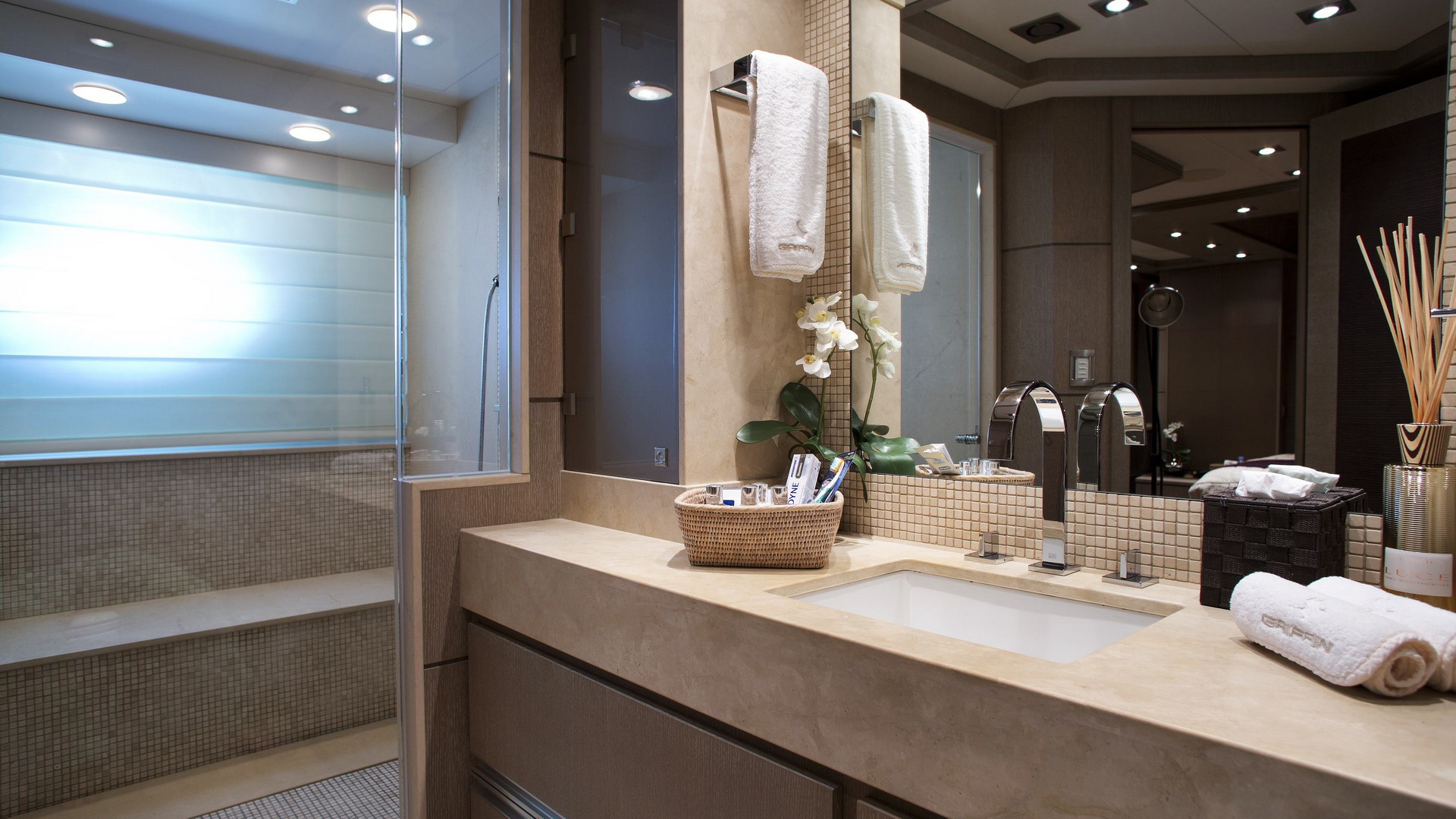

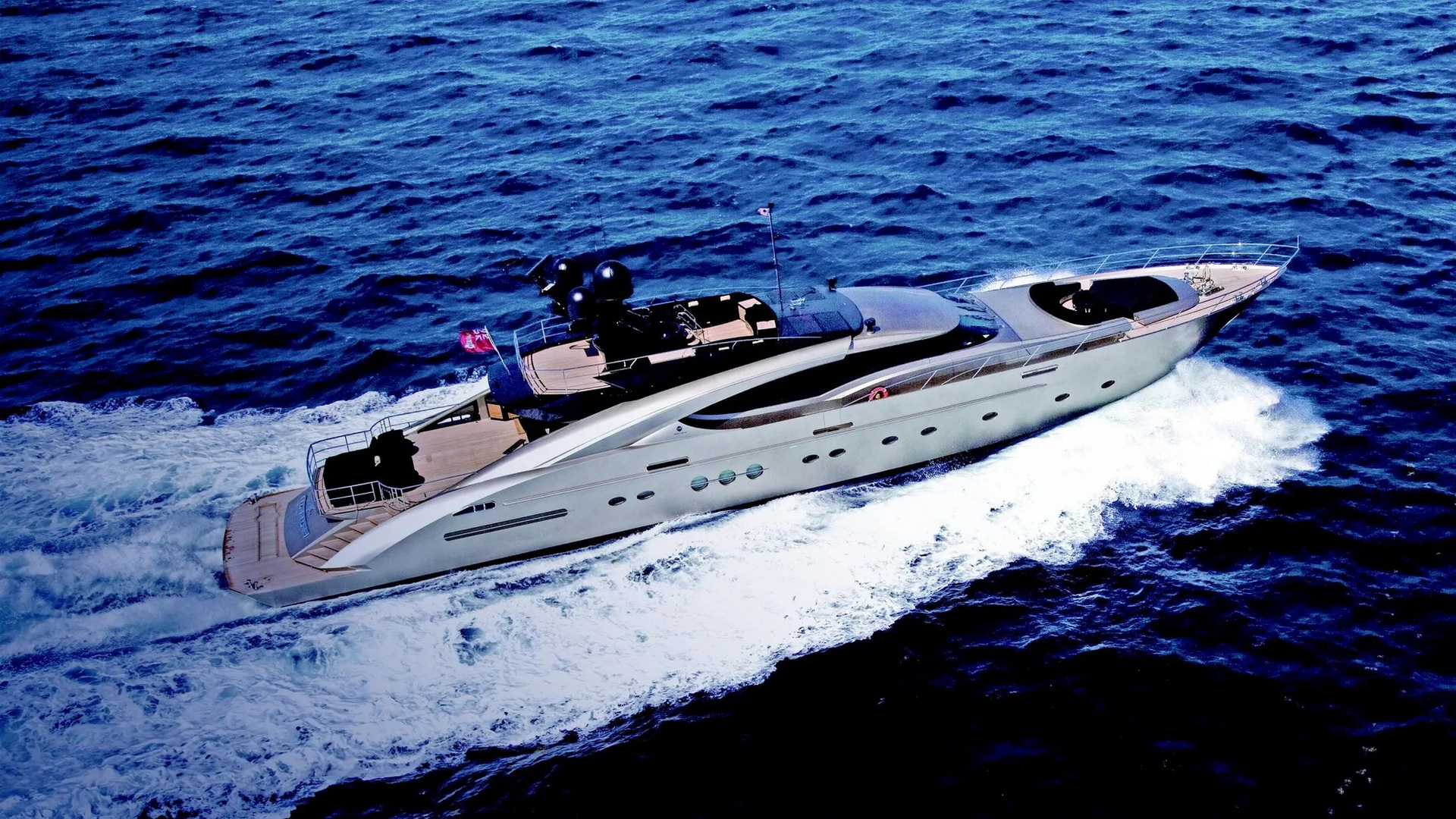

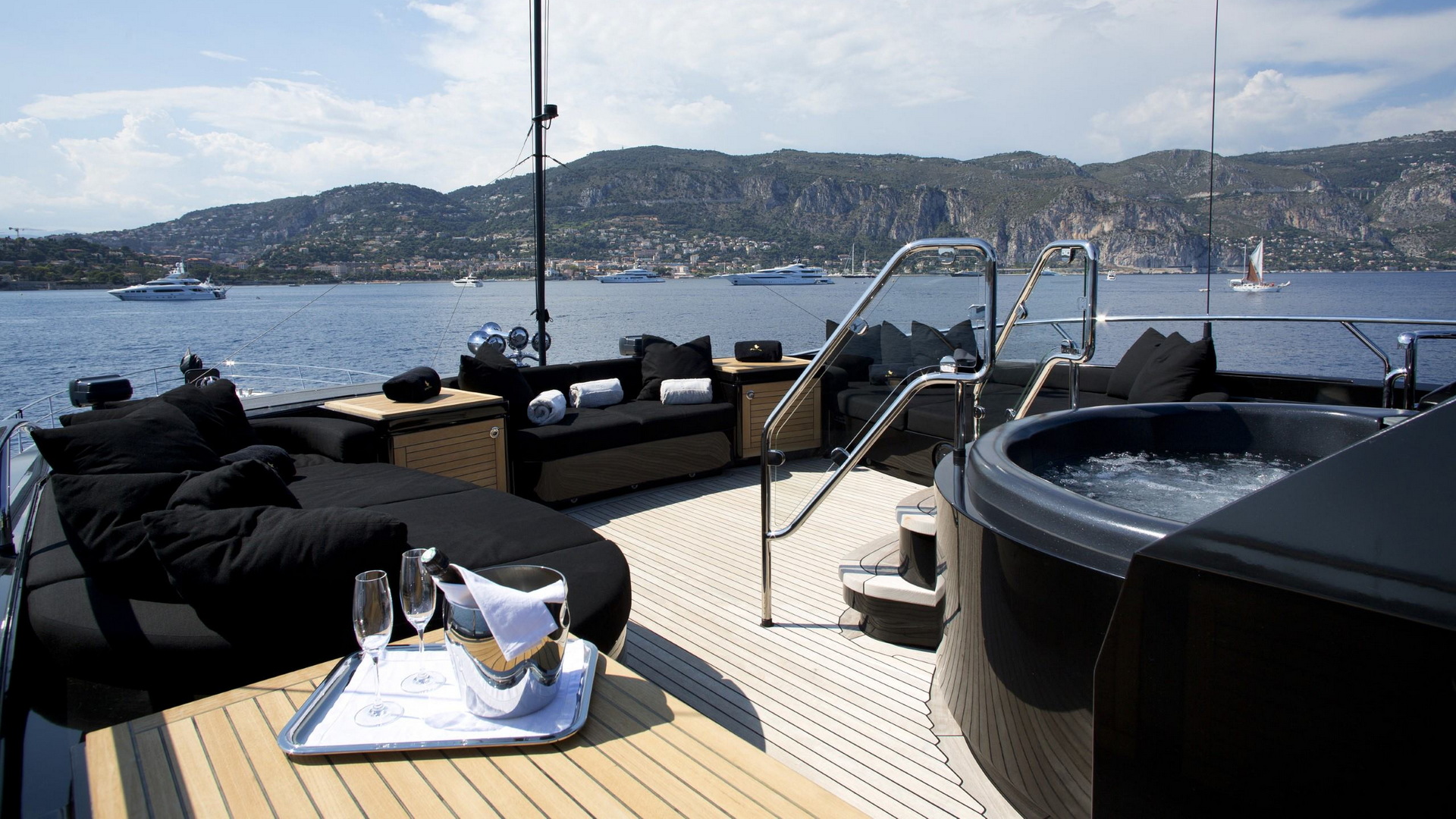

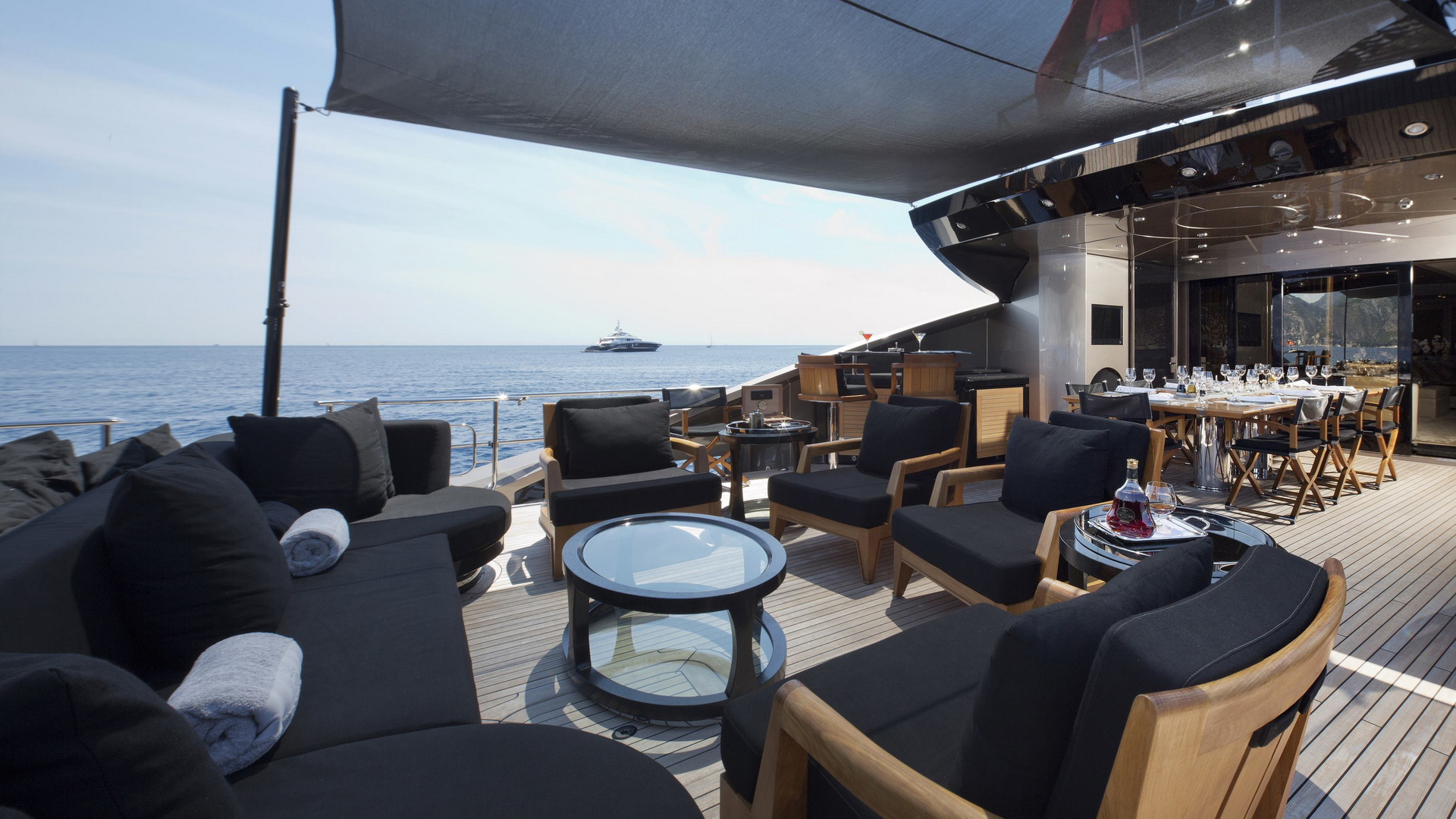

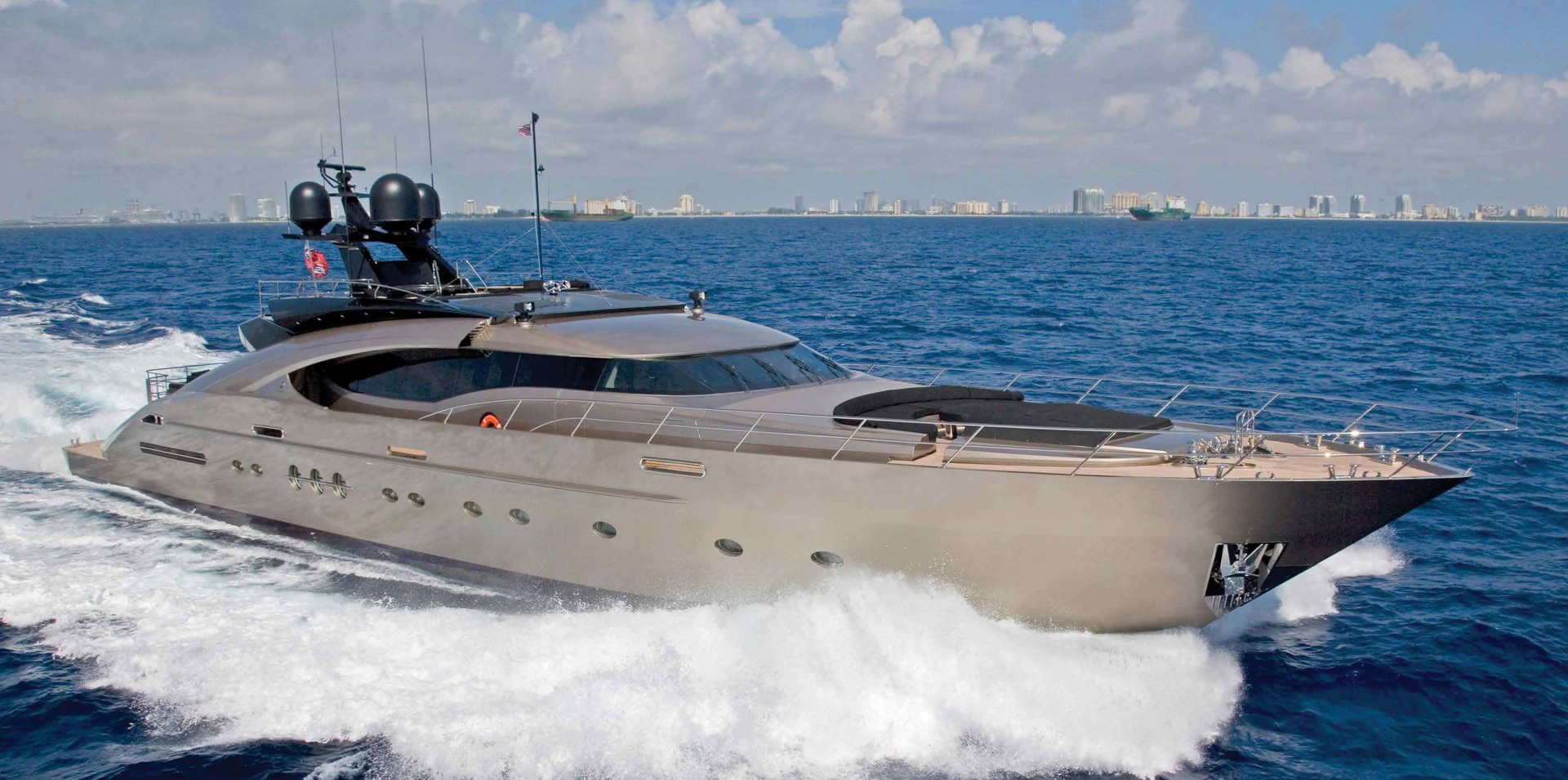

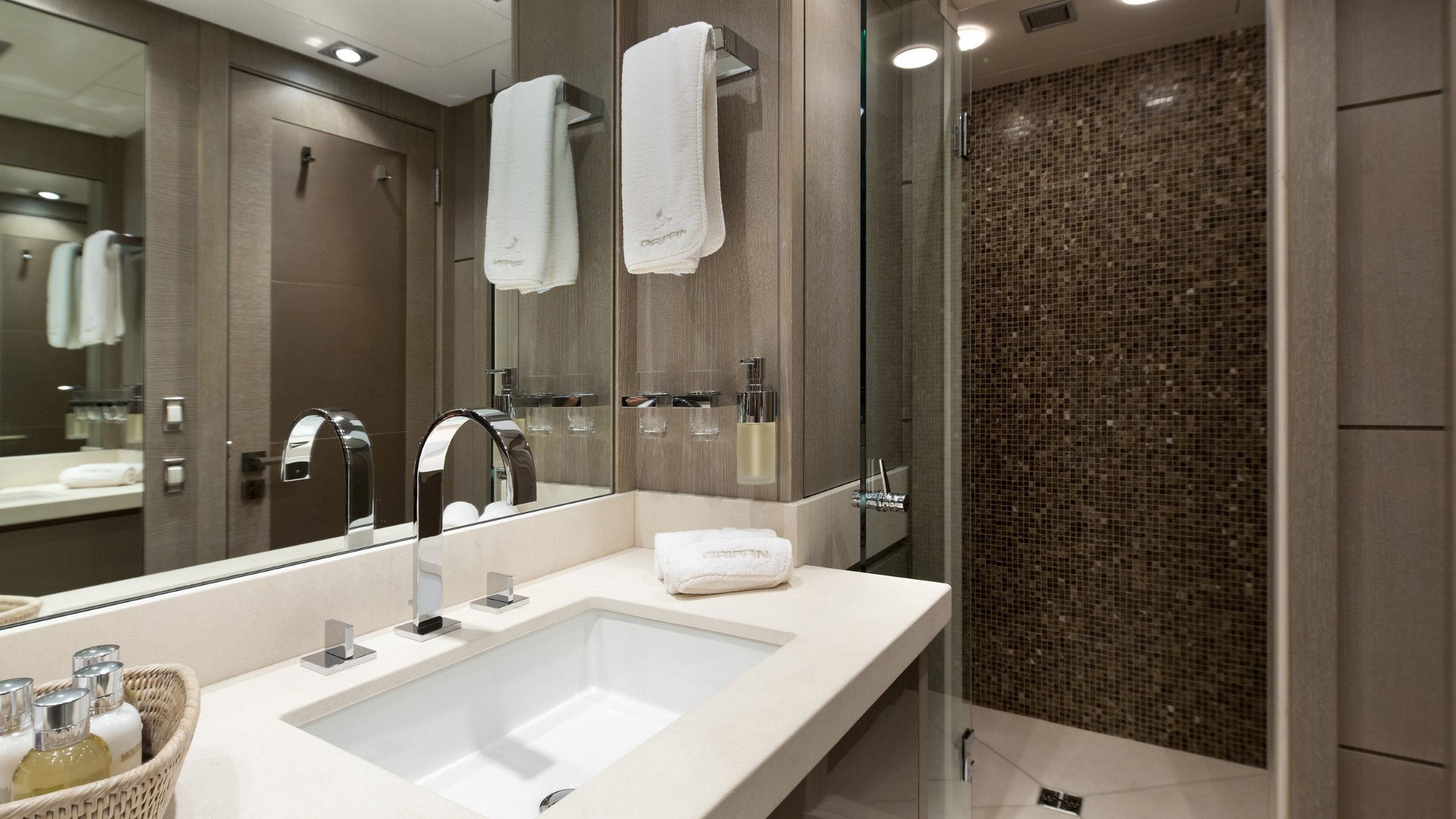

GRIFFIN was delivered by Palmer Johnson in 2012 and is part of the PJ 135 series, featuring an aluminium hull. With an interior and exterior design by Nuvolari & Lenard, as well as decoration by Eric Kuster, she combines high performance, smooth lines, exceptional living spaces and deluxe accommodation. Accommodating up to 12 guests in five generous cabins, GRIFFIN benefits from a spacious full beam master suite and all cabins have en suite facilities. Her expansive, open main saloon provides comfortable seating options and gives onto a chic formal dining area that features contemporary styling and striking furnishings. GRIFFIN’s deck areas are perfect for both relaxing and entertaining. A generous beam of 8.38m allows for a huge sundeck as well as an impressive flybridge, which includes a spa pool and various seating options. On her main deck, an alfresco dining area offers guests a private area perfect for entertaining. Twin 3,650hp MTU engines give this superyacht a range of 1,700 nautical miles at 12 knots and she is fitted with Trac at-anchor stabilizers.

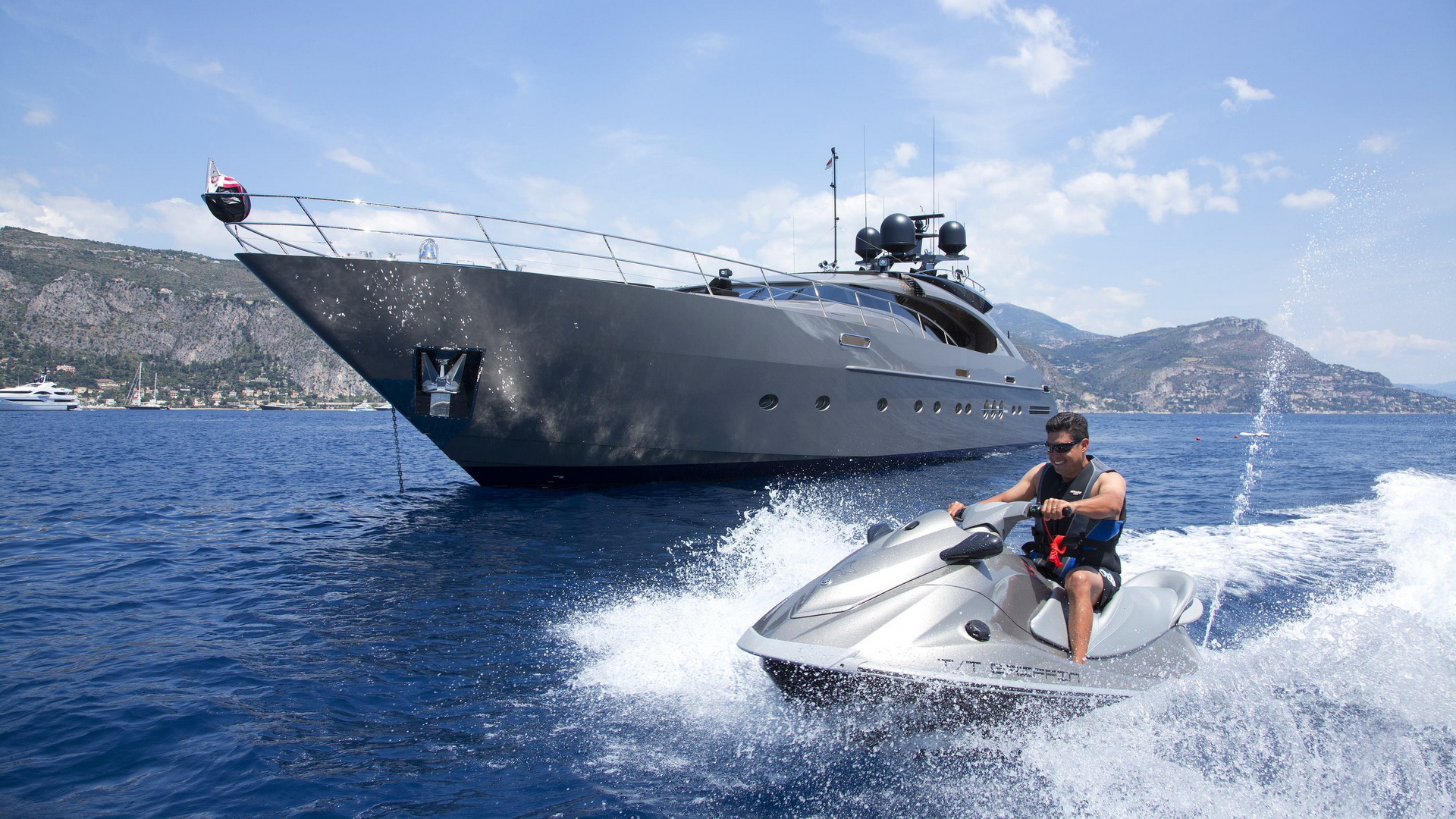

Tender 1 x 9.5m Capelli Tempest 900 semi-rigid (2013) Jet Skis 1 x Yamaha VXS190 (2015) 1 x Yamaha VX110 (2011)

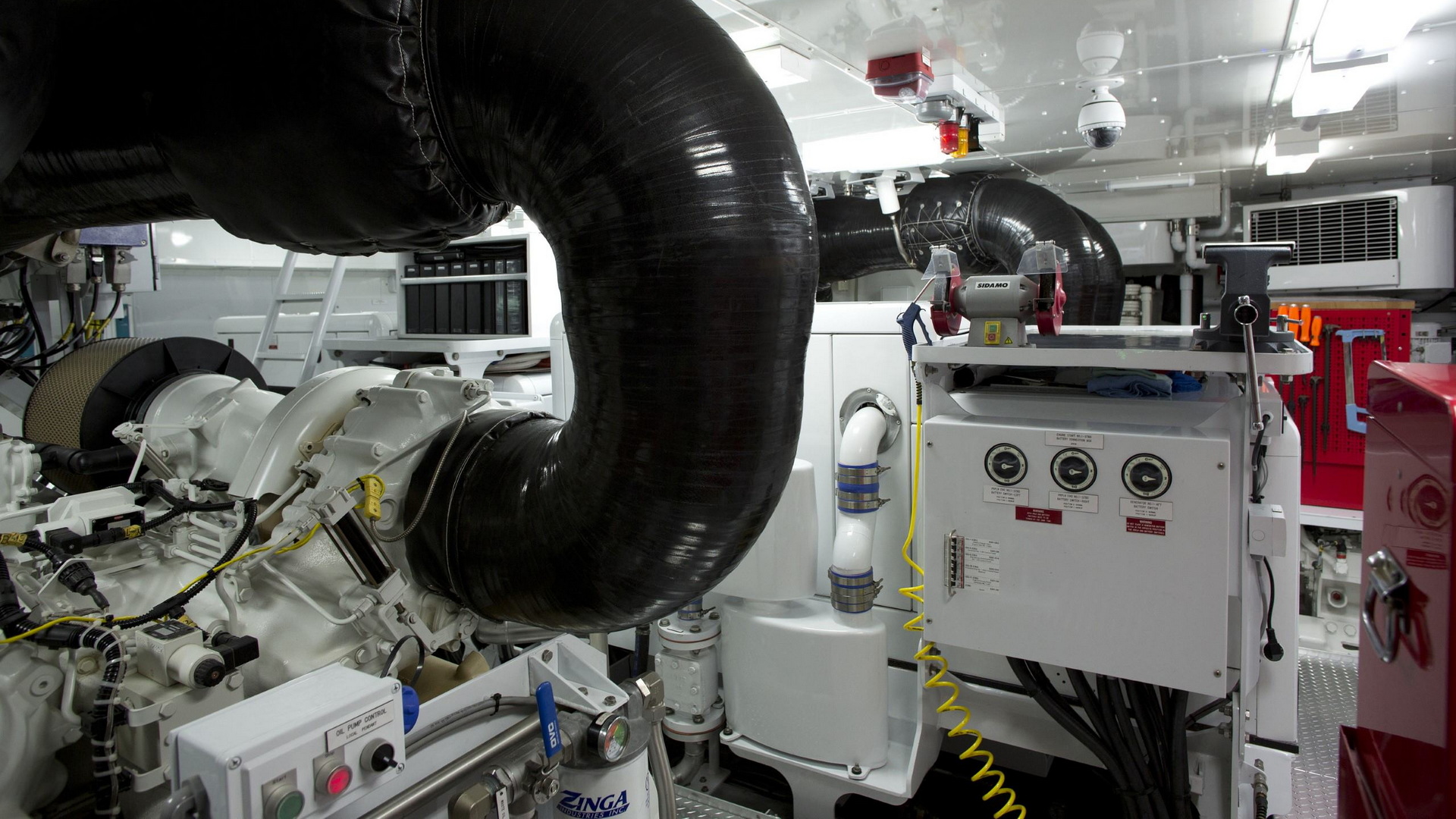

Machinery

Main Engines: 2 x MTU 16V 4000 M90 (3,650 HP)

Extended Manufacturer Warranty until June 2023

Main Engine Hours: 4,180 hours (November 2021)

Propulsion: Twin Screw

Gear Boxes: 2 x ZF 7650V

Speed: 24 knots cruising (28 knots max)

Range: 1,700 nm @ 12 knots

           1,000 nm @ 17 knots

              700 nm @ 24 knots

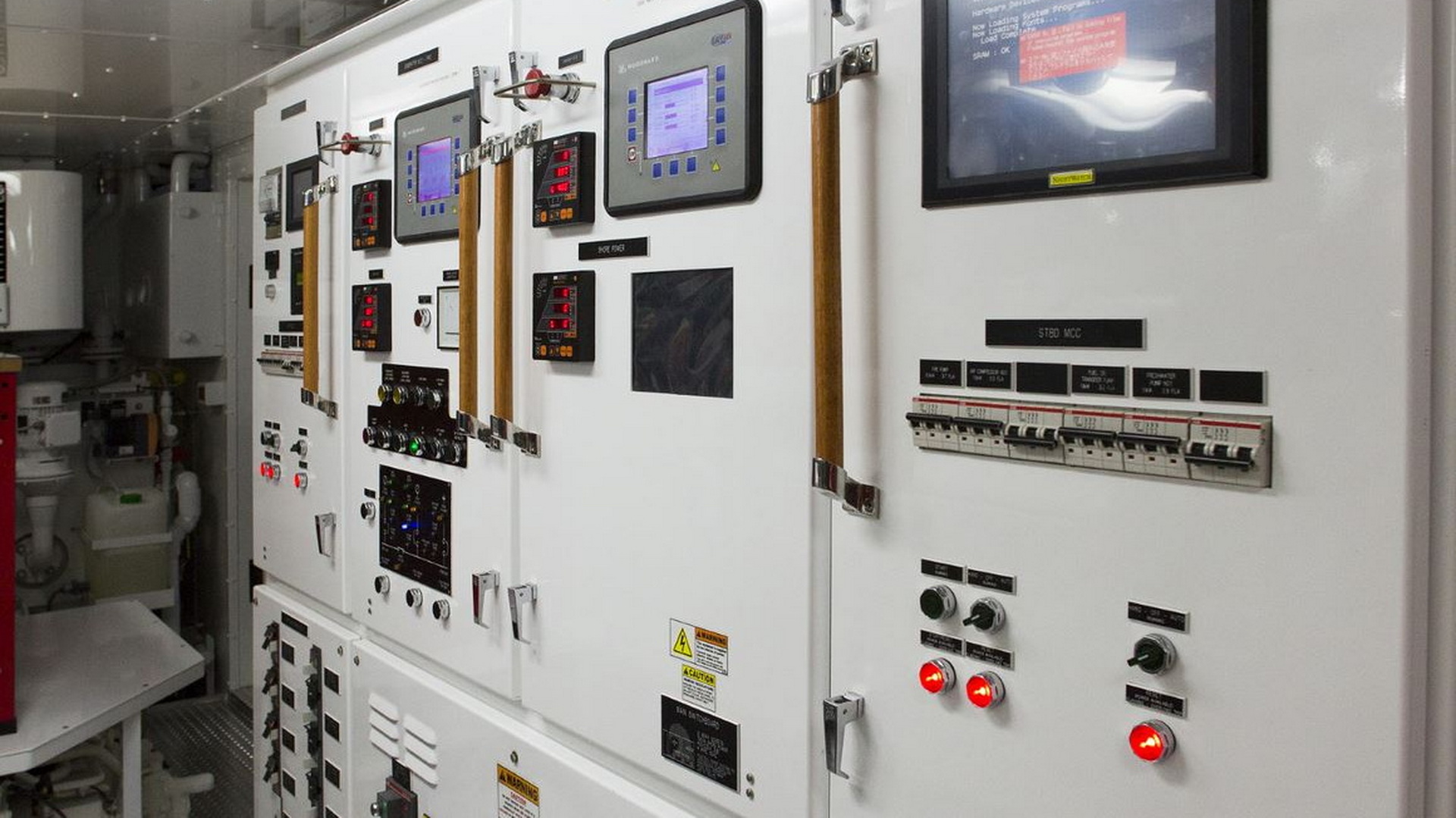

Auxiliary Machinery & Electrical Systems

Generators: 2 x Kholer 80 kW with instrument panels

Generator Hours: 13,383 hours (November 2021)

Electricity: 50 Hz system with three phase and single-phase voltages

Converter: Shore power converter, 75 KVA

Shore Power: 100ft shore power cable 100 Amps with Cable Master Electrical Roller

Tank Capacities (Approx.)

Fuel: 39,352 Litres

Water: 3,914 Litres

Hot Water: 2 x 189 Litres (50 Gallon) heaters

Lube Oil: 1,622 Litres

Black & Grey Water: 2,155 Litres

Ancillary Equipment

Steering System: Jastram– electro-hydraulic with dual pumps

Rudders: Twin balanced

Bow Thruster: 1 x TRAC, 100 HP

Stabilisers: TRAC System, including At-Anchor-Stabilization

Oil /Water Separator: Alfa-Laval MAB104

Sewage Treatment System: Hamann macerator chlorine treatment

WCs: Techma

Air-Conditioning: Cruiseair, 2 x compressors

Water Makers: 2 x 250 Litres per hour Idromar

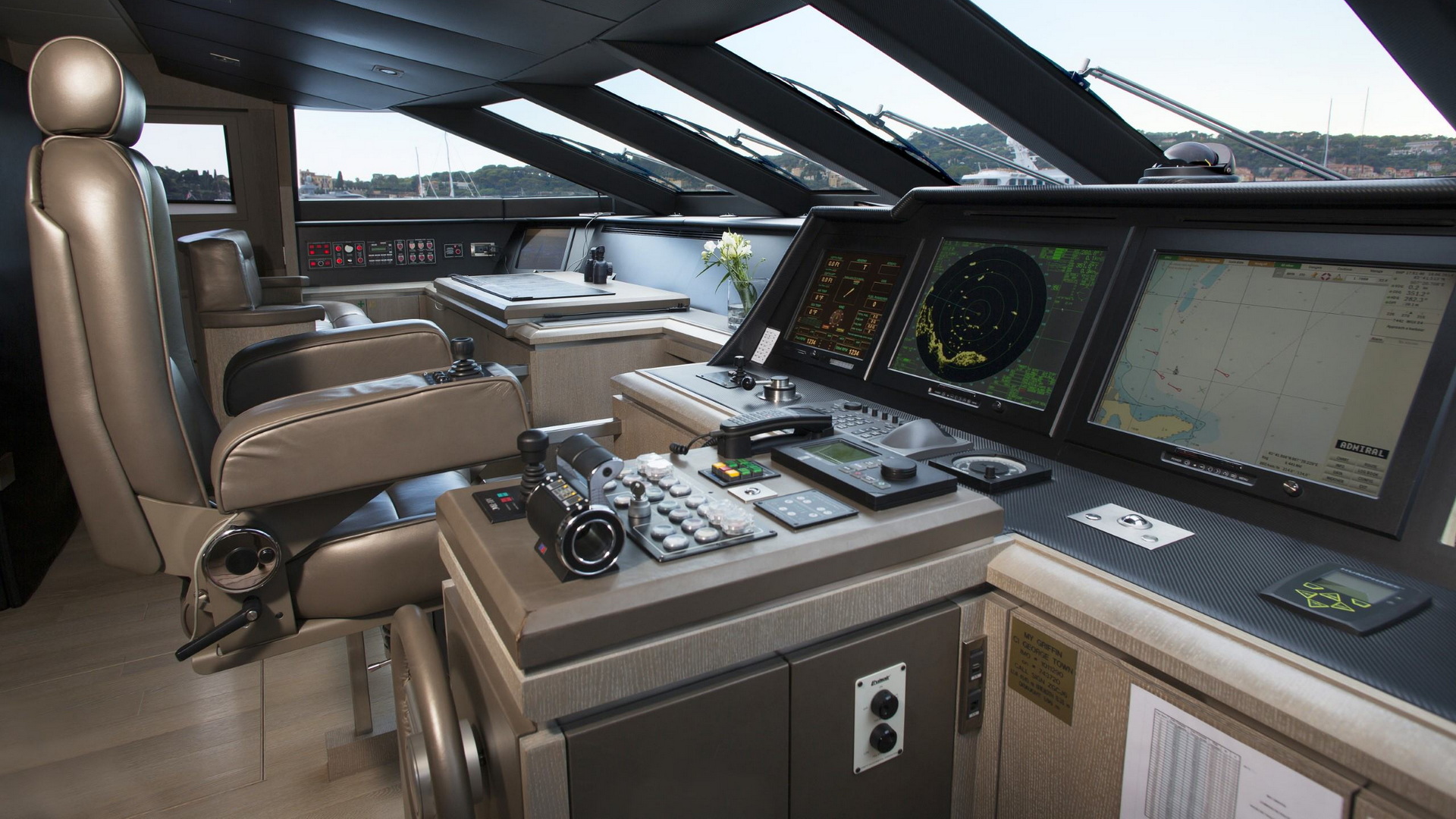

Navigation Equipment

AIS: Furuno FA1502

Chart Plotter: Transas 4000 ECDIS - Paperless ready

Automatic Pilot: Simrad AP50+

Gyro Compass: Simrad GC80 Expanded

Radars: Furuno with XN20F/6.5 Antenna

GPS: Furuno GP150D

Navtex: Furuno FAX30

Wind Instruments: B&G

Communication Equipment

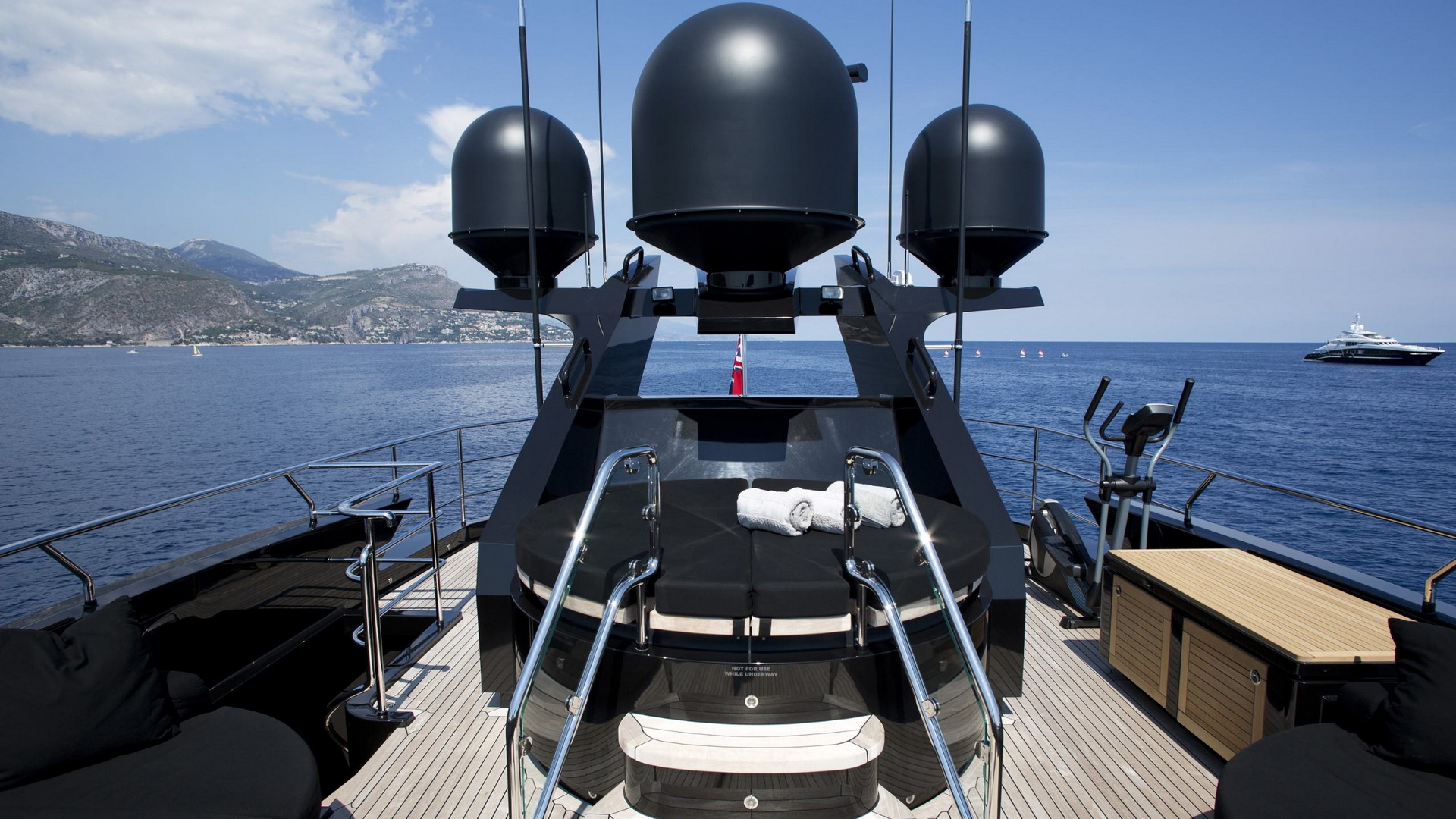

Satcom: VSat Seatel 4009-11, Voice and Data

VHF Radio Telephones: Console – SIMRAD RS87, Handset – 2x SIMRAD AHS87

UHF Radio Telephones: 12 x Kenwood TK-3302/3303

Internet: Pepwave 310 5G Modem

Deck Equipment

Anchor Windlass: Maxwell 6000

Aft Warping Capstans: Maxwell 4000

Boat Crane & Davits: FWD garage: Steelhead CT 1134kg;

Aft garage: Passerelle OpacMare 600kg

Passerelle: OpacMare Custom made for Palmer Johnson 135’

Safety & Security Equipment

Life Jackets: 22 x Stearns’ SOLAS 2010 43kg+, 4x Front Child 15-43kg

Immersion Suite: 20 x Intrepid Pioneer MK8 <95kg, 2 x >95kg, 4 x Imperial 1409-C

Life Rafts: 4 x Zodiac SOLAS A 10 people 466262

Hydrostatic Release: 8 x Hammar H20R, 1 x Hydrofix HRU 100

Extinguishers: 18 x onboard, 1 x waverunner, 1 x in the tender

Medical: 2 x MCA Cat C, 1 x AED, 1 x Oxygen Breather, 1 x Stretcher

Audio / Visual Entertainment Systems

Video Wall / Audio Video: Crestron Network, Mac Minis/Plex for Movies, SONOS for Music

Televisions: 9 TV screens

Ip TV/Apple TV: Main salon Ip TV box & Apple TV Box

Video Recorders / Players: 9 OPPO Blu-ray players

Domestic Equipment

Main Galley

1 x Induction Plate, Miele

1 x Oven, Wolf

1 x Microwave, Gaggenau

1 x Salamander 3400W

1 x Miele Dishwasher

Refrigeration

1 x Double Fridge, Subzero

1 x Fridge/Freezer, Subzero

Laundry

2 x Washing Machine, Miele

2 x Dryer, Miele

Office Equipment

Computers:Dell Inspiron 620S Windows 5.1

Printer / Scanner / Fax:1 x Brother MFC495CW: 1 x HP Envy 7640
