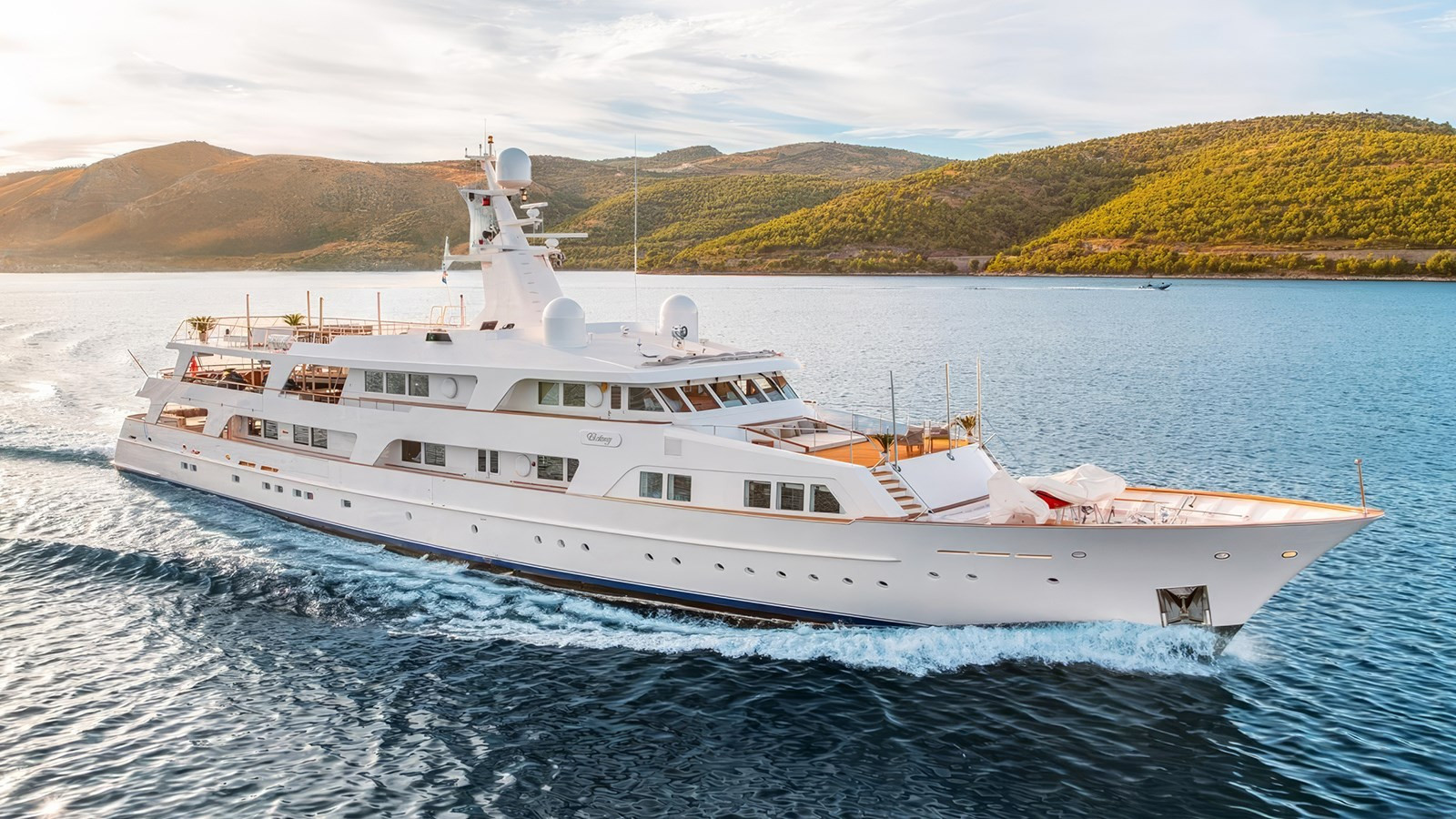

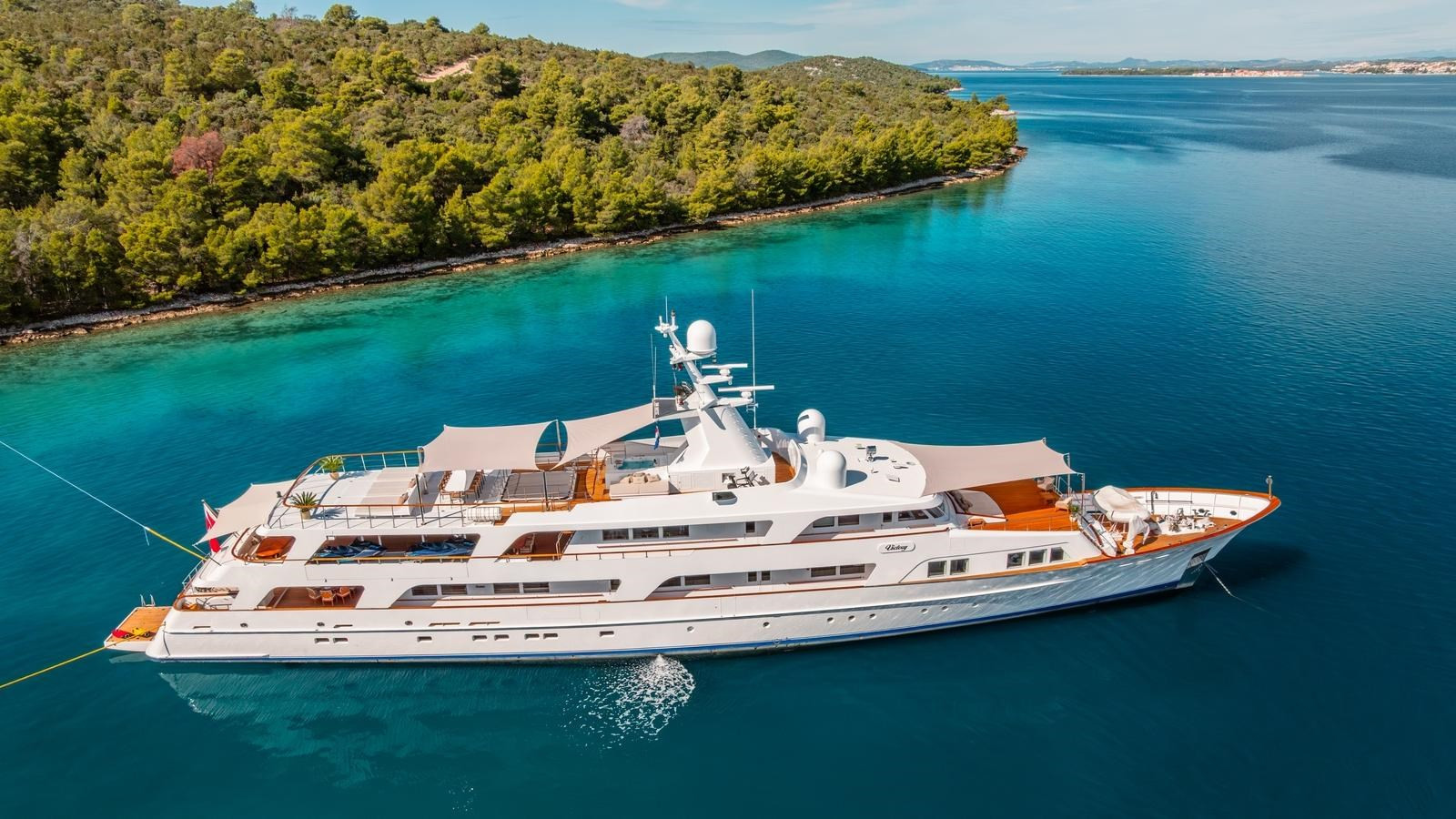

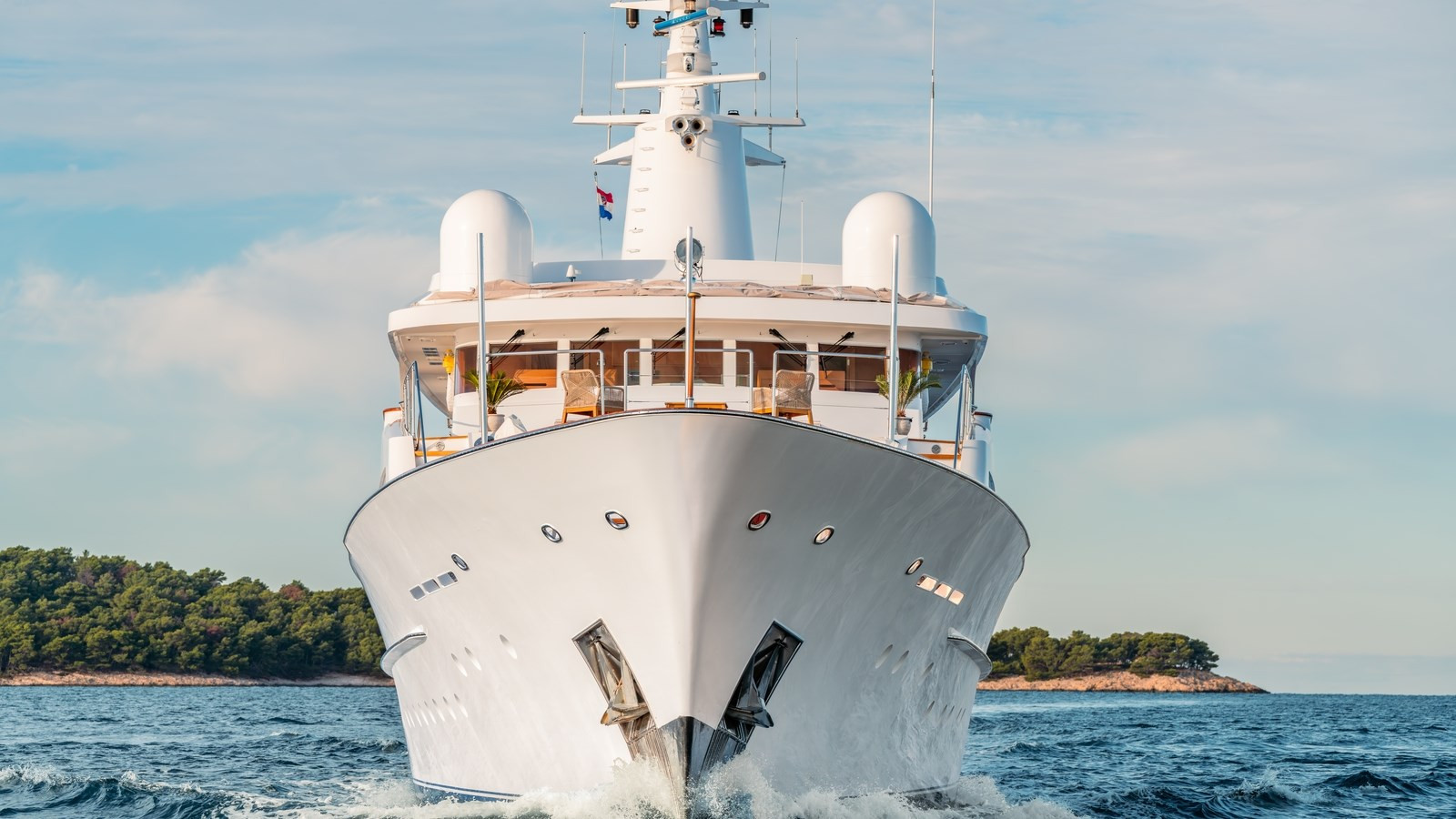

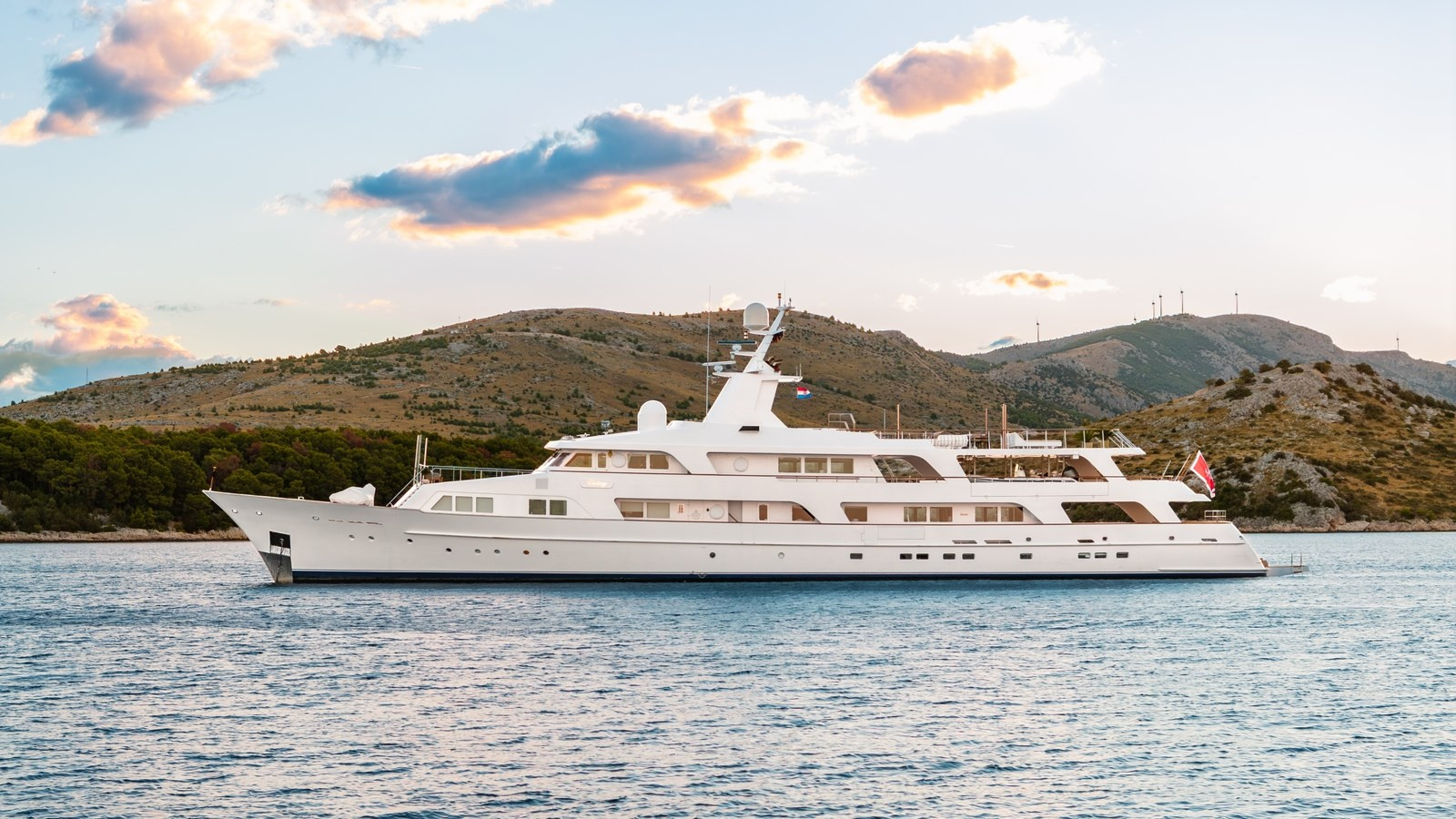

VICTORY

TYPE:Motor Yacht

LOA:55.50m

BEAM:8.66m

DRAFT Max: 3.17m

MAXIMUM SPEED: 16

CRUISING SPEED: 14

CABINS: 6

GUESTS: 12

CREW: 12

VAT STATUS: Not Paid

BUILDER:Feadship

YEAR BUILT: 1983

YEAR REFIT:2025

TONNAGE GT: 591

HULL TYPE: Displacement

HULL MATERIAL: Steel

ENGINE: Caterpillar 1090 hp

COUNTRY: Croatia (Hrvatska)

CITY: Trogir

FUEL: Diesel

HULL NUMBER: 748

FLAG: Maltese

NUMBER OF ENGINES: 2

ENGINE MANUFACTURER: Caterpillar

NAVAL ARCHITECT: Feadship

EXTERIOR DESIGNER: F. de Voogt

INTERIOR DESIGNER: Bannenberg & Rowell

SUPERSTRUCTURE MATERIAL: Aluminum

CLASSIFICATION: Lloyds

REMARKS: +100A1 LMC, ISM, ISPS, Commercial

MACHINERY

RANGE 3500

• Engines 2 x 814kW Caterpillar D399TA 12-V turbo charged, after-cooled, diesel
• Gearboxes 2 X Reintjes Wav-1050 Reverse Reduction With 2.950:1 Ratio
• Propellers 2 X Part Shafts With 5-bladed Propellers
• Steering Tjenford Hydraulic System With Electric Controls Hand Hydraulic Emergency Steering 2 X Semi-balanced Spade Rudders
• Rudder Angle Tjenford

GENERATORS AND AUXILIARY SYSTEMS

Generators

• 2 X JOHN DEER 114kWe/50Hz/3X400Vac 2025 New installed
• Emergency Generator
• MAYRAK 13.5 kw
• Electrical Equipment
• Electricity 380v Ac, 3-phase, 50hz And 220v Ac, Singlephase, 50hz Supplied By 3 Generators and Shore Supply; 24v Dc Battery Supply
• Shore Power 380v Ac, 3-phase, 50 Hz Transformed Into 220v Ac
• Batteries
• 2 x 12V DC Engine & Generator start battery banks (4 in each) to provide 24V DC with dedicated battery charger
• Each generator has 24v DC charging alternator for charging whilst running 2 x 12V DC battery banks (4 in each) for hotel services and emergency radio/electronics backup set up to supply 24V DC with their own dedicated charger

TANK CAPACITIES

• Fuel capacitiy-73000l
• Water capacity- 19000l
• Grey water capacity- 4600 l
• Blackwater capacity- 1200 l
• Water makers 2 x Hydro Electric Marine (HEM) - Abt 500 litres /hr each
• Lub Oil- 1800 l
• Dirty lub oil- 1400l
• Holding Tank: 4,600 l


ANCILLARY EQUIPMENT

• Bow thruster  55kw
• Fuel separator alfa laval type mab103b centrifuge
• Oil/water separator dvz type 250 oily water separator – 250 litres per hour
• Fire/bilge pump 5.5kw fire pump and 4kw bilge pump interchangeable - yanmar diesel emergency portable fire/bilge pump (3.6kw)
• Boilers nibe type spis500 boiler with 2 heating elements – 500 litres
• Sewage treatment evac system
• Wcs evac vacuum flush
• Air conditioning AC plant three chillers

SAFETY AND SECURITY EQUIPMENT

SAFETY

• 2 x 25man RFD “Surviva” life rafts with EPIRBS and Hammar type H20 hydrostatic release mechanisms
• 2 x Pains Wessex type 360 M.O.B. (Man Over Board) smoke markers
• 2 x Comet lifebuoy lights
• Kannard type 406FH EPIRB with Hammar type H20 hydrostatic release mechanism
• 8 x Life rings

FIRE FIGHTING

• FM200 fixed fire fighting installation in engine room, forepeak and fuel locker.
• Double shutoff flaps in mast
• 2 x Fire pumps
• Portable emergency fire pump
• 2 x Drägen breathing apparatus
• CO2 & Dry Powder fire extinguishers throughout

ALARMS

• Fire alarm system
• Smoke detectors throughout
• Furuno Ship Security Alert System (SSAS) IC-307

COMMUNICATION EQUIPMANT

SATCOM

• 2 x Nera Inmarsat “B” & “M” systems - dual ID
• Fleet 77 Voice & Fax terminal
• Thrane & Thrane Sailor SC4000 Iridium
• Wavecall 4003 Broadband at Sea - Always on
• Internet access

VHF

• 6 x Icom IC-4008A handheld VHF with Icom
• BC-121N multi-slot charger
• Sailor type RT-2047 VHF radio
• Sailor RT-4822 VHF DSC controller
• Standard Horizon “Eclipse” VHF radio (Nautica tender)
• Sailor “Compact” type RT-4822 VHF/DSC radio
• 2 x Icom type IC-GM1500 handheld VHF radios (GMDSS approved)
• Icom type IC-M1EuroV handheld VHF radio with
• Icom type AD-95 charger

UHF

• 8 x Icom handheld UHF/VHF with Icom BC-121N multi-slot battery charger
• 6 x SM 300 UHF synchroniser units

SSB

• HF/MF Furuno SSB (Single Side Band)

GMDSS

• Sailor Class A GMDSS installation

CELLULAR

• 2 x Motorola GSM – European
• Bellsouth GSM – USA

LANDLINE

• Panasonic PABX with Panasonic telephones throughout

NAVIGATION EQUIPMENT

• Radars 2 x furuno far-28x7 series marine radars
• Navigation system inmarsat-c mobile earth station
• Transas navi-sailor 300 navigation system
• Gps furuno gps navigator gp-150
• Weather fax furuno facsimile receiver fax-408
• Log furuno doppler speed log ds-80
• Wind instruments furuno wind angle and wind speed indicator
• Fi-501/fi-502
• Display furuno digital display unit fi-503
• Loudhailer commander type 1500
• Chart plotter furuno digital display unit fi-503

DECK EQUIPMENT

Ancor Windlass

• Steen electric (380v AC) anchor windlass with double cable gypsies and warping drums
• Steen rollers in hawspipes

Ground Tackle

• Anchors: 2 x galvanised anchors

Chains:

• 7/8”/22mm galvanised chain
• 6 x shackles/165m (stbd)
• 7 x shackles/192m (port)

Crane and Davits

• Custom aluminium beams with hydraulic rams and electric motors located in the overhead
• Ackerboom folding jib crane with hydraulic controls (aft boat deck)

Passarelle

• Nautical Structures 590cm passerelle

Ladders

• Ladders (port & stbd)

Searchlights

• 1 x high power spotlight located on sundeck
• 2 x Francis handheld searchlights

AUDIO/VISUAL ENTERTAINMENT

• 3 x Sky Italia decoders with subscriptions running onboard
• Music/Movie library available onboard. Guests would need to being their own/ stream and Airplay this using an apple device to the ships sound system; there is limited support for Android devices.
• Apple TV in the Sky Lounge, Main Salon and Master suite, all the other rooms have Roku media players. The audio only zones support AirPlay music.
• Master Cabin: Sony Bravia TV 40 ‘’ – Blue Ray DVD Home Cinema - Satellite Decoder
• VIP Double (Warhol): Sony Bravia 40’’ – Blue Ray DVD Home Cinema – Satellite Decoder
• Twin Cabin (Picasso): Sony Bravia 30’’ TV Home Cinema
• Twin Cabin (Matisse): Sony Bravia 30’’ TV Home Cinema
• VIP Double (Johns): Sony Bravia 30’’ TV Home Cinema
• VIP Double (Rauschenberg): Sony Bravia 30’’ TV Home Cinema
• Main Salon: Sony Bravia 50 ‘’ TV , Home Cinema , Blue Ray DVD , Satellite Decoder,
• X-Box
• Upper Salon – Office: Sony Bravia 50’’ TV + Sony Bravia 42 ‘’ TV , Home Cinema Blue Ray DVD , Satellite Decoder

 GALLEY AND DOMESTIC EQUIPMENT

Galley

• Roller grill
• Garland 6-place electric stove & double oven
• ElectroMaster deep fryer
• Amana type RCS511 microwave oven
• Jenn Air extractor hood
• Miele type G7856 dishwasher
• Zanussi convection & steam oven

Pantry

• Hoshuzaki ice maker
• Nespresso coffee machine
• Miele type G6905C dishwasher

Refrigeration

• Koleing double compartment refrigerator in stainless steel with air-cooled compressor (galley)
• 2 x Walk-in cold rooms with glass fibre flooring and 2 x chilling units in each for fridge/deep freeze
• Zanussi refrigerator (crew mess)
• Miele type K316 refrigerator (pantry)
• Drinks refrigerator (main saloon bar)

Crew Galley

• Codigel microwave oven
• Miele Premier dishwasher
• Kenwood toaster
• Nespresso coffee machine

Laundry

• 4 x Miele type WS-5427 washing machines
• 4 x Miele type T-5206 drying machines
• Miele type B-865 roller ironing machine

TENDER AND WATERSPORT EQUIPMENT

• Tenders 2 x 6.12m BSC with Yamaha 150hp outboard engines

ACCOMODATION

Owner

• Full width double cabin located forward
• Marble bathroom, his and hers sinks and jacuzzi tub en suite
• Spacious office area, walk in wardrobes and dressing area

Guests

• Full width vip double cabin located aft with marble bathroom en suite
• Can be accessed privately via the main salon
• 2 x double cabins with shower rooms en suite
• 2 x twin cabins with bathrooms en suite (1 x twin cabin can be converted to single cabin as required)

Crew quarters

• 1 x captain’s double cabin with shower room en suite
• 6 x twin berth cabins with shower rooms en suite

Living areas

• On the main deck is a spacious, warm and inviting main salon, complete with full bar and separate seating areas. A second salon forward with full state of the art
• Entertainment centre has an even more intimate atmosphere for smaller gatherings.
• Aft of the main salon lies the spectacular aft deck, with circular dining table for buffet style or alfresco dining.
• A separate formal dining salon, with comfortable seating for
• Twelve, is ideal for entertaining clients, guests or close friends.

Master suite

• The impressive full-width master suite is located forward on the main deck and is furnished in exotic woods and light fabrics. This magnificent suite also features a kingsized bed, comfortable seating area, dressing room and an en-suite bathroom and Jacuzzi.

Dining areas

• Three outside dining areas and one formal interior dining area
• The formal dining room [forward of the main salon]

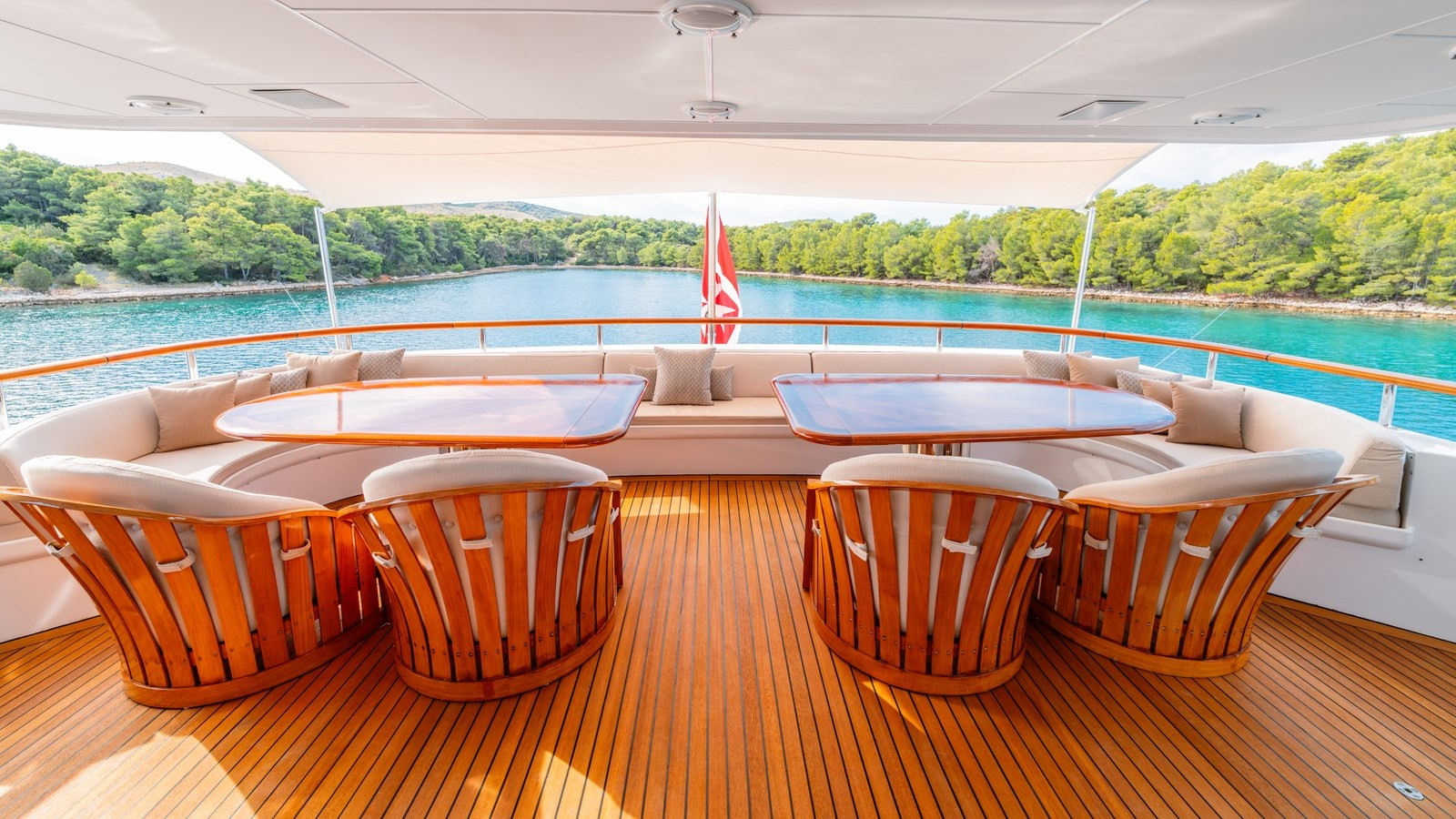

• The main aft deck dining area

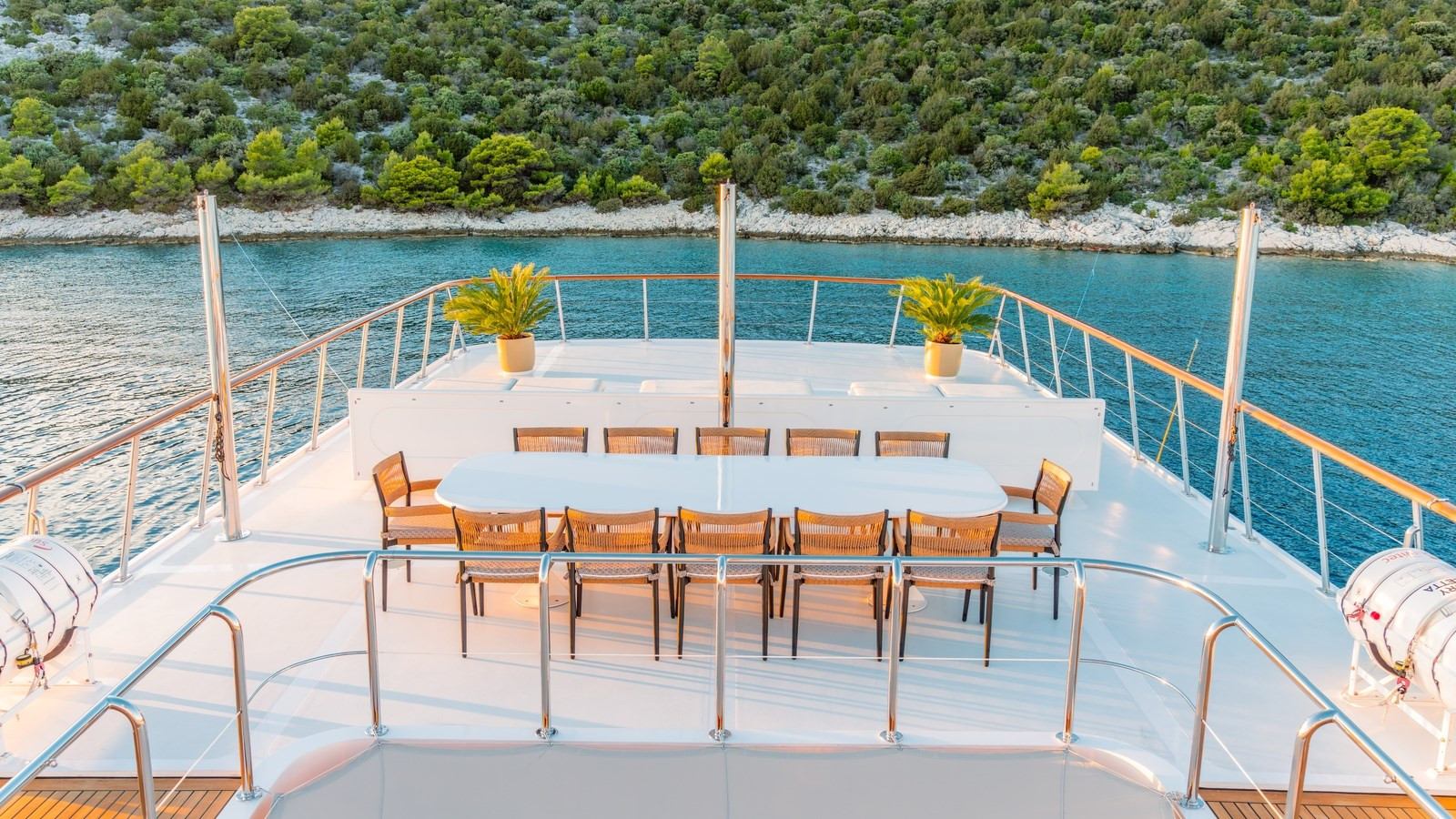

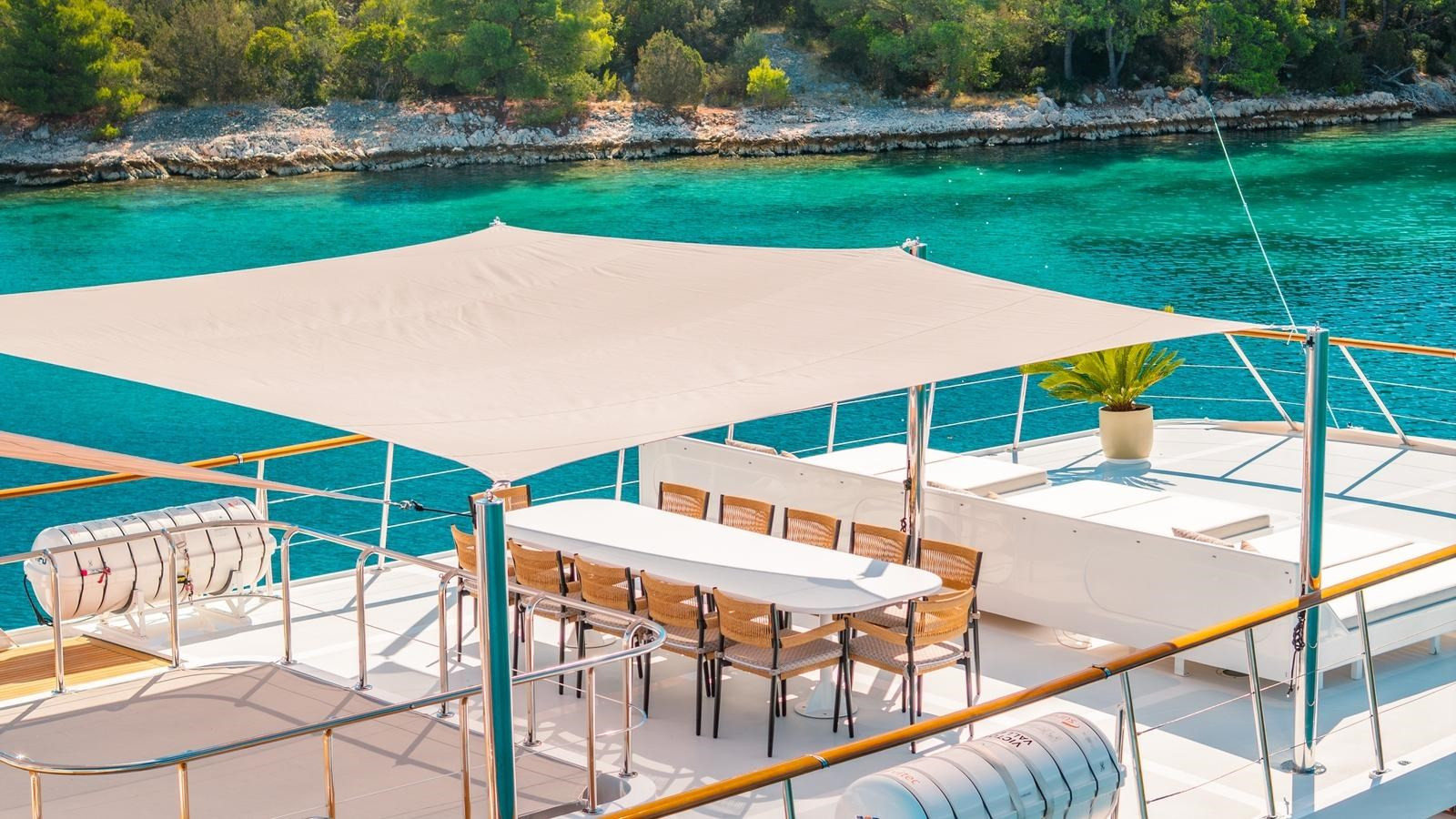

• The sundeck dining area
• The upper deck shaded dining area

Lower deck accommodation (guests’ accommodation)

• On the lower deck, there is a large, full width vip suite aft with centreline king bed and marble bathroom en suite, which can be accessed privately via the main salon. There are also two double queen guest staterooms, and two twin guest staterooms are both extremely spacious and well designed. All staterooms have en suite bath facilities.

Crew accommodation

• There is accommodation for the captain and up to 13 additional crew members.
• The captain’s cabin is a double cabin with a shower room en suite.
• There are 6 twin berth cabins with shower room en-suites for the crew members.

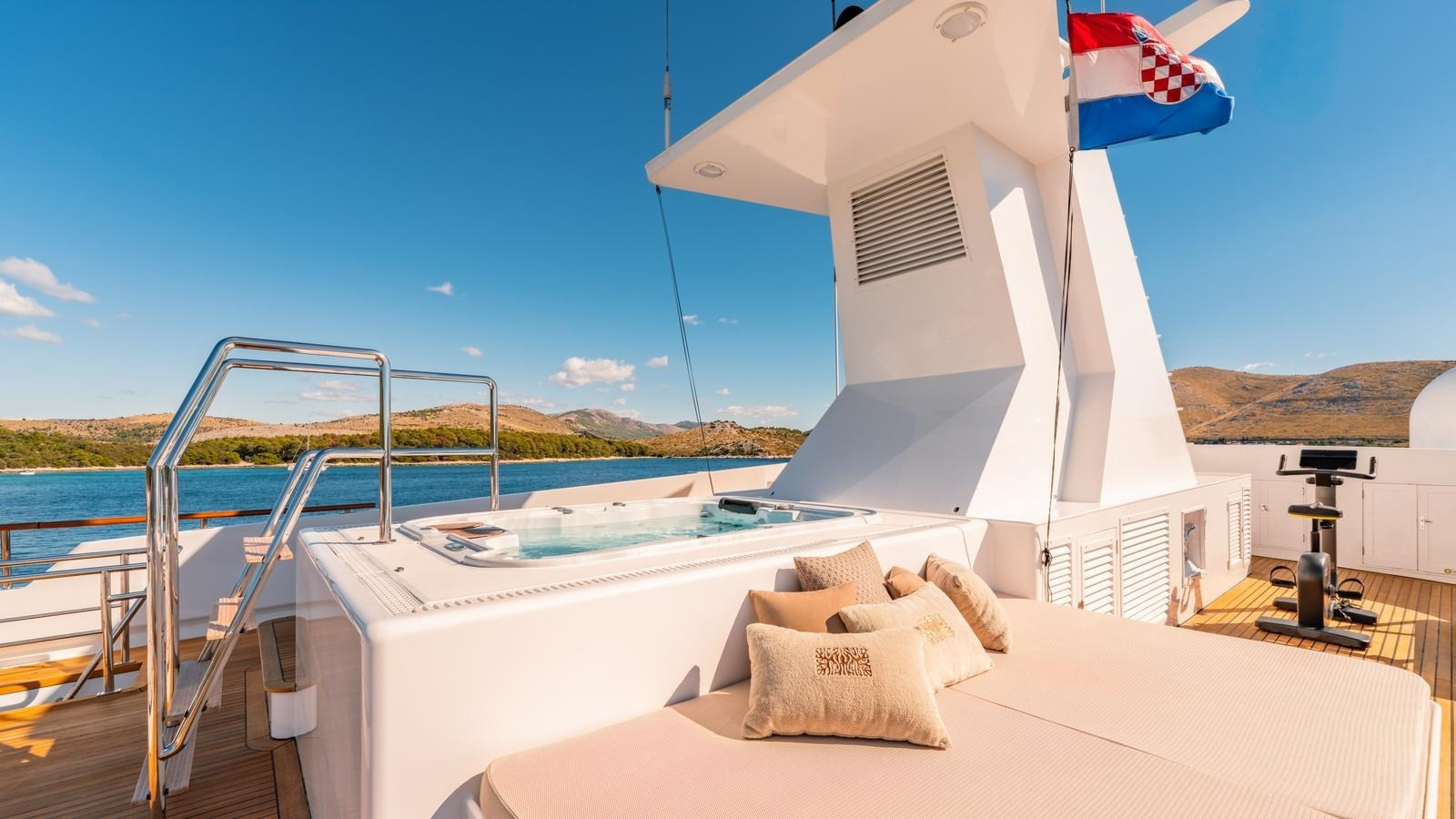

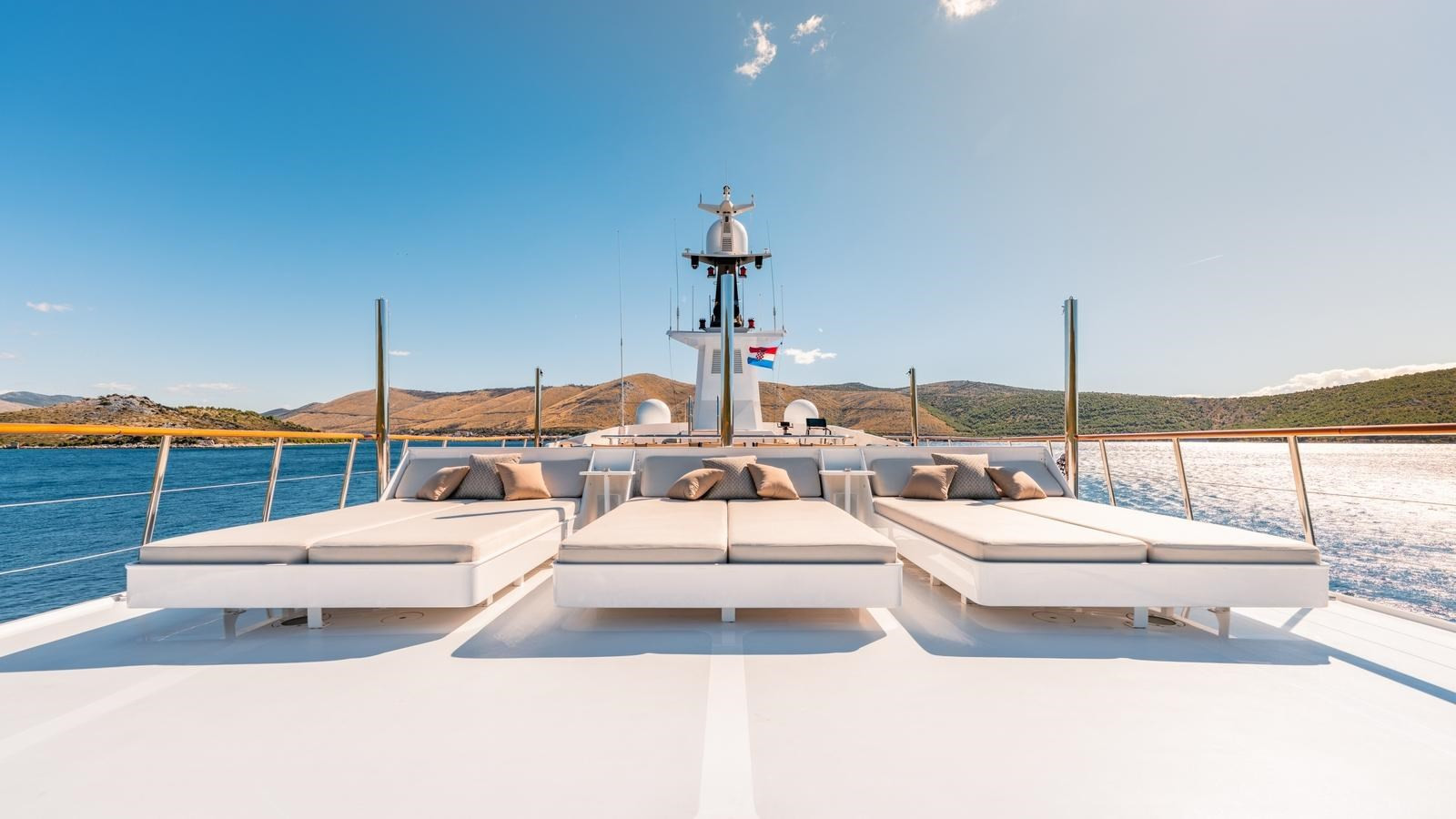

Top sun deck

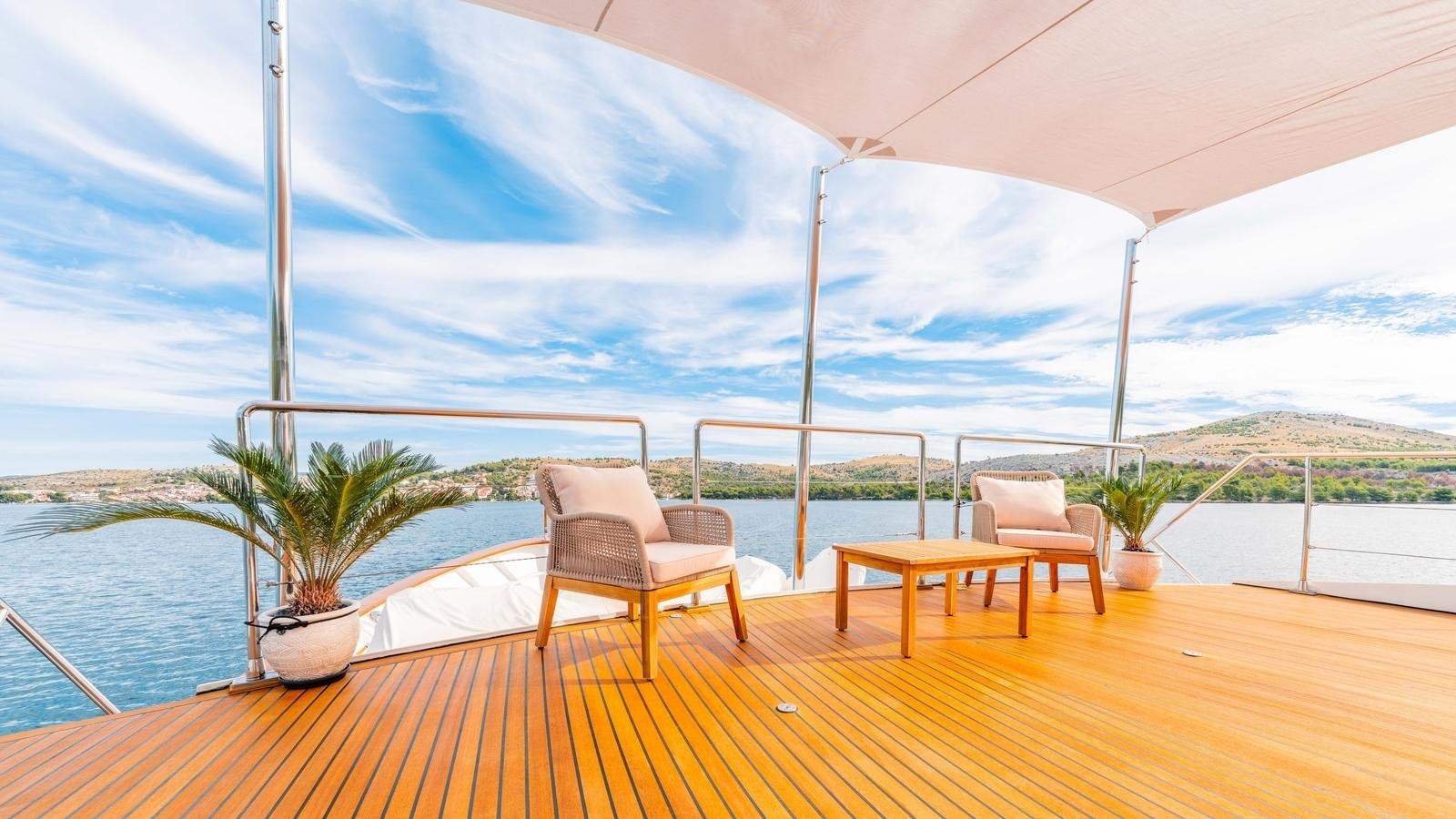

• On the top of the yacht is the sun deck. In the front of the sun deck around the stack is a bar with barbecue. Behind the bar is a large padded sunning area. Further to the rear on the sun deck is an outdoor dining table, which can be shaded by market umbrellas. At the rear of the sun deck are 4 huge sun beds with windscreens.The tented atrium in the middle of the sun deck, provides light to the below upper deck area.

REFIT SUMMARY

2025 Interior refit

Master cabin completely redesign All cabins- new linen, decoration, paitings, lamps, sofas,ceilings,taps, chairs… Upper saloon new lights, lamps, paitings, decoration,chair,curtains,tv, outside door. New AC system New generators x2 (John Deer) New bridge & wings controllers Accomodation ladders + Garage door + passerelle hydraulic syst refitted/serviced Refer plant refit FW/Grey water/fuel tanks refit & cleaning Additional awning for bridge deck forward sofa New set of awnings for SD

Dinning area Fully new design of area. New table, new chairs, chandelier, wall lamps, paintings. Saloon- new lamps, chandeliers, curtains, decoration, paintings.

Gym on sundeck

All outside cushions, canvas New beach lounge builded All lights new exterior and interior All new paintings All new taps New door upper salon New Tv\'s New navigation system Furuno full ECDIS

2021 - 2022 All general upgrades, surveys, servicing and expected maintenance is being carried out

2020-2021 Extensive upgrades on the steel hull in the Foredeck aft around the anchor shield. New steel plates installed in areas that were thinning Thickness testing on the hull Repairs and new teak on the swim platform and stairs leading to the swim platform Maintenance on all hydraulic systems Maintenance on the stabilizers Annual engine maintenance (CAT) Annual maintenance on Generators Replacement of Anodes and valves Anti-fouling Stainless steel polishing (2020) Interior ceiling panel replaced in the hallways on main deck and upperdeck. Additional insulation on HVAC pipes was added to address condensation issues when cruising in the Gulf All window frames upgraded throughout the yacht to prevent condensation when visiting hot countries like the UAE. All routine maintenance on systems and equipment were carried out as per the PMS (IDEA) 2021 Lloyds class surveys completed and all Class and Statutory certificated renewed and up to date (these can be transferred to a new owner if the flag remains in Malta)

EXTERIOR: Painting Works and Supplies Replacement of Teak Rubber Steel Hull Repairs Hull Cleaning Repair of Windows on all decks

PUMPS & A/C: Stabiliser Pump Service A/C Sea water & Circulation Pumps Service Fresh water pumps service Watermaker booster pump 1 service Watermaker booster pump 2 replacement Watermaker HP pumps servicing Watermaker chemical cleaning and winterization Hammam Macerator pump service Hammam Mix and Drain pump service Hammam Sea Water pump service JETS Pumps 25MB service A/C Unit Maintenance Refrigeration Units Maintenance Discharge pump service Fuel Pumps service Oil pump replacement Galley Hood Blower replacement Galley Hood repair Installation of 2 Air Handling Units (AHU)

MECHANICAL: Shaft bearings changed Annual Maintenance of Engines Annual Maintenance of Generators Replacement of all Zincs and Anodes Cleaning and repair of the butterfly valves

EXTENSIVE REFIT WINTER 2018-2019 Installation of a new Galley and pantry service areas, with top of the line foodpreparation equipment New teak floors and extensive touch up and repainting the vessel Maintenance and upgrade of engines, generators and Navigation equipment Upgrade of audio-visual systems and speakers on all decks Refurnishing and modernizing of all interiors, dining areas both indoor and outdoor as well as all service presentation Beach Club redone and sun decks refitted Full refit works list available on request

REFIT 2017 Updated AV / IT system Paint Systems upgrade Interior refurbishment Engines & generators had a full overall in August 2017

REBUILD 2010 - FEADSHIP RELAUNCH Extended in length: The transom was re-designed and re-built to incorporate a stern garage and hydraulic transom / platform – a great enhancement for swimming, water toy launches and boarding, giving the main aft deck a large, open u-shaped padded lounge area The two top decks were also extended with aft lounge seating, a newly redecorated upper deck salon and on-deck exercise area
