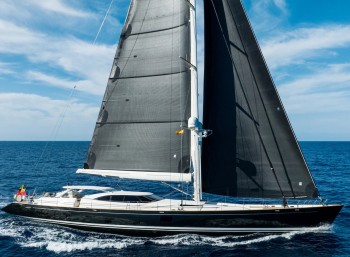

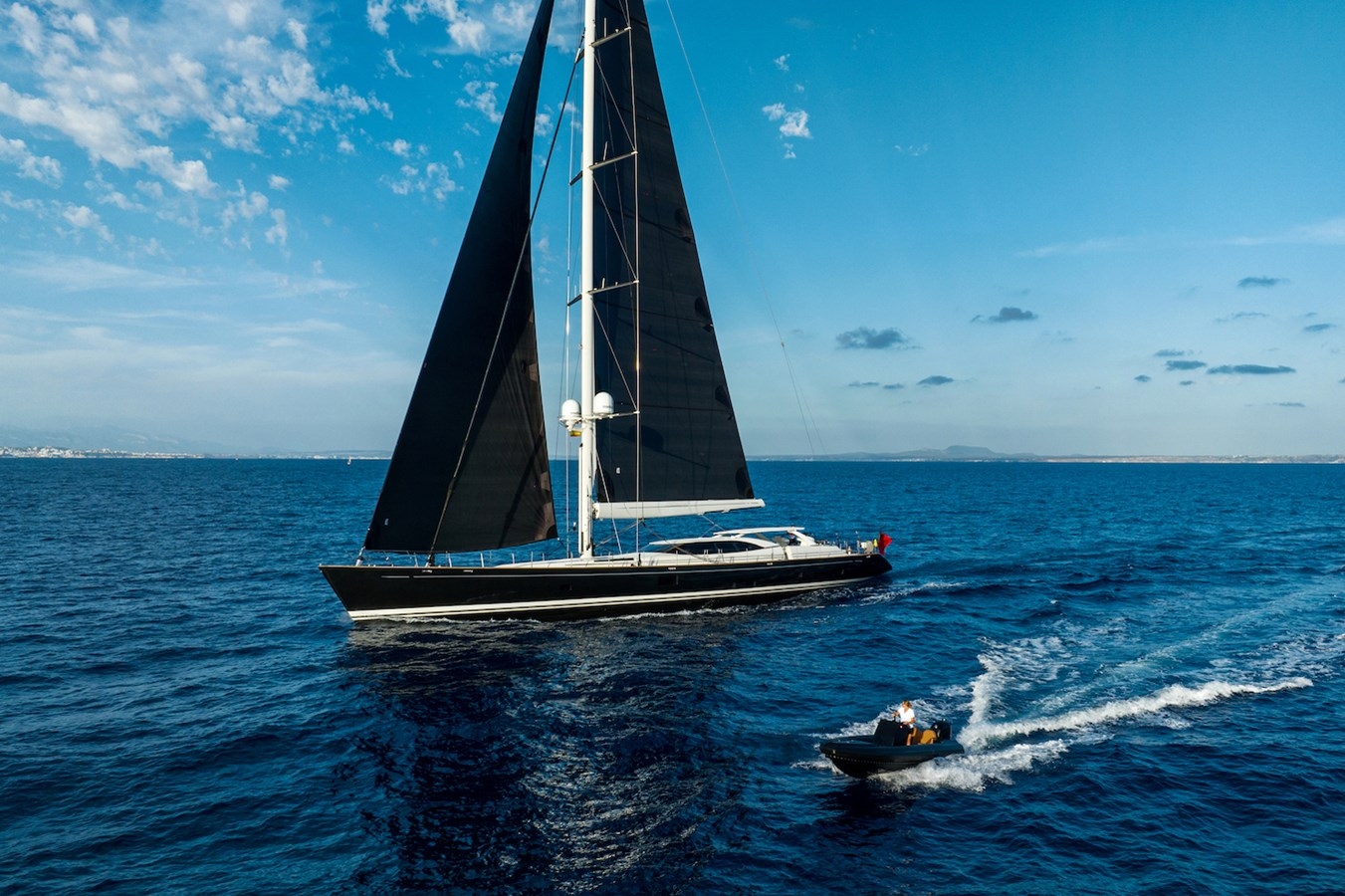

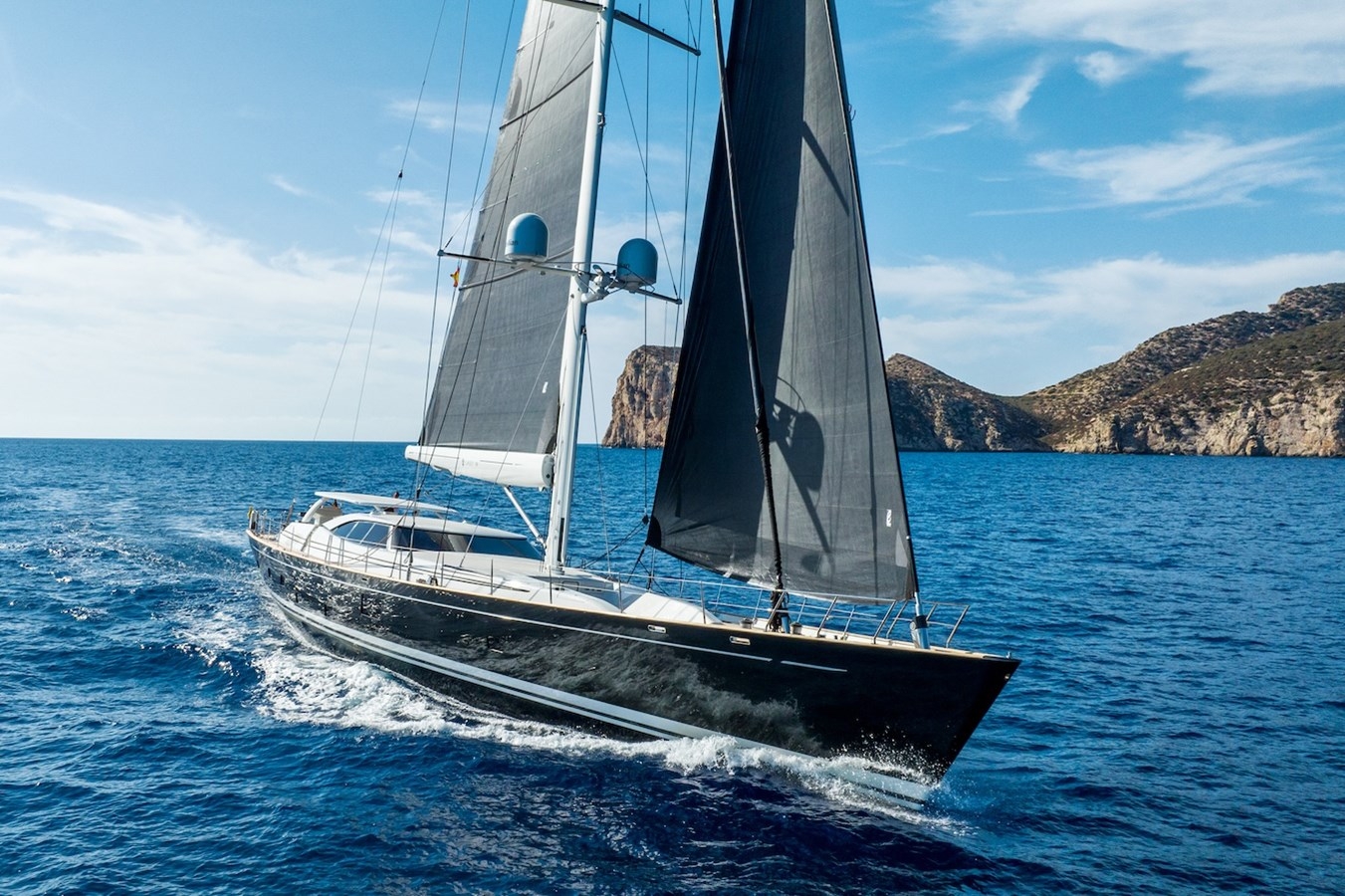

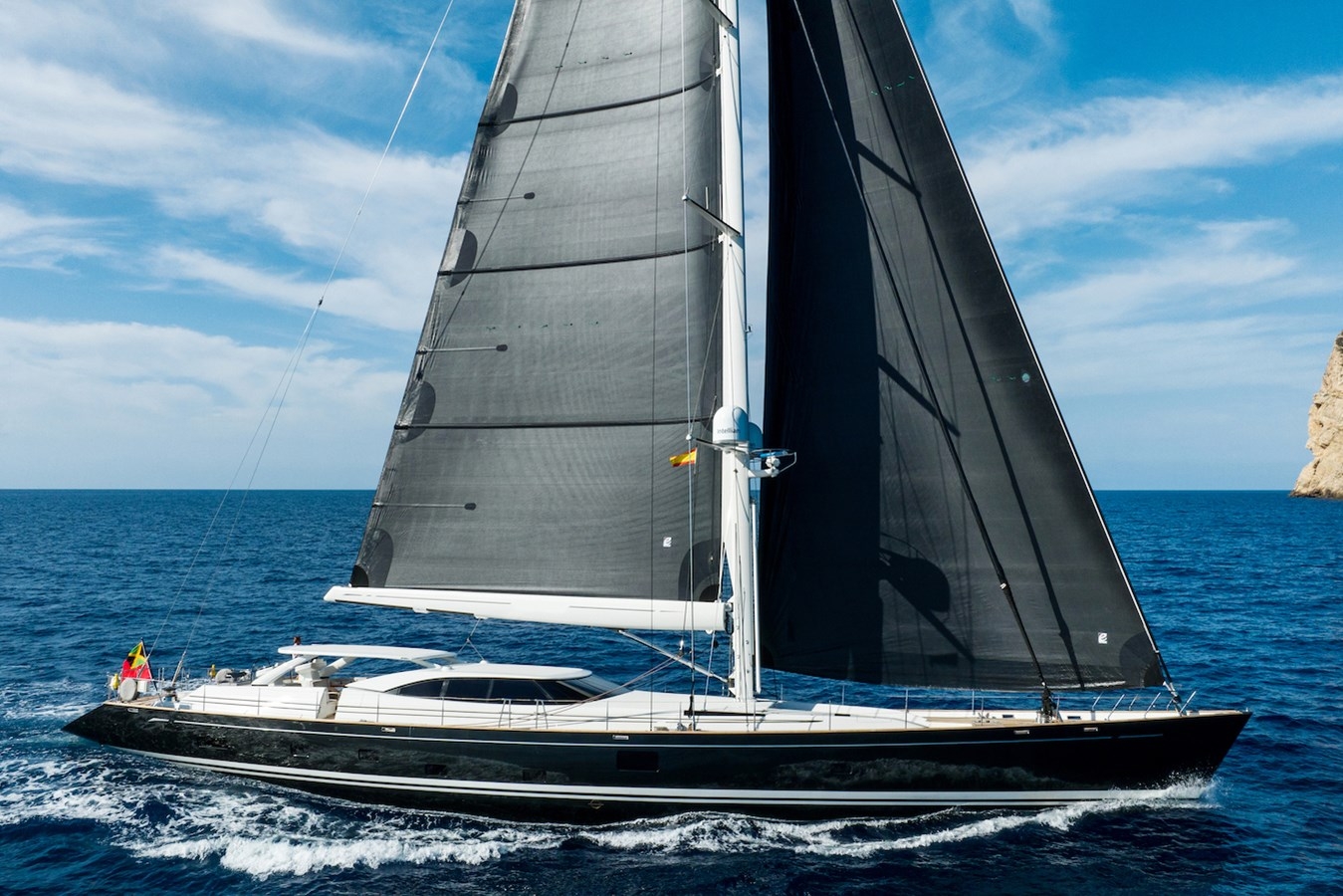

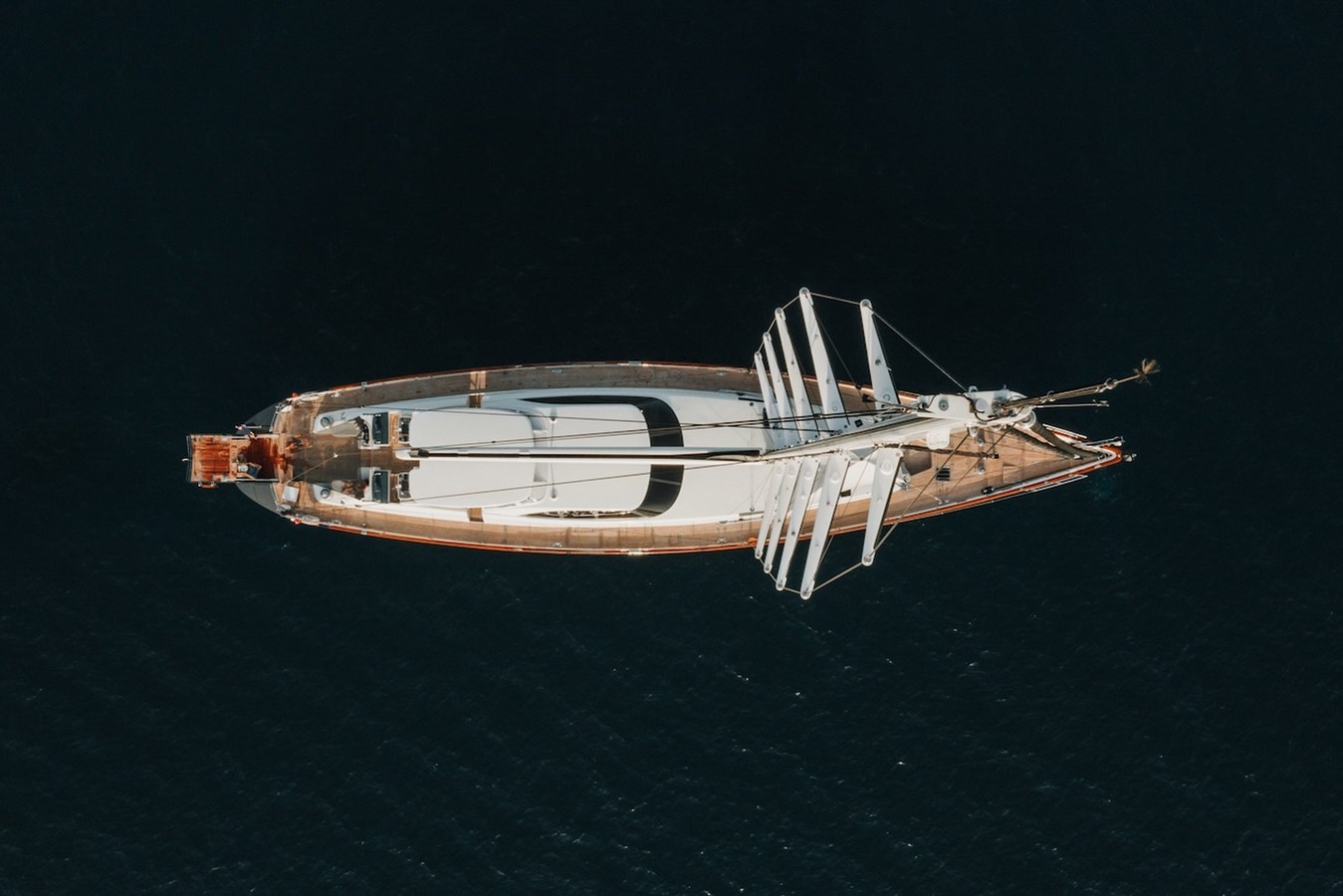

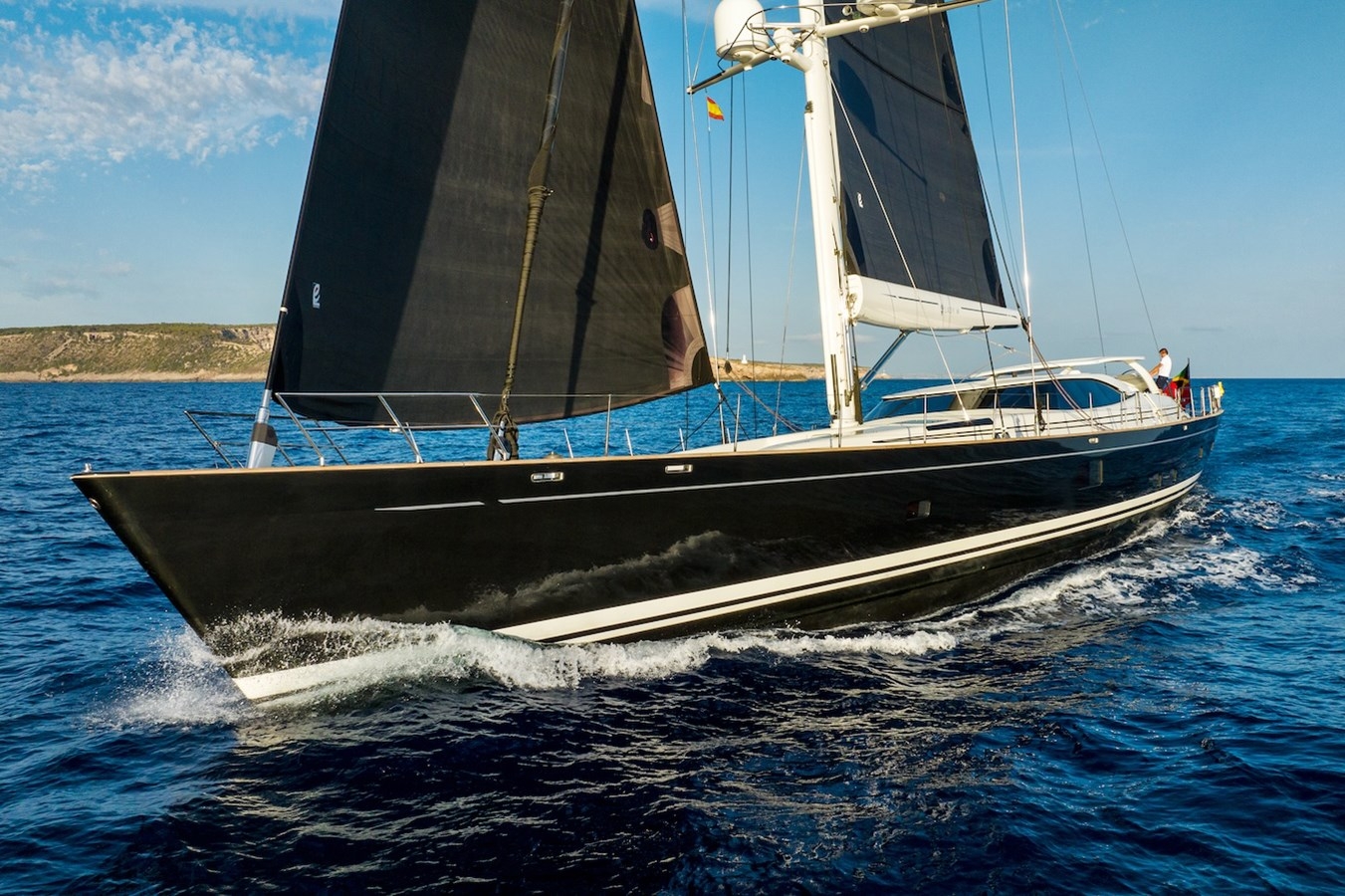

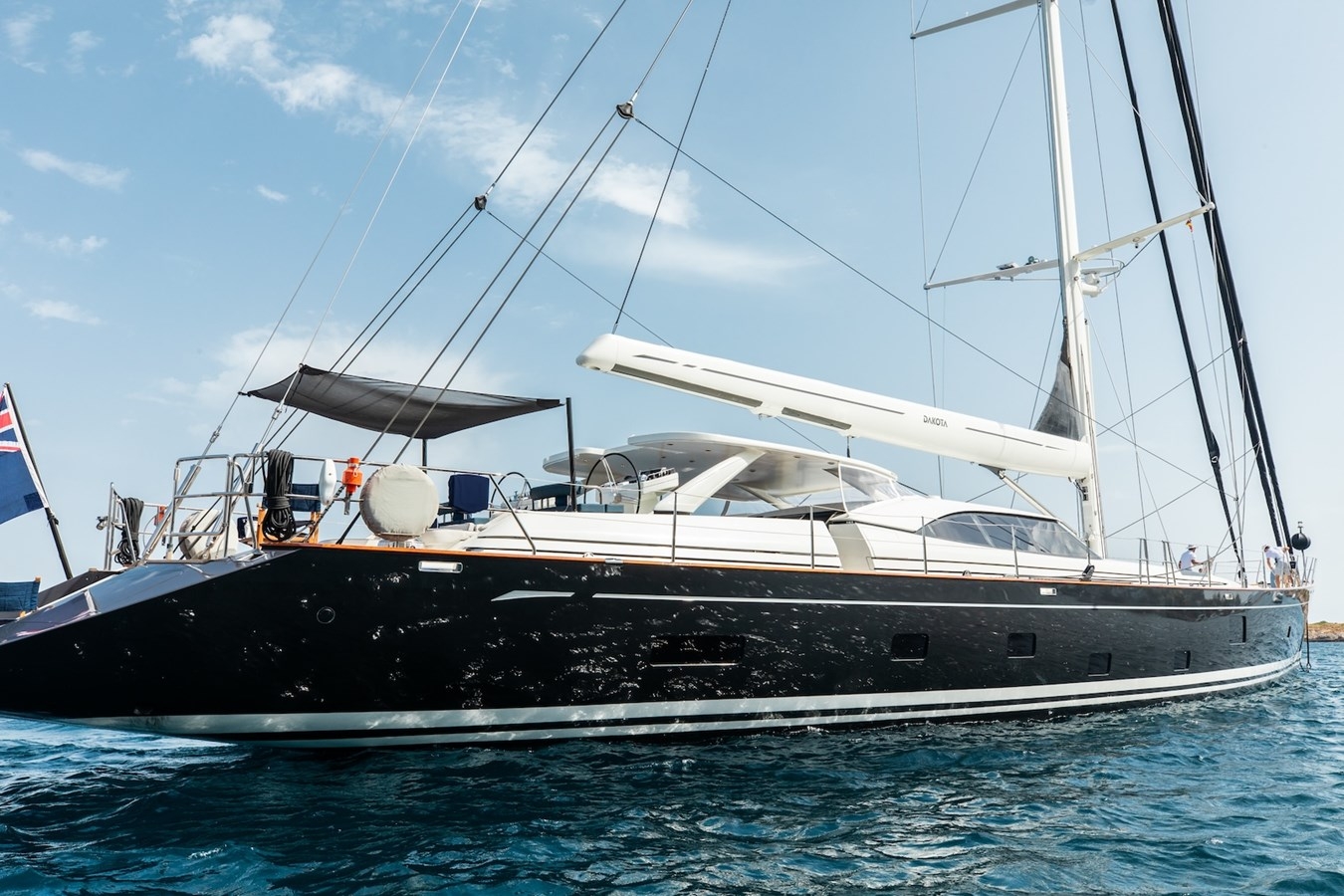

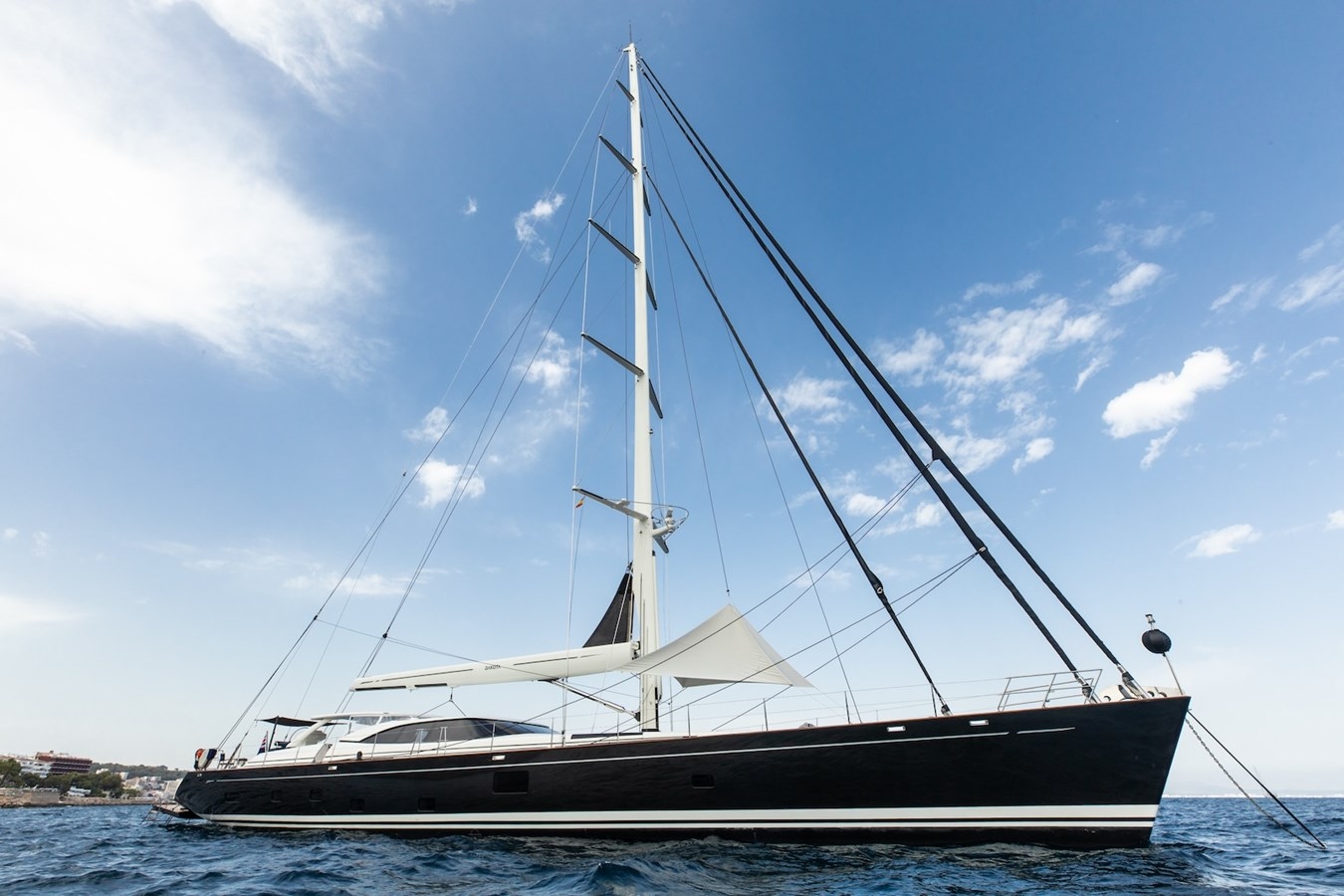

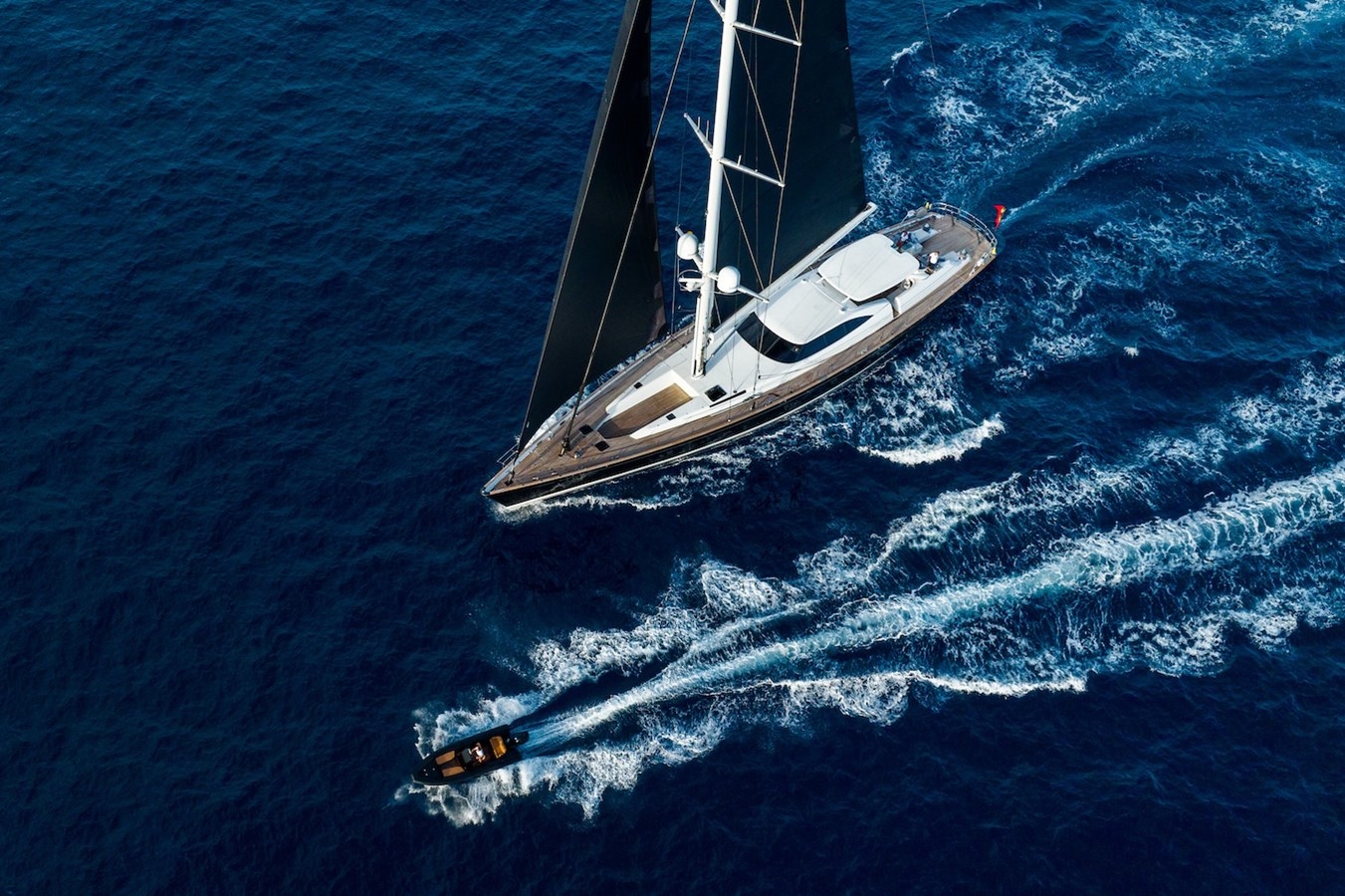

DAKOTA is a striking 39m / 128ft sailing yacht designed by the renowned naval architect Ed Dubois, who was tasked with creating a truly world-capable sailing yacht. Built by Fitzroy Yachts in New Zealand with an aluminium hull, DAKOTA combines proven performance with refined comfort. Her interior, originally designed by RWD, was thoughtfully refreshed by H2 Yacht Design in 2022, creating contemporary, welcoming living spaces.

DAKOTA has just passed her 20 year survey and undergone significant investment by her meticulous owner; around €2,000,000 was spent in the last 12 months. A full list of works and improvements are available upon request.

Alongside a successful racing career, including participation in the Loro Piana Superyacht Regatta, the Dubois Cup and The Superyacht Cup, DAKOTA offers the comfort and amenities expected of a first-class yacht.

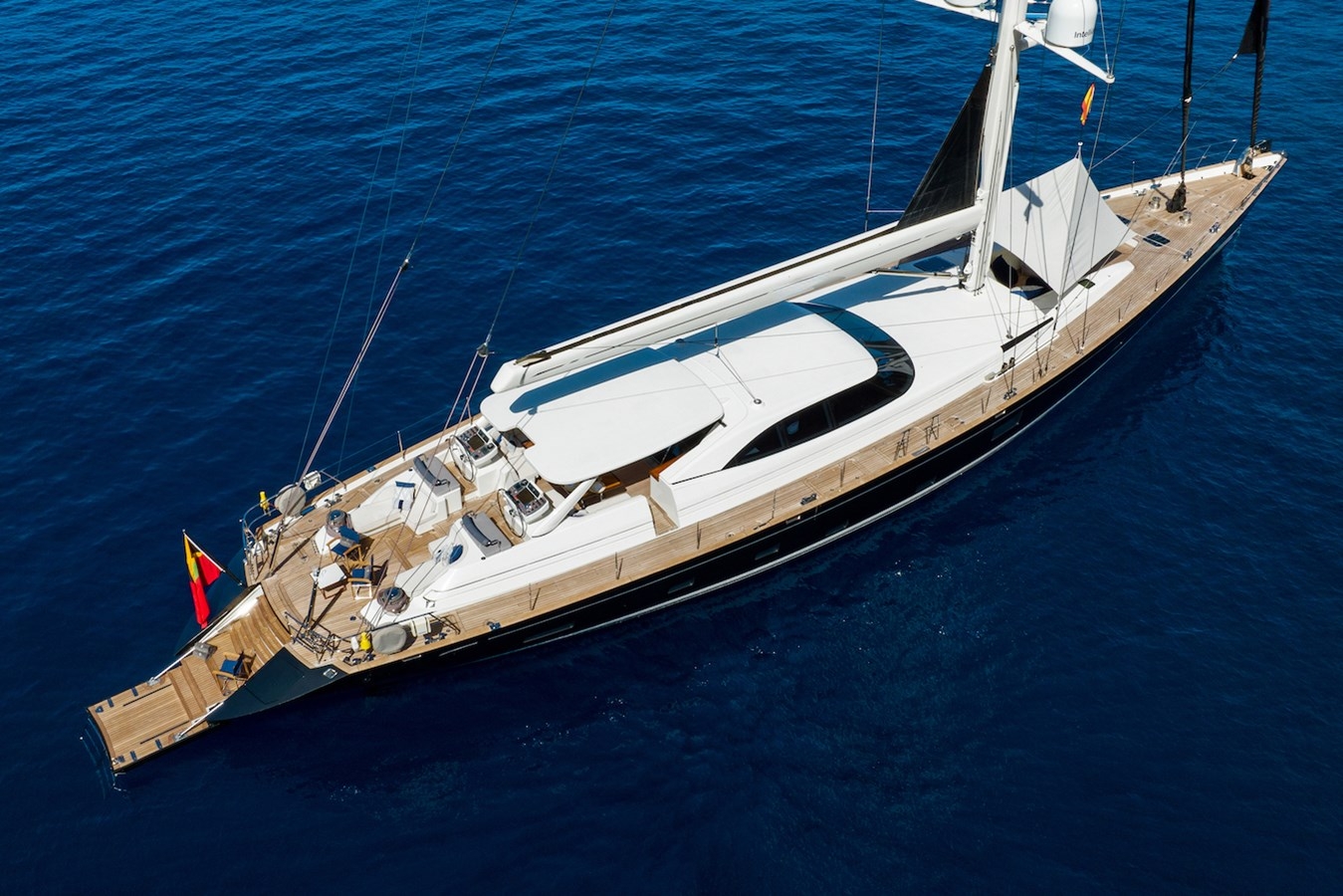

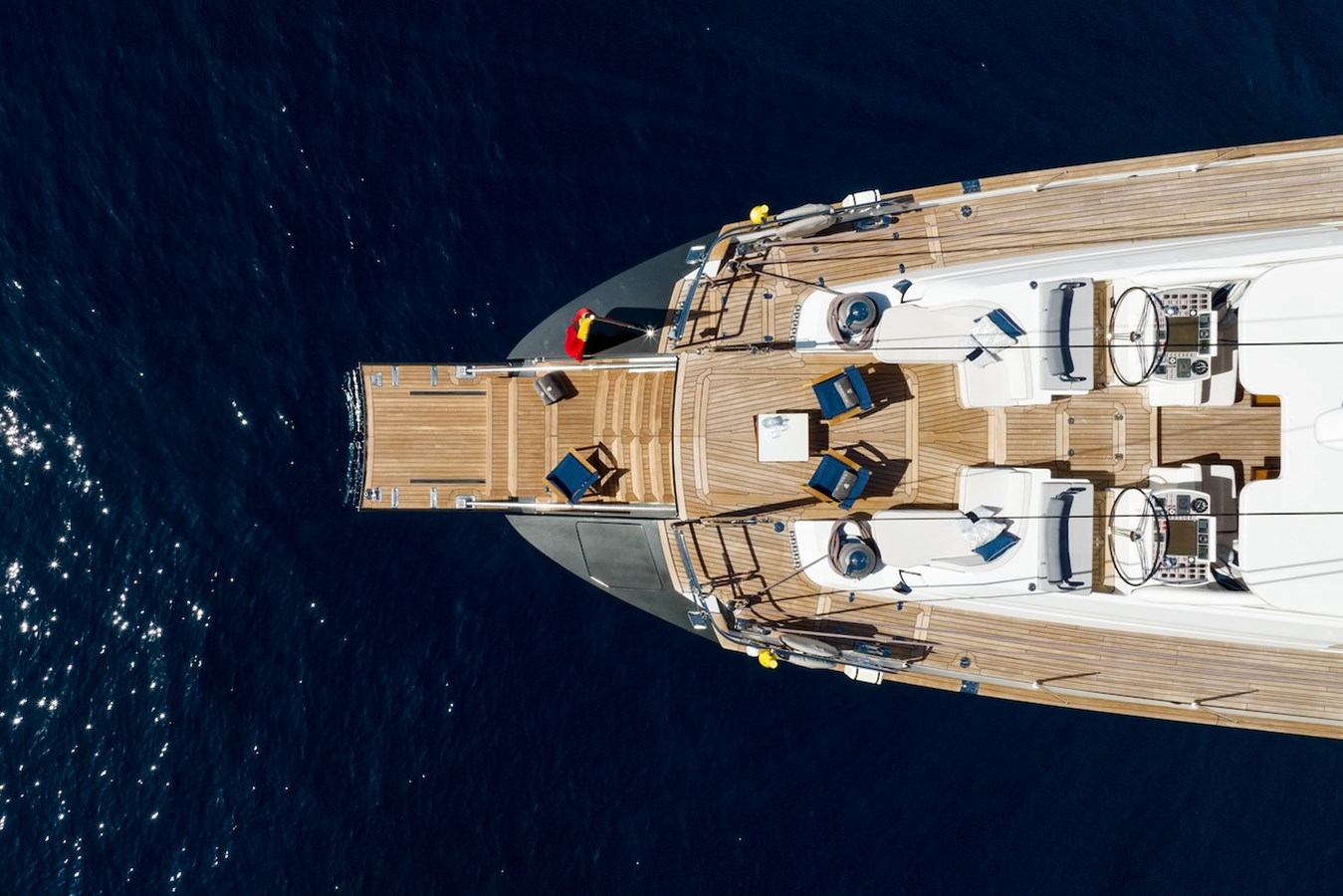

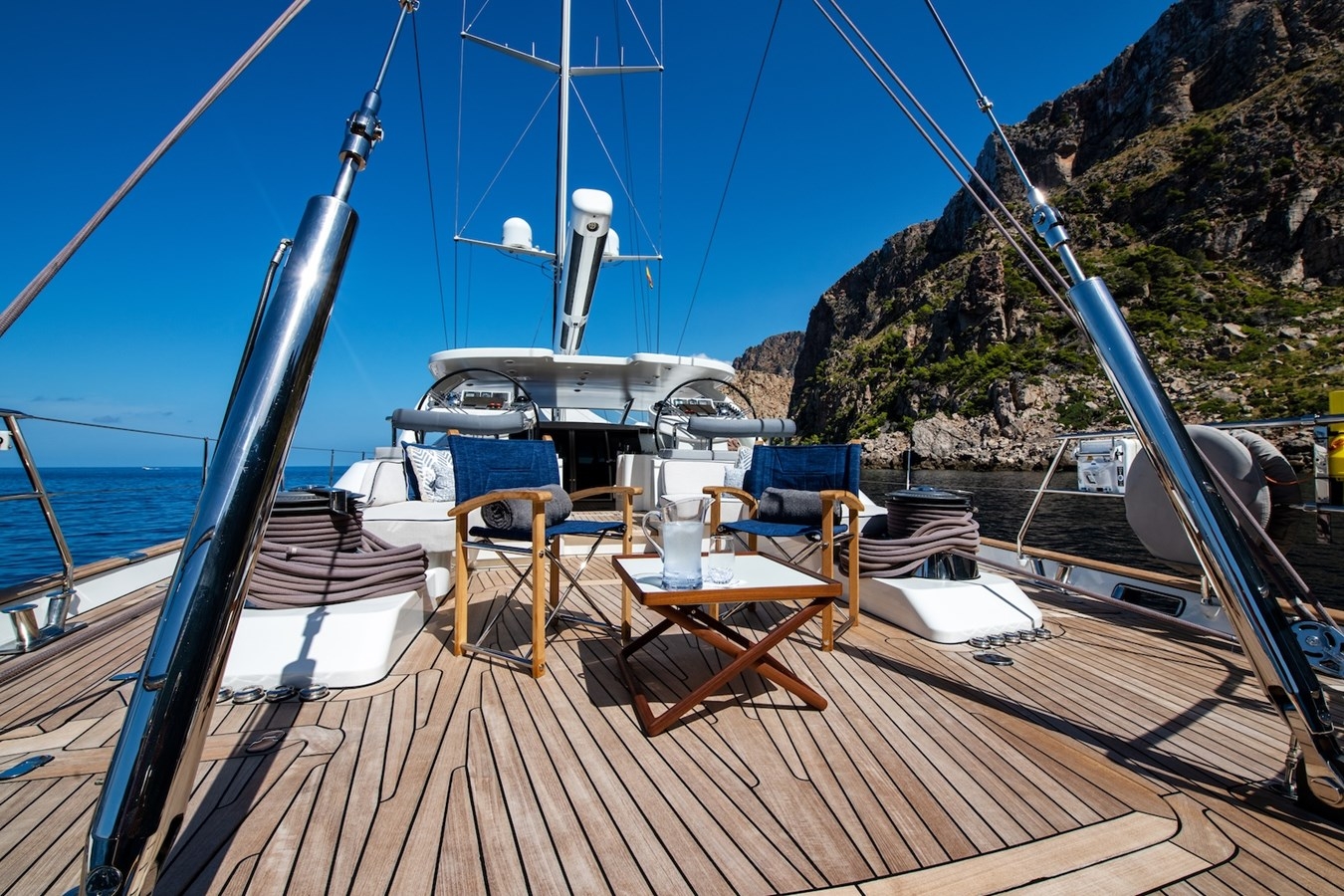

Her spacious layout accommodates up to nine guests in four elegant staterooms. On deck, there are plenty of inviting spaces to relax, from the sunken seating area on the foredeck, ideal for sunbathing or enjoying a book with the option of shade, to the sheltered al fresco dining area forward of the twin cockpit.

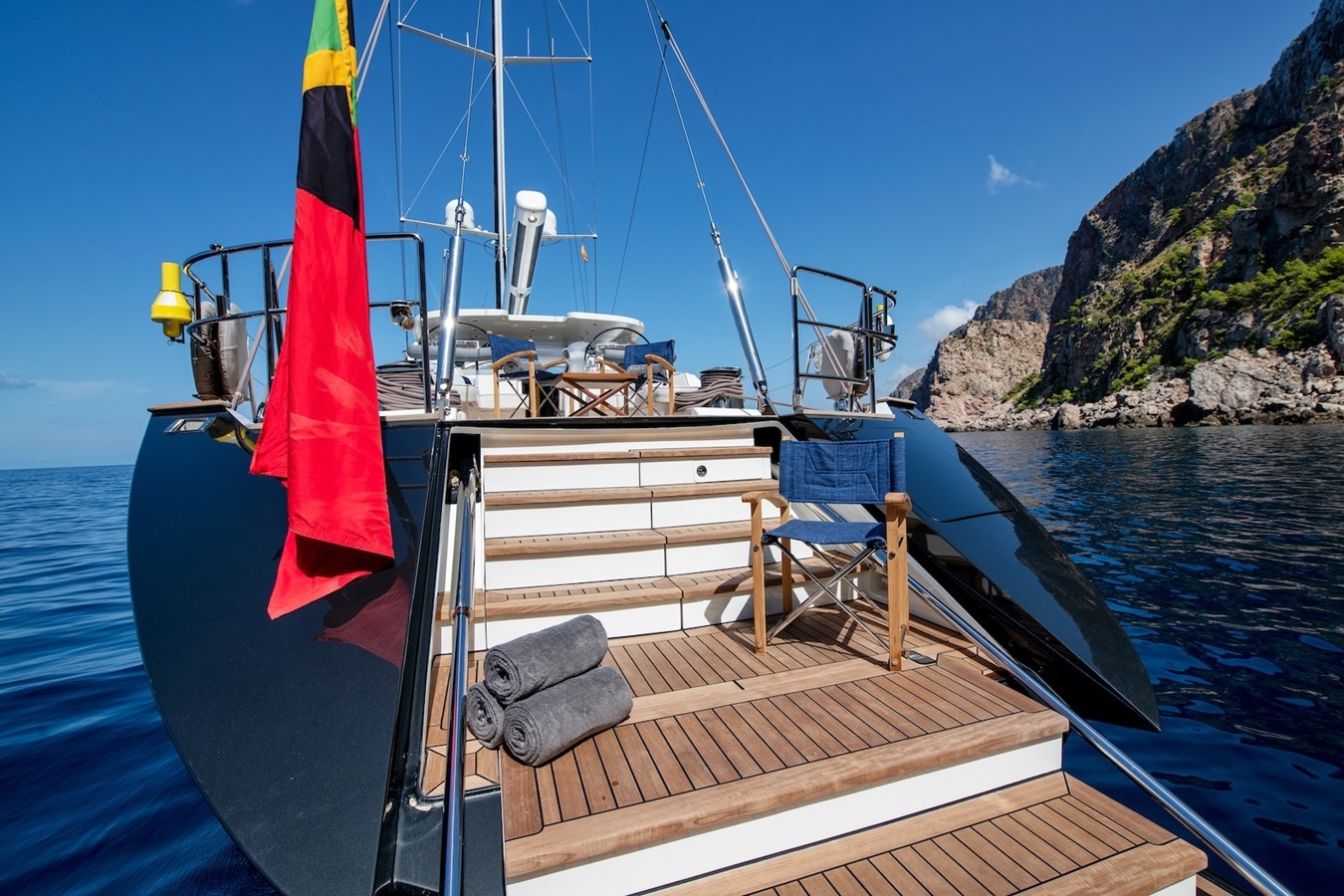

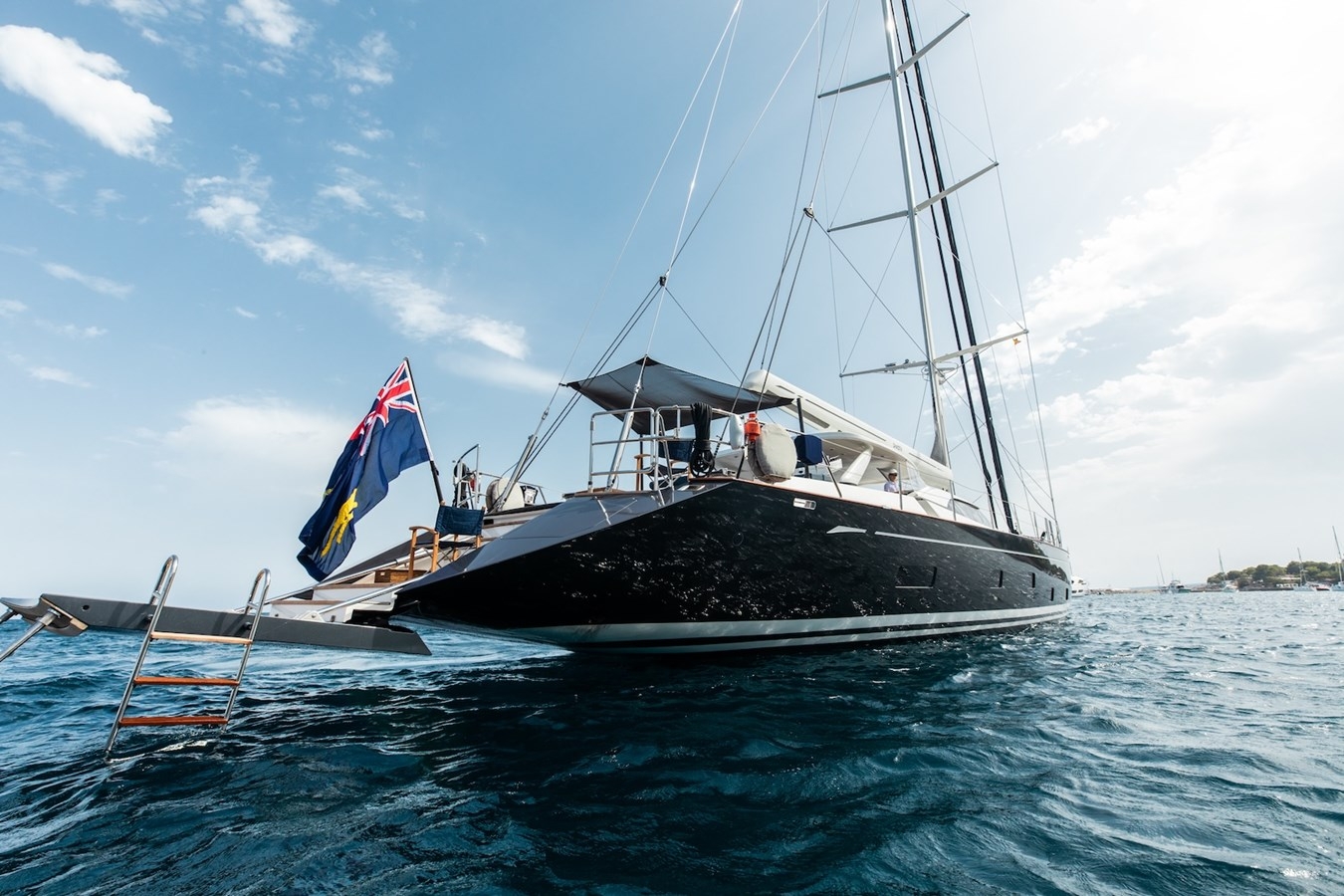

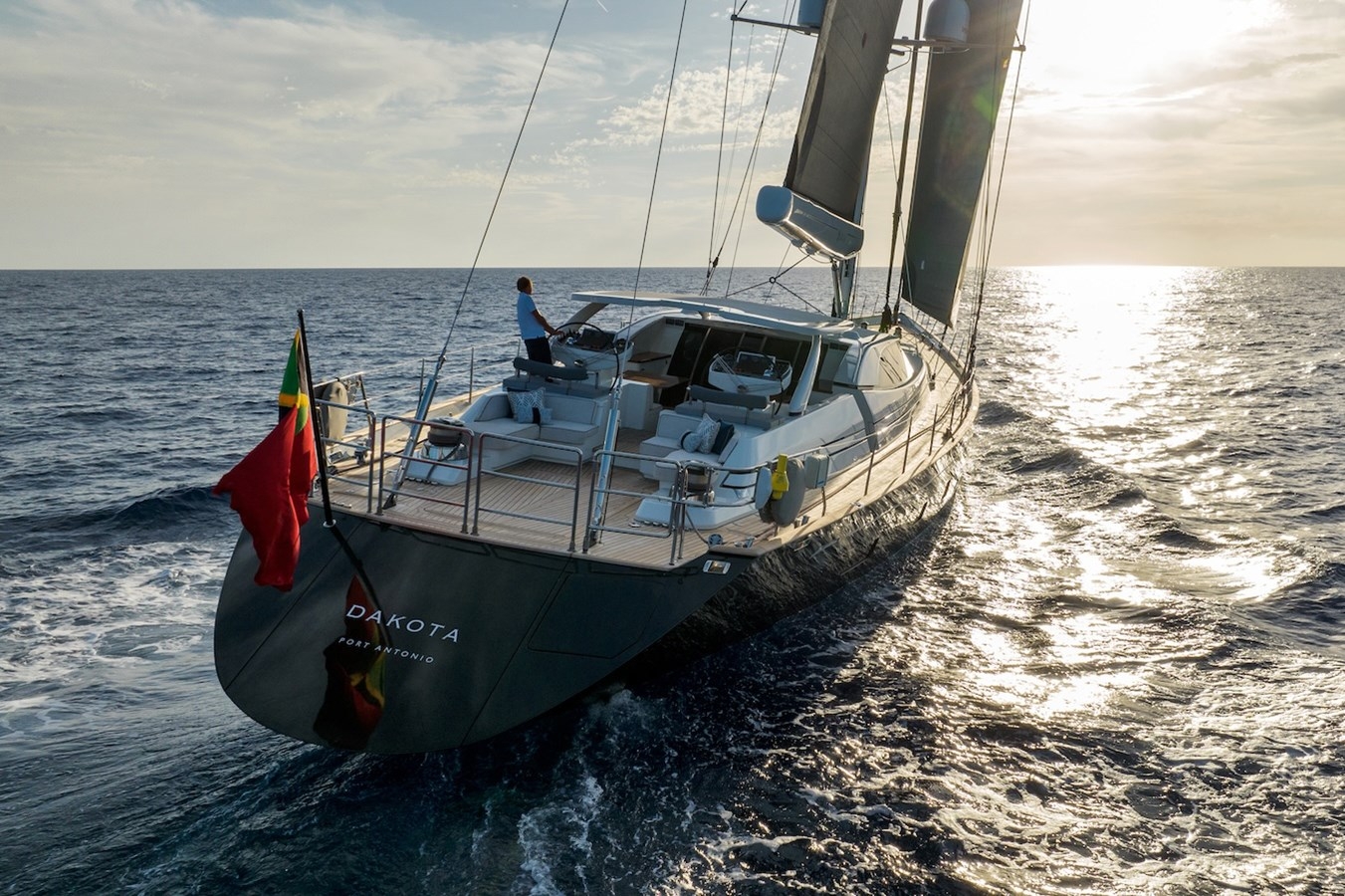

An additional lounge aft provides the perfect place to take in uninterrupted ocean views. For days spent on the water, DAKOTA\'s hydraulic swim platform offers effortless access for swimming.

Type
Fast Cruising Sloop

Builder
Fitzroy Yachts

Year
2006

Refit Year
2022

Yacht Model
Custom

Construction Project Name
ZULU 2

LOA
38.9m (127\'7\")

LWL
34.1m (111\'9\")

Beam Overall
8.3m (27\'3\")

Draft – Half Load
3.75m (12\'4\")

Draft – Full Load
4m (13\'1\")

Gross Tonnage
170 G.R.T.

Displacement – Fully Loaded
185 MT

Upwind Sail Area
632 m² / 2,073 ft²

Reaching Sail Area
632 m² / 2,073 ft²

Downwind Sail Area
1,279 m² / 4,196 ft²

Rig
Sloop

Hull Material
Aluminium

Hull Configuration
Monohull

Superstructure
Aluminium

Decks
Teak

Flag
Jamaican

Classification
Lloyd\'s Registered

Naval Architect
Dubois Naval Architects

Exterior Designer
Ed Dubois

Interior Designer
Redman Whiteley Dixon Ltd. / H2 Yacht Design (Interior Refit)

Main Engine
Caterpillar 3406 \'D\' rated, 700hp (522kW) diesel

Max Speed
13 Knots

Cruising Speed
11 Knots

Economical Speed
10 Knots

Range
3,750 nm @ 10 kn

Guest Accommodation
9 guests in 4 staterooms

Crew Accommodation
6 crew (Captain + 5) in 3 cabins

Classification
Member of IACS / Non - IACS

IACS Society
Lloyd’s Register

Additional Class Information
*100A1, SSC, Yacht, Mono, G6

EU Tax Status
Not VAT Paid

Displacement
185 Metric Tonnes

Fuel Capacity
16,150 Litres / 4,266 Gallons

Fresh Water Capacity
6,035 Litres / 1,594 Gallons

Water Makers (Per Day)
14,000 Litres / 1,698 Gallons

Holding Tank – Black & Grey Water
1,349 Litres / 356 Gallons

Lube Oil
296 Litres / 78 Gallons

Waste Oil
262 Litres / 69 Gallons



Cruising Speed
11 Kts

Cruising Fuel Consumption
60 Litres/hour

Cruising Range
1,250 nm

Cruising RPM
1,650

Economical Speed
10 Kts

Economical Fuel Consumption
40 Litres/hour

Economical Range
3,750 nm

Economical RPM
1,400

Engine
1 x Caterpillar 700hp (522kW) diesel engine, 3406 \'D\' rated

Engine Serial Number
20059849 MOH 2022

Engine Hours
5,217 hrs (Since 2016) / 15,365 hrs (Since new)

Propulsion Type
Direct – Prop/Shaft

Engine Exhaust System
Exhaust piping throughout the entire engine room replaced with new 2022

Gear Box
ZF 350A 2.97:1 pleasure duty (replaced 2022)

Pitch Control
Hundersted BP7 FR-HP

Shafting
Shaft OD 108mm ID40mm stainless steel 316

Shaft Service
Full replacement service 2026

Propeller
OD 1100mm NI-AL-BZ 4 Blade

Output / Electricity
230 3-phase 50Hz 24v DC

Generators
2 x 50Kw Northern Lights running 400v

Generator Serial Numbers
0644-36541 & 0644-36542

Generator Service
Both generators completed 5000 hour service July 2020

Port Generator Hours
9,306 hrs (Since 2016 - Full overhaul) / 21,000 hrs (Since new)

Starboard Generator Hours
9,149 (Since 2016 - Full overhaul) / 21,000 hrs (Since new)

Generator Fuel Consumption
8 lph

Mast & Boom
Southern Spars carbon fibre

Rig
BSI rod rigging

Rig Dimensions
Main mast: 48.50m / 159\'

Halyards
All running rigging new 2026

Furling Gear
Reckmann hydraulic furlers for the reacher, blade sail and removable staysail

Sails
Evolutions sails black carbon / technora all new 2022

Mainsail
Full length C-Tech battens (405 m²)

Blade Jib
Leech battens (RBS) (304 m²)

Staysail
Leech battens x 4 (120 m²)

A4
Nylite 350/250 Black (910 m²)

A3
North Sails Spinnaker (910 m²)

Delivery Sails
Delivery Main and Jib (North Sails)

Winches
6 x Lewmar drum winches

Captive Reel Winches
6 x Harken Nilssen captive reel winches

Navigation
TIME ZERO V5

Monitors
Hatland x6 new 2026 – Pilot house, crew and captain cabin

Radar
Furuno FAR211B 72nm 4ft radar with integrated ARPA and AIS

Chart Plotter
TIME ZERO professional electronic charts (worldwide)

Magnetic Compass
2 x Suunto magnetic compass

Auto Pilot
Furuno

Rudder Angle Indicator System
Furuno FL-30 B&G interface in digital form

Speed Log & Echo Sounder
Brookes & Gatehouse (B&G) Hercules 2000 log

BNWAS
Yes

GPS
1 x Furuno GP-170 GPS
1 x Furuno GP 90

AIS
Furuno FA-150

Navtex
Furuno NX-300

Wind Instruments
Brookes & Gatehouse (B&G) Hercules 2000 instrument package

Search Lights
Fenix TX 75

Ships Computer
1 x M5 Macbook Air 13inch

VSAT
Starlink and Pepwave dome (4g/5g)

SSB
Furuno 1570

VHF Radiotelephones
NSR VHF Radio Class A
2 x handheld VHF

Iridium Satellite Phone
No, Iridium to be added October 2026

Anchors
2 x 180 kg CQR anchors

Anchor Chains
2 x 137.5m / 451 ft 16mm stud linked galvanised anchor chains

Anchor Windlass System
2 x Maxwell 6000 series

Warping Capstans
2 x Lewmar 122

Crane / Davit
No, but used to have one in an aft locker. It could be reinstalled for jet skis etc.

Passerelle
1 x Opacmare hydraulic passerelle

Side Boarding Ladder
Bolt on side boarding ladder for side to dockage

Swim Platform
Hydraulic aft swim platform

Sun Awnings
Bespoke awnings made for aft deck and fore deck (with i-carbon poles)

HULL, RUDDER & SHAFT

Rudder bearing replaced

Shaft removed, checked, and reinstalled

Shaft seal replaced

Cutlass bearings replaced

VPP propeller removed and inspected

Sterntube face refinished

New PropSpeed applied

Antifouling replaced

Corrosion and fairing repairs carried out

ENGINE & HYDRAULICS

Hydraulic oil replaced

Main engine exhaust mixer replaced

Main engine PTO actuator replaced

All sailing cylinders removed and serviced

Deck hydraulic hoses replaced

Hydraulic header tank level switch replaced

New oil pressure gauges and sensors on generators

Primary/new air compressor replaced

SAILS & RIGGING

Running rigging replaced (June)

Reacher furler and staysail furler serviced

Brand new Reacher sail installed

Blade sail serviced by Doyle\'s (Palma), new UV strip

All shackles changed on headsails

Mast removed and All rod rigging replaced in line with BSI 20 year survey

TANKS & PLUMBING

Keel tanks opened and painted

Raw water flanges replaced for sea intakes and discharges

Hot water cylinder elements replaced

Both freshwater pumps replaced (new George Fisher/PPH plumbing)

Sewage discharge pump replaced

Bilge stripping pump replaced

Air conditioning raw water pump replaced

Watermaker HP pump motor replaced

Silver ioniser/sterilizer flow switch and plumbing replaced

Fire and bilge pumps overhauled

New emergency fire and bilge pump

Aft hot water circulation pump replaced

AC ducting cleaned

ELECTRICAL & ELECTRONICS

New Hatteland screens: pilot house (x3), crew mess (x2), captain\'s cabin (x1)

New PLC HMI display in engine room

New type-approved PLC PCs installed

Engine room fan VFDs replaced

PLC cabinet ventilation upgraded

All relays and bases replaced in AC control cabinets

New shorepower converter

All mast electrics reviewed, new wiring drawings completed

Horn solenoid on mast replaced

All spreader lights replaced

New anchor control panels

Service batteries replaced

New camera system installed, with recording

New Unifi network system installed

New Wi-Fi access points installed

DECK & HELM

All deck buttons/switches serviced and replaced

All helm station buttons replaced

Helm throttles replaced

Caprail revarnished

New tender fenders

New exterior covers (tables, helm station)

New cockpit clears (isinglass)

New mesh shades for pilot house windows

SAFETY & COMPLIANCE

Fire hoses replaced

Fire suits replaced

All medical equipment updated and compliant

All LSA and FFA gear updated and compliant for commercial use

INTERIOR

New Thermomix (galley)

New juicer (galley)

New ice maker (bar)

Marble polished in lower saloon
