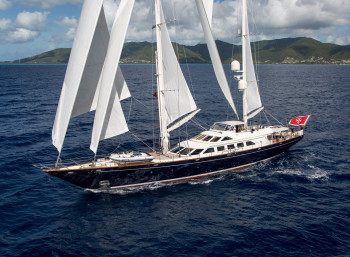

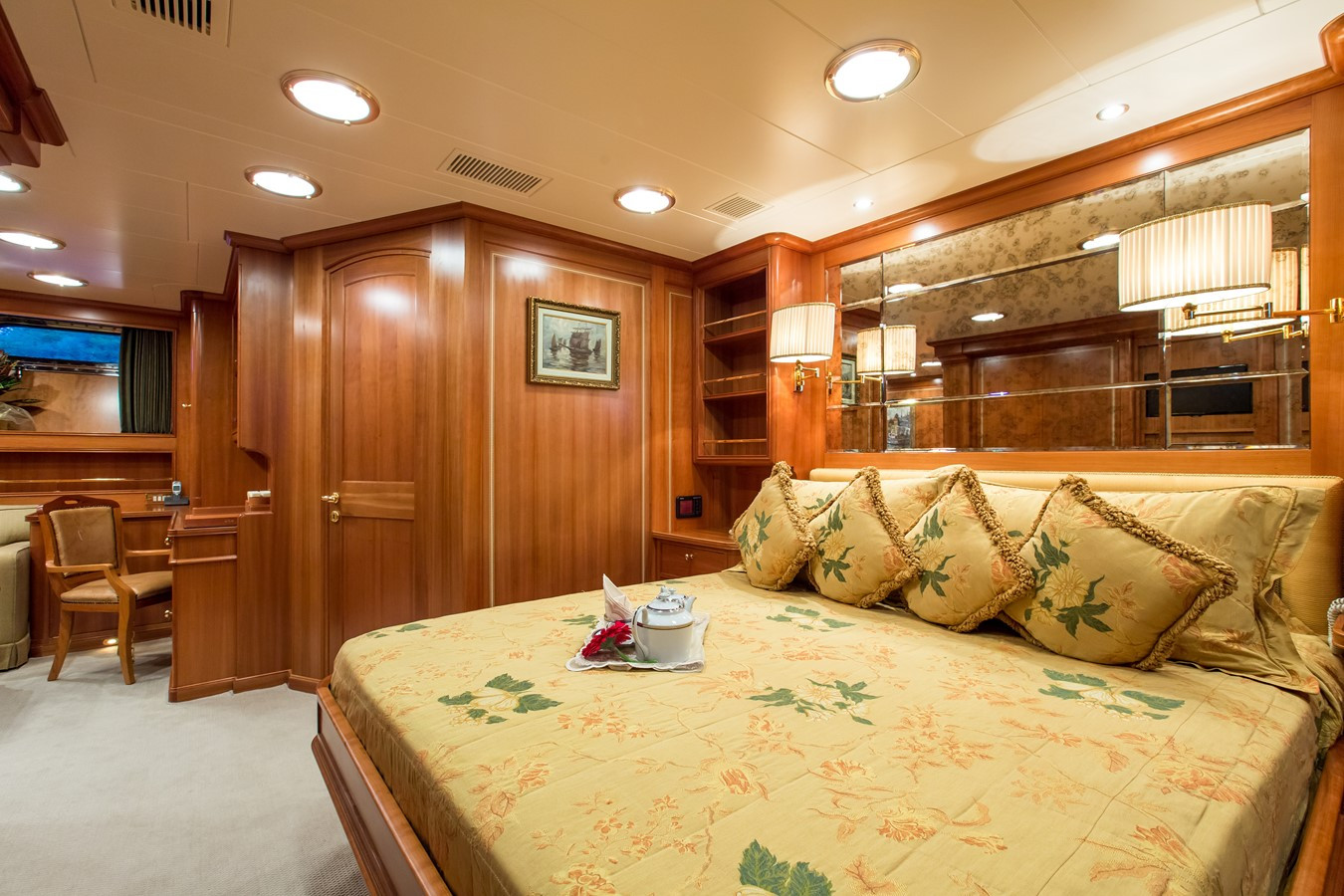

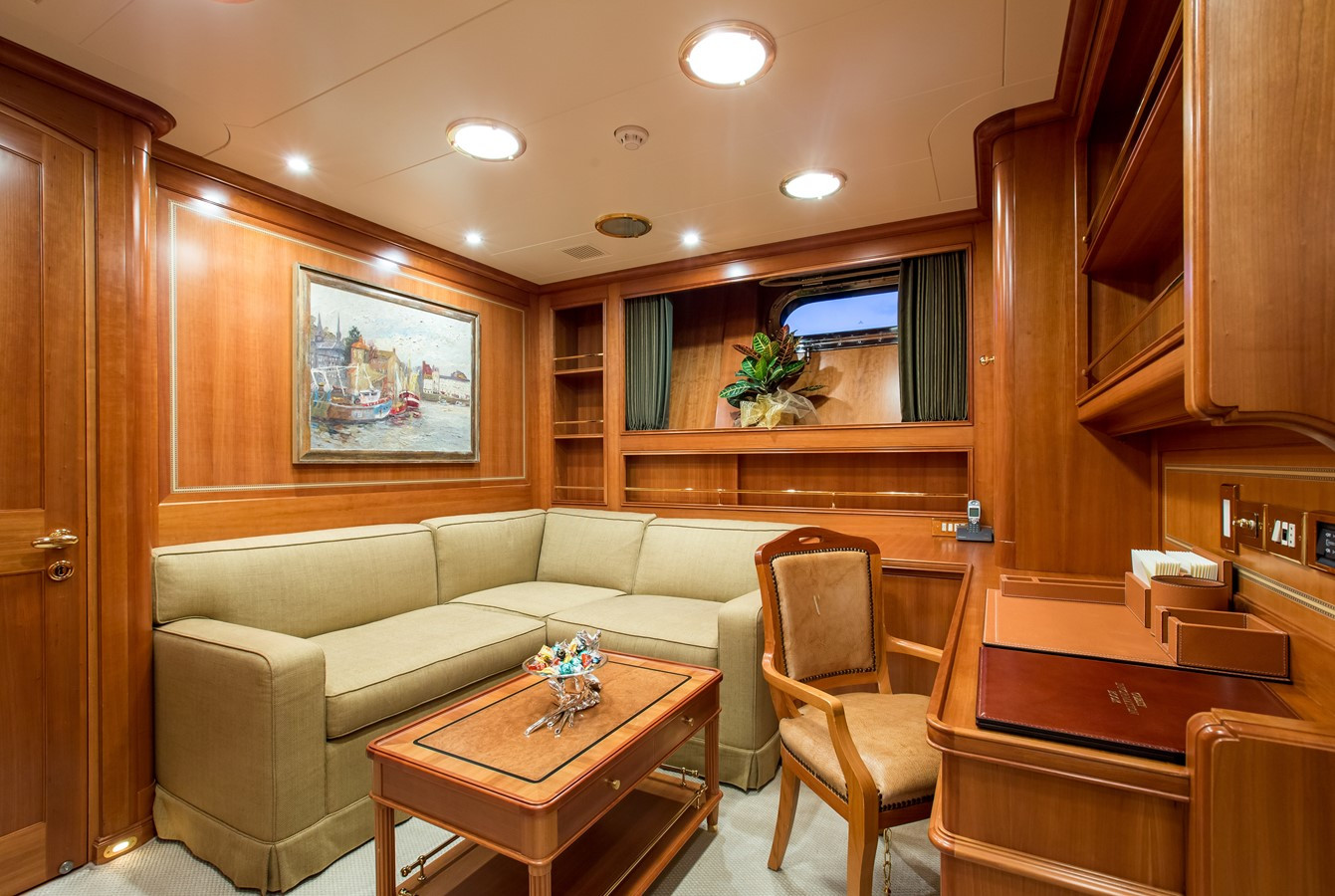

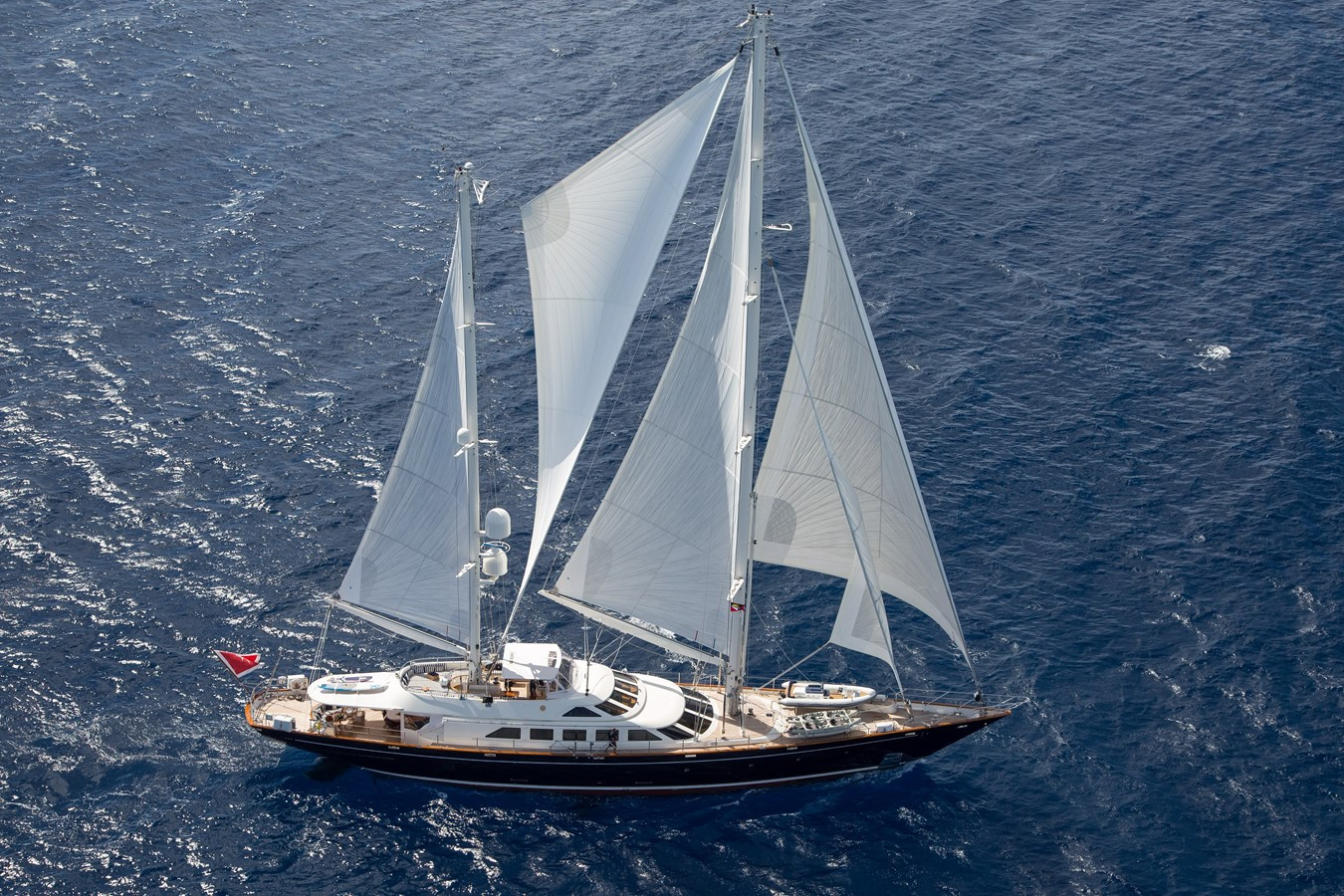

- <p>Ellen is a 40 m / 131′3″ luxury sailing yacht. She was built by Perini Navi in 2001. With a beam of 8 m and a draft of 6.46 m, she has a steel hull. She is powered by engines giving her a maximum speed of 13 knots and a cruising speed of 11 knots. The sailing yacht can accommodate 8 guests in 4 cabins. The yacht was designed by Perini Navi</p> <p>Ellen\'s interior layout sleeps up to 8 guests in 4 rooms, including a master suite, 1 VIP stateroom and 2 twin cabins. She is also capable of carrying up to 6 crew onboard to ensure a relaxed luxury yacht experience. Timeless styling, beautiful furnishings and sumptuous seating feature throughout create an elegant and comfortable atmosphere.</p>
- <div> <table> <tbody> <tr> <td> <p>BUILDER: Perini Navi</p> <p>YEAR: May 2001</p> <p>DESIGNER: Perini Navi</p> <p>L.O.A: 40.4m / 132’</p> <p>L.W.L: 31.72m / 104’</p> <p>BEAM: 8.0m / 26’2</p> <p>DRAFT: 6.37m / 22’ centreboard down (approx)</p> <p> 3.44m / 11’28 centreboard up (approx)</p> <p>DISPLACEMENT: 75 tons full load (approx)</p> <p>KEEL LEAD BALLAST: 30 tons</p> <p>SAIL AREA: Approx 812 m sq</p> <p>CLASSIFICATION: American Bureau of Shipping. (ABS)</p> <p> Malta Cross A1 & Yachting service AMS</p> <p> MCA</p> </td> </tr> </tbody> </table> </div><p>FUEL CAPACITY: 25,000 litres</p> <p>WATER CAPACITY: 8,600 litres</p> <p>LUB OIL: 890 litres</p> <p>GREY WATER: 1,745 litres</p> <p>BLACK WATER: 1,745 litres</p> <p>SLUDGE: 1,195 litres</p> <p>BILGE WATER: 1,195 litres</p> <p>WATERMAKER: Two Idromar Mini compact Junior 2J, 3100 litres per day each</p>
- <p>ENGINES: Two 496hp MTU 8V 183 TE 62 (overhauled 2016)</p> <p> 365 Kw @ 2100rpm, 8 V90</p> <p>Port ME: 9,622 H</p> <p>Start ME: 9,644 H
- </p> <p>SHORE POWER: 60 Kva shore power connection allowing use of 380v 50 Hz voltage</p> <p> </p> <p>AIR CONDITIONING: Condaria system with fan coils in each area with treated fresh air.</p> <p>
- </p> <p> </p> <p> </p> <p>GEARS: Reverse / Reduction gearbox Hundested CPG 32 </p> <p> Reduction ratio 3.44:1</p> <p> </p> <p>SHAFTS & PROPELLERS: Two shafts and two four blade feathering propellers</p> <p> </p> <p> </p> <p>GENERATORS: Two Northern Lights M-668T, 66 kw 380v 50 HZ </p> <p> One Northern Lights 35 kw 380v 50HZ ( emergency use)</p> <p> Generators overhauled 2016</p> <p>Port Gen : 28,344</p> <p>Start Gen : 28,316</p> <p> </p> <p> </p> <p>ELECTRICITY: 380v 50 Hz three phase.</p> <p> 220v 50 Hz single phase.</p> <p> 24v DC for emergency lighting, limited energy, signaling circuit, RTF station, electronic instruments and alarms.</p>
- <p>Bowthruster: Schottel STT-010 LK 37 Kw approx</p> <p>Fuel Separator: 380V AC Alfa Laval manual MAB 103 B24 centrifugal fuel separator of approx 900 litres /hr</p> <p> </p>
- <p>Galley Equipment</p> <p> </p> <table> <tbody> <tr> <td> <p>One Miele convection microwave</p> </td> <td> <p>Two twin coil Gaggenau hotplates</p> </td> </tr> <tr> <td> <p>One Gaggenau oven</p> <p>One Miele dishwasher 67856</p> </td> <td> <p>One Gaggenau griddle</p> <p>One Hoshizaki ice maker</p> </td> </tr> </tbody> </table> <p> </p> <p>Laundry Equipment</p> <p> </p> <table> <tbody> <tr> <td> <p>Two Miele washing machines WS5425</p> <p>One Miele roller Iron B865E</p> </td> <td> <p>Two Miele dryers TS5205C</p> </td> </tr> </tbody> </table>
- <p>Navigation Equipment</p> <p> </p> <table> <tbody> <tr> <td> <p>One C. Plath JUPITER magnetic compass (dia. 180mm)</p> </td> <td> <p> One C. Plath NAVIGAT X MK1 gyrocompass</p> </td> </tr> <tr> <td> <p>One Electronic compass</p> <p>Three portable VHF’s</p> <p> </p> <p> </p> <p>Dedicated computer with
- Tsunamis 99 software ( electronic charts).</p> </td> <td> <p>One C. Plath NAVIPILOT V/GM autopilot system with rudder angle feedback unit. Gyrocompass and electronic compass heading information input. </p> <p>

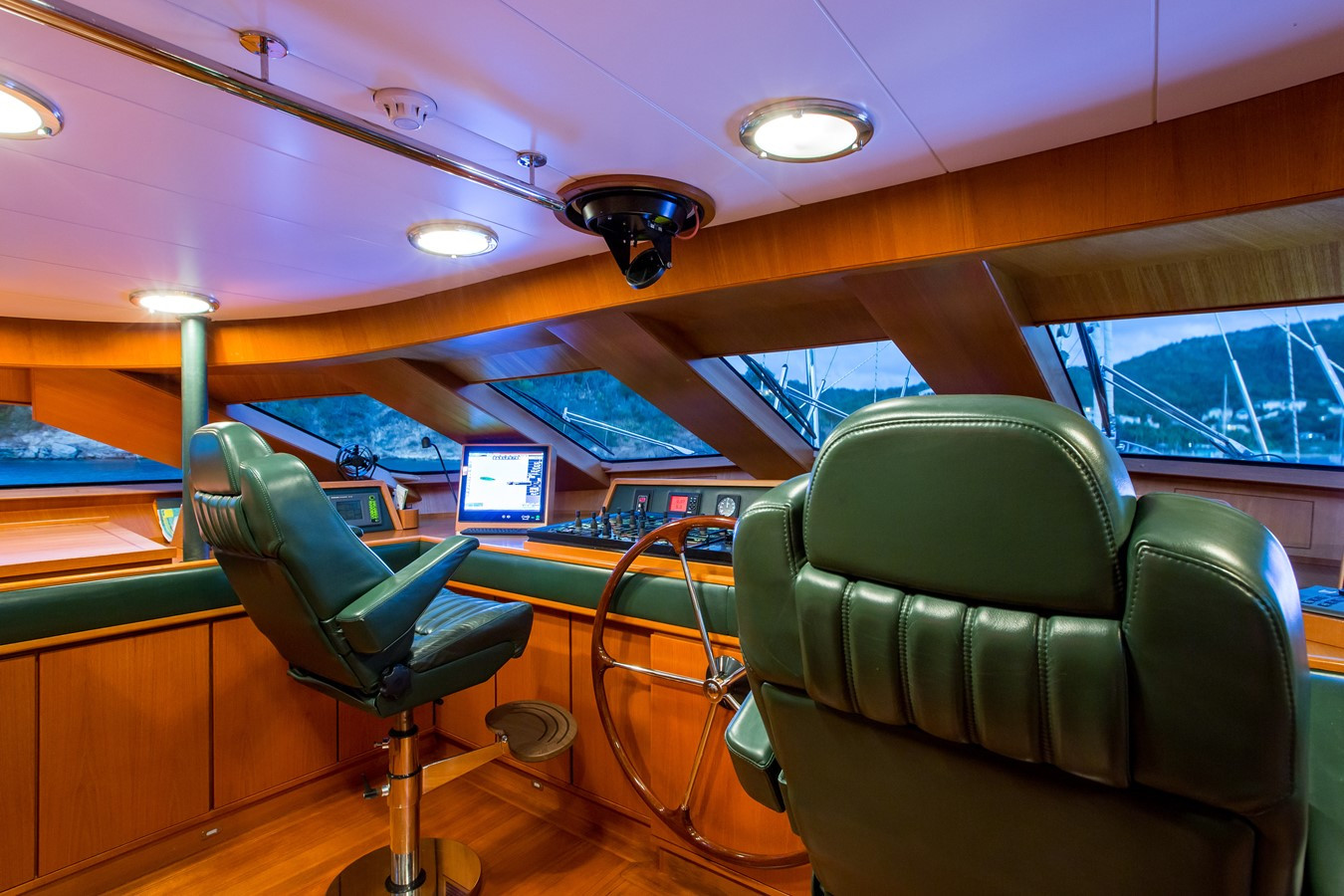

- </p> <p>Master and repeater display and control units. </p> </td> </tr> </tbody> </table> <p> </p> <p>Wheelhouse console</p> <p>Plath control incorporating:</p> <p>C.Plath NAVIGAT X gyrocompass console steering repeater.</p> <p>C. Plath NAVIPLOT V/GM auto pilot control and display unit.( Master)</p> <p>Tiller with double NFU Naviguide NN/EF</p> <p>Three-mode steering gear interface selector switch (Auto / Manual / NFU ).</p> <p>Over ride / take over button.</p> <p>Analogue rudder angle indicator.

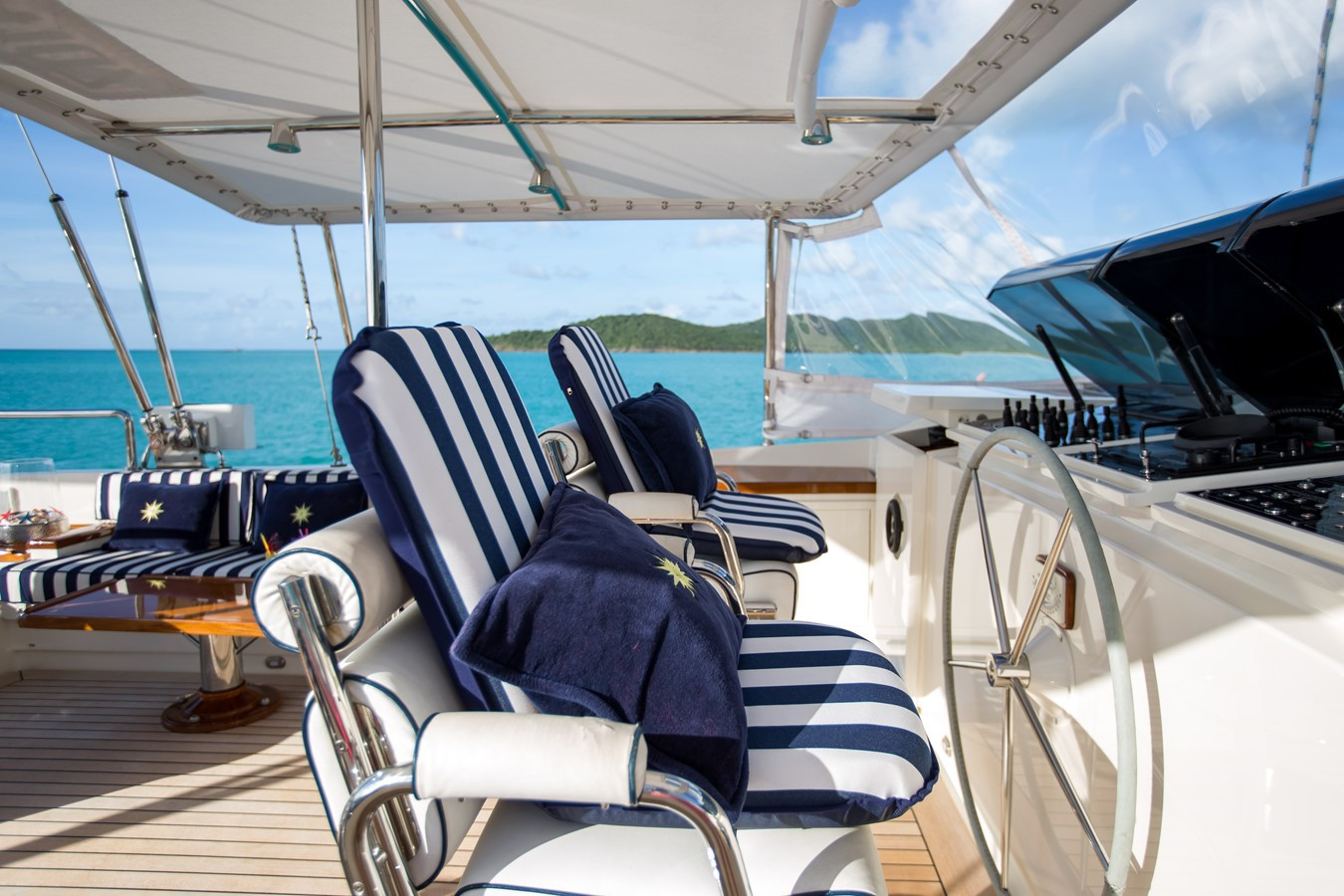

- </p> <p>Flying Bridge</p> <p>One analogue boat speed indicator.</p> <p>One analogue wind speed indicator</p> <p>One analogue magnified wind indicator.</p> <p>One anologue depth gauge</p> <p>Two FFD’s

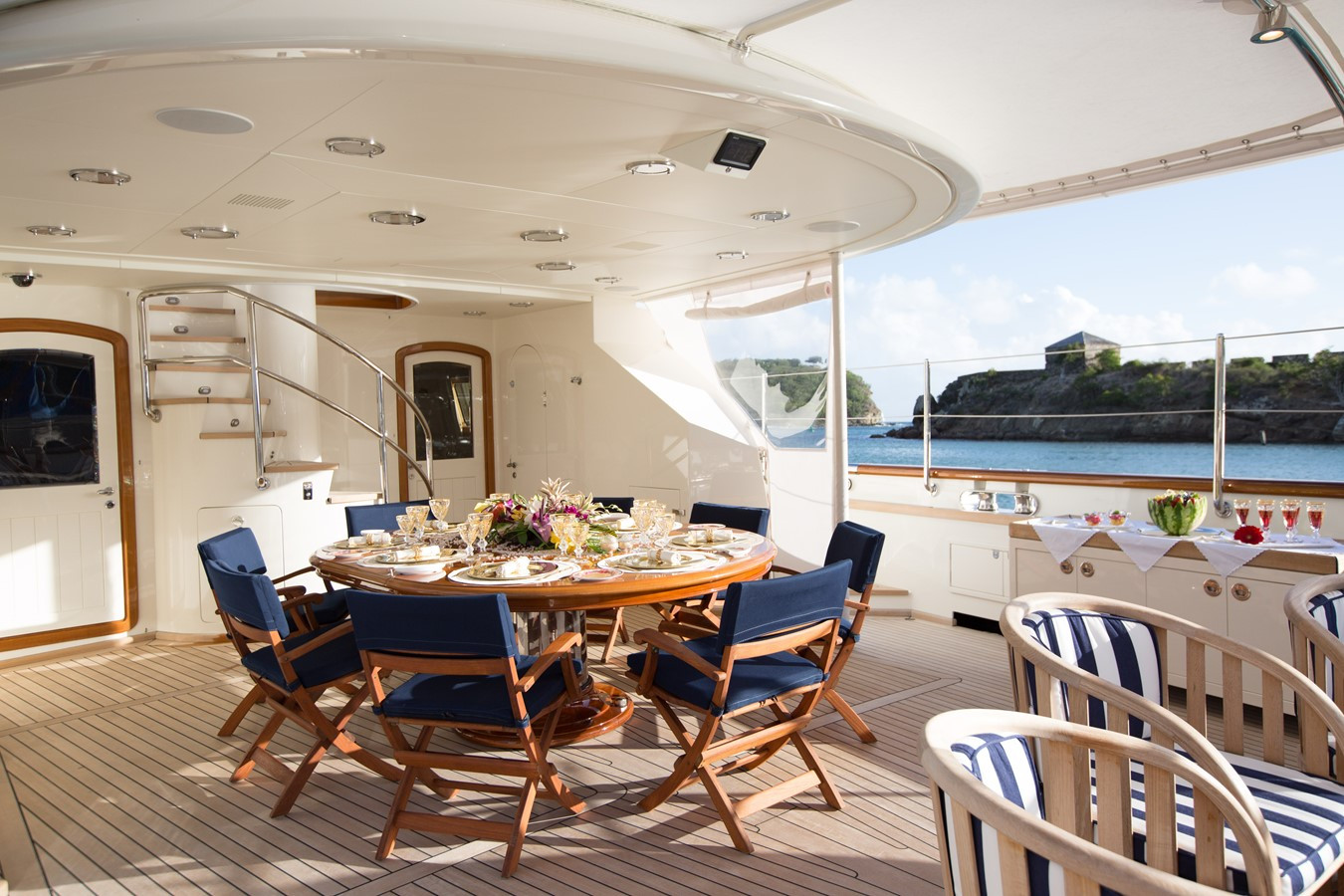

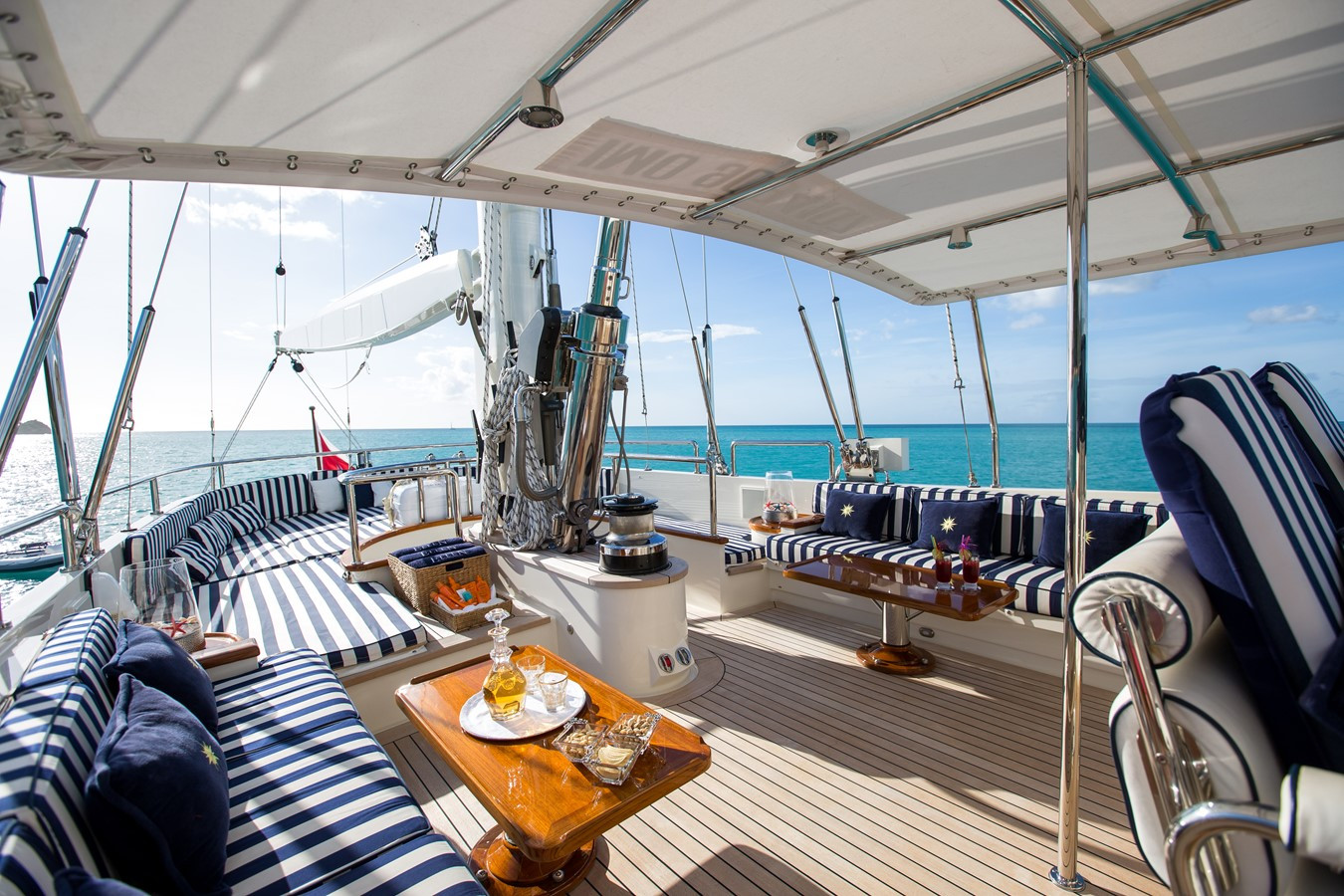

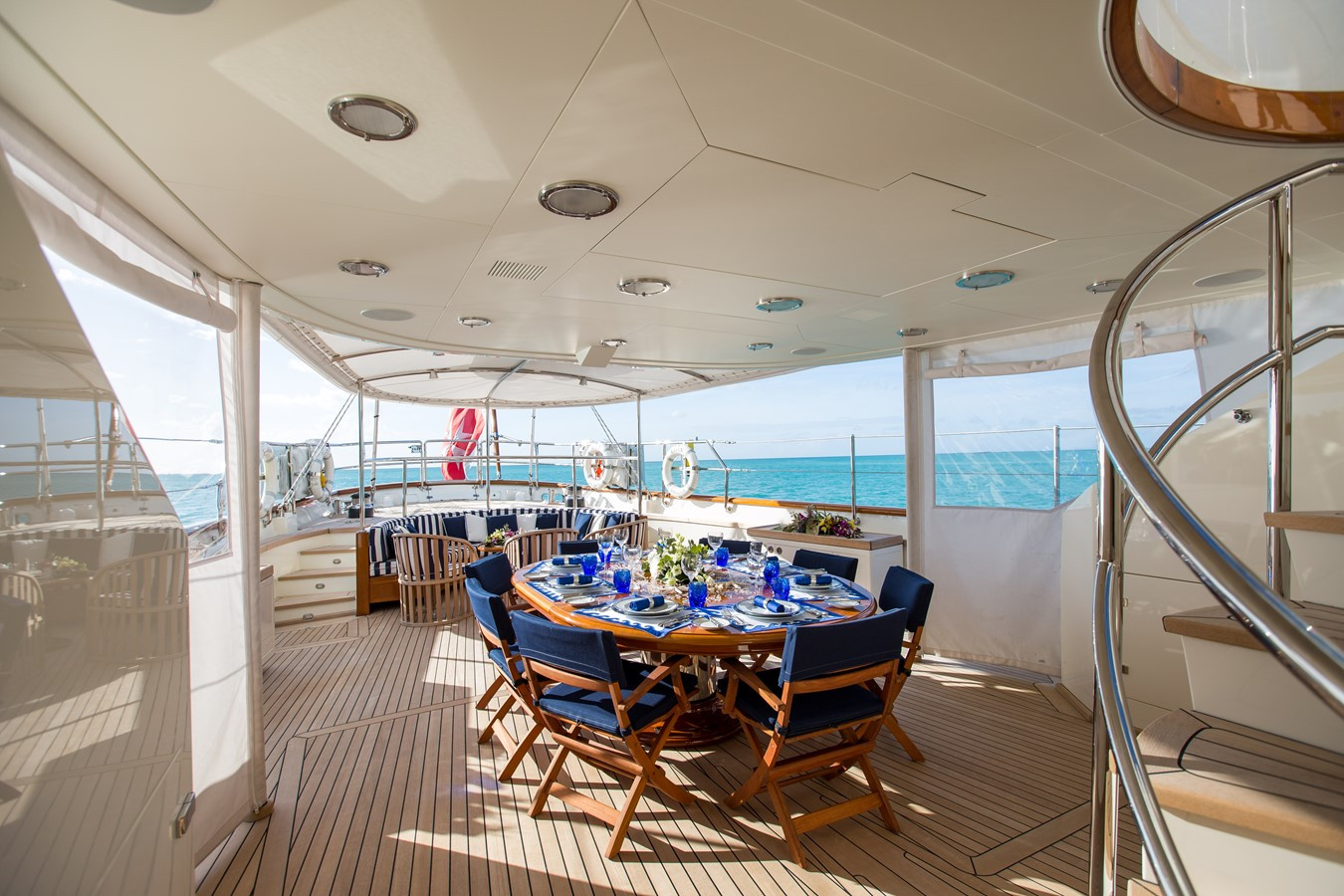

- </p> <p>Aft cockpit</p> <p>One Hydraulically operated aft gangway</p> <p>One Hydraulically operated side boarding ladder.</p> <p>
- </p>

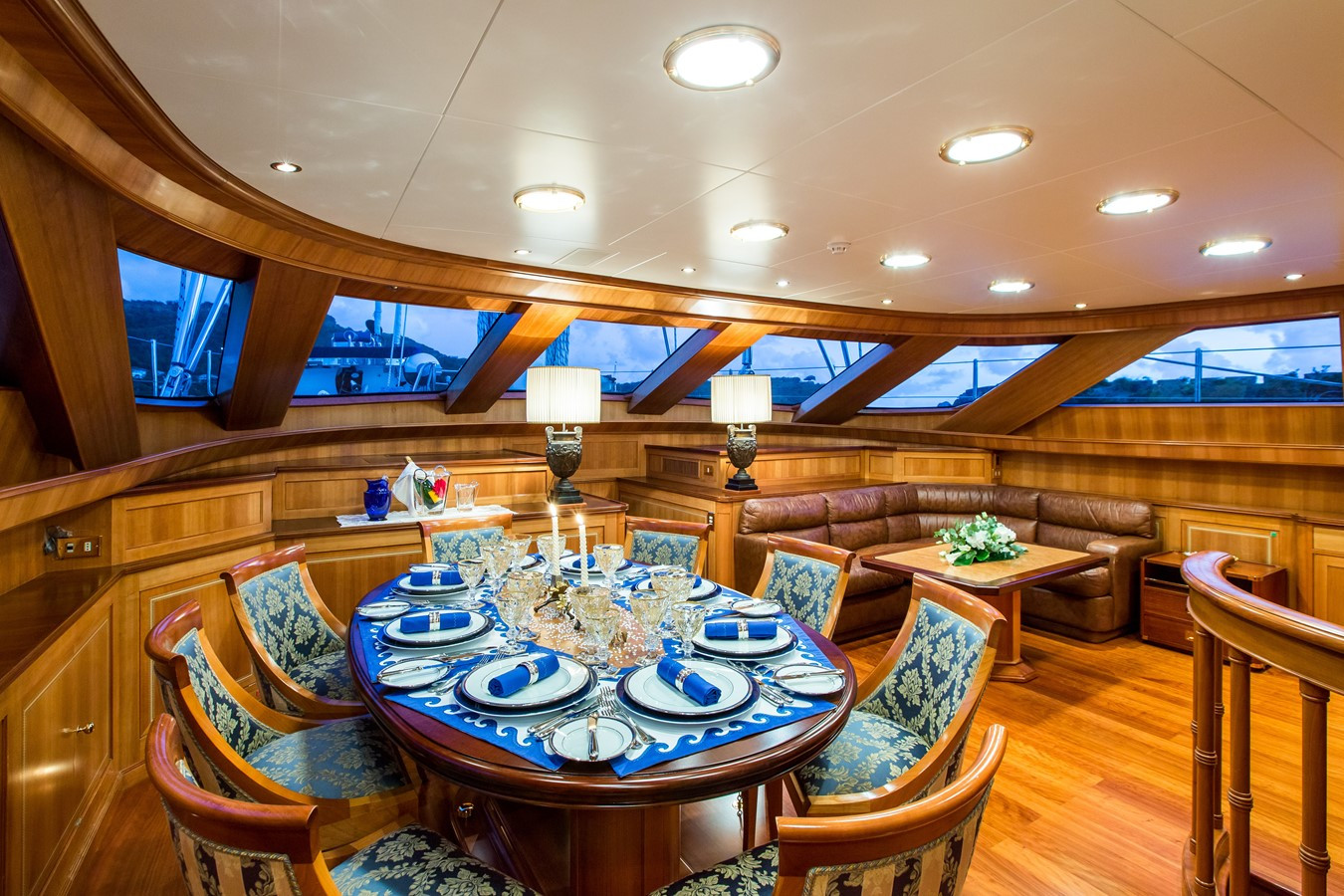

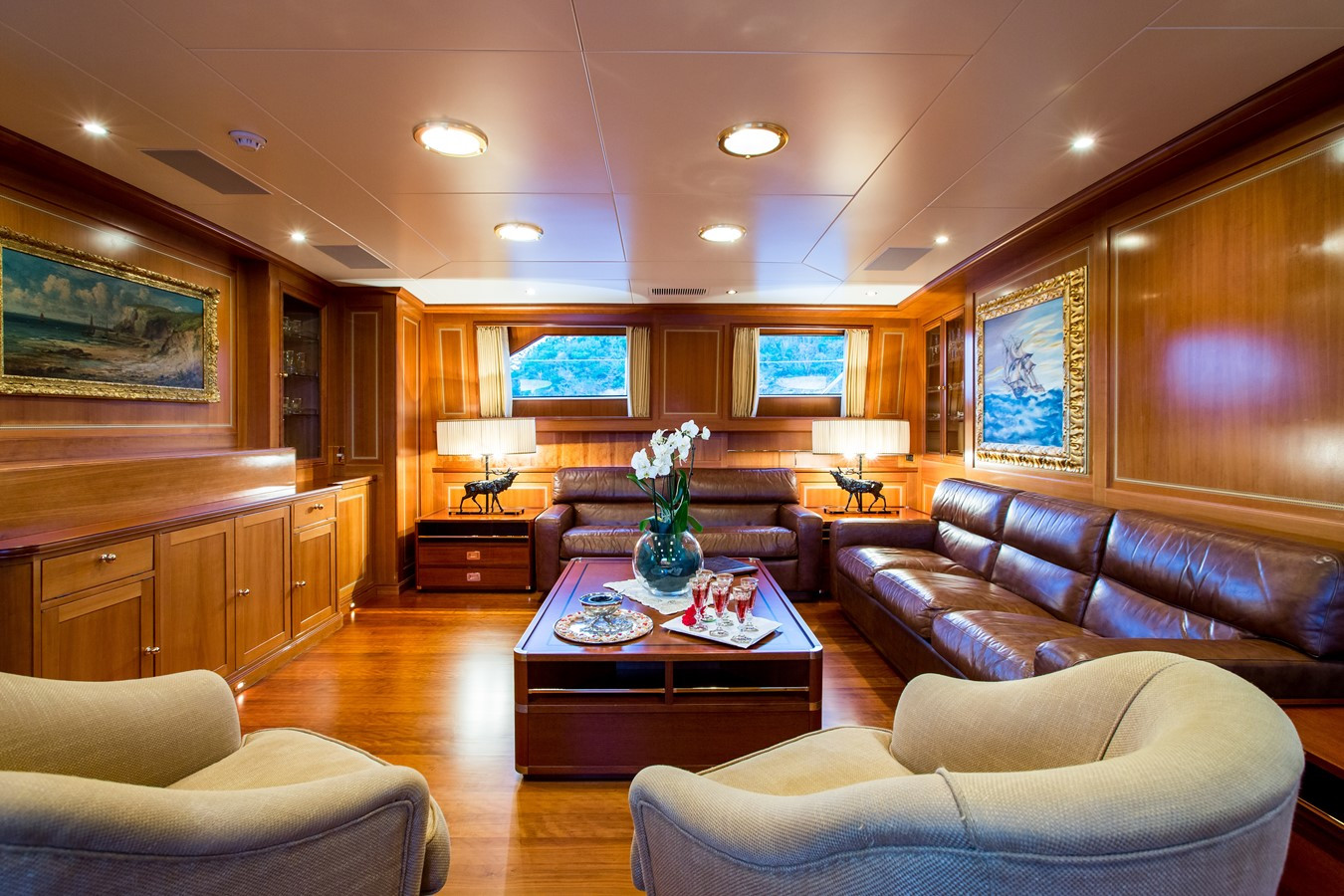

- <table> <tbody> <tr> <td> <p>One Broadcast and Closed circuit TV system</p> </td> <td> <p>One hi-fi system in the main saloon and dining saloon. Aft cockpit speakers. Independent HI-FI systems in the Owner’s cabin, guests cabin, crew cabins and crew mess.</p> </td> </tr> </tbody> </table> <p>Main saloon</p> <p>One Multi-standard 29” Loewe TV</p> <p>One Multi-standard Aiwa with converter video recorder.</p> <p>Stereo system including :</p> <p>-Pioneer PD-M426 multi CD player</p> <p>-Pioneer CT-W606DR cassette deck</p> <p>-Pioneer YSX 808 RDS stereo receiver</p> <p>Rotel RDV 995 DVD player</p> <p>Panasonic sky digibox.</p> <p>One Play Station 2. </p> <p>Four JBL Control loud speakers.</p> <p> </p> <p>Dining Saloon</p> <p>One Multi-standard 29” Loewe TV</p> <p>One Rotel DVD player</p> <p>Four JBL loud speaker control.</p> <p>One Infrared sensor.</p> <p>One Sony Playstation</p> <p> </p> <p>Aft Cockpit</p> <p>Four Bose waterproof loud speakers.</p> <p>One infrared sensor</p> <p> </p> <p>Wheel house.</p> <p>One Pioneer RDS car stereo</p> <p>Two JBL SR 130 loud speakers.</p> <p> </p> <p> </p> <p>Flying Bridge</p> <p>Two Bose waterproof loud speakers (connected to wheel house car stereo)</p> <p>One infrared sensor.</p> <p> </p> <p>Owner’s cabin</p> <p>One Multi-standard 21” Loewe TV</p> <p>One Multi-standard Aiwa with converter video recorder.</p> <p>One Technics SCDH 70 HI-FI system including</p> <p>One Tuner</p> <p>One Amplifier</p> <p>One Rotel DVD player</p> <p>One Cassette deck</p> <p>Four JBL Controls for loud speakers (2 in bedroom, 2 in sitting room)</p> <p> </p> <p>Twin guest cabin</p> <p>One 21” Loewe TV</p> <p>One Rotel DVD player</p> <p>One Pioneer RDS car stereo</p> <p>Two JBL SR 130 loud speakers.</p> <p> </p> <p>Double guest cabin:</p> <p>One Multi-standard 21” Loewe TV</p> <p>One Rotel DVD player.</p> <p>One Pioneer RDS and stereo.</p> <p>Four JBL Control 1 loud speakers</p> <p> </p> <p>Forward Guest Cabin:</p> <p>One Pioneer RDS car stereo</p> <p>Two JBL SR 130 loud speakers.</p> <p> </p> <p>Galley</p> <p>Two JBL SR 130 loud speakers </p> <p> </p> <p>Crew Mess</p> <p>One Technics Stereo system including cassette deck, multi CD player, tuner, Pioneer DV-525 DVD player.</p> <p>Sharp 15’ LCD T.V</p> <p> </p> <p>Captain’s and crew cabin</p> <p>One Pioneer RDS car stereo</p> <p>Two JBL SR 130 loud speakers.</p>
- <table> <tbody> <tr> <td> <p>One 5.6m tender with diesel 2016</p> </td> <td> <p>One 3.4m Novourania tender with 15HP outboard</p> </td> </tr> </tbody> </table>
- <table> <tbody> <tr> <td> <p>One hydraulic stern gangway</p> </td> <td> <p> </p> </td> </tr> <tr> <td> <p>Eight Perini Navi Captive winches</p> </td> <td> <p>One tender launching pole with electric winch</p> </td> </tr> <tr> <td> <p>Six Antal winches</p> </td> <td> <p>One anchor Windlass</p> </td> </tr> <tr> <td> <p>Two Perini Navi Drum winches</p> </td> <td> <p> </p> </td> </tr> </tbody> </table>

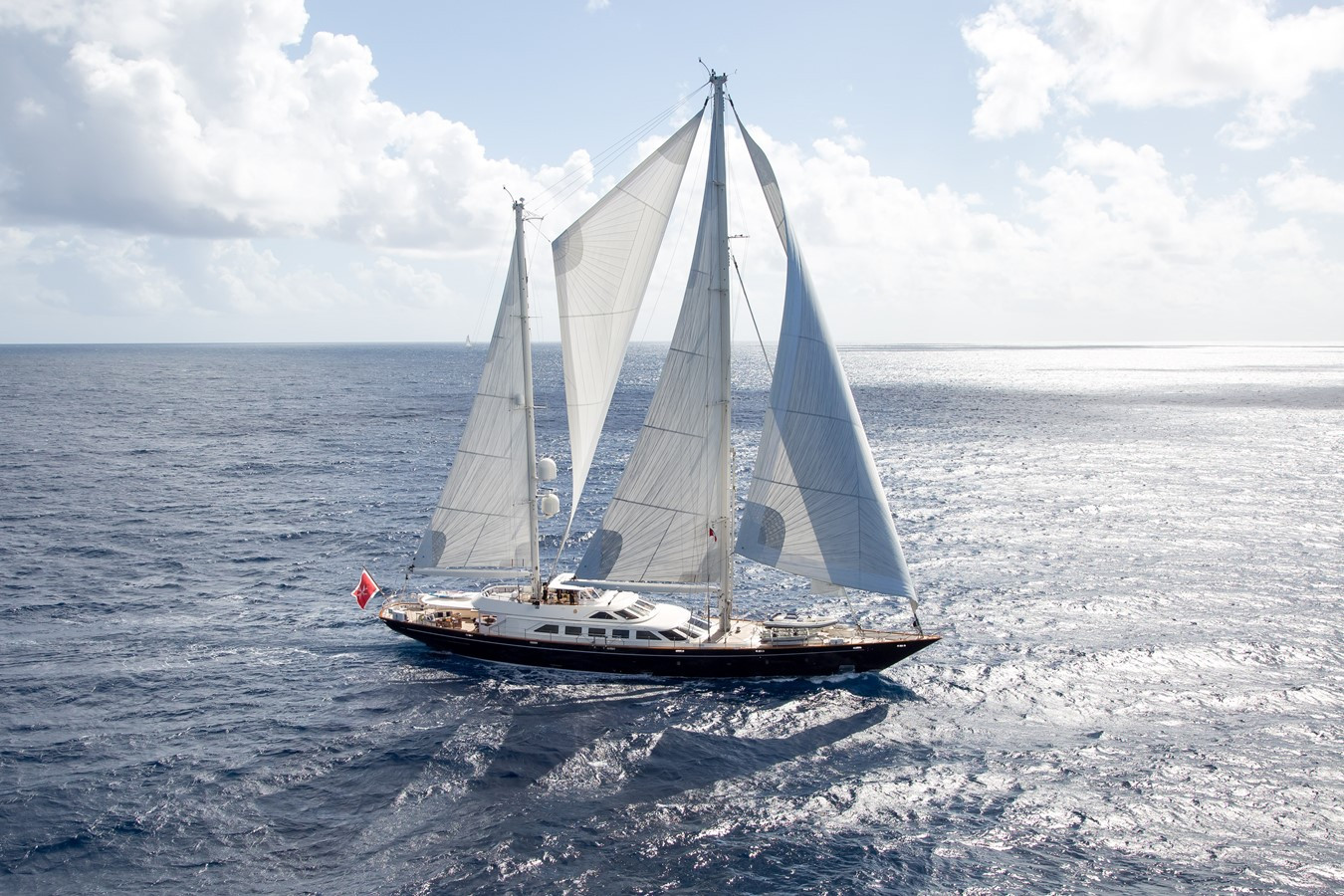

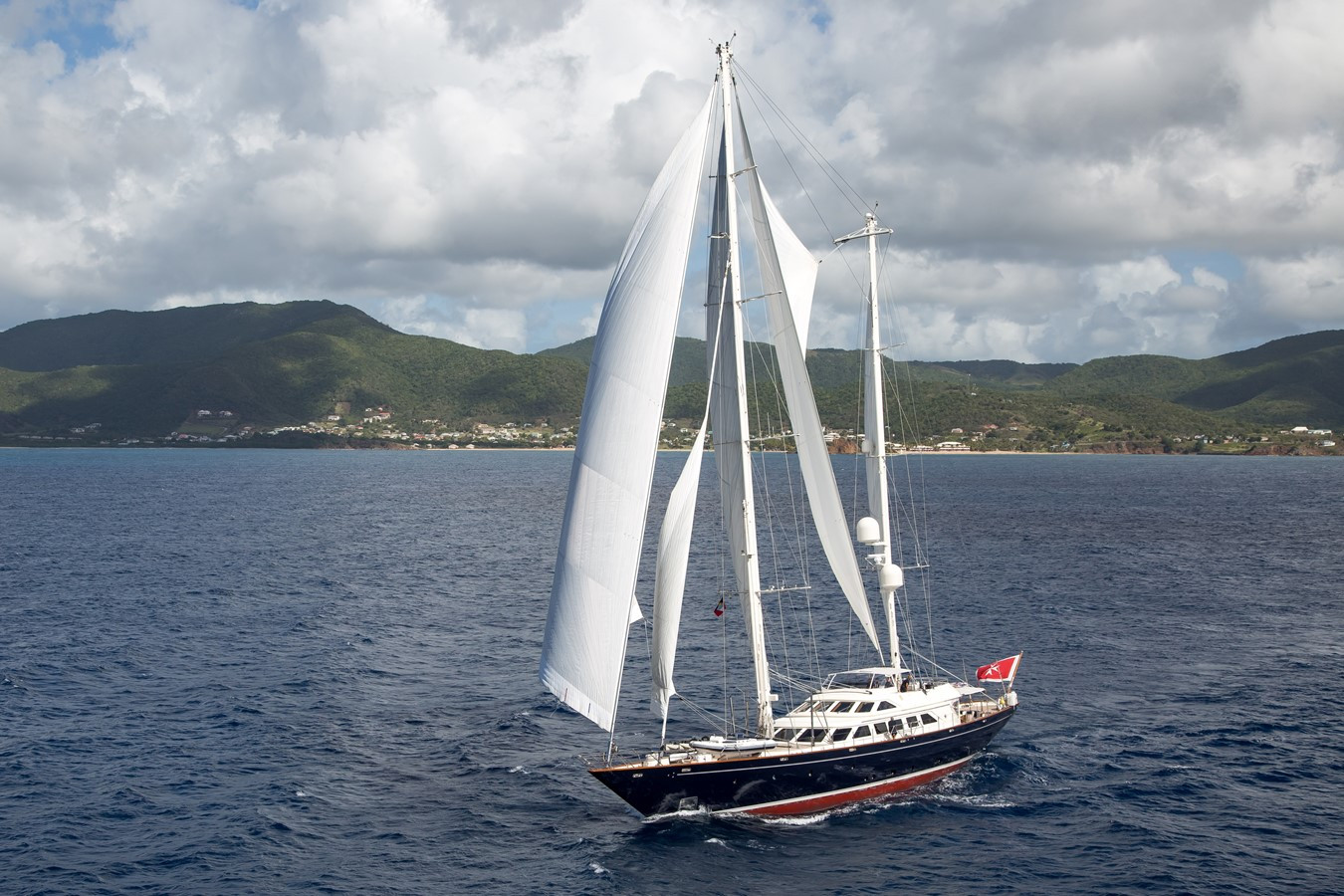

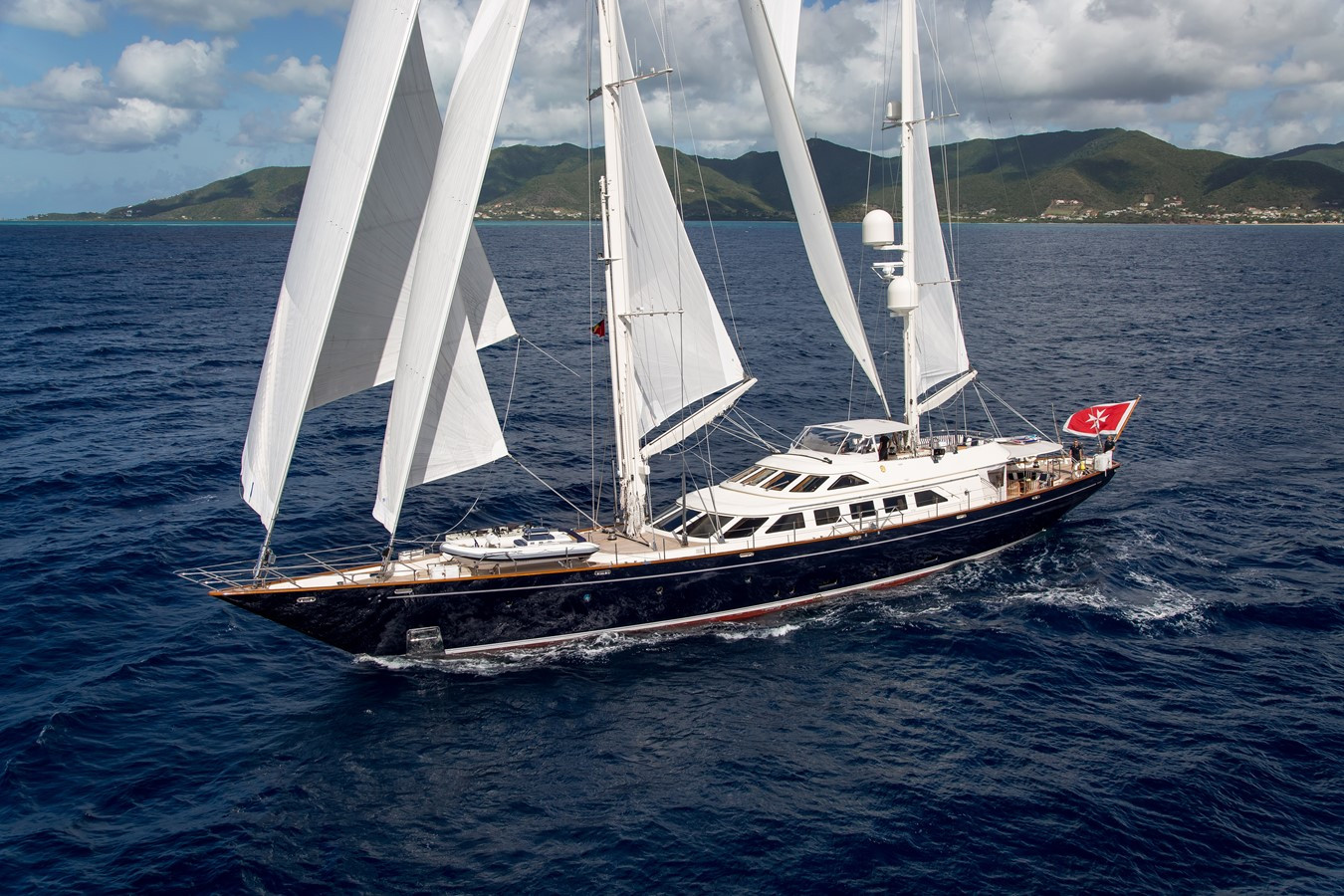

- <p>SAILS</p> <p>Spectra sails by North new 2016. Sail monitoring system by Perini Navi </p> <table> <tbody> <tr> <td> <p>Genoa approx 274 m sq</p> </td> <td> <p>Fisherman 145 m sq</p> </td> </tr> <tr> <td> <p>Staysail 100 m sq</p> </td> <td> <p>Mizzen sail 111 m sq</p> </td> </tr> <tr> <td> <p>Mainsail approx 182 m sq</p> </td> <td> <p>MPS </p> </td> </tr> </tbody> </table> <p> </p> <p>RIG</p> <p>Two Perini Navi masts, in light alloy fully painted 2016, with an elliptical section with reinforcements and internal lead ways. All stainless standing and running rigging replaced in 2016.</p> <p> </p> <p>Main Mast Four pairs of spreaders and one double jumper</p> <p>Mizzen Mast Three pairs of spreaders and two single jumpers</p> <p> </p> <p>Genoa, Main, Mizzen, Fisherman and Staysail equipped with Perini Navi electric furling system. Furling systems overhauled and restored to like new 2016</p> <p>Two aluminium alloy booms, 11.6m and 9.9m approx with a topping-lift and electric auxillary winch. The sheets for the booms are controlled by automatic winches from the wheelhouse and Flybridge. Mast wiring replaced 2016.</p>
- <table> <tbody> <tr> <td> <p>CO 2 Fire fighting system in Engine room</p> <p>Three eight man inflatable liferafts</p> <p>Two life rings with luminous buoys
- and smoke signals</p> <p>Four line throwing rockets.</p> <p>B.A kit for fire fighting </p> </td> <td> <p>Portable fire extinguishers in accordance with
- classification society requirements</p> <p>Sixteen type-tested life jackets</p> <p>One set of signal rockets and distress flares</p> <p>Two life rings with attached lines.</p> </td> </tr> </tbody> </table>
