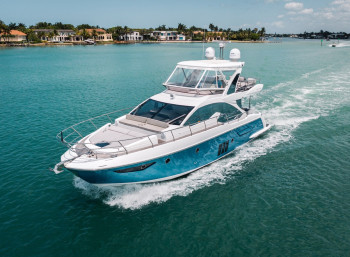

Flybridge

• Accessible from the outside, cockpit stairs, port side.

• GRP cockpit stairs with 6 steps

Teak external step flooring

• Non-slip floor

• Access door: watertight in aluminum and Plexiglas

• Smoked plexiglas windbreak with stainless steel and aluminum frame

• GRP rollbar

• Handrail: NMMA compliant stainless steel (tube 30 X 1.5) (stern fly handrail, fly access protection handrail, fly railing, mobile fly handrail)

• Bow sundeck

• Helm seat for 1 person

• Adjustable steering wheel (4-spoked steering wheel white painted)

• C-shaped sofa connected to sundeck

• Teak table with central stainless steel leg

• 1 bow locker (in front of instrument board)

• 1 locker under bench, RH side

• Manual HELLA 24V searchlight (on roll bar)

• Stainless steel light mast


• Flybridge instrument board consisting of:
  -Main engine instruments (thermometer, rev counter)
  -BRONZE series electronic navigation instruments
  -Engine start-up controls
  -Bow anchor winch controls
  -Horn control
  -Trim tab control
  -Bow thruster control
  -12V socket
  -Chain meter counter

• Scuppers with stainless steel grids and Azimut logo

• “50” logos, placed externally on the roll- bar glass, one on each side

Azimut logos, placed externally on the tails of the GRP superstructure, one on each side


Bow

• Anchor chain and fender locker with water drainage

• DELTA 25kg galvanized steel anchor

• 75 m long high strength 10 mm gaged chain

• Bow roller

• 2000W WINCH

• 2 stainless steel bitts L. 300 mm oval tube

• Sundeck with non-slip finish

• Chain wash pump

• Non-slip floor

• Scuppers with stainless steel grids and Azimut logo

• Forward facing 6-seater sofa with seat and back cushions+ two underlying lockers

Walkways

• Filling with diesel: 2 \"Diesel\" filler caps diam. 88 mm with cover

• Filling with fresh water: 1 \"Water\" refill cap, diam. 85 mm

• Black water outlet: 1 \"Waste\" water cap diam. 75 mm without cover

• 2 stainless steel bitts L. 300 mm oval tube (intermediate)

• Non-slip floor

• Side handrail

• Fender holder: in stainless steel and high resistance PVC.
• Knurled section = (39.8 X 7.8) mm

• Pulpit

Cockpit

• Double cockpit access via stainless steel and Plexiglas gate

• 2 stainless steel T-head bitts H. 110 mm W. 350 mm

• 2 handrails (RH and LH) on the side of the deckhouse

• Warping station: dim. 1230X210

• Aft stainless steel left/right chock

• Vertical stainless steel double door with tempered glass

• 4-seater C-shaped cockpit bench (in GRP integrated in the deck, width 2.47 m)

• Cockpit bench cushions

• 1 locker under cockpit bench, LH side

• 1 port deckhouse column locker

• Lockers below bitt (one each side)

• RH locker with battery cut-out

• Engine room access via door in cockpit floor

• Crew cabin access via hatch in cockpit bench

• Non-skid floor (excluding side walkway access steps)

• Stern platform curved handrail

• Fly access stairs handrail

• Handles on the cockpit bench arm rests

• 2 loudspeakers

• Lighting: spotlights in cockpit ceiling panel

• Hot and cold water shower head

• Scuppers with stainless steel grids and Azimut logo

Platform

• Hydraulic platform

• Stern platform lights

• Non-slip floor

• Swimming ladder

• INSTALLABLE TENDER:
  -WORKING DIMENSIONS OF PLATFORM: 3.5 x 1.13 m
  -System max. net capacity (SYMMETRI- CAL): 800 kg (excluding platform)
  -Max. permitted capacity (asymmetri- cal): 370 kg (including platform)
  -HYPOTHETICAL PLATFORM TENDER: 3.2 x 1.5 m.
  -HYPOTHETICAL WILLIAMS TENDER:
  WILLIAMS Turbo Jet 285

Saloon

• Decapè finish oak cupboards

• Carpeted floor

• Cupboard on port side

• (1) 4-seater C-shaped sofa on starboard side

• Suitable for installation of TV system with aerial

• Ceiling and wall upholstery: 2-tone fabric (ivory and brown, Nextel)

• Roman blinds for stern windows and sliding blind for saloon door

Dinette

• Dining area on left with rectangular fold- able table

• Carpeted floor

• Below deck accommodation ladder with carpeted steps

Galley

• Below deck to left of stairs

• Galley top and floor in laminate

• Glass ceramic range with 4 plates and pot holder

• Overhead extraction hood with active carbon filters

• Microwave oven + grill

• 1 stainless steel sink

• Fridge + 220-liter upright freezer

• Openable porthole

Corridor

• Carpeted below deck access

• Spotlight lighting

• Fabric bulwark upholstery

• Corridor grabrails

Owner’s Cabin

• Located midship

• Double bed placed in the center astern with headboard

• 2 nightstands

• Vanity unit with mirror

• Cabinets with doors and shelves on right and left

• Wardrobe with hanger bar on left side

• Wardrobe with shelves in front of bed

• Power LED strips + headboard lighting

• 2 openable portholes

• 3 + 3 rectangular hull windows

• Direct access to the head from the corridor leading to the owner\'s cabin with internal stairs

• 1 mirror in wardrobe

• Metal Venetian blinds

• Fabric wall upholstery and wood paneling

• Fabric ceiling panels + some areas in Nextel

• TV system setup

• 110 V sockets

• Air conditioning system control panel

Owner\'s Head

• Located forward of the owner\'s cabin on the starboard side

• Access from owner\'s cabin

• GRP top and cognac (brown) colored Vetro Freddo sink

• Tecma toilet

• Chromed mixer taps

• Separate shower enclosure; flat shower door

• Chromed shower column

• Cupboard with 1 openable door next to washbasin top and under-basin cabinet with shelves

• Spotlight lighting

• 1 openable porthole

• Metal Venetian blinds

• Non-slip GRP flooring in shower

• Sockets

• Head accessories

• Head extractor: forced intake (from the shower ceiling panel)

Starboard-Side Guest Cabin

• 2 fixed pullman berths

• 1 nightstand next to beds

• 1 wardrobe with coat rack and shelves

• Lockers under bed

• fabric ceiling panel + some areas in Nex- tel

• Fabric bulwark upholstery

• Openable round porthole

• Metal Venetian blinds

• Carpeted floor

• Spotlight lighting

• 2 headboard lights

• Access to bathroom leading to corridor

• Sockets

• Air conditioning system control panel

Guest / VIP Bathroom

• Positioned abaft of the VIP cabin on the port side

• Washbasin with GRP top

• Direct access from the VIP cabin or from the corridor

• GRP top and cognac (brown) colored Vetro Freddo sink

• Chromed mixer tap

• Tecma toilet

• Separate shower enclosure with glass door

• Chromed shower column

• Spotlight lighting

• Underbasin cabinet with shelves

• Metal Venetian blinds

• Non-slip GRP flooring in shower

• Head extractor: forced intake (from the shower ceiling panel)

• Head accessories

• Openable round porthole

• Socket

VIP Cabin

• Located towards the bow, it is accessed via a central corridor

• Foldaway double bed with large locker underneath

• Wooden headboard

• 2 openable wall units with 2 storage areas (each side) over the windows

• 1 wardrobe on the starboard stern wall with hanger bar and shelves

• 1 wardrobe on the port stern wall with hanger bar

• 2 under bed lockers

• 2 headboard lights

• Fabric ceiling panels + some areas in Nex- tel.

• Lighting consisting of power strips in windows pelmet area + 2 ceiling spotlights + headboard light

• Emergency exit in ceiling through concealed rectangular hatchway leading to bow sundeck

• Direct access to guest head

• Mirror inside wardrobe

• 2 openable round portholes inserted in windows

• Metal Venetian blinds

• Fabric-upholstered bulwarks

• Fabric-upholstered ceiling panel

• Carpeted floor

• Air conditioning system control panel

• 110 V sockets

Crew Cabin

• Located at stern

• Access from cockpit bench

• Single bed with under-bed compartments

• 1 wall unit

• 1 wardrobe

• 1 bathroom cabinet

• Fabric bulwark upholstery

• GRP ceiling + upholstered panels

• Bulwark shelves, 1 at the foot of the bed, 1 over the rubber hold

• Openable round porthole with 250 mm. dia. over cockpit bench

• GRP non-slip floor

• 1 directional headboard wall light

• Spotlight lighting

• Fabric blind

• Crew head

• Tecma toilet

• White resin washbasin

• Chrome mixer with extractable shower head

• Shower area with waterproof curtain

• Wall unit with mirror

• Under sink door

• Power socket

• Head accessories

Shore-powered power supply

• Onboard voltages:

- 220V-60Hz AC

- 24V DC from battery bank

- 12V DC for VHF equipment and cigarette lighter socket

• The main boards are in the wheelhouse, engine room and crew area.

• The power circuit breakers that protect the instrument panel, engine controls, navigation instruments and shore power socket and generator selector switches are located in the wheelhouse.

• Other power circuit breakers that protect the various 12V DC and 100V AC utilities are located under the wheelhouse and are protected by a cover.

• Additional circuit breakers are located on the main panels in engine room to protect the various 12V DC utilities and the 110V AC utilities in the crew area

• Junction boxes are installed in all areas.

Generator

• 1 Kohler standard 3.5 kW 230V generator located in engine room

Shore Power Sockets

• 1 60A socket astern

• 1 for air conditioning (OPT)

Batteries

• Services: 6 400 Ah@24V DC, AGM type batteries

• Engines: 4 200 Ah@24V DC, AGM type batteries

• Generator: 1100Ah@12V, AGM type batteries

• 24 V battery charger: Mastervolt 24/60 3 Output- 60A-10A-10°

• 12V battery charger: Mastervolt 12/15 2 Output- 15°

Lights and Sockets

• AC sockets: 230V for main utility power supply

• DC sockets: cigarette lighter type (wheelhouse)

• 24 V lighting (halogen)

• 24V watertight external lights

Bilge system

• (3) 24V electric pumps (crew cabin, engine room, owner\'s cabin) with auto operation using level switch + wheelhouse controls

• 2 manual emergency pumps; 1 in owner\'s cabin and 1 in locker on port side of cockpit

• 1 Supersub Smart 650 24 V electric bilge pump, 24 l/min

• Level alarms in wheelhouse


• Rapid pumping of engine room connected to LH engine seawater system


Fire Extinguishing System

• Pull handle in cockpit on port side and emergency switch on emergency panel


• (1) 12 kg homologated canister with nozzles on engines

• Fuel delivery to engine and generator shut-off

Fuel System

• 2 aluminum tanks in engine room with a capacity of 1100 l and a total capacity of 2200 l

• Electronic fuel gauge on both tanks

• Optical fuel gauge on LH tank

• Single settling filters for engines

• 1 filter for generator

• 2 diesel fillers on walkway

• 2 breather pipes on bulwark

• Remote diesel shut-off (engine and generator) via 24V solenoid valve

• Pipe connecting the two tanks used to adjust the fuel supply

• Fuel drawing faucet on both tanks


Fresh Water System

• 590l polyethylene tank located under the bed in owner\'s cabin

• Water filling from port walkway

• Level sensor with electronic gauge in wheelhouse

• 1 tank discharge on the port bulwark

• 1 water pressure pump with electronic control

• 1 water heater, 60l

• Stern shore power socket on port side

• Hot/cold water pipe: bathrooms, galley, cockpit, bathroom platform shower; Cold water only in flybridge washbasin; cold water only in engine room

• Fresh water toilet flushing

• System that can be divided by ACORN manifolds


• Toilet fresh water supply

Black Water System

• 175 l polyethylene tank located under the floor in the galley/corridor

• Level sensor with gauge in wheelhouse

• 1 tank discharge pipe on starboard bulwark with anti-odor filter

• MANUAL pump operating switch with control switch in the wheelhouse

• 1 50 l/min macerator pump

• Intake from starboard walkway

• Outboard discharge


• Tecma toilet (with macerator pump). All toilets discharge into a tank

Gray Water System

• 175 l polyethylene tank located under accommodation corridor

• Tank discharge on port bulwark with anti-odor filter

• Level sensor with gauge in wheelhouse

• Water discharge directly into the sea by way of pump

• MAN/AUTO pump operating switch with control switch in the wheelhouse

• Three-way valve in galley for deciding whether to discharge into the sea or in the tank

• 1 50 l/min pump

• 16 l collection tank with integrated transfer/24V pump astern, under the crew tray for the crew utilities.


• Built-in level sensor in tank that automatically operates the pump that discharges directly into the sea

Seawater System

• Engine cooling system: includes (2) 3\" seawater intakes with filter and valve (1 per engine)

• Generator cooling system: includes (1) 1\" seawater intake with filter and valve

• Air conditioning cooling system: (1) 1\" seawater intake with filter and valve

• Chain wash pump: (1) 1\" seawater intake with filter and valve

Ventilation/Extraction

• Head ventilation: forced intake by way of 24V extractors


• Engine room:
  - Natural air intake through air duct with water separator (1 each side)
  - Forced ventilation: 2 24V extractors (1 each side)

MISC

• Steering system: hydraulic power steering with 2 round profile rudders.

• Trim tab system: consisting of 2 AISI 316 blades, activated by hydraulic cylinder, 24V electro-hydraulic control unit


• Air conditioning system:
  -Water-based system, WORLD version
  -1 compressor in engine room (60,000 total BTU)
  -1 seawater pump with relative intake
  -Each area has its own control panel making it independent
