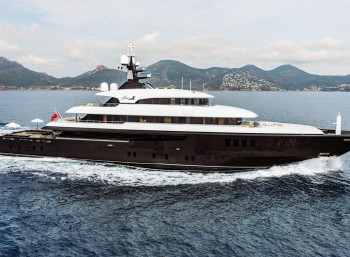

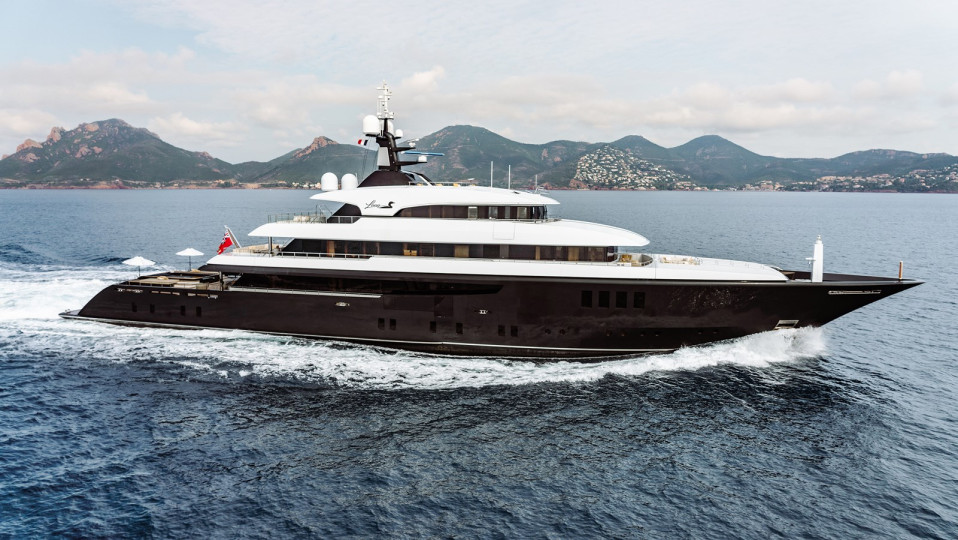

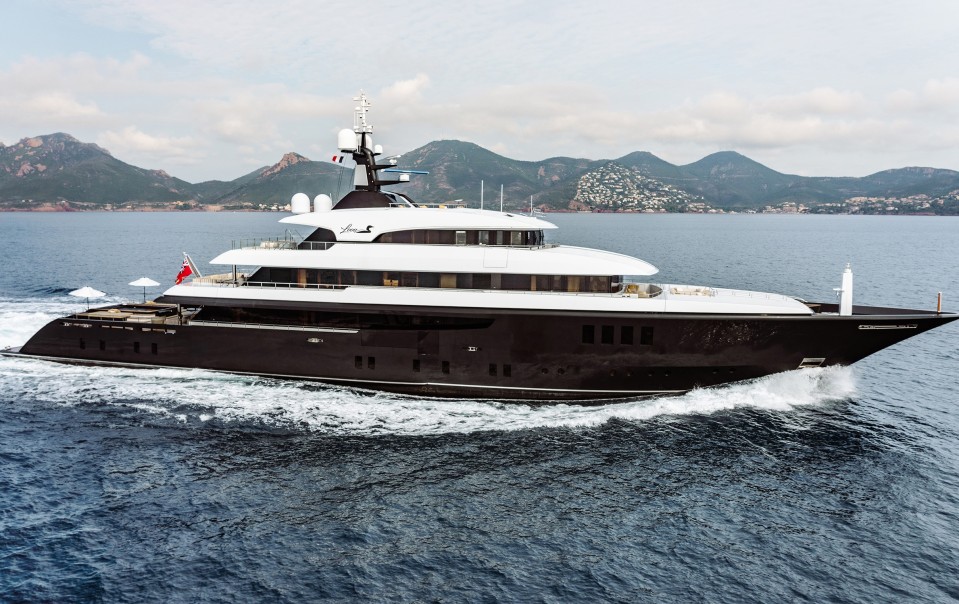

LOON is a 221’ Icon motoryacht with 6 decks and 7 staterooms, and is considered the most
famous and marketed charter yacht in the world.

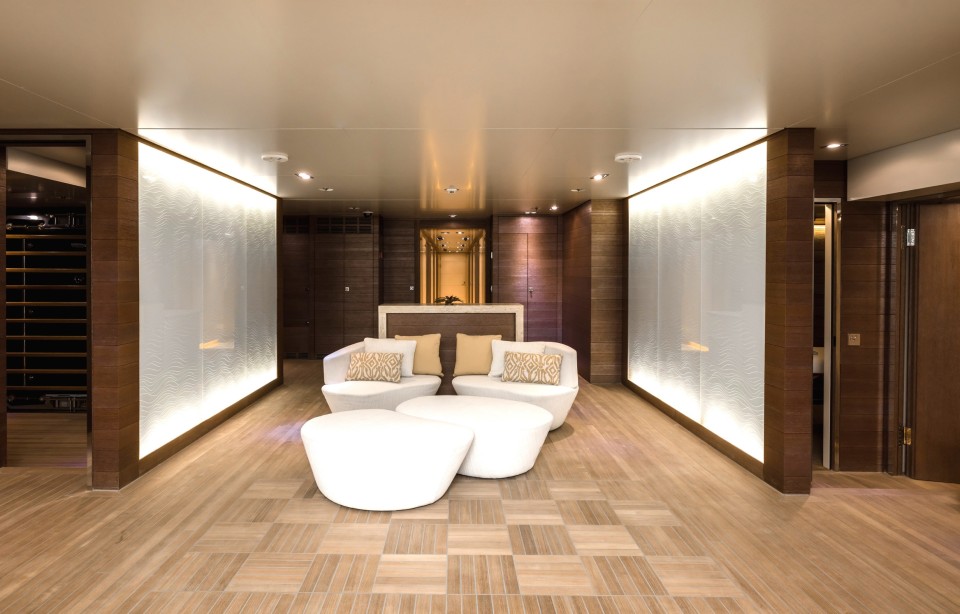

Combining comfort and luxury, Studio Linse (Interior Designer) created the interior with a
minimalistic and refined elegance. The subtle colors and elegant furnishings create a serene
atmosphere for relaxed ocean living. While Redman Whiteley Dixon Design (Exterior Designer)
perfected a true design masterpiece with incredible exterior comfort.

• Hull Material: Steel
• Bulb: Steel
• Superstructure Material: Aluminum
• Deck Material: Teak, Grey Caulking
• Paint: Awlcraft
• Hull Configuration: Full Displacement Oceangoing Motoryacht
• Number of Decks:  (6) Decks

General

• Length Overall (L.O.A.): 221.46 feet (67.50 meters)
• Length at Waterline (L.W.L.): 168.64 feet (51.40 meters)
• Beam (molded): 37.40 feet (11.40 meters)
• Draft (loaded): 12.47 feet ( 3.80 meters)
• Tonnage: 1,295 gross

Capacities

• Fuel Capacity: 42,267 US Gallons (160,000 liters)
• Water Capacity: 7,661 US Gallons (29,000 liters)

• Watermakers: 4,226 US Gallons (16,000 liters)
• Lube Oil: 818 US Gallons (3,100 liters)
• Waste Oil: 1,347 US Gallons (5,100 liters)

• Skylounge Deck Aft Lounge
  • Cruise Speed dB(a): 42
  • Anchor dB(a): 40

• Skylounge Deck Forward
  • Cruise Speed dB(a): 42
  • Anchor dB(a): 40

• Master Cabin
  • Cruise Speed dB(a): 41
  • Anchor dB(a): 41

• Master Bath
  • Cruise Speed dB(a): 42
  • Anchor dB(a): 42

• Main Saloon Forward
  • Cruise Speed dB(a): 47
  • Anchor dB(a): 43

• Main Saloon Aft
  • Cruise Speed dB(a): 53
  • Anchor dB(a): 46

• Engine RPM 1,250
  • SOG: 12 (knots)
  • Fuel Consumption: 98 L/p/h
  • Fuel Consumption:  26 G/p/h

• Engine RPM 1,450
  • SOG: 13 (knots)
  • Fuel Consumption: 140 L/p/h
  • Fuel Consumption: 37 G/p/h

• Engine RPM 1,650
  • SOG: 14.3 (knots)
  • Fuel Consumption: 247 L/p/h
  • Fuel Consumption: 65 G/p/h

• Engine RPM 1,850
  • SOG: 15.9 (knots)
  • Fuel Consumption: 390 L/p/h
  • Fuel Consumption: 103 G/p/h

• Engine RPM 2,000 MAX
  • SOG: 16.9 (knots)
  • Fuel Consumption: 465 L/p/h
  • Fuel Consumption: 123 G/p/h

Main Engines

• Engine Type: (2) MTU 12V-4000-M71 @ 2,480 Hp each
• Engine Hours:

• Port: 17,896 as of Sept. 17, 2024
• Stbd.: 18,419 as of Sept 17, 2024

• Gearboxes for Main Engines: ZF model 7561 (reduction 4.9:1)
• Drive: (2) Wartsilan Propellers – 5 Blades
• Fuel Type: Diesel
• Batteries: (2) 24V main engine start batteries

Generators

• Port and Starboard Generators: (2) 269 kW Scania generators new in 2014
• Port and Starboard Generator Hours:
  • Port: 28,541 total hours as of Sept. 17, 2024 - Rebuilt in July 2024: 814 Hours since major overhaul
  • Starboard: 28,526 as of Sept. 17, 2024 - Rebuilt in June 2024: 1,451 Hours since major overhaul
• Middle Generator: (1) 217 kW Scania generators new in 2014
  • Middle Generator Hours: 24,356 total hours as of Sept. 17, 2024 - Rebuilt in July 2024: 688 Hours since major overhaul
• Emergency Generator: (1) Sisu Diesel model 49.492.CTAG-4V
  Fly bridge / Port side
• Catalytic SOOT Filters DPF: All 3 main generators have HUG\'s (low to zero emissions) for clean above-water exhaust at waterline
• Generator Start: (3) Batteries 24V 200AH for main generators


Electricity

• Output: Main power supply 230/400 volt, 50Hz, 3- phase for wire system with grounded neutral
• Shore Power: (2) 150Kva Zeus shore power converters, capable of receiving and processing inputs ranging from 330-520 VAC and 40-70Hz and outputting 50Hz, 400V, 220 AMPs
• Batteries: 24-volt emergency batteries
• Battery Chargers: Mastervolt Mass 24/50
• Inverter: Mastervolt Mass 24/2500


Air Conditioning

• Type: Heinen & Hopman air conditioning system
• Air Compressor: (2) Kaeser Airtower 6


Other Machinery

• (2) Watermaker: Hydro Electrique Marine Duplex H40/4200
  • 750 liters (198 US Gallons) per hour
  • 18,000 liters (4755 US Gallons) per hour
• Trim Tabs/Stabilizers: (2) Quantum zero speed stabilizers
  Model QC 1800 gyro controlled non-retractable two-fin stabilizer system, designed for peak performance at 15 knots while underway and optimum roll damping while at anchor
• Bow Thruster: Veth tunnel thruster VT-240
• Steering System: Van Der Velden Marine Systems (hydraulic)
• Steering Gear:
  • Rubber design oil bath shafts
  • Wartsila/Lips 5-blade fixed pitch nibral bronze propellers
• Emergency Steering: Van Der Velden Marine Systems
• Fuel Separator & Filtration: Alfa Laval PU 150 / Alfa Laval
• Fuel Transfer Pump: Alfa Laval ACP 32
• Fuel Filling Pump:  Azcue CA50/2A
• Sewage System: Biological sewage treatment unit HMSA MS-II
• Fresh Water System: (2) HEM Hydro Electric Marine H40 series RO water makers (20,000 liters per day)
• Fresh Water Treatment:
  • (2) HEM reverse osmosis freshwater system , each with water softener
  • (2) HEM UV water sterilization system / HEM
    charcoal filtration system
• Bilge Water Filtration: Facet bilge water filtration system and silver ION
• Air Compressor: Mariner 200 EPR diving/firefighting air
  compressor rated at 330bar (200bar for diving and 300bar for firefighting)

• Wi-Fi: STARLink
• INMARSAT-C:
  • (1) Furuno Inmarsat CTT 3606E GMDSS system
  • (1) Inmarsat Fleet 500 with internet and
    emergency worldwide communication
• SSAS: (1) TT-3000E
• Telecom: 2N VoiceBlue Max
• VHF: (1) Sailor 6222 VHF/DSC radio
• Potable VHF: (3) Jotron handheld VHF radios
• Satellite Phone: (1) Iridium
• Intercom: Phontech CIS
• Telephone System: Cisco CME
• Radar Transporters: (2) Jotron Tron SART20
• SSB: (2) Sailor SSB radio TT3042C
• ECDIS: Full ECDIS Transas 4000 paperless bridge
• Radiotelephones: (20) Icom IC-F2000S UHF radio
• Portable GMDSS VHF: (1) Sailor 6110 Gmdss system
• GMDSS Battery Plant: (2) 12V PowerSafe monoblocs
• Guest Phones: (15) Cisco IP Phone 7945
• Internal Ship Communications: Cisco CME, 20 X Icom IC-F2000S UHF radio
• IP Phones: Cisco IP phones in every room
• Portable Phones: (1) Wireless Cisco portable phone
• GSM Phones: (4) Cellular GSM/data phones
• Note: Each cabin has a wired & wireless LAN connection

• Navigation Bridge:
  • Full ECDIS
  • Transas 4000 paperless bridge

• Monitors: (5) Hatteland – New 2023
• X-Band Radar: (1) Furuno X-band radar FAR-2117BB
• S-Band Radar: (1) Furuno S-band radar FAR-21375BB
• Multifunctional Workstation: Radio Zeeland
• Laser Plotter: (1) Transas Laser Plotter
• Also runs with a MaxSea Unit
• UPS: APC Smart 3,000
• Magnetic Compass: (1) Cassens & Plath 33001
• Gyrocompass: (1) Raytheon standard gyrocompass STD22
  (ETO office)
• Auto Pilot: (1) Raytheon 102-886
• Speed Log: (1) Furuno Wind/Speed Log DS80
• Depth Sounder: (1) Furuno Depth Sounder Fe700 with second backup unit
• GPS:
  • (1) Furuno GPS GP-170
  • (1) Furuno GPS GP-150-DUAL
• AIS: (1) Furuno AIS FA 150
• Navtex: (1) Furuno NX 700 Navtex
• Wind: Vaisala Weather Transmitter WXT520
• Horn: (5) Tone Air Horns (Manual and auto functions)
• Search Lights: Sanshin PP208
• BNWAS: Watchkeeper

TV Equipment

• Apple TV is all guests\' areas
• Main Salon:
  • Bang & Olufsen BeoVision Avant
  • (1) 85\" 4K Ultra HD LED TV with surround sound
• Skylounge Deck:  (1) 80\" Samsung 8K QLED TV with surround
  sound – New 2023
• Master Stateroom:
  • (1) 49\" Samsung LCD TV with surround sound
  •  IPOD docking station which can be used for
    personal iPods
• Guest Staterooms:
  • (4) 48\" LED Samsung Frame TVs - Lower deck
  • (2) 43\" LED Samsung TVs – Skylounge deck
  • IPOD docking station in each guestroom which can be used for personal iPods
• Beach Club: (1) 43\" Samsung LCD TV on a TV lift
• Gym: (1) 32\" Samsung LCD TV
• Crew Mess: (2) 43\" Samsung LCD TVs linked to satellite and entertainment systems and surround systems

Other Equipment:

• PS4 and PS5 gaming console
• The guest staterooms and saloons are equipped with automatic lights, curtains with 100% light shut, and air conditioning controls
• Wi-Fi coverage throughout the vessel


Audio Equipment

• Stereo’s: Sonos throughout the yacht allowing guests to stream or airplay from their phone

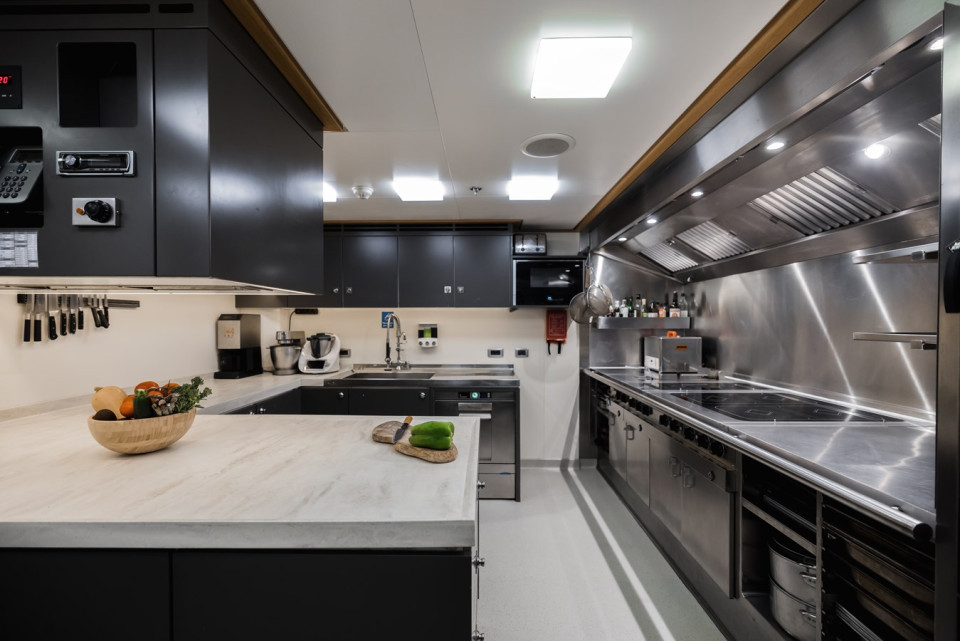

Main Galley Equipment

• Cooking Equipment: Professional MKN cooking equipment, fully
  integrated in seamless stainless steel work surface
• Refrigeration/Freezer:
  • (1) Walk-in fridge 6m2
  • (2) Walk-in freezers 6m2 (can be raised to fridge temperature)
• Dishwasher: Hobart industrial dishwasher
• Dumbwaiter: (2) Dumb waiters by Holland Marine which together serve all decks. Innovative lift cage with two compartments, one standard for trays and a large lower compartment for trolleys


Crew Galley/Mess Equipment

• Cooking Equipment:
  • (2) Ovens
  • (1) Microwave
  • (1) Hot Oven
• Refrigeration/Freezer: Frigoboat
• Dishwasher: Hobart industrial dishwasher
• Other: Panasonic professional combi microwave


 Additional Galley Equipment

• Cooking Equipment:
  • Weber BBQ
  • Buffet cabinets with refrigerator, ice maker, and plate warmer
• Refrigeration/Freezer: 60L Fridge Frigonautica
• Other:
  • (1) Fridge wine storage
  • (1) Storage room


Pantries

• Skylounge Deck:
  • Nespresso coffee machine

  • Quooker instant boiling water tap
  • Mixer tap
  • Inskinkerator

  • Stainless steel sink
• Beach Club:
  • 60L Drinks fridge
  • Foster Ice maker
  • Bar
  • Marble sink
• Bridge Deck:
  • Nespresso coffee machine
  • Quooker instant boiling water tap
  • Mixer tap
  • Inskinkerator
  • Stainless steel sink
  • 60L drink fridge

• Main Deck:
  • Foster Icemaker
  • Santos citrus juicer
  • Panasonic professional combi microwave
  • 4 Zone hob
  • 60L drink fridge
  • Griddle
  • Pasta Cooker
  • Deep fryer
  • Static oven
  • Combination steam oven
  • Salamander grill
  • (1) Walk-in garbage fridge 6m2
  • Custom stainless steel exhaust hood with 3 variable frequency intakes and 1 extraction fan to ensure slight under pressure over cooking range to minimize smells and cold air extraction

Laundry Equipment

• Miele Professional
  • (4) PW6065 washing machines
  • (4) PT7136 dryers
  • (1) PW6133 washing machine
  • (1) PT7331 dryer
  • (1) HM 16-80D rotary ironer

• Tenders:
  • (1) 23.62’ (7.20m) 2022 Super Air Nautique Ski Boat
  • (1) 24.61’ (7.50m) 2022 X-Craft Beachlander
  •  (1) 11.81’ (3.60m) Narwhal unsinkable rescue boat – New engine and tubes 2024

• Jet Skis:
  • (2) 2023 SeaDoo Sparks
  • Yamaha Superjet standup jet ski

• Toys:
  • (2) Seabob F5S
  • (2) Lift efoil
  • (1) 13.12’ (4m) new custom FunAir inflatable waterslide - 2024
  • (1) 40’ (12.19m) new custom FunAir inflatable beach club - 2024
  • (2) Inflatable paddleboards
  • (2) Wakeboards
  • (1) Foil board
  • (2) Wake surf boards
  • (2) Water skis
  • (1) Mono ski
  • (2) Inflatable donuts
  • (4) Inflatable sun loungers
  • (1) Beach setup including marquee, chairs, tables and Weber BBQs Sets of PFDs, helmets, gloves, snorkels and fins

  • Diving Compressor: Mariner 200 EPR diving/firefighting air
    compressor rated at 330bar (200bar for diving and 300bar for firefighting)

• Anchor Windlass System: (2) Ten horn Winches model EACV 28U3
• Aft Warping Capstans: (3) polished Stainless steel Maxwell 8000
• Anchors: (2) POOL fully balanced high holding power
• Anchor Chain: 190 meters x 28mm of anchor chain for each anchor
• Boat Crane and Davits:
  • (2) Cramm lifting cranes,
  • (1) rated at 4 ton lifting Capacity for the 23.62’ (7.2m) Super Air Nautique – Stbd.
  • (1) rated at 4 ton lifting capacity for the 24.60’ (7.5m) X-Craft Beachlander, rescue boat and 3 jet skis
• Passerelle: (1) Aft Cramm passerelle with 90 degrees or
  possible rotation, plus up and down feature
• Stern Boarding Gangway: Cramm hydromar hydraulic
• Swimming Platform: Fold down transom
• Swimming Ladder: Stainless with teak steps


OTHER EQUIPMENT

• Pool: Filtered salt water + fresh water

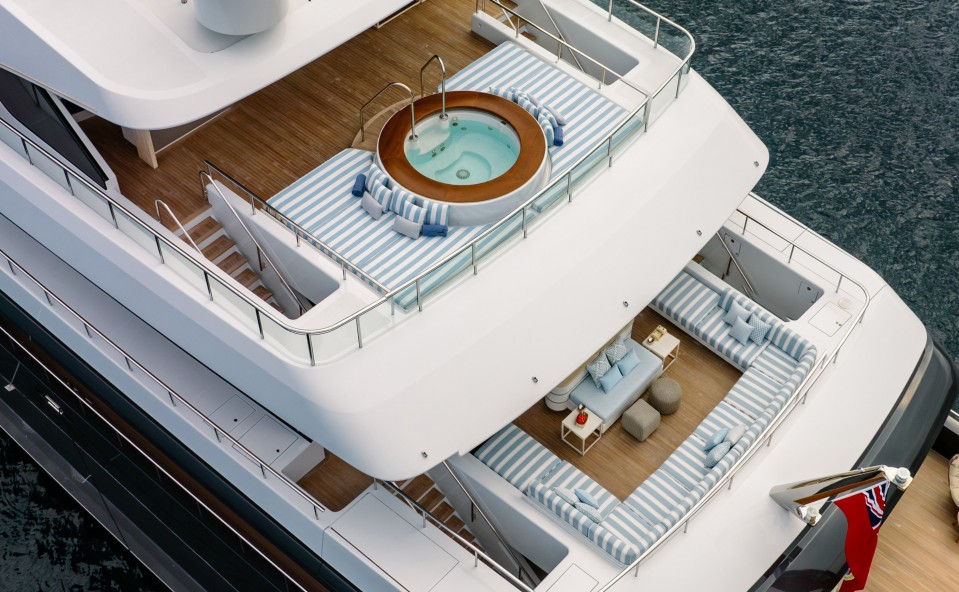

• Spa Tub: Hoesch Alabama whirlpool on bridge aft deck
• Sauna: (1) Sauna
• Massage Room: (1) Massage room
• Gym Equipment:
  • (1) Technogym Kinesis Personal Multi Functional Gym - Peloton Equipment
  • (1) Technogym Unica Compact Multi Gym

• Sun Awnings: (1) Upper Deck Aft

Security Equipment

• Security System: AXIS
• CCTV System: (19) CCTV cameras with motion sensors
• Monitors:
  • (1) Surface
  • (2) Ipads
  • (3) Hattelands



Fire Fighting Equipment

• Fire Control System: Hi-Fog firefighting system throughout boat and
  a co2 system in galley duct
• Fire Extinguishers: (52) Portable extinguishers
• Fire Hoses: (22) Fire hydrants/hoses
• Fire Alarms: Tyco Minerva T2000
• Gas Detection: (2) Monicon S-500
• Smoke Detention: (150) Tyco smoke and heat detectors
• Alarms: E2S System Horns

Safety Equipment

• Life Rafts:
  • (4) 25-person
  • (1) 8-person
• Lifejackets: (37)
• Life Rings: (8)
• Line Thrower: (2) Pains Wessex 250
• MOB Boat: (1) Narwhal SV420
• Breathing Apparatus:
  • (4) BA
  • (8) Bottles
• Immersion suits: (37)
• EPIRBS: (2) Jotron 40S
• SART: (2) Jotron SART-20
• Flares: (12) Parachutes
• Medical Equipment: MSOS class B



General

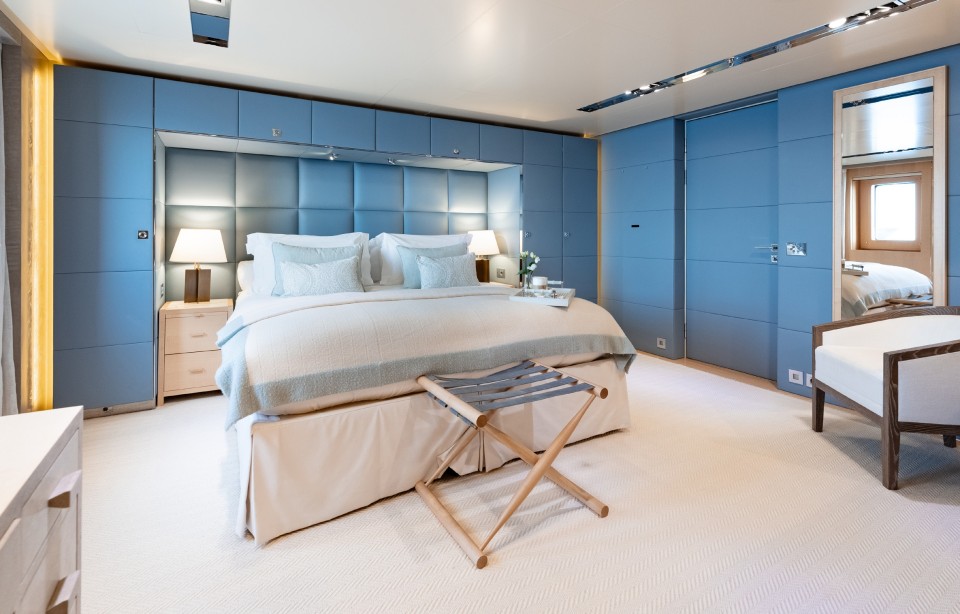

• Accommodation for up to 13 guests including an Owner\'s two-level master stateroom, three double staterooms, two twin staterooms that can be converted to doubles and an additional single cabin


Owner

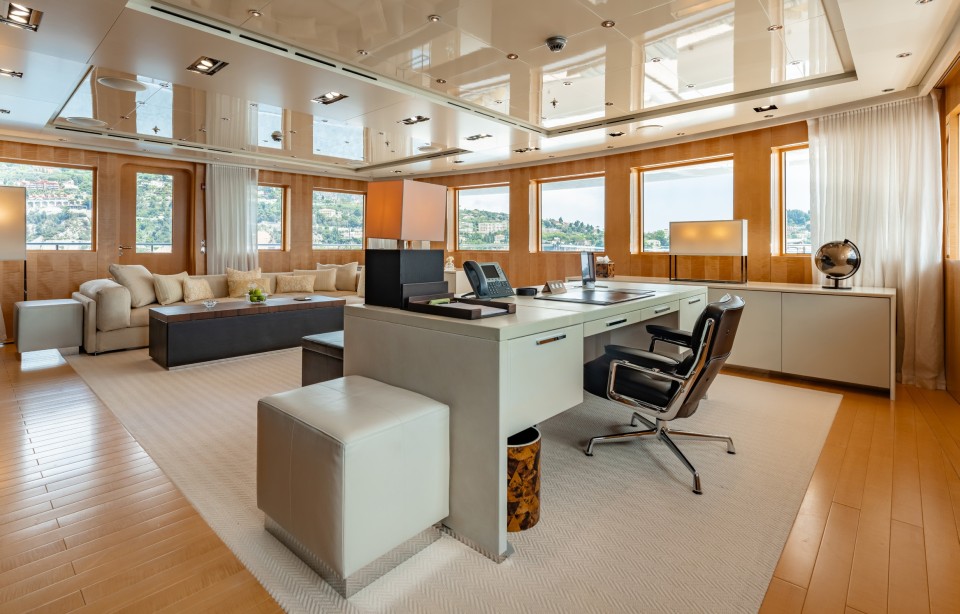

• The Owner’s two-level master stateroom includes a master suite and office on the main deck, and lounge area on the skylounge deck


Guest

• Lower Deck: Four queen staterooms, including two that convert from queens to singles
• Skylounge Deck: One double VIP stateroom and one single berth cabin


Crew

• Bridge Deck: Captain and Chief Officers Cabin
• Lower Deck: A chief engineer\'s cabin, 6 shared cabins for crew with direct access to the guest accommodations’ corridor for service
• Tank Deck: Crew mess room and relaxation area and 2 additional crew cabins

• Exclusion:
  • 48’ Towable Tender named “ANVERA”
  • “LOON” name reserved for Seller
  • All LOON monogrammed items on board
  • Scale model (mock-up) of Loon

2023 and 2024

• Complete bridge refit in 2023 which included completely rebuilding the console and
  navigation desk
• 5 New Hatteland displays

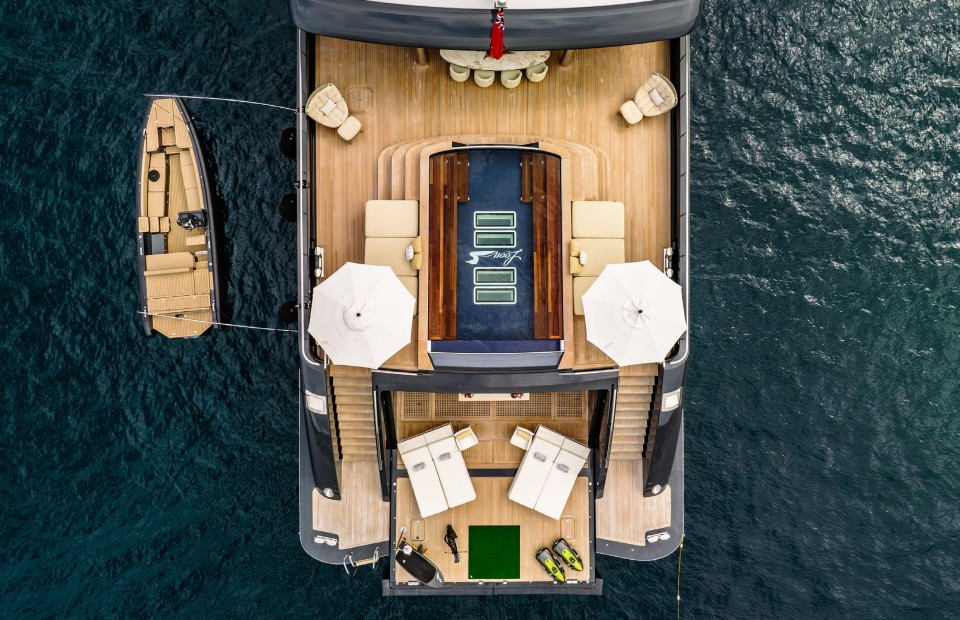

• Conversion of main deck pool to fresh water with a drop tank and water heater
• New pool deck cushions 2024
• Hull wrapped in 2023
• All 3 generators were rebuilt in 2024
• 15-year survey is due the 1st quarter of 2025 – Scheduled to start on January 4th, 2025, at Rybovich Super Yacht Marina in West Palm Beach, FL
