BROKERS COMMENTS:

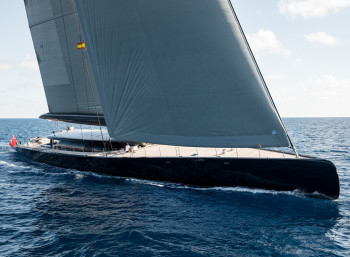

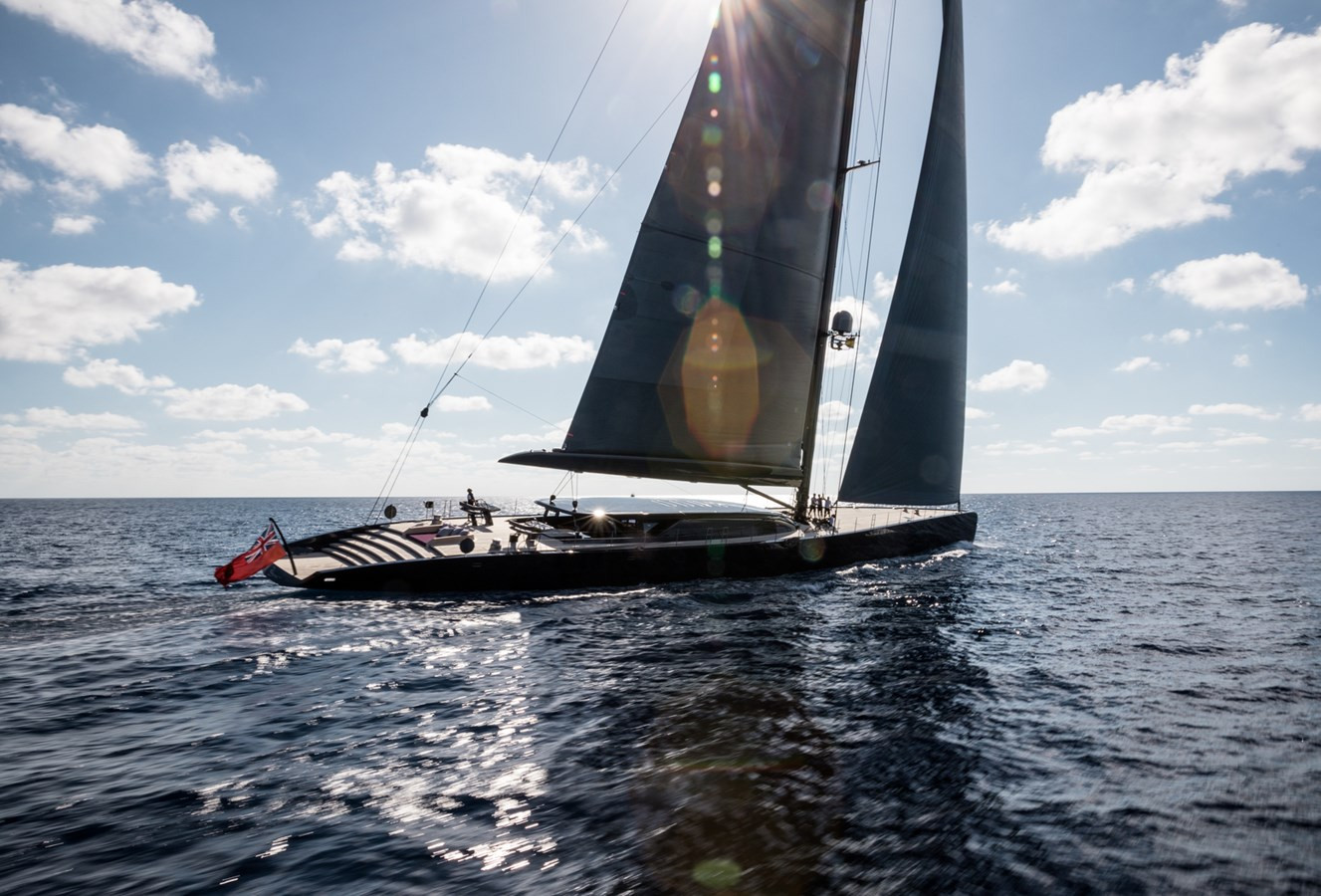

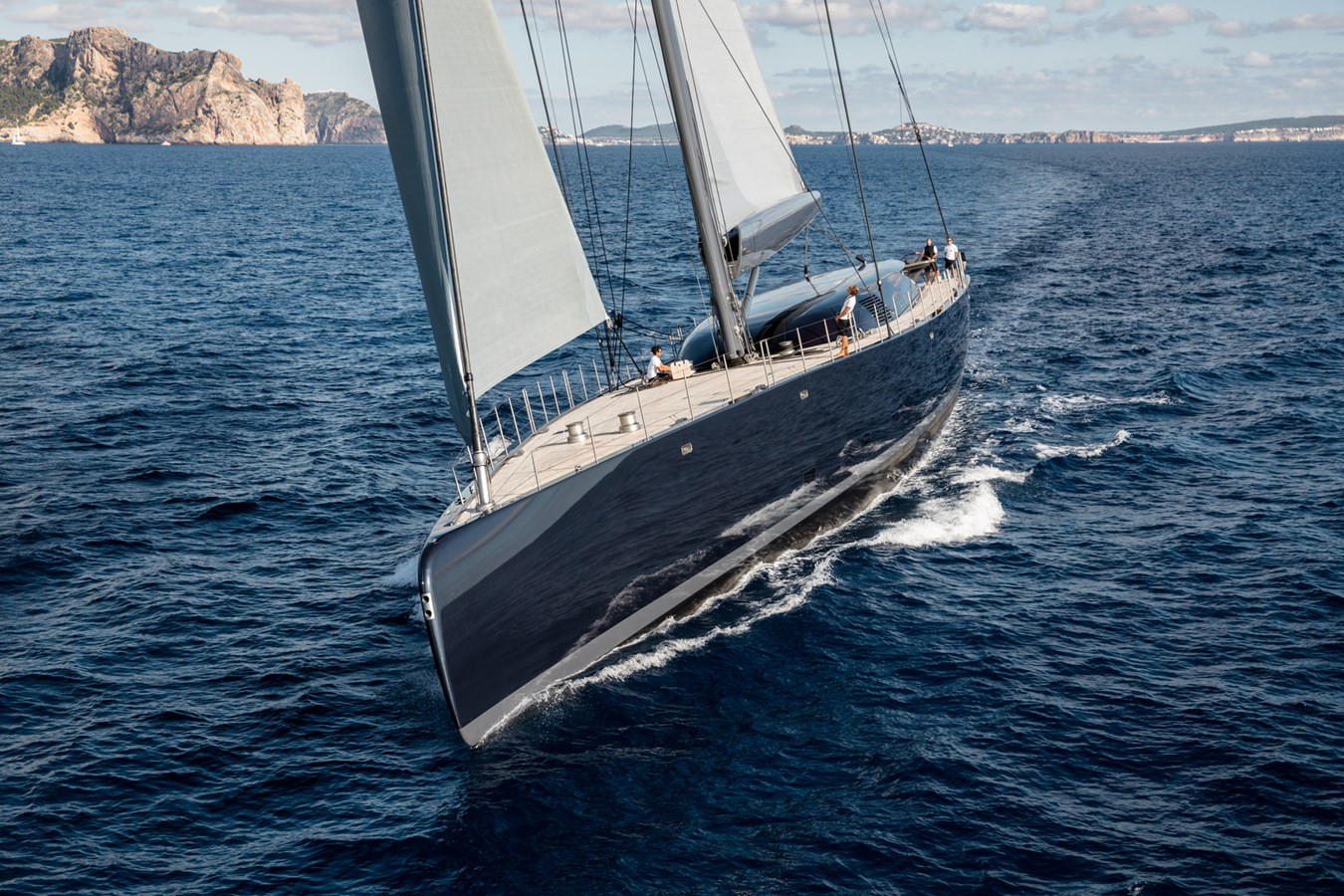

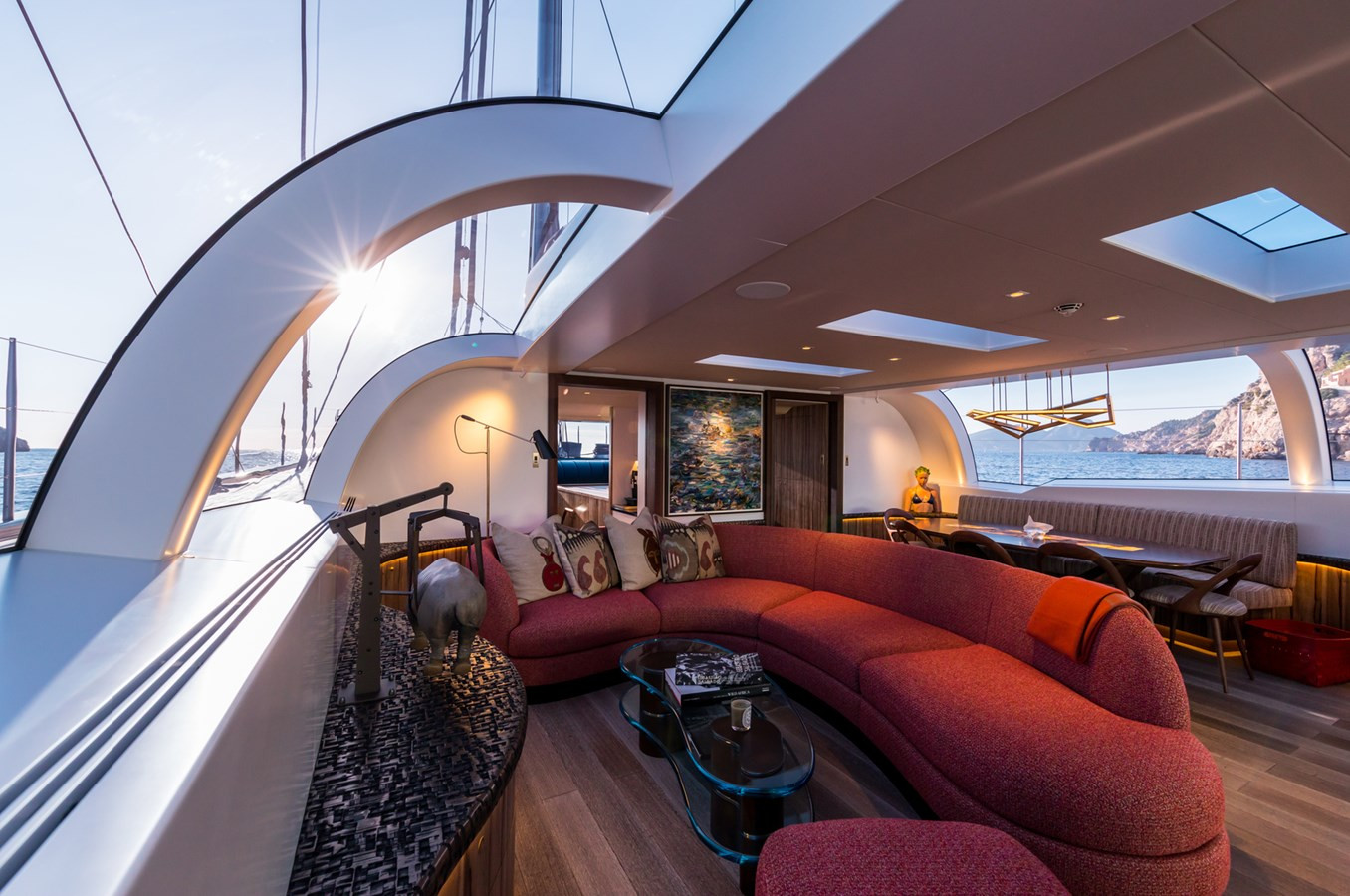

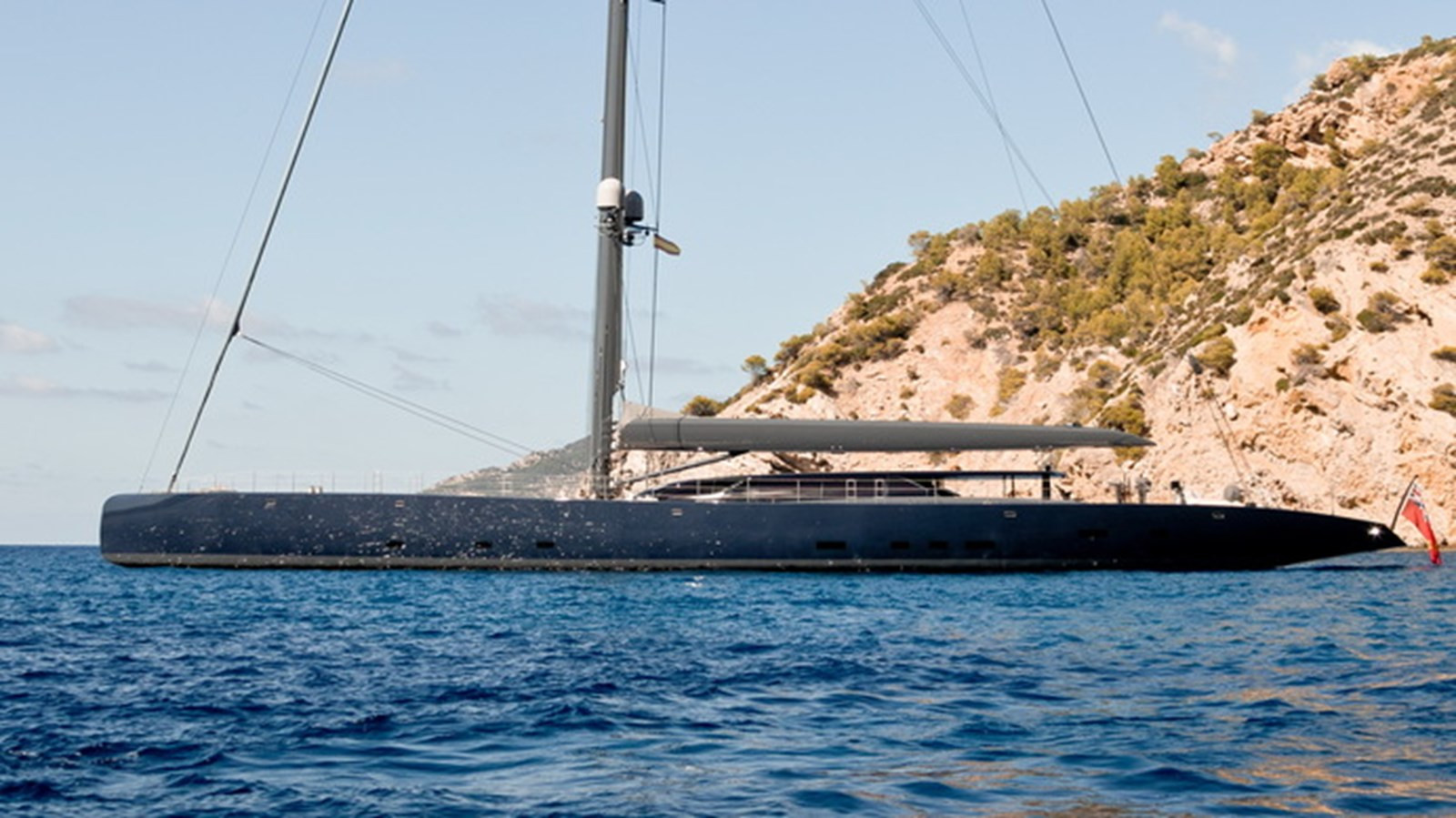

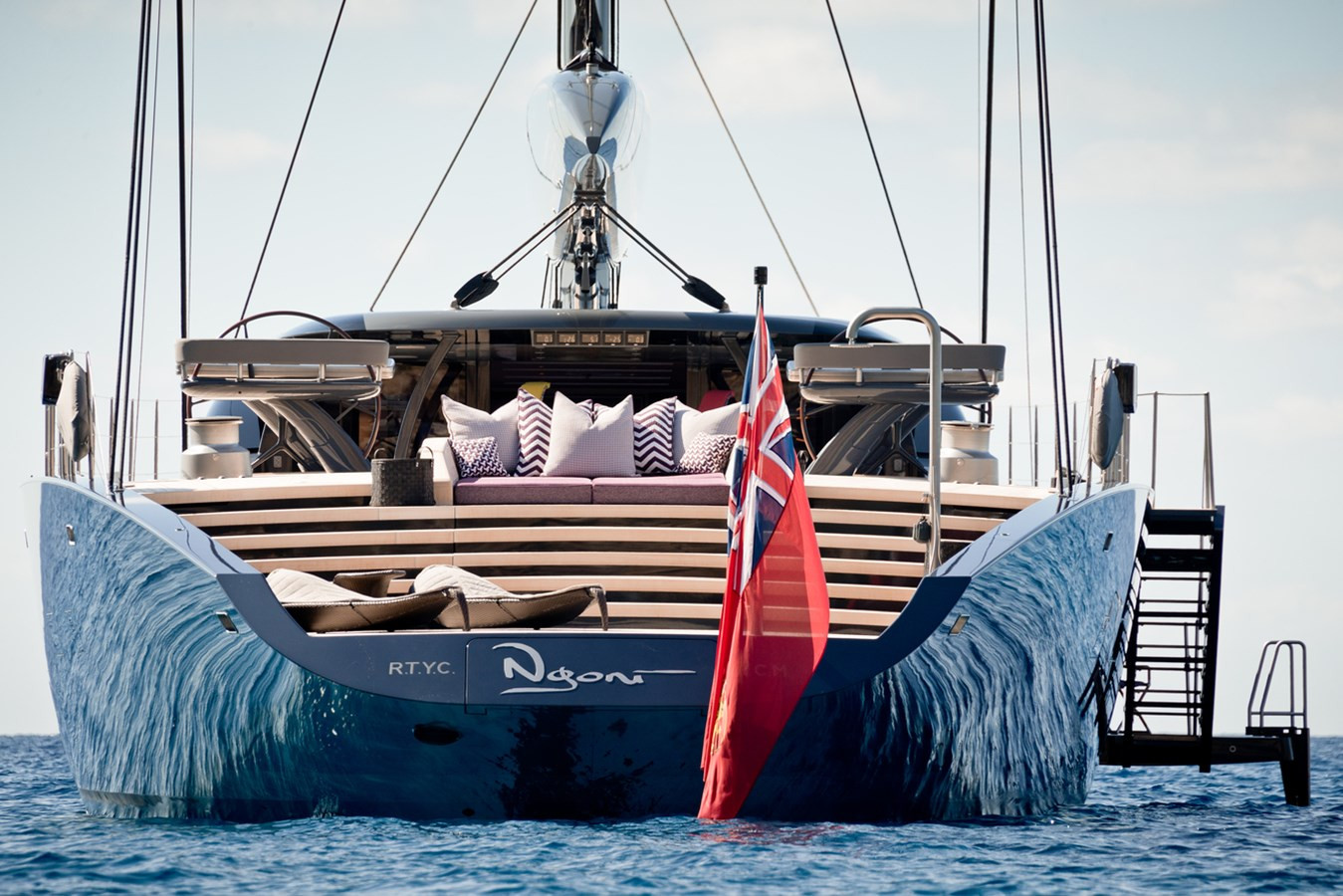

This is a unique and exciting opportunity to acquire the late Ed Dubois last design and commission. Built by Royal Huisman and launched in 2017, Ngoni truly is one of the the worlds most striking and innovative yachts ever built. Her purposeful plumb bow, distinctive reverse sheer lines, full glass deckhouse, cascading tiered beach deck aft and 71m (232ft) carbon mast wont fail to impress. With the lifting keel down (8.1m) this yacht is fast - all aided by the yachts low profile and sleek uncluttered deck.

This is one of the worlds largest sloops with serious \'Wow\' factor. Ngoni\'s guest accommodation is beautifully styled by Rick Baker Ltd.  In 2024, NGONI underwent a significant refit, expanding the accommodation on-board: the gym was replaced with a luxurious twin berth cabin and ensuite bathroom; and a single berth sofa bed has been added to the owner\'s office.

Type:                           58m Sloop with lifting keel

Name:                         NGONI

Naval architect:          Dubois Naval Architects

Exterior stylist:           Dubois Naval Architects

Interior design:           Rick Baker Ltd.

Project mgt:                Godfrey Cray Maritime Ltd.

Builder                        Royal Huisman, Netherlands

Year of delivery          2017

Registered:                 British (Jersey) Registered

VAT:                           Not paid

DIMENSIONS:

Length                         58.15 m / 190.3 ft

Length waterline         51.20 m / 167.9 ft

Beam max.                  9.54 m / 31.3 ft

Draft keel up               5.30 m / 17.4 ft

Draft keel down          8.10 m / 26.2 ft

Displacement              353 tons / 778,231 lbs

Max air draft:             75m / 246 ft

Gross Tonnage:          396

Hull speed                   17 knots

CLASSIFICATION

Private Pleasure Yacht

Lloyd\'s Register 100A1, SSC, YACHT, MONO, G6,

LMC, UMS-LY3 (MCA)

HULL PAINT:

Alexseal Yacht Coatings ‘Claire de Lune’ & Grey hull paint RAL7035

Jotun black antifouling

CONSTRUCTION:
All aluminium hull and deck
5083 H321 for hull and deck plating. \"Alustar\" 5059 H321 for high loaded areas

internal structure and profiles.\"Alustar\" 5059 H112 for extrusions.

KEEL:
Lifting keel

Hydraulically operated T-style lift keel by Brandjes (2.80 m/ 9.2 ft stroke)

MAIN ENGINE:

MTU 8V2000M72, 720 kW (966hp) @ 2250 rpm; rating: 1B for (high load factors)

Gearbox and propeller - ZF 3310, Hundested VP10 controllable pitch propeller

Propeller diameter 1600 mm with 4 blades

Cruising speed range:  4000 nm @ 12 knots

Hours run: 8388 (January 2026)

GENERATORS:
2 x Northern Lights M 1064A, 70 Kw each

Hours: 9161 + 13742 (January 2026)

TANK CAPACITIES:

Fuel:                30,307 litres / 8006 USG (7 tanks)

Fresh water:    10,000 litres / 2641 USG

Waste water:   7,000 l / 1849 USG

Fuel system Custom made by Royal Huisman, Facet fuel separator. Tender fill system Gianneschi tender fuel pump. Flexibimec hose reel

WASTE WATER

Hamann HL Cont PLUS 02 Slim Sewage Treatment plant

Capacity 5200 litres (1373 USG) / day

WATER MAKER

HEM 30/3400 13,000 litre capacity  (3434.24 USG) per day

Bilge system Royal Huisman central bilge system. Oily water separator, RWO Veolia OWS-COM 0.1 m3/hr

THRUSTERS:

Bow thruster Hydrosta, 110 kW

Stern thruster Hydrosta, 110 Kw

GROUND TACKLE & WINDLASS

Underwater anchor system on centreline fore & aft of each other

2x hydraulic anchor winches by Steen

178 metres chain per anchor

2x Manson anchors type Pool N = 380 kg (838 lbs)

2x Rondal anchor stoppers

STEERING SYSTEM

Manual steering system without power assistance and hydraulic steering system.

Simrad Autopilot system.

Rondal balanced carbon composite spade rudder (6.95m2/ 75ft ²)

INSULATION:

Thermal and acoustic insulation in accommodations by means of Melamine foam. Fire protection insulation in galley, engine room and around petrol locker by means of Isover mineral wool. Anti-drumming on ER bulkhead and ventilation, above propeller, outside ER ventilation.

FIRE FIGHTING:

Royal Huisman seawater fire-fighting system.

FirePro fire extinguishing system for engine room

HYDRAULIC SYSTEM

Royal Huisman / Parker main hydraulic system

PNEUMATIC SYSTEM

Junair air compressor OF1201. Junair air dryer CRDC54.

Kahlenberg air horn

Bauer Mariner 250-E diving compressor

AIR CONDITIONING

HVAC MAR-IX system with chiller units

307,000 BTU = 90 kW and fancoils, fresh air system

ELECTRICAL

230/400 VAC - 50Hz parallel, 3-phase and single phase electrical system.

Main switchboard with power management & paralleling system.

Emergency power system / 2x set of 2 starting batteries / 1x set of 2 radio batteries.

Shore converter 60 kVA.

Systems supplied by Tijssen Elektro, Alewijnse, Eekels, Valence, Victron.

NAVIGATION EQUIPMENT

B&G H5000

2 x Furuno Radar

Furuno Chart plotters

MaxSea. GPS

Furuno AIS

Sailor Gyro compass

Alpha Minicourse

Navtex weather receiver

Sailor Satcom C

Sailor Echosounder

Furuno FE-800

COMMUNICATION SYSTEMS

VHF transceivers

Sailor 2x SSB transceiver

Sailor 6381

VSAT I Sailor 800 Vsat.

TVRO I Sailor 90 TVRO

ACCOMODATION

Ngoni sleeps 8 guests in 4 large staterooms (+1 converting berth in office)

Sumptuous owner’s master suite aft

Double VIP guest cabin forward Stbd side

Twin guest cabin forward Port side

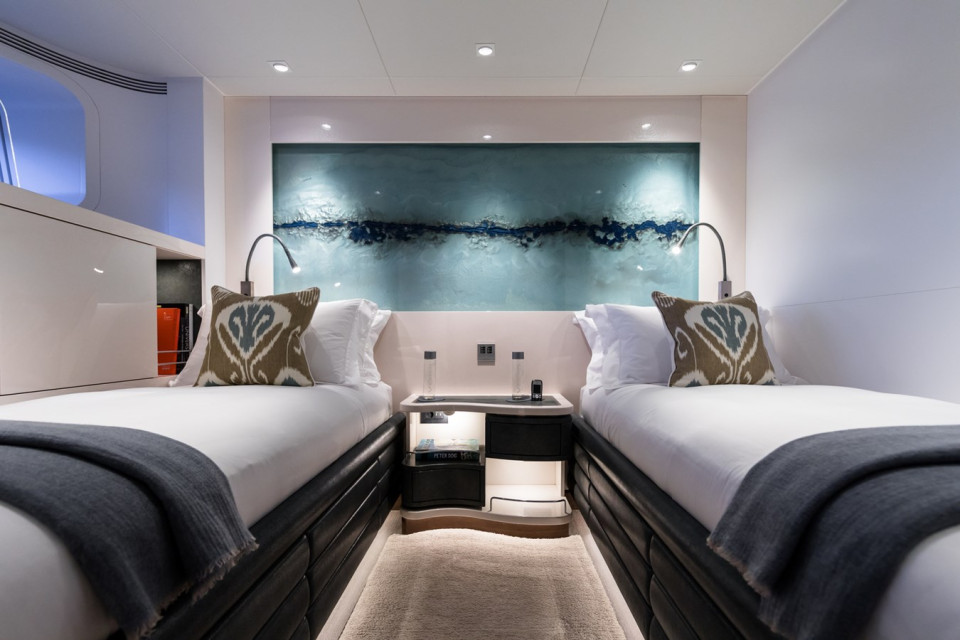

New twin guest cabin (stbd side in lieu of gymnasium)

Crew 9 berths in 6 cabins (Captain’s cabin, 2 single berth cabins and 3 twin bunk cabins.

All crew cabins have en-suite bathrooms

AUDIO VISUAL EQUIPMENT:

Kaleidescape audio and video system

Samsung UHD TVs

Apple RTI room control

ALARM & MONITORING

Royal Huisman Alarm & Monitoring system

GALLEY & LAUNDRY

Appliances from Miele, Foster, Vitrifrigo, Liebherr and Hoshizaki

REFRIGERATION & FREEZERS

Frigonautica custom made cold store.

Cooling system with Foster refrigerator and freezer boxes

FURNISHINGS & INTERIOR

Interior design by Rick Baker Ltd - in 2018 ‘Ngoni’ won “Best Interior” from the International Superyacht Society Awards of Distinction at the Fort Lauderdale Boat Show

Interior Manufactured in-house by Royal Huisman as per the contemporary style of Rick Baker Ltd.

Walls and furniture produced with special finished surfaces, Tabu and Alpi veneers and Wengé door frames, skirting and floors.

Crew styling as per Royal Huisman  standard with white HP laminate walls and furniture with oak wood details. Floors in Amtico

UPHOLSTERY

Ceiling panels, sofas, blinds and curtains by Zijlstra.

Furniture and wall panels, headboards and leather work by Cools Upholstery

Deckhouse sofa and loose chairs by Francis Sultana Carpets and M. Ronson Contracts Ltd.

Exterior cushions and mattresses by Telstar Marine

Interior lights Lighting plans and armatures by The Light Corporation

Special finishes by Officina Coppola, Page Lacquer

Hand painted marble shower door by Davique

Custom door handles by J.C. Birtles

INTERIOR CERAMICS & STONE

Basins and bath by Stone Natural Class

Bathroom floors by Stone Natural Class

Galley counters by Stone Natural Class

CRANE & BOARDING LADDER

Deck Crane by Nautical Structures

Royal Huisman hydraulic boarding platform

Side gangway Hydraulically operated [by Cramm]

Cramm Passerelle / bathing platform Hydraulically operated & carbon fibre passerelle with

self-levelling steps and platform

DECK HARDWARE

Below deck hardware by Rondal

Custom deck hardware by Harken

Rondal custom flush deck hatches

Royal Huisman custom waste locker.

WINCH PACKAGE

Rondal captive reel winches with electrically-driven variable speed feeders.

Harken drum deck winches

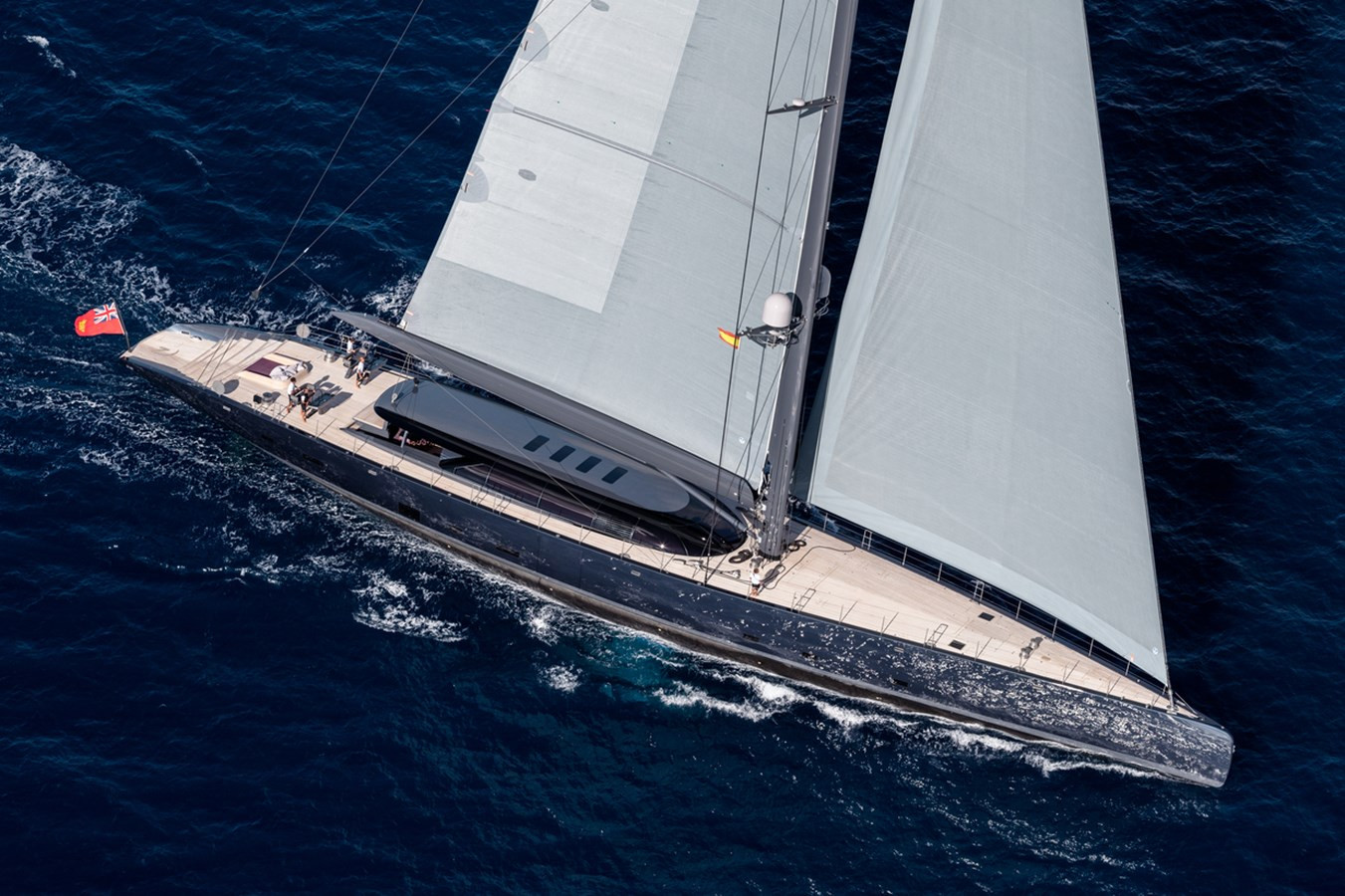

MAST & SPARS

71 metre (233ft) Rondal carbon fibre mast with halyard locks and internal tang system.

24 metre (79ft) Style-to-order performance furling carbon boom by Rondal

Auto detaching and attaching mainsail square top gaff batten

Composite continuous standing rigging by ‘Carbo-link’

Doyle running rigging package

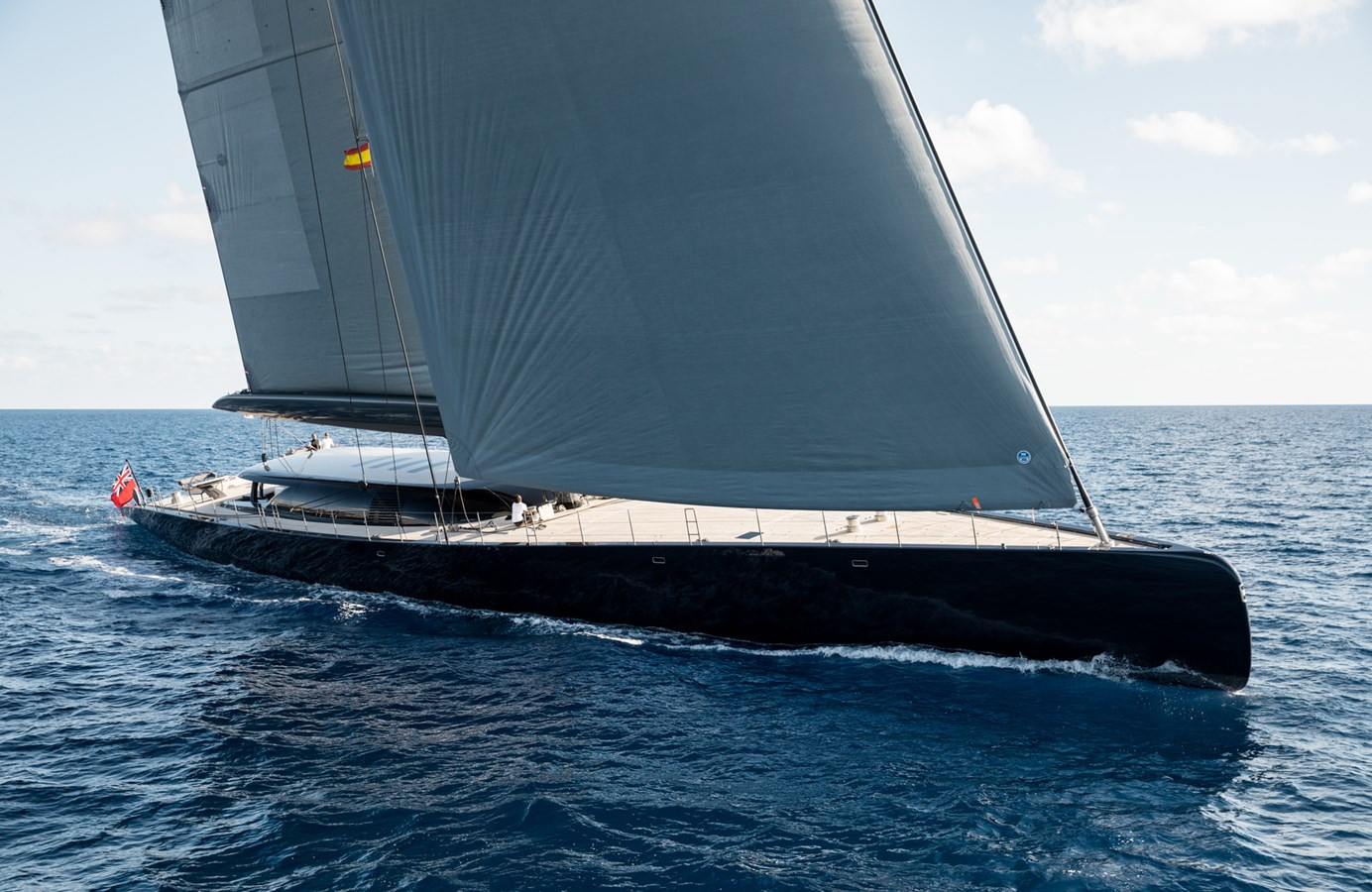

SAILS

North Sails 3Di Mainsail

North Sails 3Di FURLING JIB –

North Sails Code Zero

North Sails A2 spinnaker

North Sails 3Di Staysail - New June 2024

Mainsail                      853m2 / 9,182ft2

Blade                           687 m² / 7,395 ft²

Solent                          305 m² / 3,283 ft²

Code                            1097 m² / 11,808 ft²

Gennaker                    2240 m² / 24,111 ft²

Total up wind              1950 m² / 20,989 ft²

Total down wind         3093 m² / 33,293 ft²

RIG DIMS:

I = 66.00 m / 216.5 ft

P = 63.78 m / 209.3 ft

E = 20.30 m / 66.6 ft

J = 19.95 m / 65.5 ft

TENDERS

Williams 565 Tender Diesel Jet tender in recessed bow garage

Crew tender - Bombard commando C3 & 15HP outboard
