NDS Darwin
Yacht For Sale
Price on Application

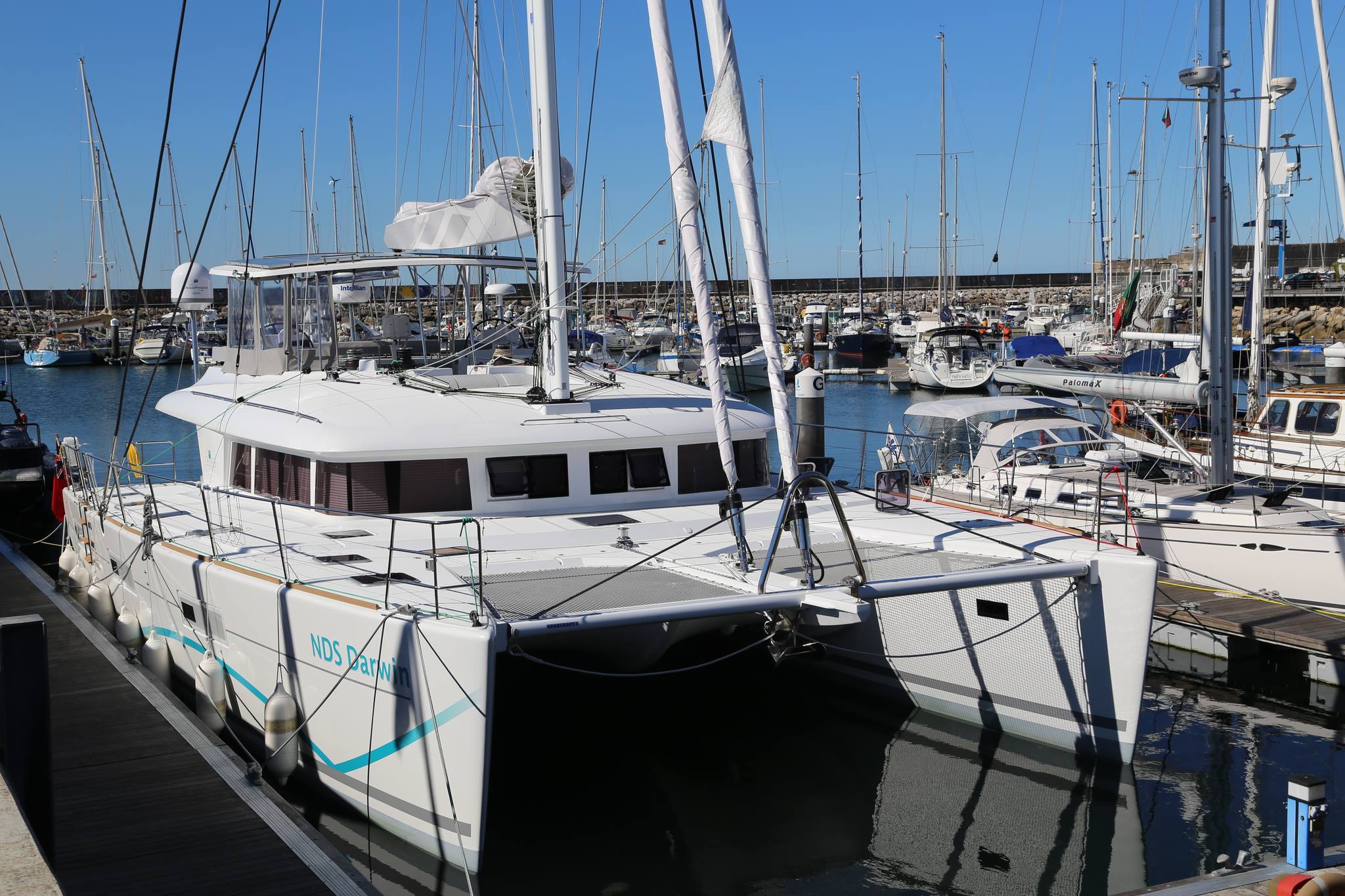

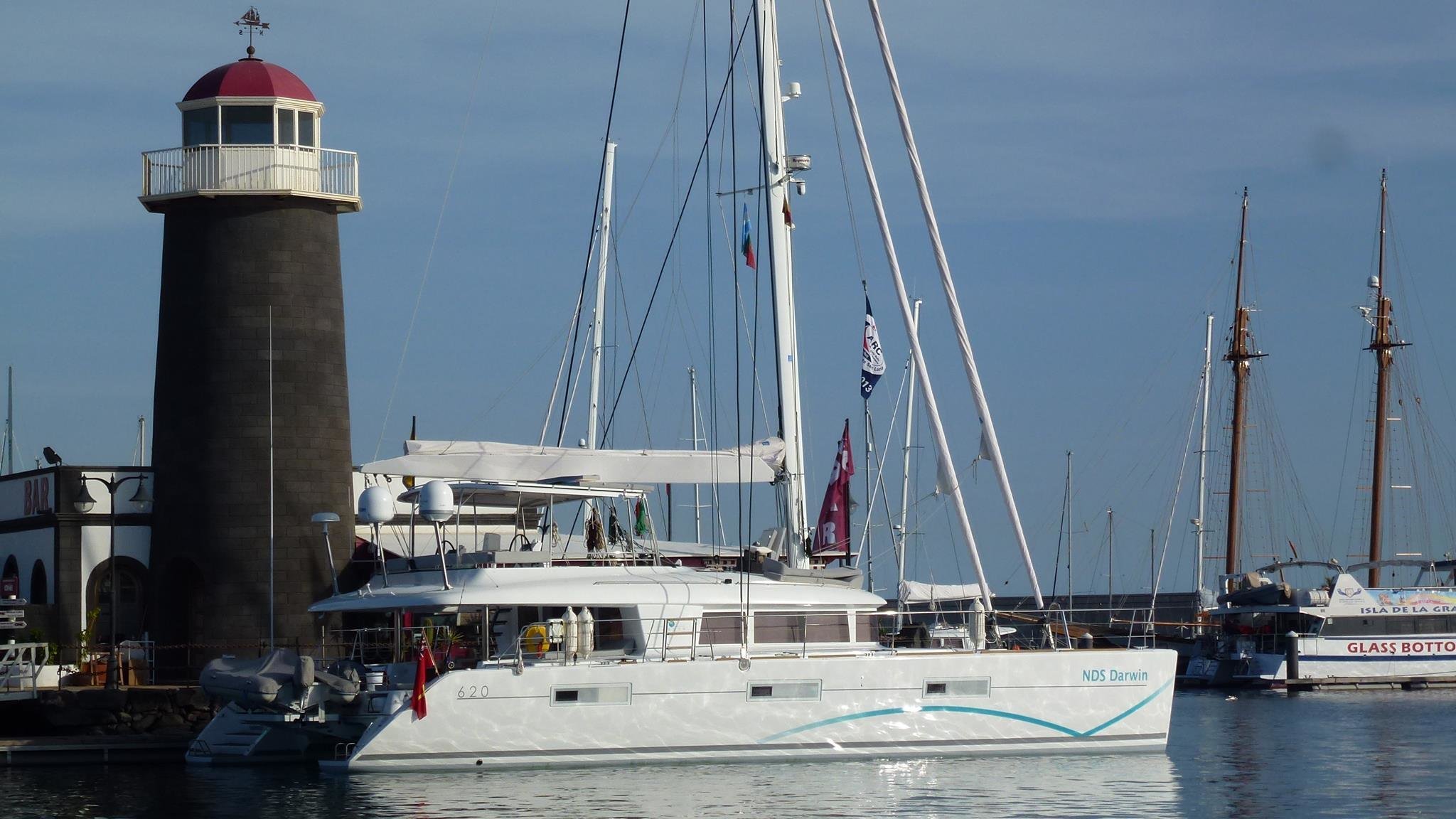

NDS Darwin
Type
Catamaran

Flag
Guernsey

Dimensions & Tonnage
LOA 18.90m 62’
LWL 18.20m 59’9”
Beam max 10m 32’10”
Draught 1.55m 5’1”
Displacement (light) 32.24t 71,089 lbs
Mast clearance 31m 101’9”

Year Launched
2013

Construction
• Infused FRP + balsa core with polyester and high quality anti-osmotic resins. Hull bottom and keels in solid infused laminate
• Infused balsa core structural bulkheads
• Grey paint coat in bilges
• White gel coat hulls
• White gel coat decks with non-skid areas
Machinery
Main Engine 2 x Volvo Penta D3 - 150hp
Gear Box HS 63IV 2.48/1
Propeller GORI 3 blade propeller 24x19 LH and 24x19 RH
Speed Under Engine 8 Knots
Speed Under Sails 8-10 Knots average
Speeds & Fuel Consumptions 6 Knots – 5l per hour
7 Knots – 8l per hour
8 Knots – 12l per hour
Range under engine 1,200nm
Engine Hours Port: 2,864 / Starboard: 2,857

Propulsion Engines & Transmission
• 2 Volvo D3-110 HP Diesel engines, 3000 rpm
• Engine throttles and control panel on port steering station on flybridge
• Conventional stainless steel propeller shafts with “p” brackets
• 2 fixed propellers
• Engine access through large deck hatches
• Stainless steel gas struts on hatches
• Ventilation system (natural aspiration and forced extraction)
• 1 x 220 V outlet per engine room
• Engine rooms lights
• Sound insulation of engine compartments: foam on bulkheads

Diesel Capacity
• 2 stainless steel fuel tanks: 1300 l total (343 US Gal), under floors forward of the engine rooms bulkheads
• Fuel fillers caps and vents on aft cross beam
• Equipment includes:
- Electric gauges
- Fuel filter systems: pre-filter with water separator and primary filter
- Remote fuel shut off valve in aft cabins

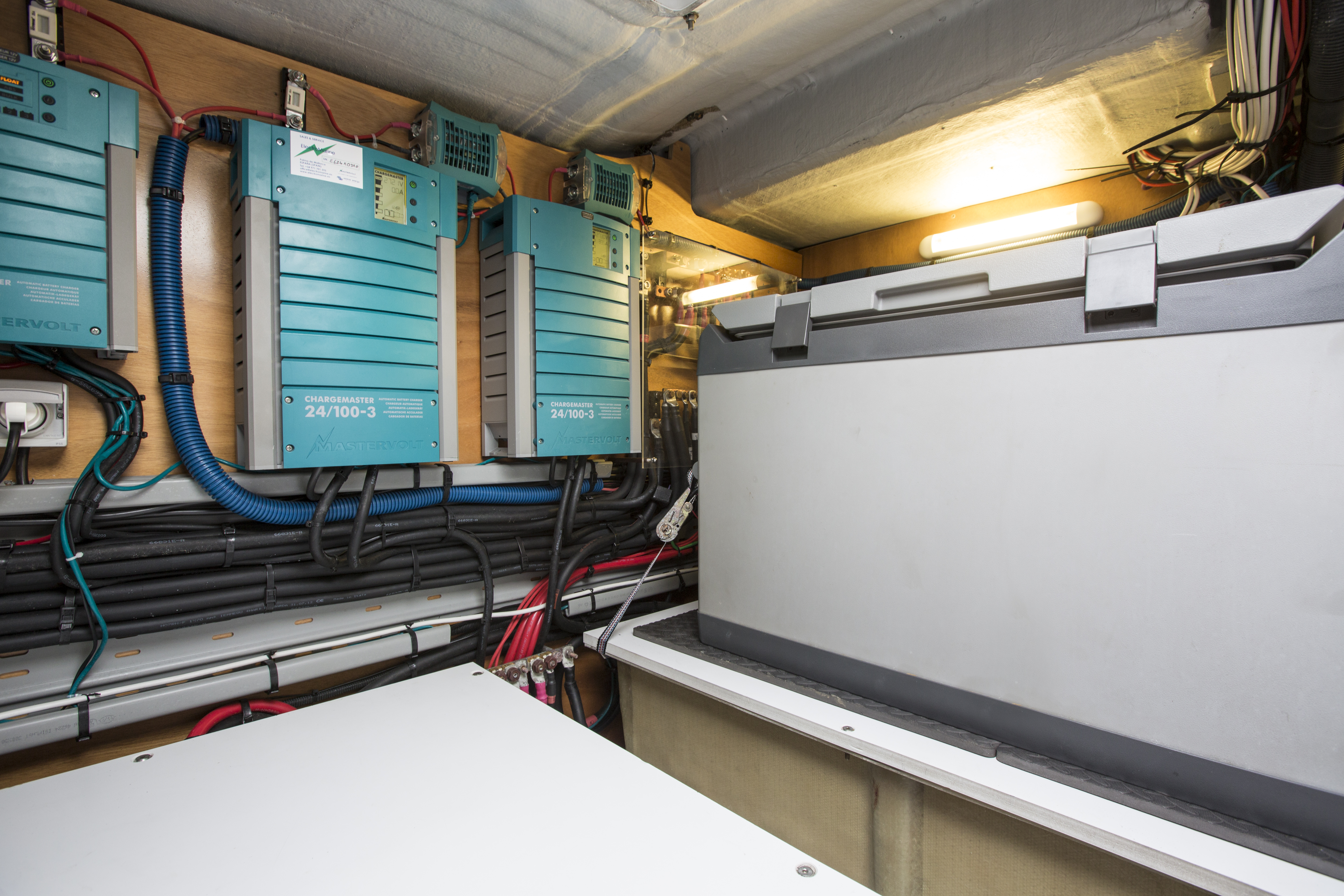

Auxiliary Machinery & Electrical System
Generator ONAN MDKBP

Electrics
220V AC Circuit:
• 2 outlets per cabin (owner’s cabin: 3), 5 in the saloon, 4 in the galley, one per gangway, 1 per engine compartment, and 1 in the technical compartment
• 220V electric panel with power source selector, voltmeter
• 30 Amp dock inlet in the aft transom with 15m (49’3”) shore power cord

24 V circuit:
• 24V 420 Ah gel service battery bank
• 24V electrical panel with battery bank monitor
• Breaker-box for the 24V system
• 2 engine-driven 110 Ah 24V Mastervolt alternators

12 V circuit:
• 1 X 12 V 50 Ah start battery per engine
• 2 X 12 V Mastervolt alternators

Adapter for electric extension 63A - 16A

Sails & Rigging
• Mast and boom in white lacquered aluminium
• FRP longitudinal crossbeam
• Aluminium transversal crossbeam
• Adjustable lazy-jacks with spreaders

Sail areas
Full batten main: 139m² / 1,496 sq.ft
Furling Genoa: 91m² / 979 sq.ft
Upwind sail: 230m² / 2,575 sq.ft
Accommodation
Interior Finish Light oak alpi and laminated dark brown floor

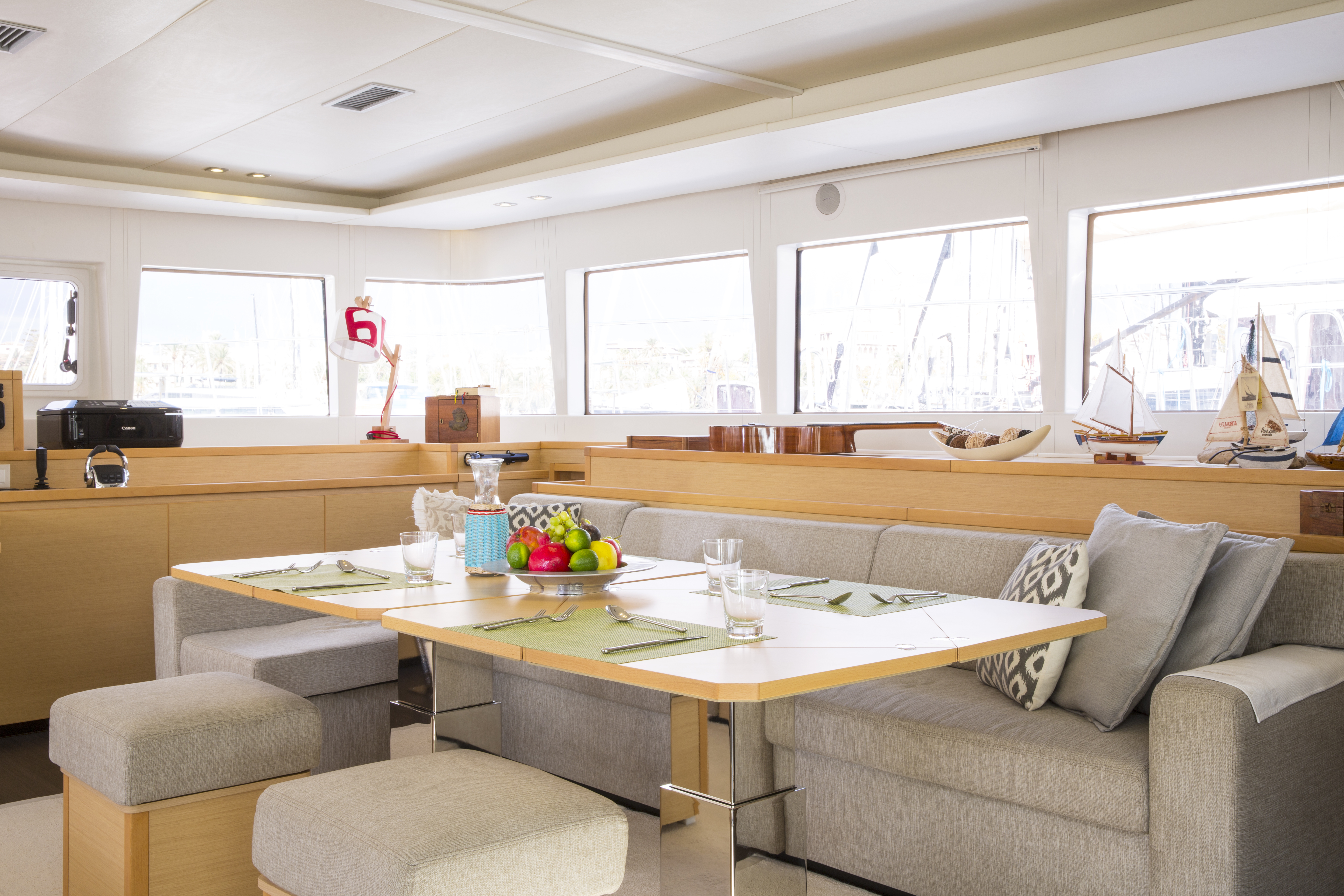

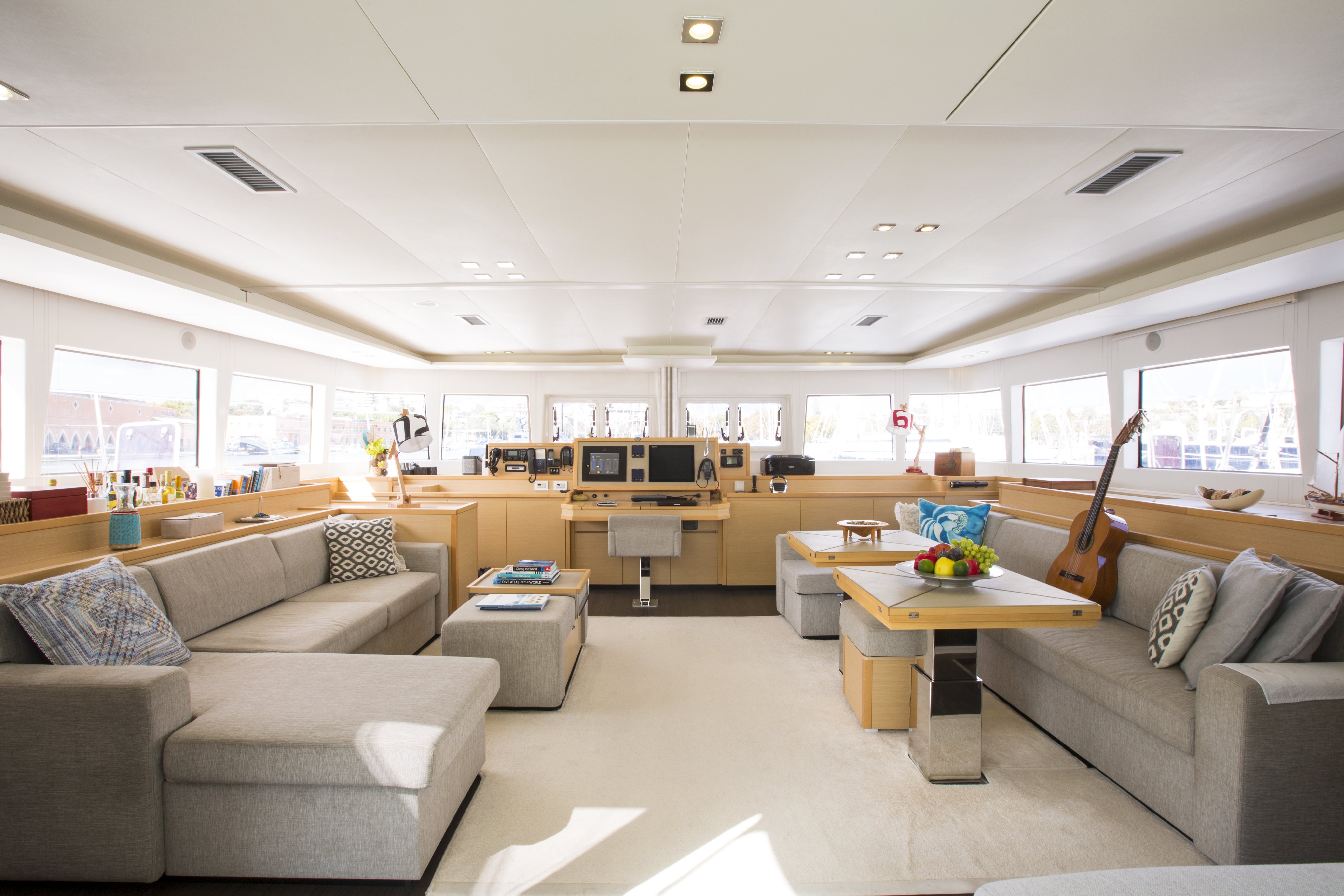

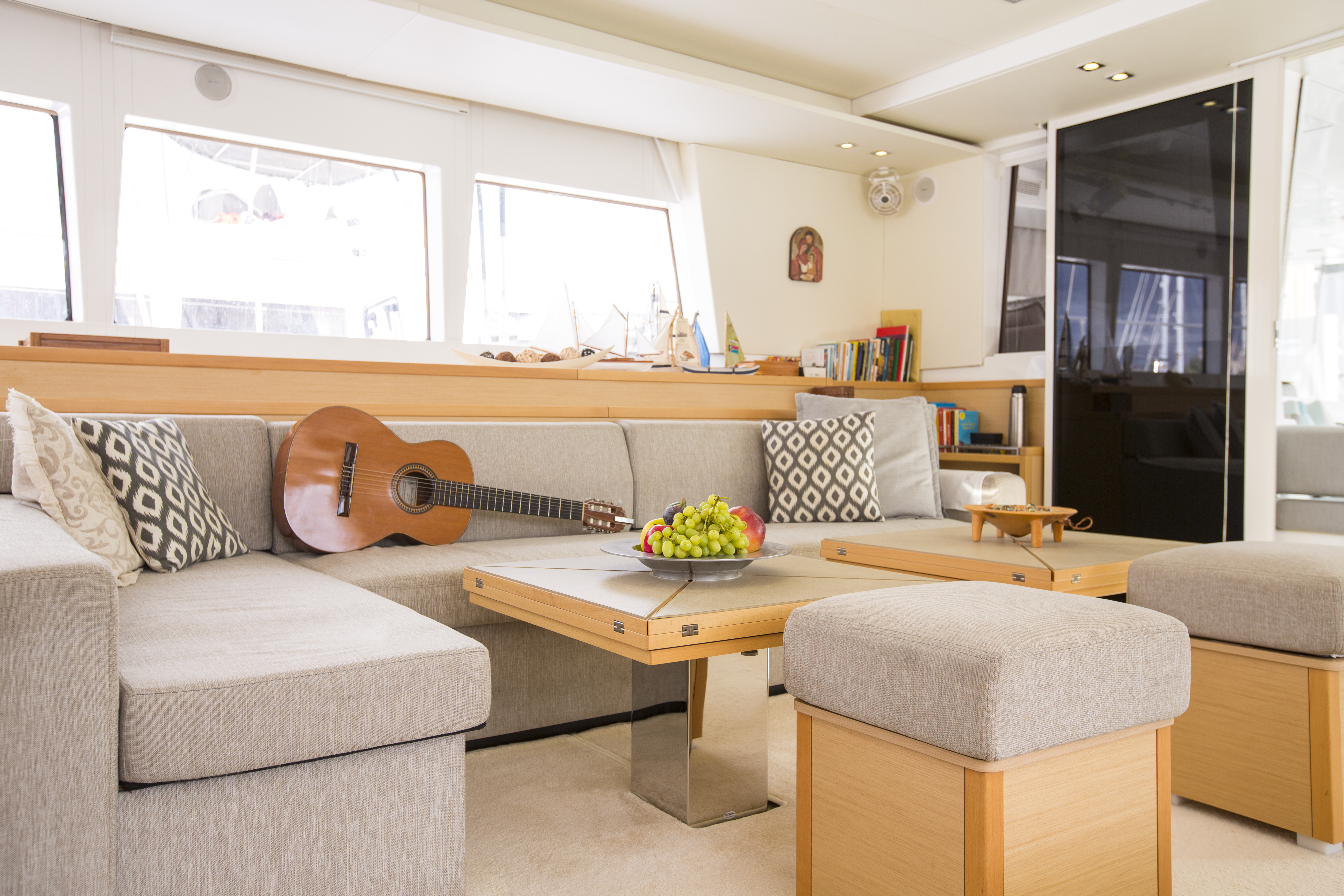

Salon
• Access from the cockpit through sliding & locking door with latching mechanism inside and out. Half way latching points
• Storage under floors with hinged panels and lifting arm
• 4 opening hatches on the front windows
• Forward window curtains
• Companionway steps port and stbd against coach house bulkhead
• Companionway steps port and stbd behind mast bulkhead
• Lockers on mast bulkhead including:
- Dish cupboard
- Storage

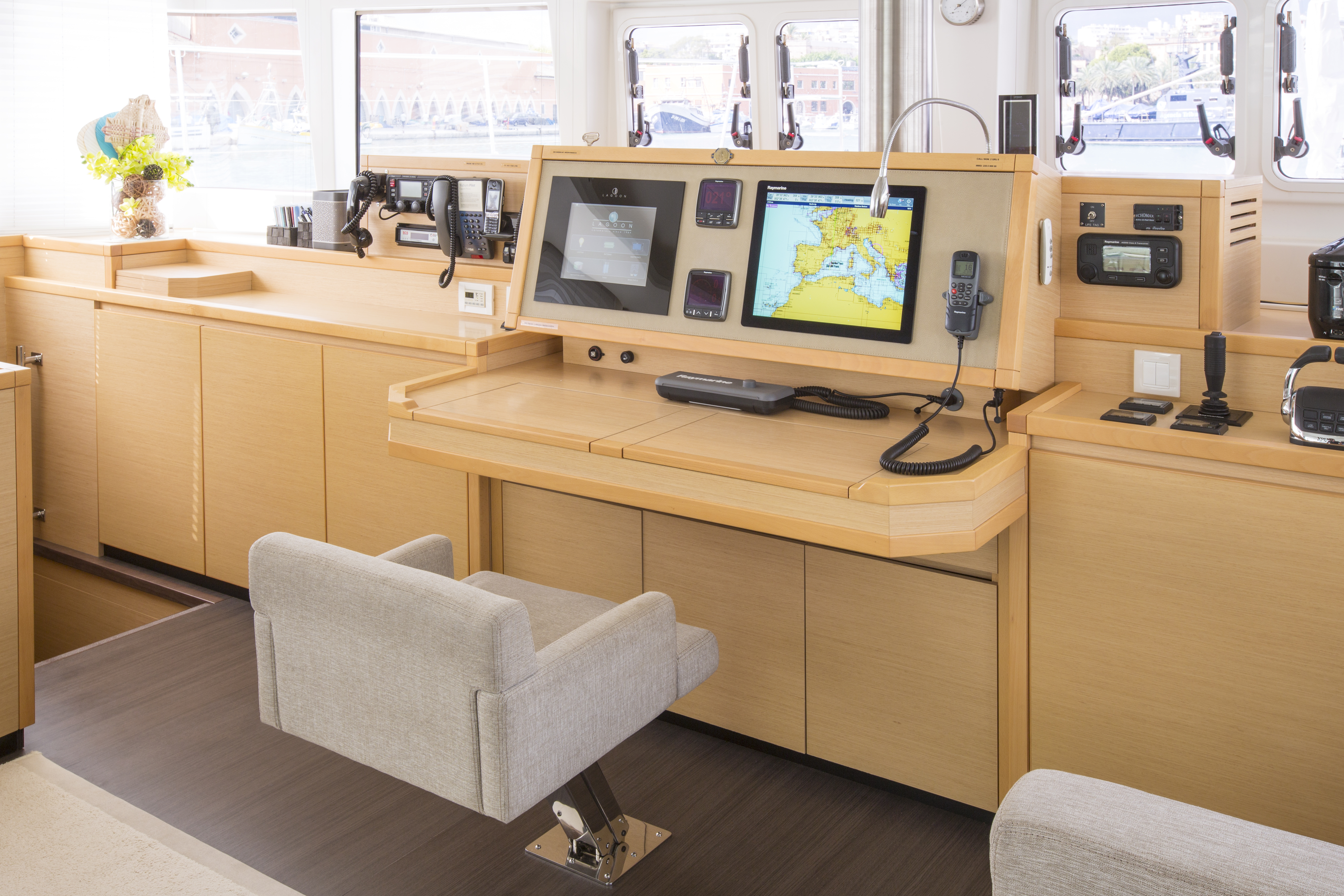

Chart table
• Storage locker under chart table
• 1 seat at chart table
• Instrument console with panel for electronic equipment (recessed installation)
• Panel with gauges and navigation lights
• Main electric panel behind a sliding door on starboard side of the chart table
• 1 X 220 V outlet
• 1 X 12 V outlet

To port
• Couch for 3 with lounge chair
• Footrest (upholstery to be selected by client)
• Cabinet forward of the settee including:
- Storage at the front
- Bottle storage space
• 1 X 220 V outlet

To starboard
• Couch for 5 people
• 2 coffee tables convertible into one large dining table (telescopic legs)
• 1 X 220 V outlet

Port Hull

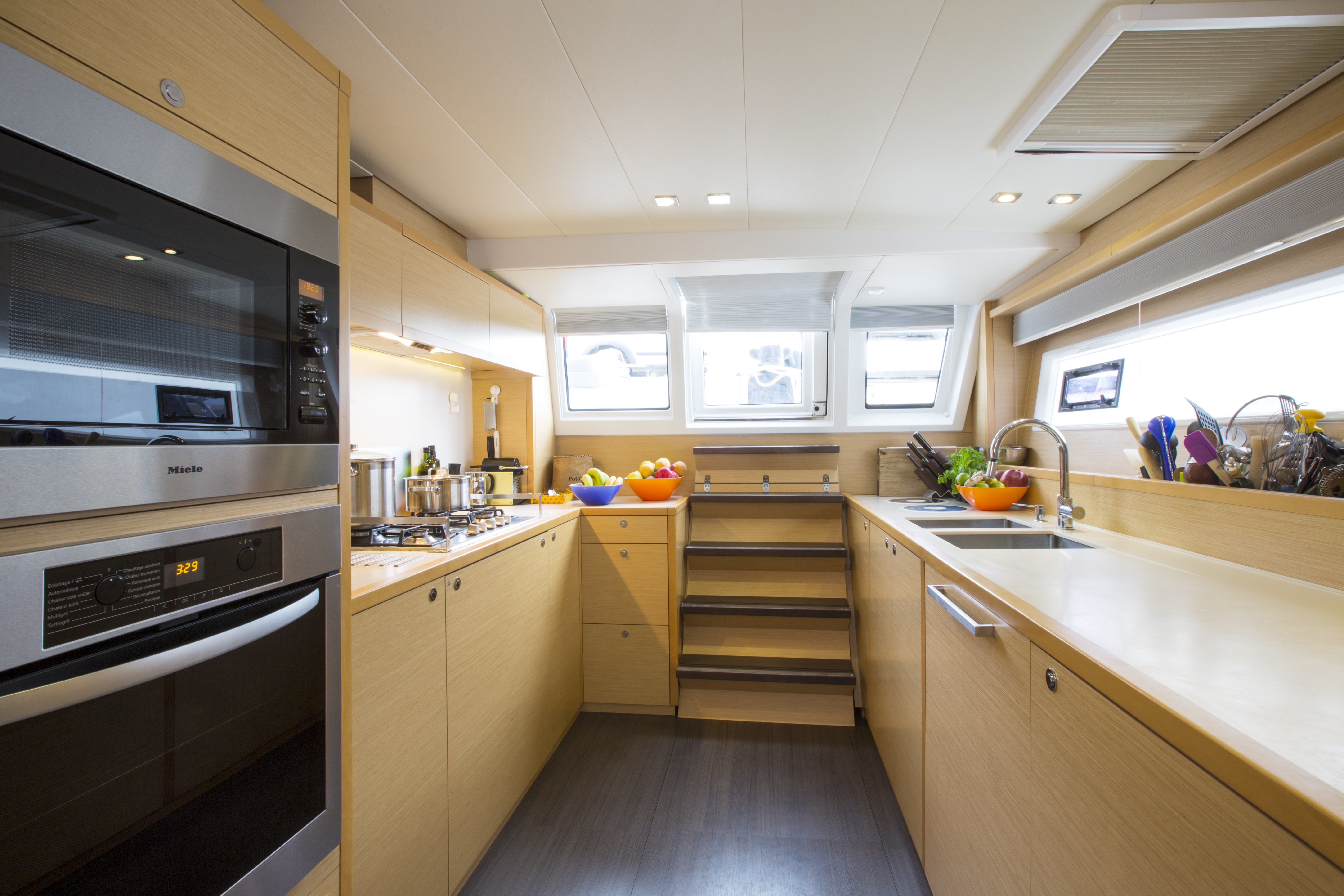

Galley
• Access from cockpit through sliding glass door and steps
• Access from the salon through gangway steps
• 2 opening deck hatches
• Spotlights at ceiling and indirect lighting from inside the plating

Outboard side
• White solid material countertop (White Ice Corian®)
• 2 waste bins under countertop for selective refuse
• 1 double-door side by side fridge/freezer 220V 500l (132 US Gal) with ice maker and dedicated 24/220V inverter
• 3 X 220 V outlets
• Lower storage with shelves
• Opening porthole
• 1 large one way fixed hull window
• 1 double stainless steel sink with cold/hot water mixer tap
• Bottles and knives storage
• Liquid soap dispenser

Inboard side
• White solid resin countertop (Ice White Corian®)
• Built in stainless steel dish rest
• 5 burner butane stove
• Butane oven
• Upper storage cupboards
• Lower storage cupboards with drawers and shelves
• Indirect lighting from upper storage cabinets
• 2 X 220 V outlets

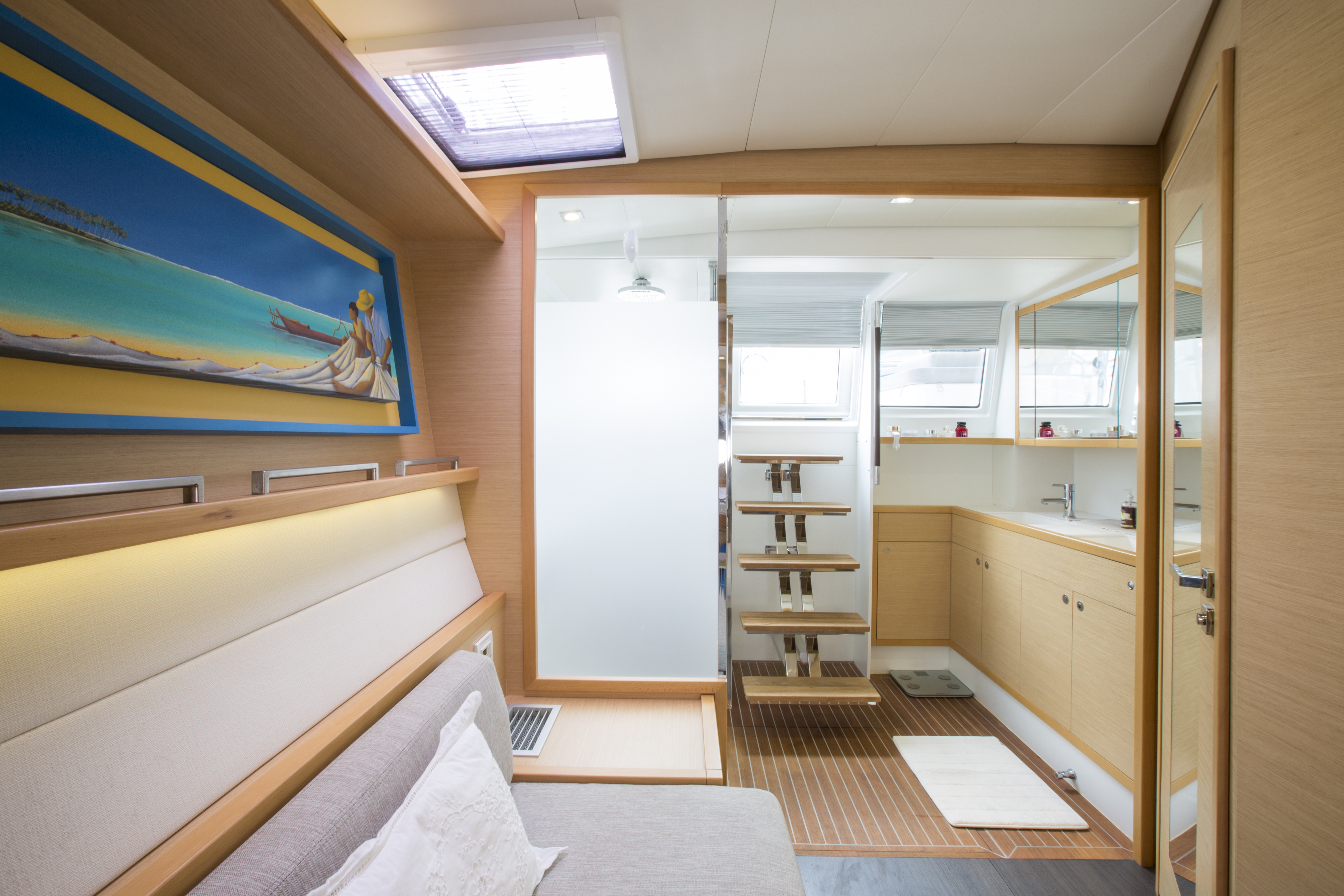

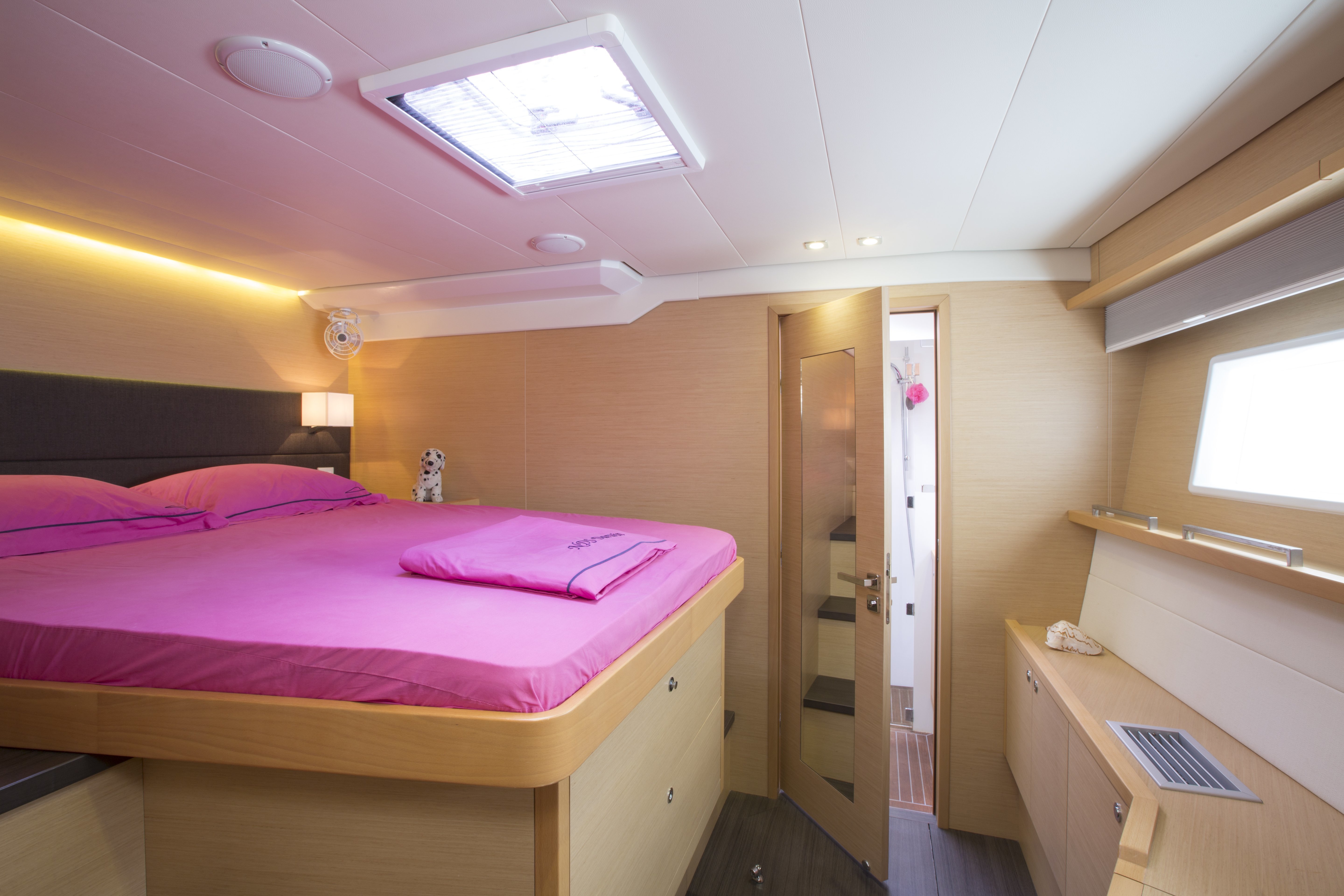

Port amidships cabin
• Access from the forward port gangway
• Queen size bed (2.05 m/6’9” X 1.60 m/5’3”) with side access and wood slats under mattress
• Upholstered bed head board
• Bedside storage
• Under bed storage
• Hanging locker with light and shelves
• 1 opening port hole
• Large one way fixed hull window
• Opaque window curtains
• Opening deck hatch with mosquito screen and blind
• Direct access to the bathroom from the cabin through shower. Full size mirror behind door
• Minimum headroom 2.05m (6’9”)
• 2 x 220V outlets
• Upholstered ceiling panels
• General cabin lighting with switches at the entrance and by bed sides + reading lights
• Indirect lighting from exterior side shelves

Bathroom for port amidships cabin:
• Access to this bathroom from gangway for day head use (via shower compartment).
• Solid resin countertop (”Ice white” colour) with built in washbasin
• Separate shower stall with plexiglass door.
• Teak floor in bathroom and shower stall.
• Vanity cabinet and mirror.
• Electrical Tecma fresh water toilet
• Toilet paper holder.
• Large leather storage pouch
• Headroom 2.05m (6’9”)
• Opening deck hatch with mosquito screen and blind.
• 3 spotlights

Port midships gangway
• Storage at bottom of steps
• 2 ceiling spotlights
• Indirect lighting from the steps

Port forward cabin
• Access from the forward companionway via wooden door
• Queen size bed (2.05 m/6’9” X 1.60 m/5’3”) with side access and wood slats under mattress
• 2 large storage drawers under bed
• Bedside storage
• Hanging locker with light and shelves
• Storage locker on outboard side
• Shelves on hull side
• Leather storage pouch
• 1 opening port hole
• Large one way fixed hull window
• Opaque window curtains
• Opening deck hatch with mosquito screen and blind
• Direct access to the bathroom (full size mirror behind door)
• Minimum headroom 2.05m (6’9”)
• 2 x 220V outlets
• Cabin door with lock
• Upholstered ceiling panels
• General cabin lighting with switches at the entrance and by bed sides + reading lights.
• Indirect lighting from hull side shelves

Forward port cabin bathroom
• Access from the cabin
• Solid resin countertop (”Ice white” colour) with built in washbasin
• Separate shower stall with plexiglass door
• Teak floors in bathroom and shower stall
• Vanity cabinet and mirror
• Electrical Tecma fresh water toilet
• Toilet paper holder
• Leather storage pouch
• Headroom 2.05m (6’9”)
• Opening deck hatch with mosquito screen and blind
• 3 spotlights

Starboard Hull

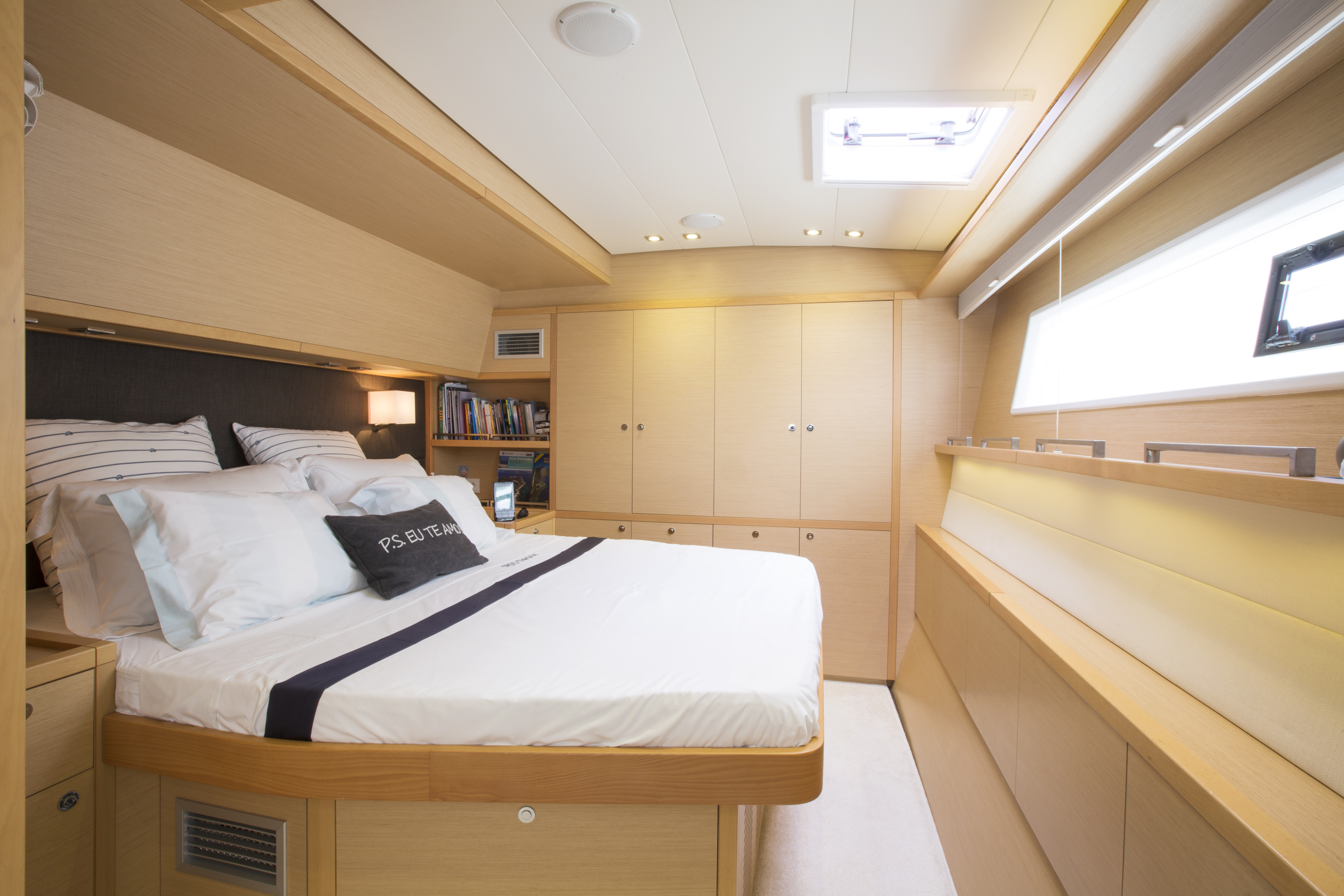

Aft starboard owner’s cabin
• Access from the salon via gangway and wooden door
• Queen size bed (2.05 m/6’9” X 1.60 m/5’3”) with side access and wood slats under mattress
• 2 large storage drawers under bed
• Bedside storage
• Large dressing cabinet with 2 lit wardrobes, 4 closets with shelves and 6 drawers
• Bookshelf and storage area next to dressing cabinet
• Shelves on hull side
• Vanity / desk with storage and shelves on hull side
• Wooden stool with cushion
• 2 seat sofa against hull side with side shelf and lower storage area
• 1 opening porthole
• Large one way fixed hull window
• Opaque window curtains
• 3 opening deck hatches with mosquito screens and blinds
• Large glass sliding access door for direct access to cockpit and starboard side transom
• Direct access to independent WC (full size mirror on door)
• Minimum headroom 2.05m (6’9”)
• 4 x 220V outlets
• Upholstered ceiling panels
• General cabin lighting with switches at the entrance and by bed sides + reading lights.
• Indirect lighting from hull side

Owner’s bathroom
• Solid resin countertop (”Ice white” colour) with built in washbasin
• Separate shower stall with plexiglass door
• Teak floors in bathroom and shower stall
• Storage and mirror
• Minimum headroom 2.05m (6’9”)
• Leather storage pouch
• Opening porthole
• 3 spotlights and indirect lighting from under interior side furniture

Owner’s cabin private WC
• Fully independent WC compartment
• Fresh water Tecma electric WC
• Mechanical ventilation
• Toilet paper holder
• Large leather storage pouch
• 2.05m (6’9”) headroom

VIP starboard forward cabin
• Access from salon via private gangway wooden door
• Queen size bed with side access and wood slats under mattress
• 2 large drawers under bed
• Bedside storage
• Double hanging locker with light, lower storage and drawers on hull side
• Bookshelf on hull side
• Storage on hull side
• Desk with storage and shelf on hull side
• Wooden stool with cushion
• Leather storage pouch
• Opening porthole
• Large one way fixed hull window
• Opaque window curtains
• Opening deck hatch with mosquito screen and blind
• Direct access to the bathroom (full size mirror on door)
• Minimum headroom 2.05m (6’9”)
• 2 x 220V outlets
• Upholstered ceiling panels
• General cabin lighting with switches at the entrance and by bed sides + reading lights.
• Indirect lighting from hull side shelves

Forward starboard cabin bathroom
• Direct access from cabin
• Solid resin countertop with built in washbasin (”Ice white” colour)
• Separate shower stall with plexiglass door
• Teak floors in bathroom and shower stall
• Vanity cabinet and mirror
• Electrical Tecma fresh water toilet
• Toilet paper holder
• Large leather storage pouch
• Headroom 2.05m (6’9”)
• Opening deck hatch with mosquito screen and blind
• 3 spotlights

Deck
Transoms
• Teak on steps
• 2 handrails + 1 transom shower on starboard transom
• 1 foldable and removable swim ladder on starboard transom

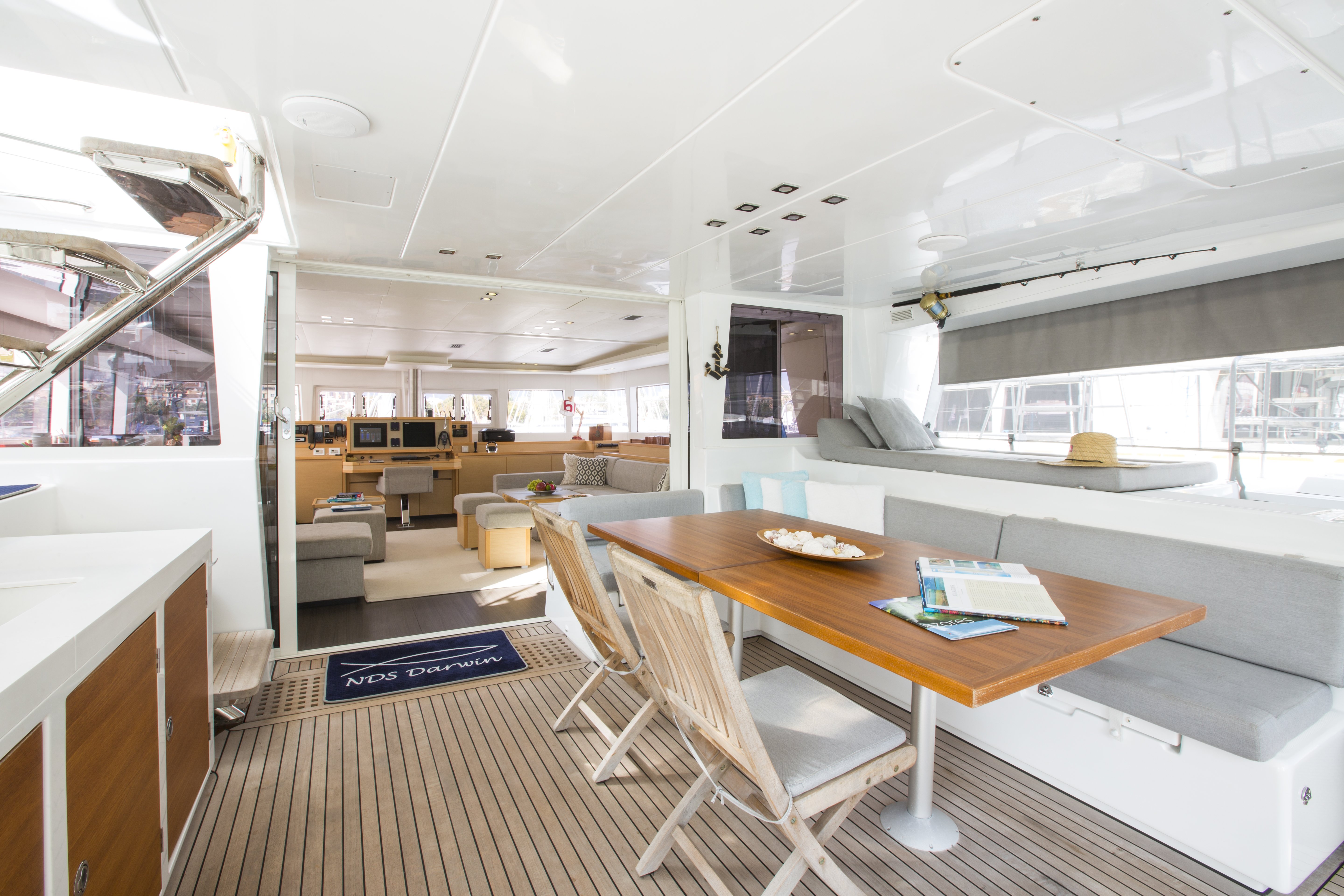

Cockpit
• Cockpit and salon on one level (no steps)
• Teak cockpit floor
• L-shaped settee
• Storage under settee
• Large teak cockpit table made of 2 separate tops
• 3 teak door cockpit locker with sink and resin countertop (colour: Ice white)
• Cockpit fridge 80 L (21 US Gal)
• 8 spotlights recessed in hard top ceiling with dimmer switch
• Storage in cockpit ceiling
• Aft crossbeam with 4 storage lockers, sun lounging area, dedicated space for 2 X 10 person life raft, stainless steel railing
• 4 teak folding chairs

Flybridge
• Access from cockpit via stairway with teak steps on stainless steel frame
• Flybridge access closing system
• 2 helm stations including :
- 1100 mm (3’7”) diameter wheels
- Navigation instruments pods
- Engine throttles and control panels on port steering station
- Cushions for settees + backrest
- 1 steering compass each
- Windlass control on port steering station
• Large settee across entire width of flybridge
• L-shaped settee
• All lines led to forward part of the flybridge cockpit around 4 winches
• 4 lines storage boxes
• Recessed sun lounging area aft of mast base

Foredeck
• 1 deck hatch for technical compartment access
- house battery bank
• 2000W 24V electric windlass on deck with horizontal gipsy (14mm chain) and remote control
• Chain locker to starboard of the windlass
• 3 deck lockers 2 to port and 1 to starboard
• Composite longitudinal compression beam including anchor chain run, forestay chain plate

Bow lockers
• Access through a deck hatch
SPECIFICATIONS
Type
Sailing
Build
Guests
8(Sleeping)
Year
2013
Cabins
4
Length
18.9m (62ft)
Crew
2
Beam
10m (33ft)
Speed
8(Cruising)
Draft
1.55m (5ft)
ASKING PRICE
Price on Application
Contact A Yacht broker
Image Gallery
Related News
NDS DARWIN - Lagoon 620 - SOLD
13 April 2017
Catamaran NDS DARWIN Back on the Market
27 September 2016
New Central Agent - Catamaran NDS DARWIN
15 September 2015
