Tenders:
Custom Southern Pacific 4.7m with Yamaha 70 hp 4-stroke outboard, Garmin GPS/Sounder/Plotter and a Standard Horizon VHF

Watersports:
Wakeboard, Water Skis, 2x Paddleboards

Machinery:

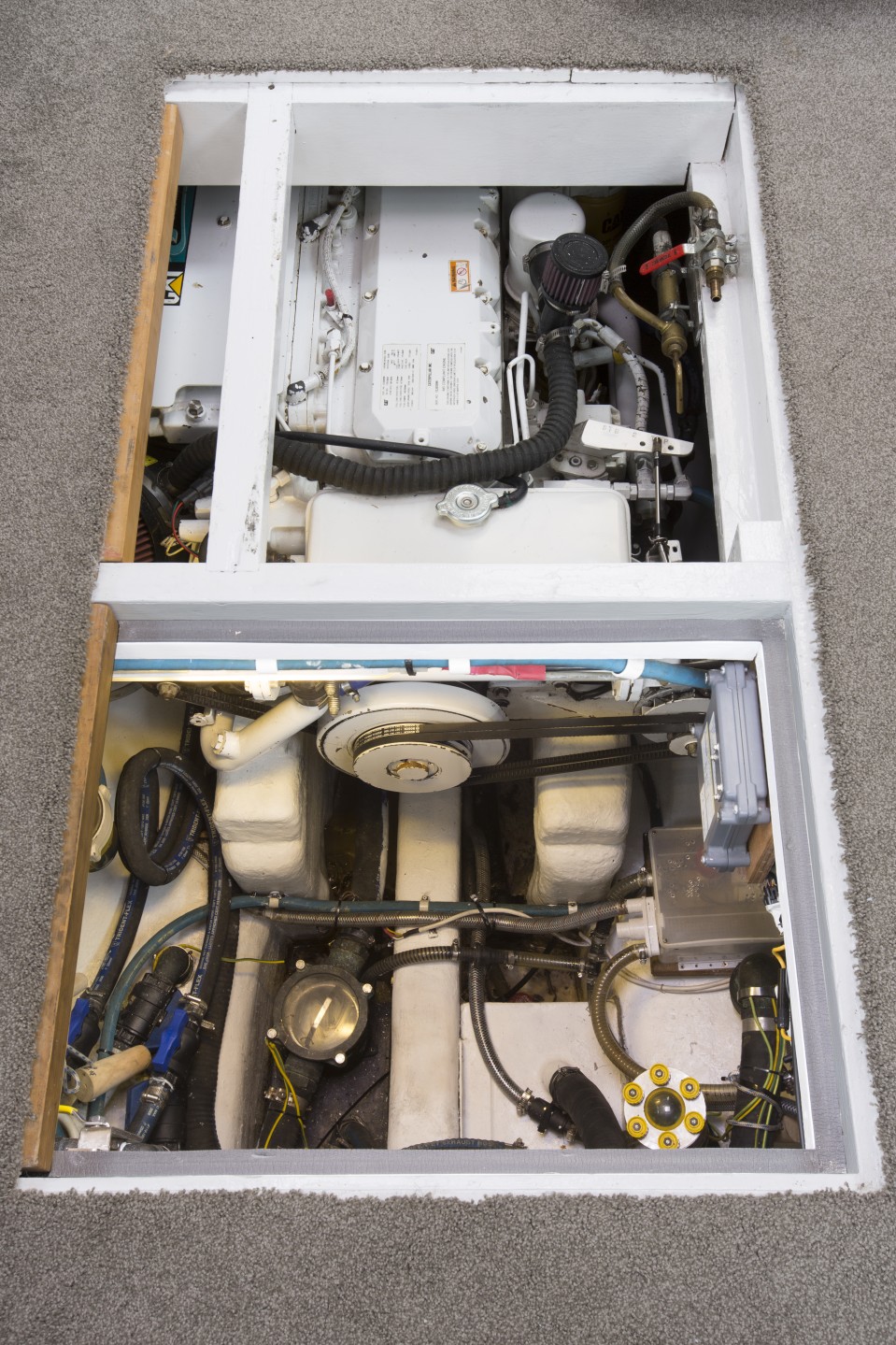

Main Engine 1 x 224Kw, Caterpillar 3126 - 2800 RPM, 6cyl, diesel

Gear Box Twin Disc MG5061A

Shafts & Propeller
1 x BRI –SKI 27x17RH propeller & stainless steel shaft

Speeds & Fuel Consumptions:
Cruising speed 10 knots
Range 935 nm @ 8kn


Auxiliary Machinery & Electrical System:
Generator 1 x Onan 17.5kW 230VAC.
Electricity AC 240 v, Amp 72, Hz 50.

Batteries:
24V house batteries 6OPzV520 Hoppecke 24v replaced February 2015

Service batteries 50A IDC31DT 24v replaced May 2014

Main Engine start battery 12v 2 x ZGL120085 replaced May 2014

Nav battery 12v IDC31DT

Generator battery 12v CM31/925.

Sails & Rigging:
Rig Measurements: P (Gooseneck to mast top) 23.1m
E (Boom length) 8.9m
I (Deck to forestay top) 24.8m
J (Forestay to mast horizontal) 11.05m
Air draft 25m

Sail Areas The Mainsail area is approx 124 sq m
The Genoa area is approx 109sq m
The Staysail is approx 55 sq m

Winches Electric winches - Lewmar 2 x 68, 2 x 48, 1 x 54.
1 x manual Lewmar 54 winch.

Tanks & Capacities (Approximate):
Fuel 2400 Litres (634 US Gallons)
Watermakers 1 x Open Ocean 250 litres per hour
Water 2400 Litres (634 US Gallons)


Ancillary Equipment:
Steering System Custom Manual & Hydraulic ACCU-Steer
Bow Thruster Side-Power, 24V, Output 11.2kW
Bilge Pumps 24VAC rule 3700s
WC’s 4 x Domestic Fresh/Sea Water Flush

Airconditioning Aqua Air, 4 Air Handlers throughout

Compressor Lazarette mounted electric dive compressor


Safety & Security Equipment:
Safety 1 x 8 Person Zodiac ISO Life Raft

Fire Fighting FM200 fixed fire fighting system in engine room
8 ABE Powder spread in the boat.

Ships Monitoring
System: Alarm unit AL 8-2 Panel, Matrix Fuel tank monitor and Tank Watch monitor.

Security EPIRB- Salcom MRB406
SART- McMurdo S4 Rescue SART

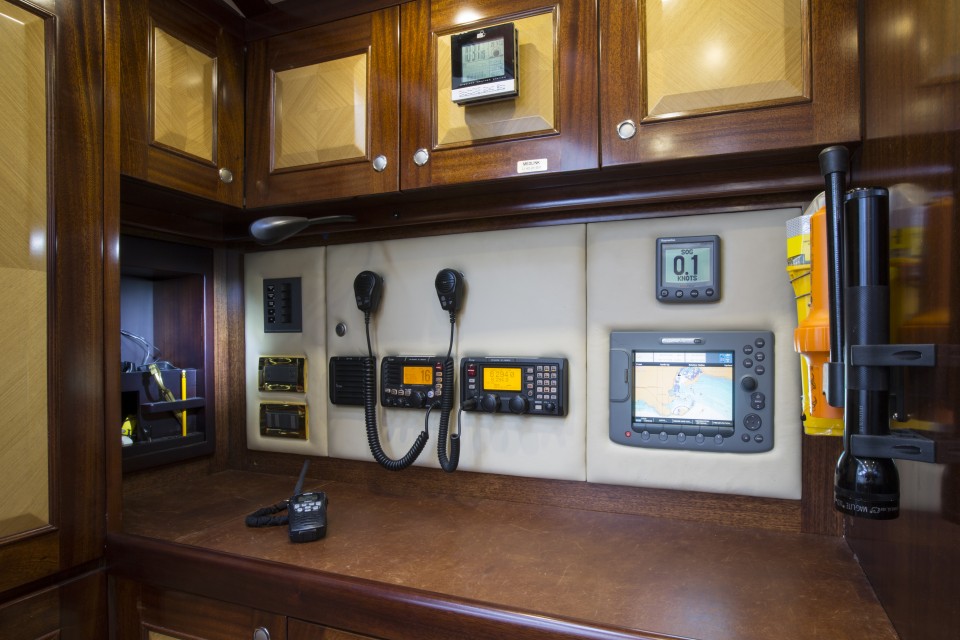

Communication Equipment
MF/HF iCom IC- 802
VHF iCom IC-M504


Navigation Equipment
Magnetic Compass Ritche - Powerdamp

Automatic Pilot Raymarine Evolution EV-1 with a Pilot Controllers P70r at helm

Radar Raymarine 2Kw

Plotter & GPS Full networked Raymarine package including:
2 x E80 screens
4 x ST60Graphic Displays

Chart Software E80 Chart Plotter Raymarine system

Sailing Instruments Comprehensive Raymarine ST60 package


Deck Equipment
Anchor Windlass James Nilsson V4000 series Stainless Steel

Anchor 125 lb Monson anchor
100m 13mm Steel Chain

Dive Compressor Airtec Dive Compressor

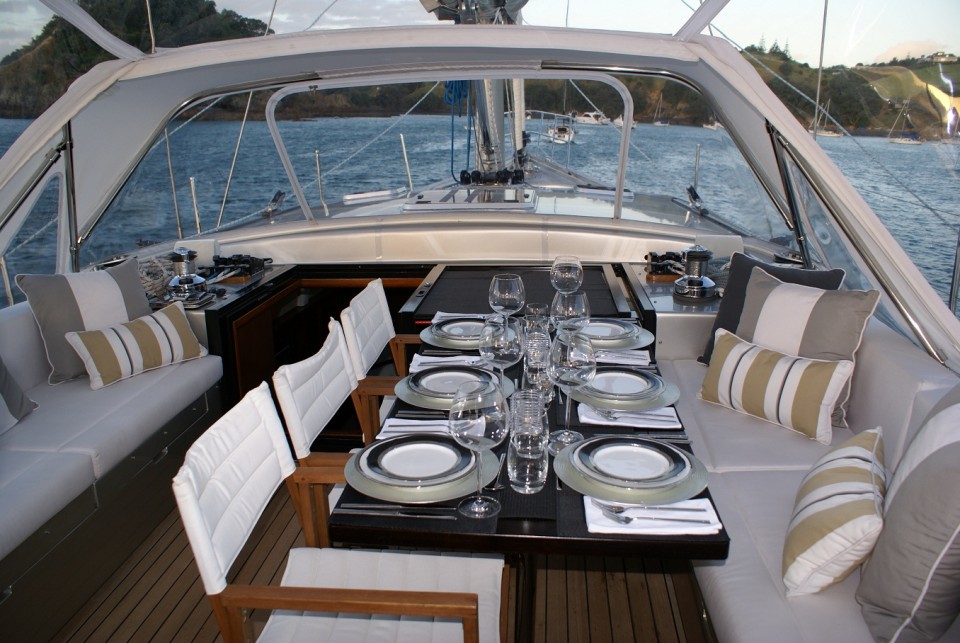

Awning Semi-permanent bimini with fully enclosed high visibility clear with fully enclosed insect proof screen.

Owner

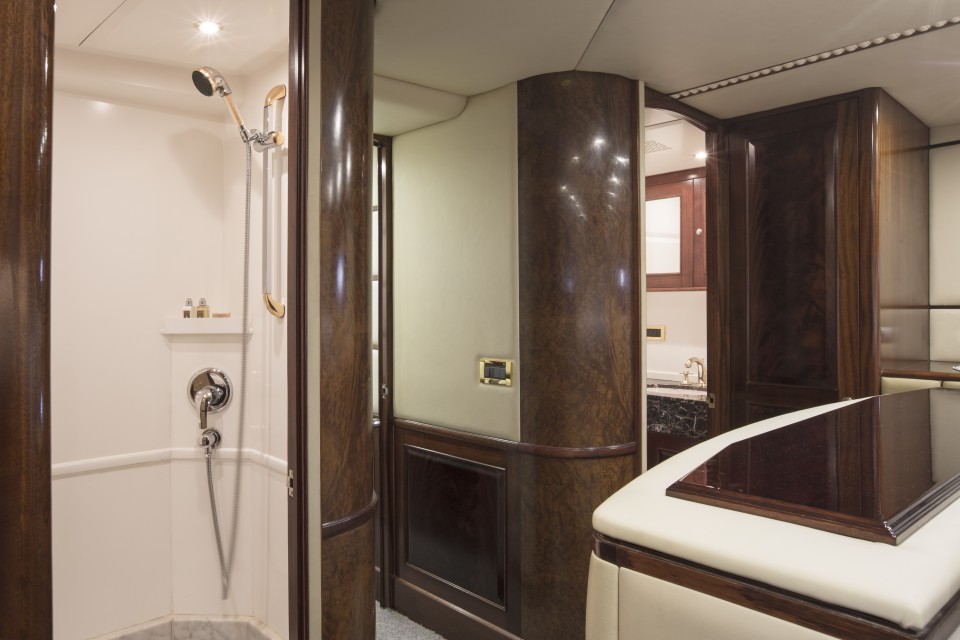

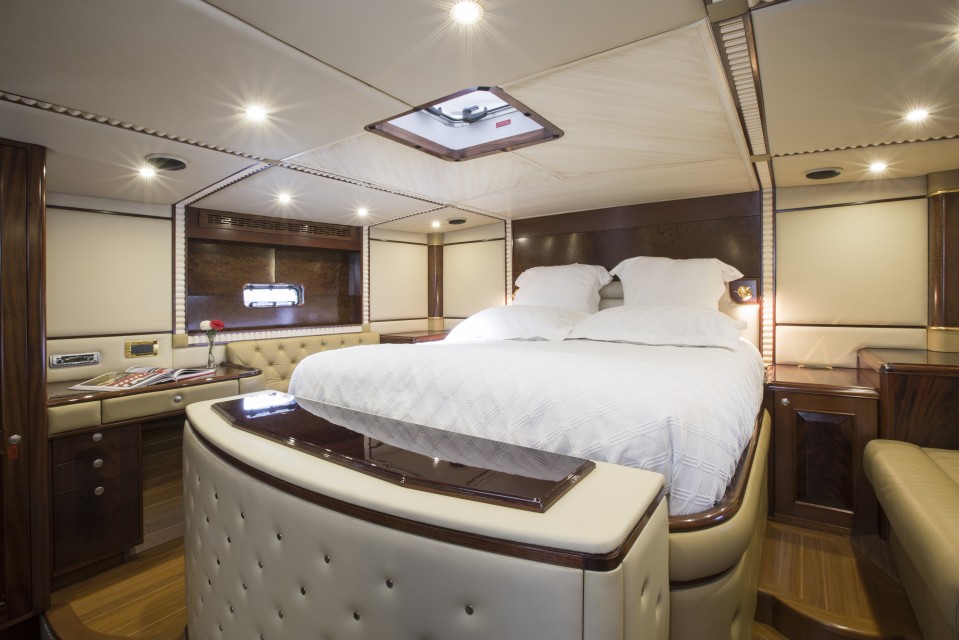

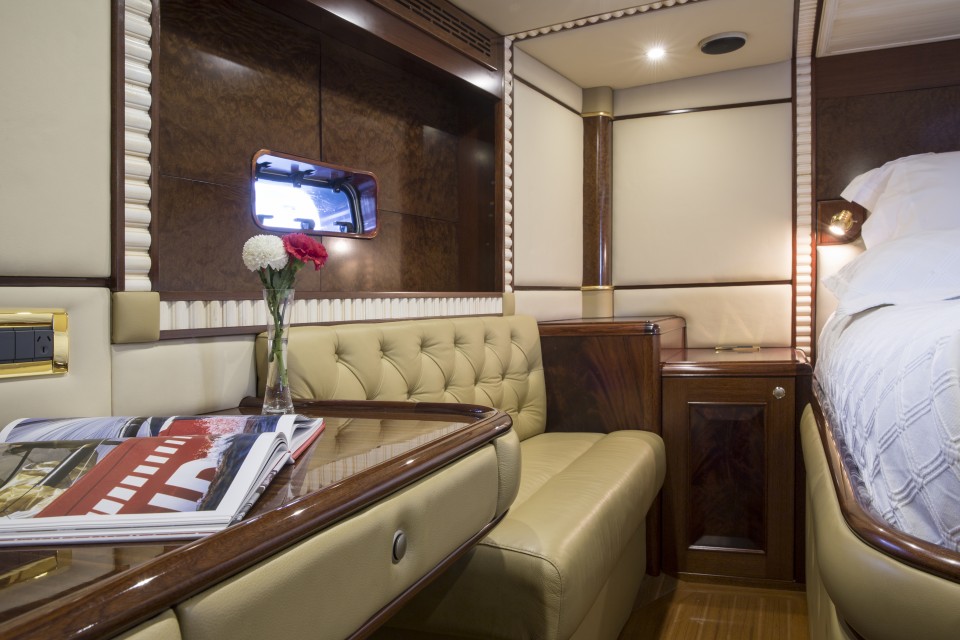

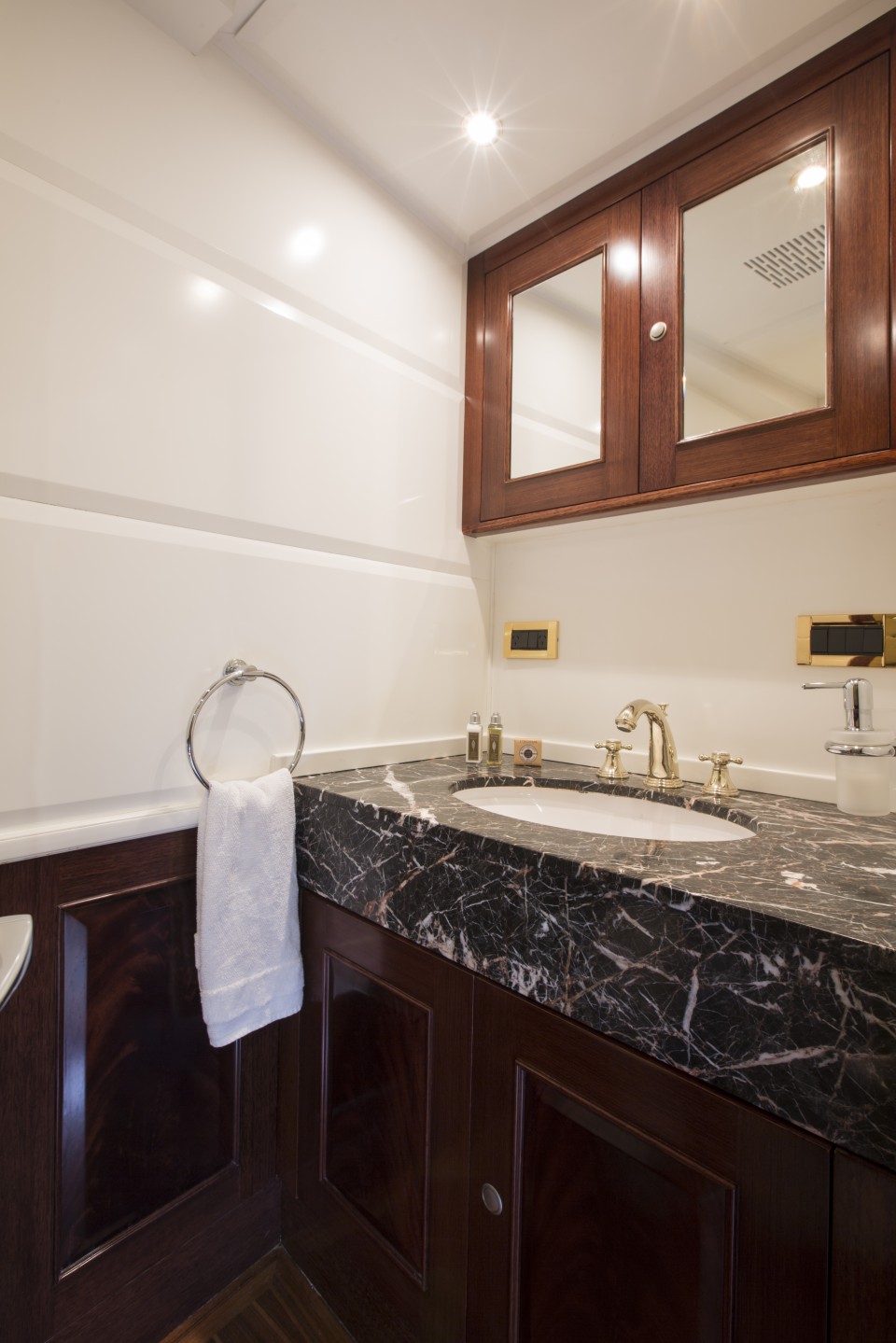

Full width cabin with large double bed, separate shower room with Carrara marble, separate bathroom & toilet with teak and holly floor and marble vanity top

Guests

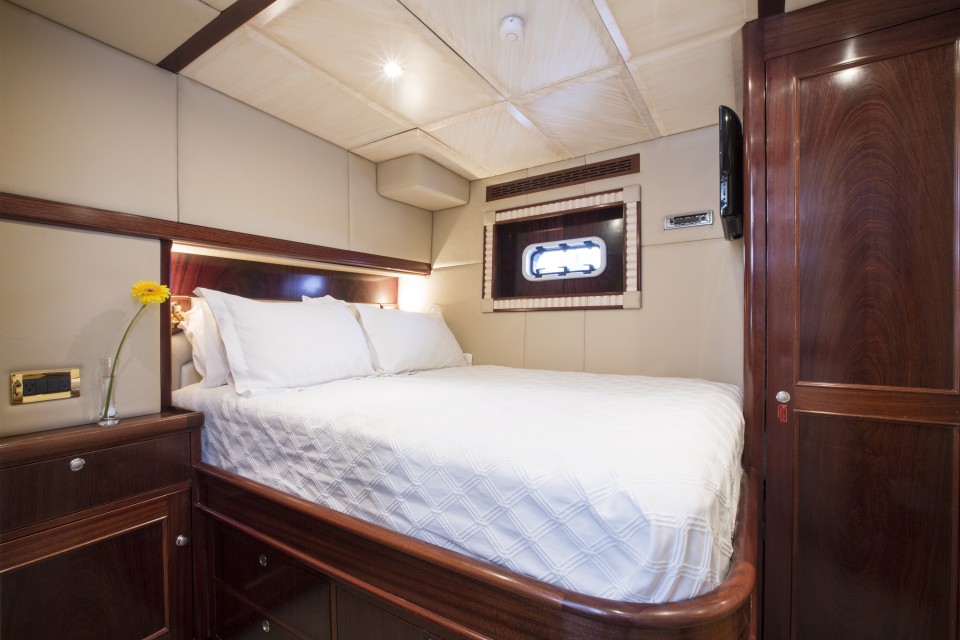

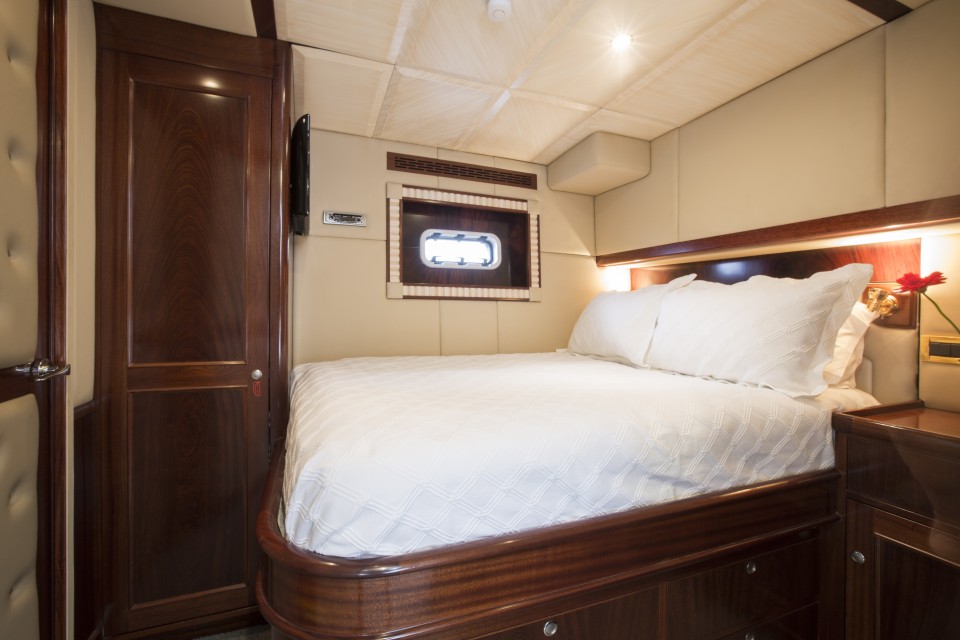

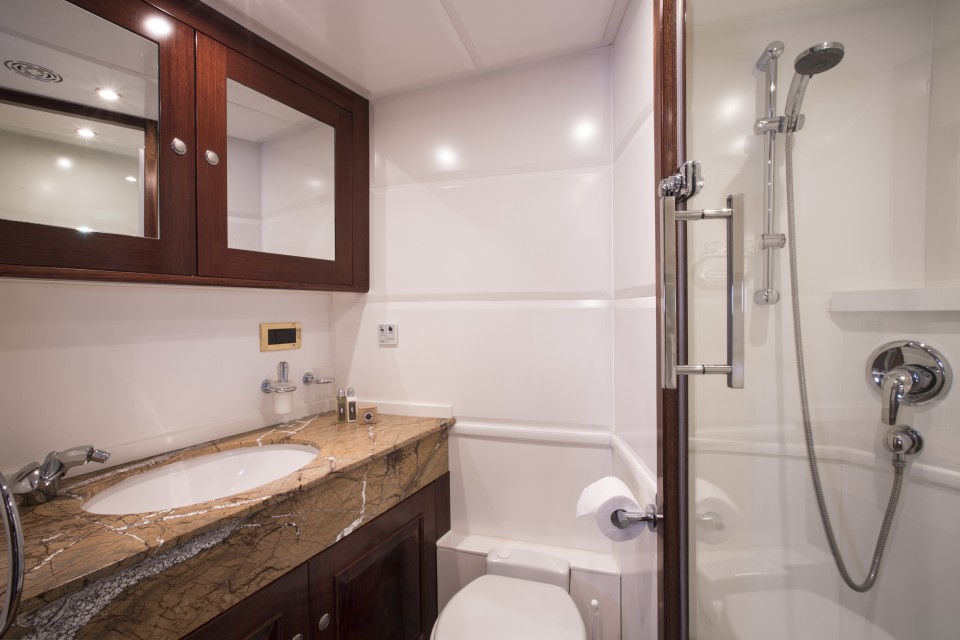

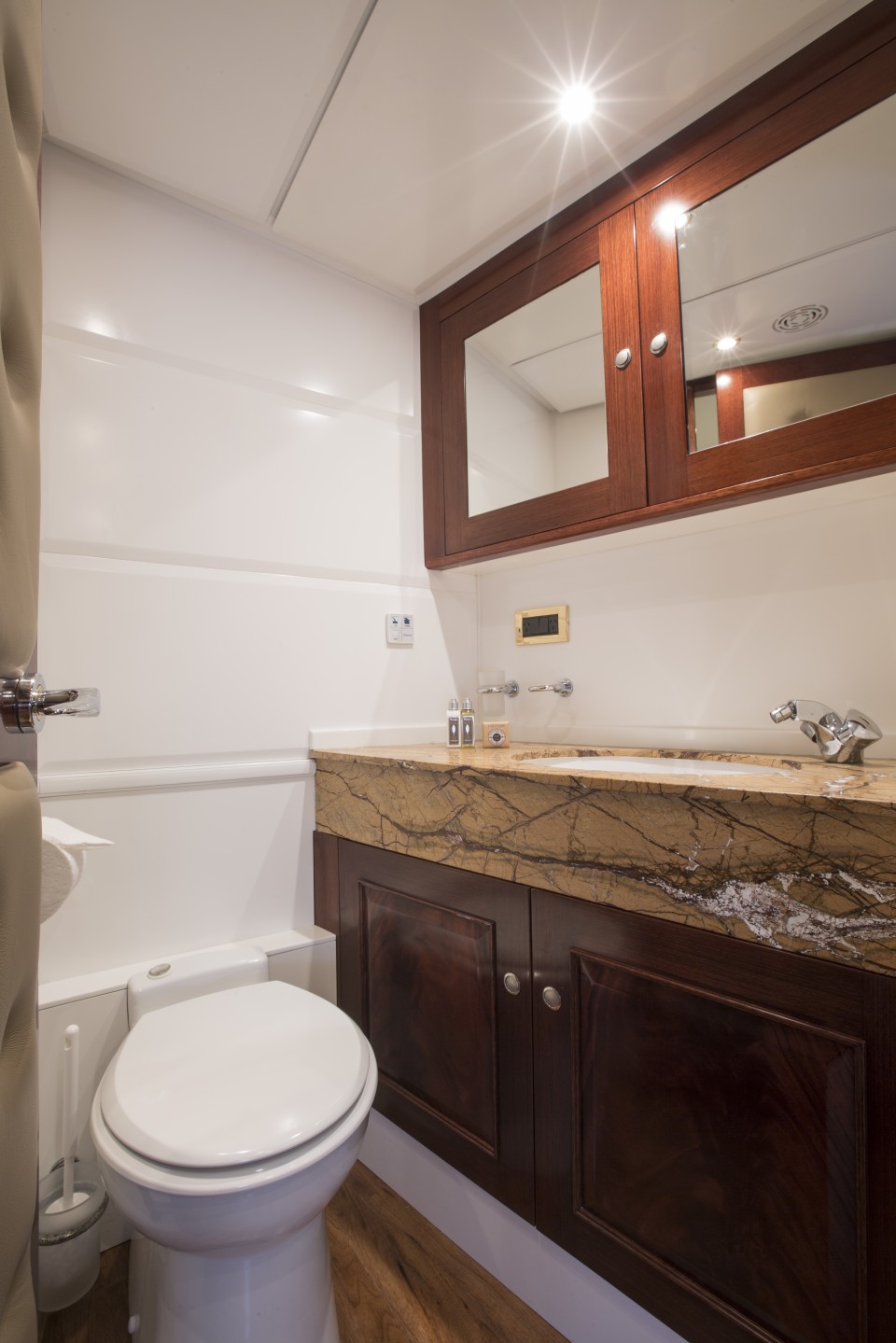

2 x guest cabins with double bed, ensuite bathroom, with separate stall shower and toilet.

Crew

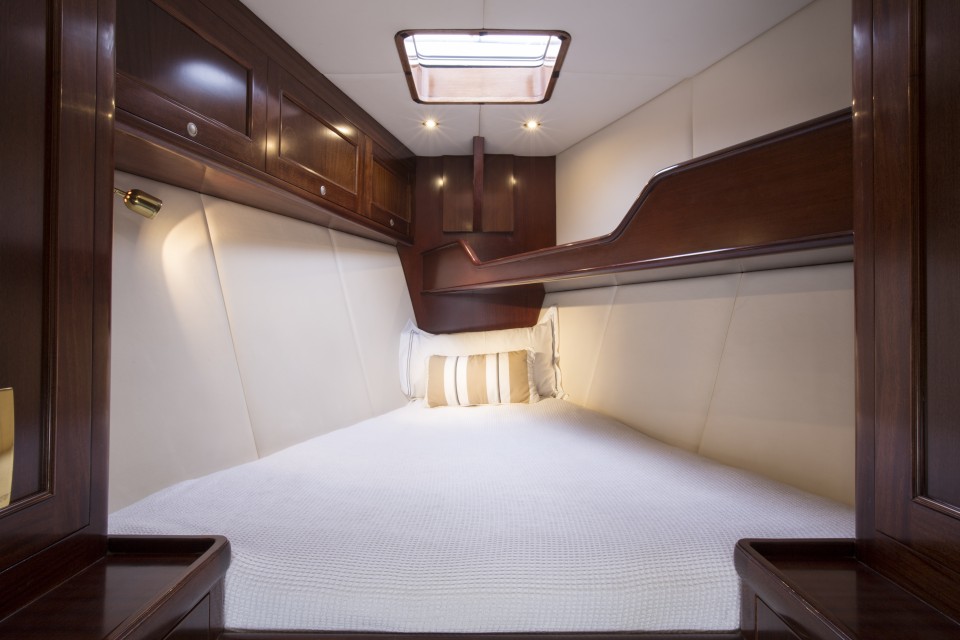

Double bed crew cabins, with separate shower and bathroom with toilet.
