Custom Line Navetta 33 sold

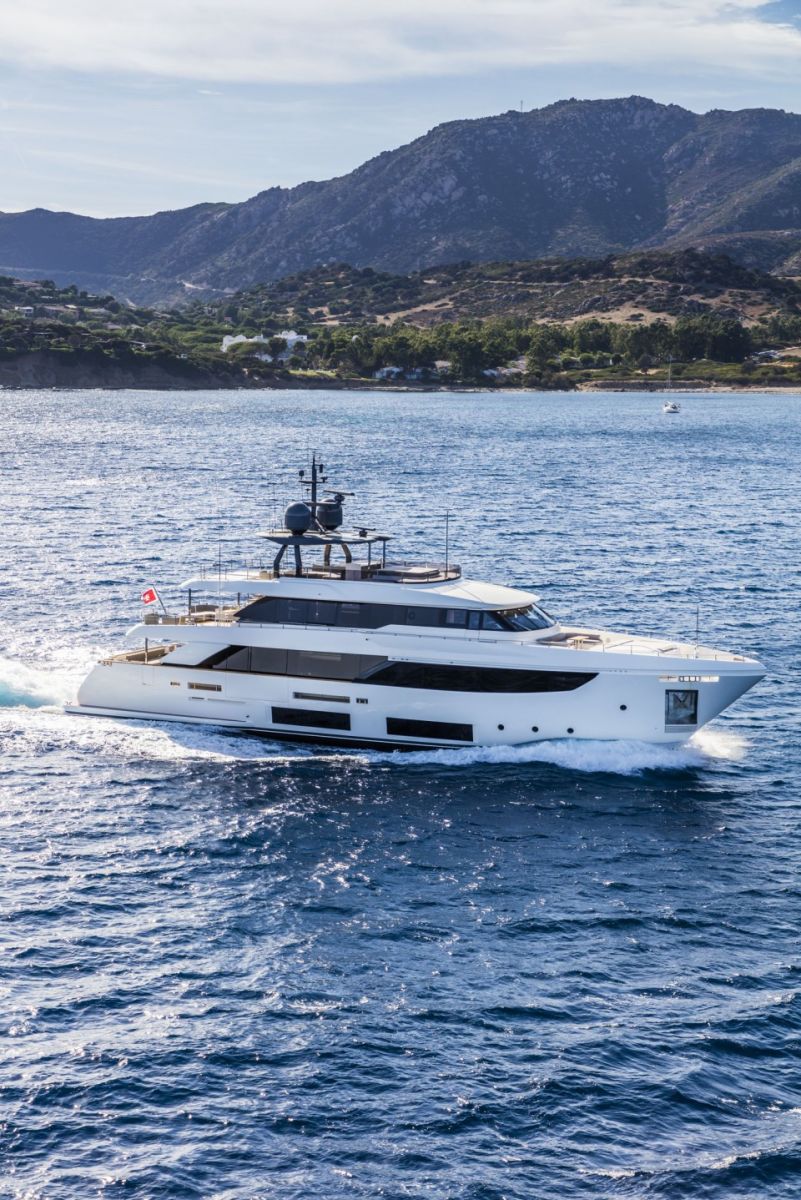

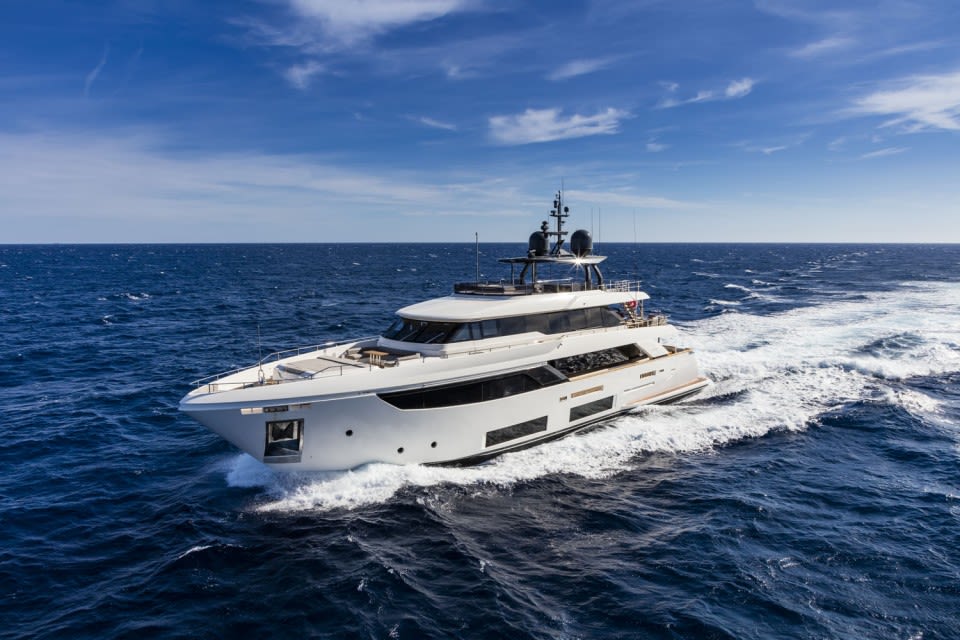

Custom Line Navetta 33
The Navetta 33 exudes the subtle charm of an alluring and sophisticated diva of the waves, enticing with its beguiling blend of styles, forms and inspirations. Nothing is quite as chic as the new Custom Line semi-displacement yacht, which caters to the desires of every owner who wishes to savour the joys of sailing by making the step up from simple luxury to genuine refinement.

The Navetta 33 is the product of the joint efforts of the Product Strategy Committee, headed by Piero Ferrari, along with the Group’s Engineering Department, whose architects and designers worked on the interior design, and Zuccon International Project, which was responsible for the exterior design. This yacht (108.3 ft.) introduces considerable technical advances to the line, which serve to complement the innovations that have already been admired in previous Custom Line models. For instance, the hull features a bulbous forward section and delivers performance at the top of its class in terms of seaworthiness and stability, with a range of up to 2,000 nautical miles at economical cruising speed.

In addition, yacht owners and their guests can make the most of marvellous spaces across all 4 decks: from the wide-body master suite forward on the main deck, to the 4 guest cabins on the lower deck. The Navetta 33 furthermore features all of the technical innovations presented on Custom Line’s latest models: the patented DMT system for optimum use of the stern area; VOTIS software for flexible, practical management of the entertainment systems on board; and an integrated helm station, for completely safe sailing and monitoring of the systems and equipment on board. Absolute comfort is also guaranteed in terms of stabilisation when at anchor and when mooring, thanks to electro-hydraulic stabilising fins with zero speed mode.
LOA 33 [m] - 108 ft 3 in
LH 32,93 [m] - 108 ft 0 in
LWL 28 [m] - 91 ft 10 in
Max beam 7,52 [m] - 24 ft 8 in
Draft 2,18 [m] - 7 ft 2 in
Unladen displacement 160.000 [kg] - 352,740 [lbs]
Laden displacement 182.000 [kg] - 401,241 [lbs]
Fuel 18.700 [l] - 4,940 [US gal]
ENGINES

2 x MAN V12 LE446 - 1400 CR power 1400 mhp / 1029 kW at 2300 rpm std 3000h

TECHNICAL DATA
Hull type: semi displacement hull with round chine and deep keel
H = Overall height from keel to radar arch 12,00 m. 39 ft. 4 in.
Ht = Minimum transport height from keel 9,13 m. 29 ft. 11 in.
P = swim platform 0,07 m. 0 ft. 3 in.
Fuel tank capacity 18700 lt./US gals. 4940
Water tanks capacity 3100 lt./US gals. 819
Black water tank capacity 1200 lt./US gals. 317
Grey water tank capacity 1200 lt./US gals. 317
10 guests in 5 cabins
1 x Master Suite
4 x Guest Cabins
6 x Bathrooms

4 x Crew Cabins
3 x Bathrooms in crew quarters
SPECIFICATIONS
Type
Motor
Build
Hull
GRP
Hull Type
Semi-displacement
Guests
10(Sleeping)
Year
2018
Cabins
5
Length
33m (108ft)
Crew
4
Beam
7.52m (25ft)
Speed
12 knots(Cruising)
Draft
2.18m (7ft)
