Generators & Electricity
Generators: 2 x Kohler 25 kW (Port generator replaced 2018)
Generator Hours: Starboard: 3846 hrs as of December 2022
Port: 1000 hrs as of December 2022
Electricity
Electrical system is based on three different voltages:
1.220v 50hz one-phase AC, supplied by generators or shore power, each unit feeds different uses and reversing the uses is possible in case of failure in one of them.
2. 24v DC on three different battery units:
a. 700 a/h utility board services
b. 320 a/h engine batteries
c. 150a/h radio batteries
3. 12v DC to feed stereo system and radio receivers
4. 12v DC for the generator units, by means of an independent battery.
Air Conditioning
Refrigerating engine located in engine room and ventilation units located in various rooms,
controlled by independent thermostats, supply air conditioning throughout the yacht.
Other Machinery
Bowthruster + Sternthruster: Hydraulic with joystick at wheelhouse and flybridge
Watermaker: Idromar
Galley Equipment
• Stainless steel sink
• Two Refrigerators
• Cooking hot plate with four electric plates
• Dishwasher
• Microwave/convention oven
• Extraction hood with expanding filter
• Deep freeze
• Storage cupboards/drawers
• Washing machine
• Tumble dryer
Communication, Navigation & Entertainment Equipment
Communication Equipment
• Interior PABX system
• 1 x satcom
• 5 x Siemens telephones
• 1 x VHF DSC FORUNO
• Sat TV dish
Navigation Equipment
• 1 x Furuno radar
• 1 x Navtex
• 1 x Furuno Chartplotter
• 1 x trifunction gauge
• 1 x Digital sounder Furun
• 1 x speedometer Dataline
• 1 x calculator for Dataline functions
• 1 x Simrad wind indicator
• 1 x Furuno GPS
• Bow Thruster + Stern Thruster control
• 1 x Autopilot Furuno

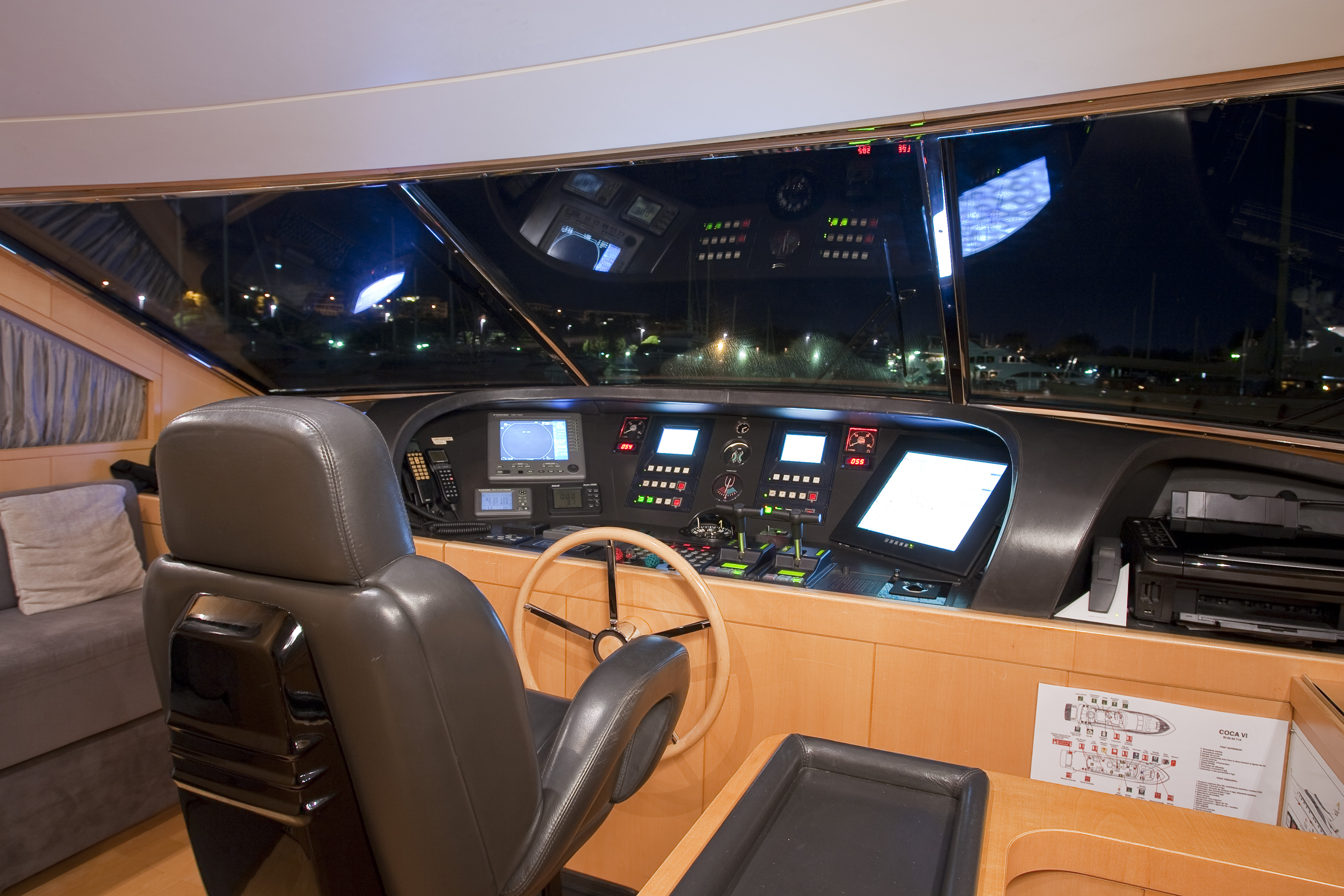

Bridge Instruments
• Control lever for acceleration and reverse
• Magnetic compass
• Full set of electric controlling instruments for engines
• Push button control for engine start/stop
• Gauges for fuel and water tanks
• Angle indicator
• Fuel transfer pump warning light
• Daily tanks low-level alarm device
• 2 x MTU control panels
• Control and warning lights for flaps, windlass, horn, side lights and various other equipment
• Electric pilot seat
Engine Room Instruments
• Reverses oil pressure gauges • Engine oil pressure gauge
• Fuel visible level devices • Engine water temperature indicators
Entertainment Equipment

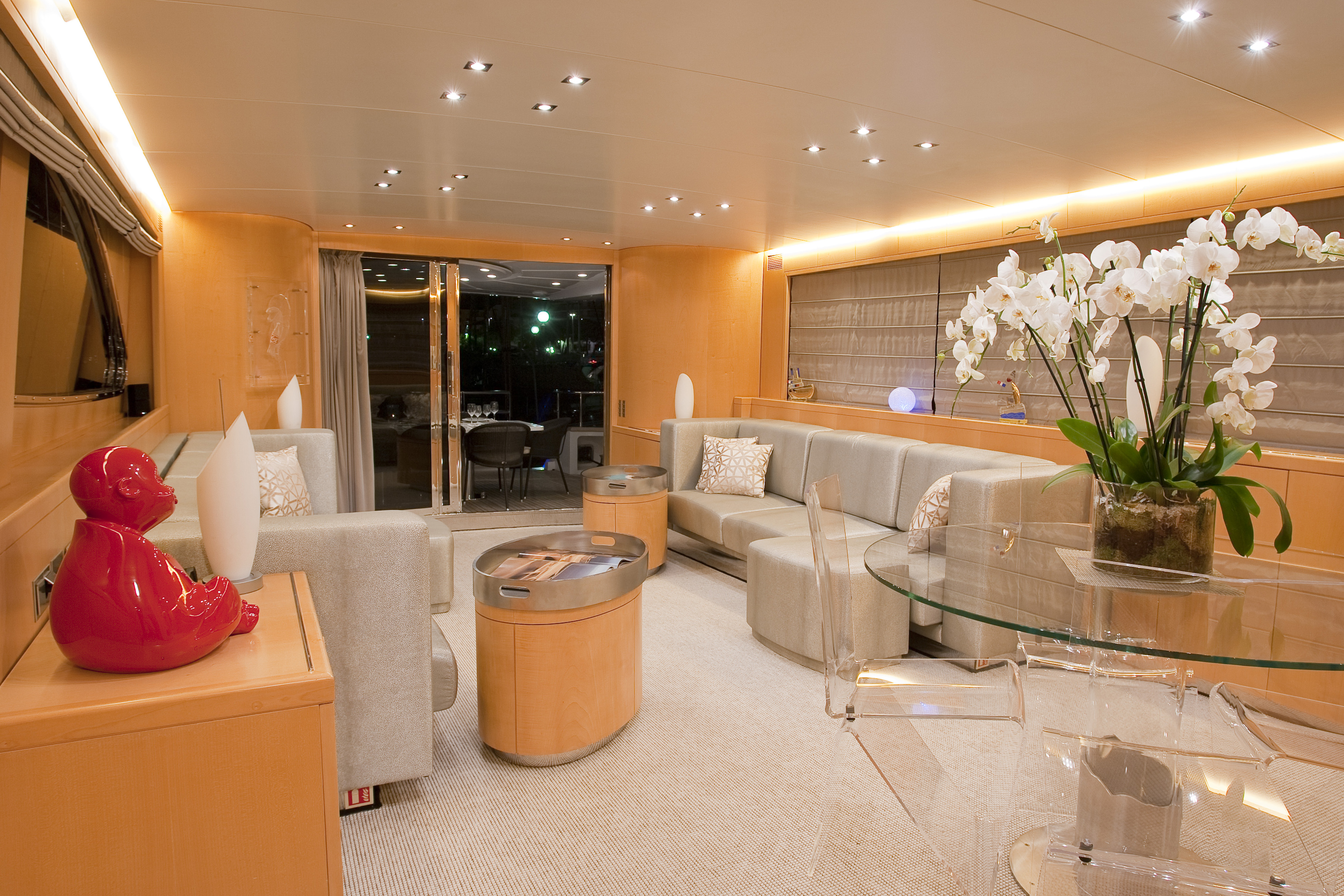

Saloon
Samsung TV
Satellite box
Sony Surround sound DVD/CD

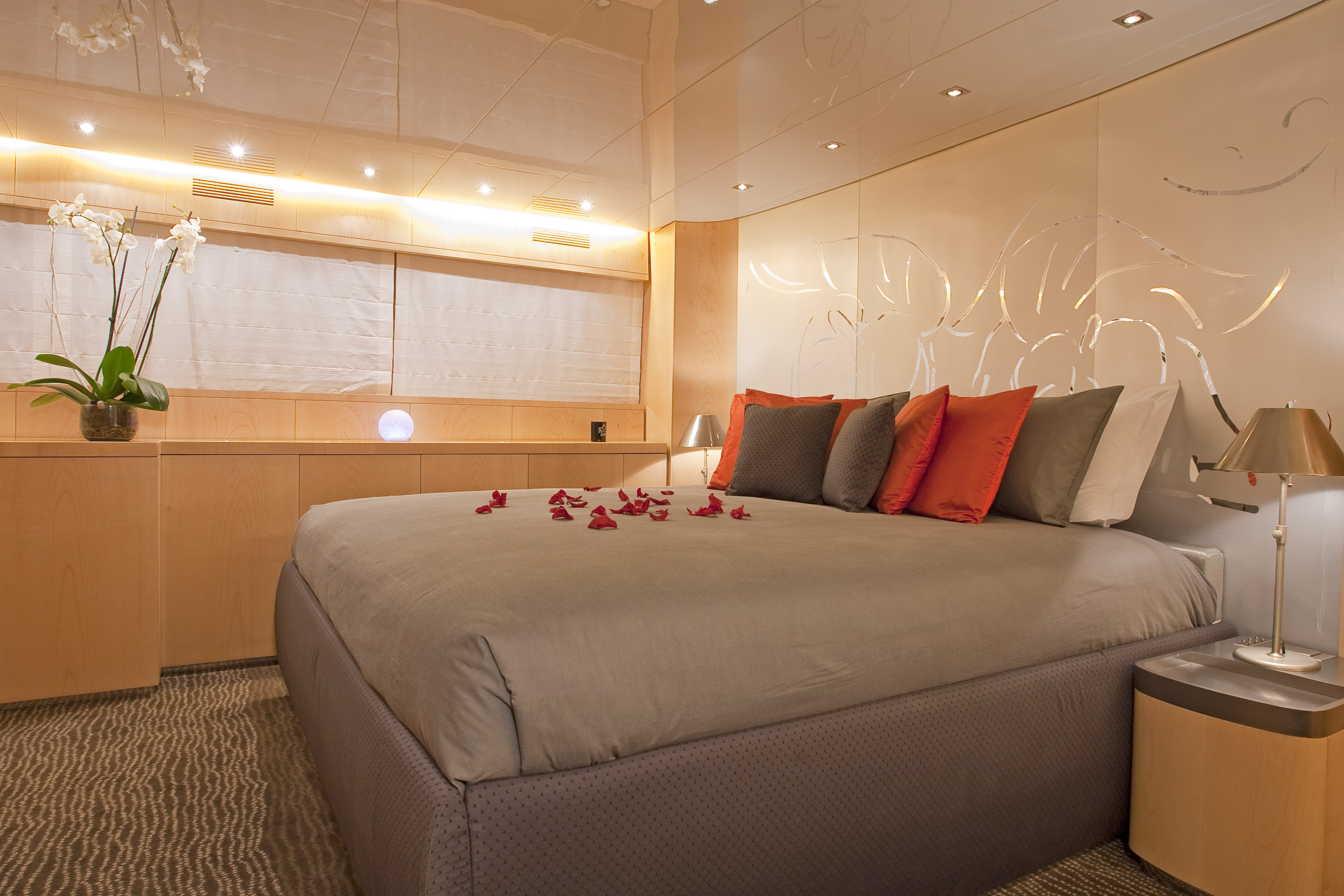

Owner’s Stateroom
LG TV
Satellite box
Sony Surround sound DVD/CD

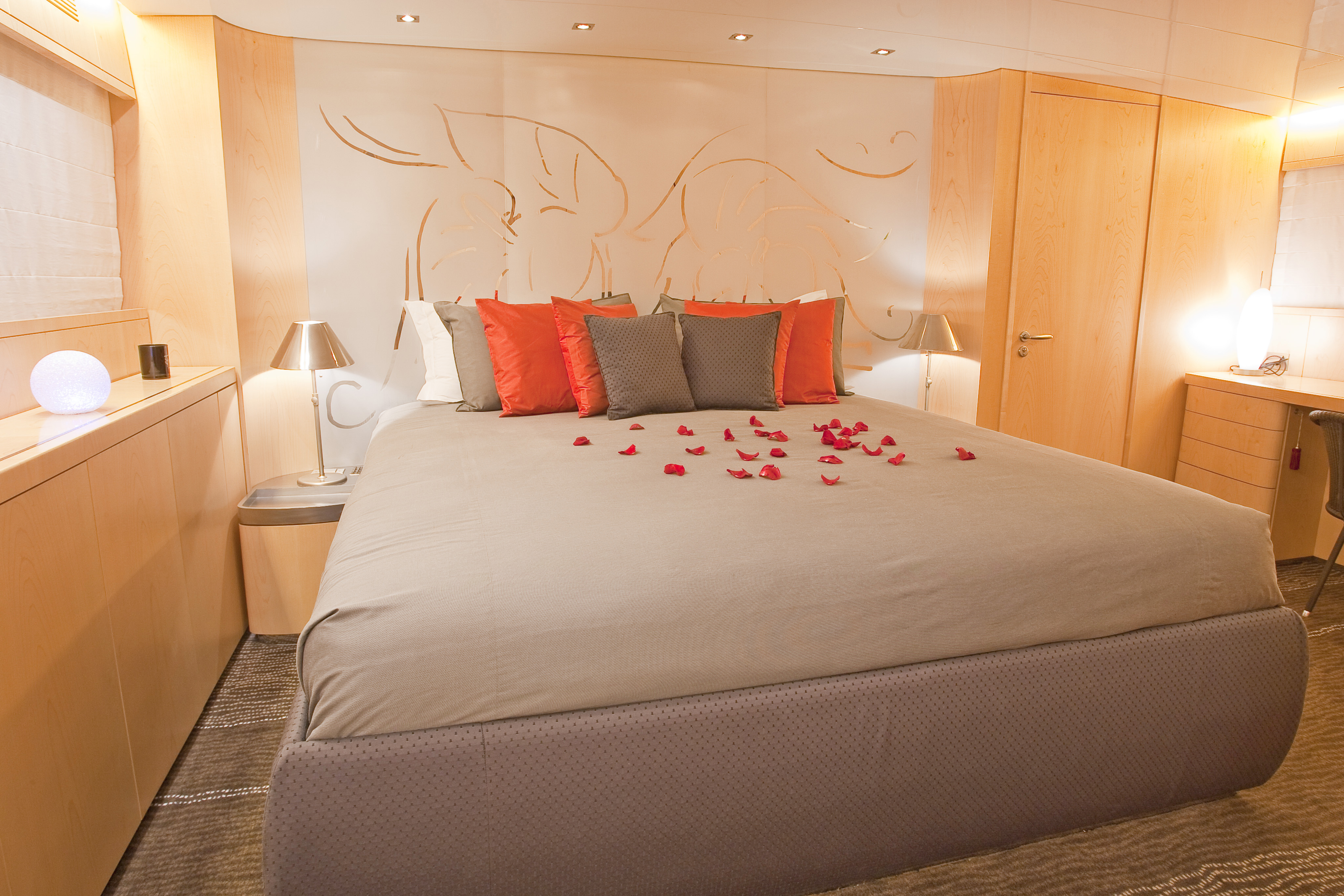

VIP Stateroom
JVC TV
DVD/CD Player
Bridge
CD Player
Foredeck
CD Player
Flybridge
CD Player
Deck Equipment
• 2 x aft deck warping winches
• 2 x anchor windlasses with warp of 2Kw with bridge and bow control
• 2 x 50kg anchors with 12mm galvanised iron chain, 100m long
• Bow shield with anchor locking and washing plant
• 2 x side fair leads
• 2 x mooring bits and 2 x fair leads at bow

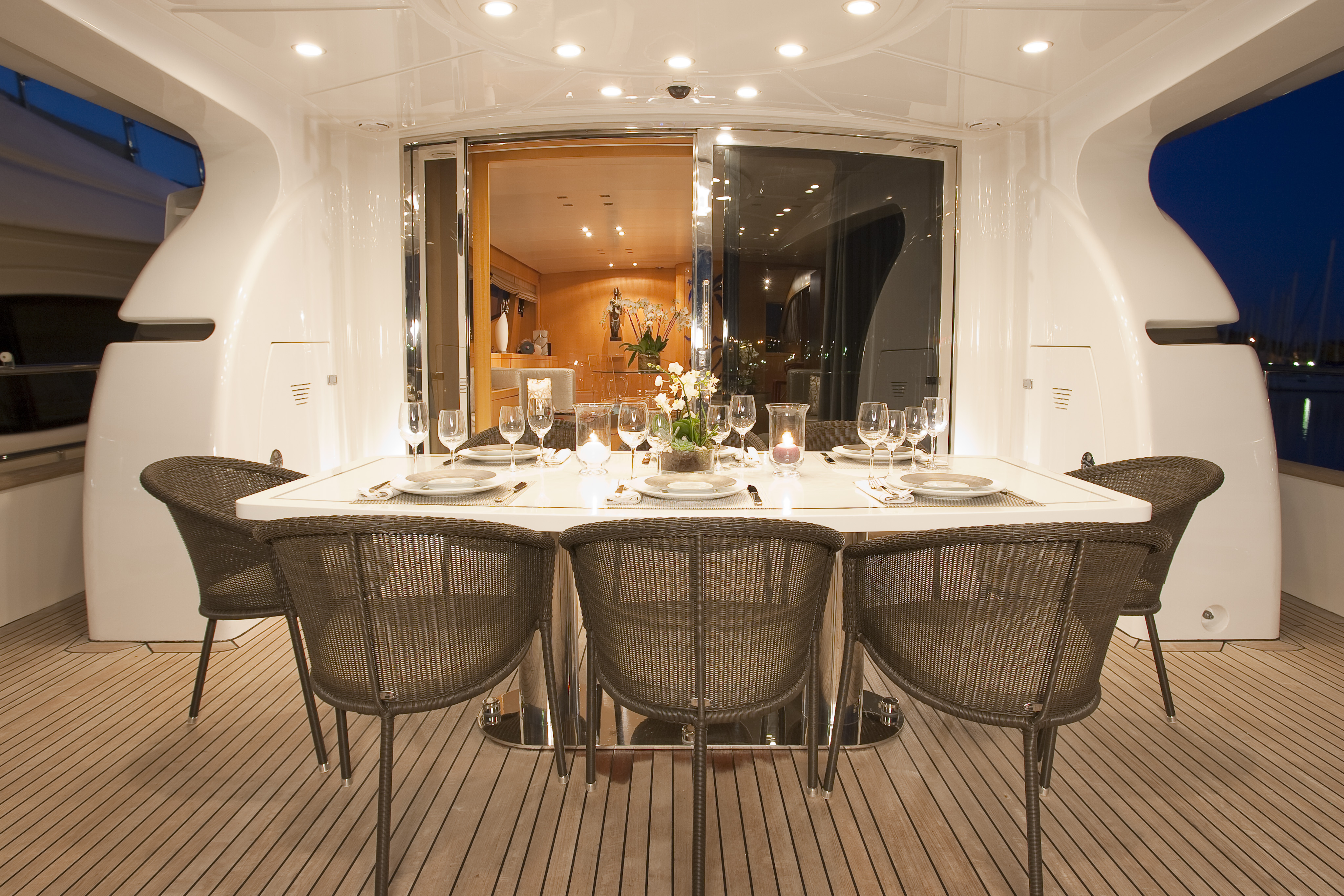

• Built in aft deck ‘C’ shaped seating & table
• 4 x side bits
• 1 x step ladder
• 1 x remote controlled electric gangway with handrail Benzanzoni
• 2 x boat hooks
• 2 x 29mm mooring ropes and 10mm chain
• 1 x 20mm, 100m towrope

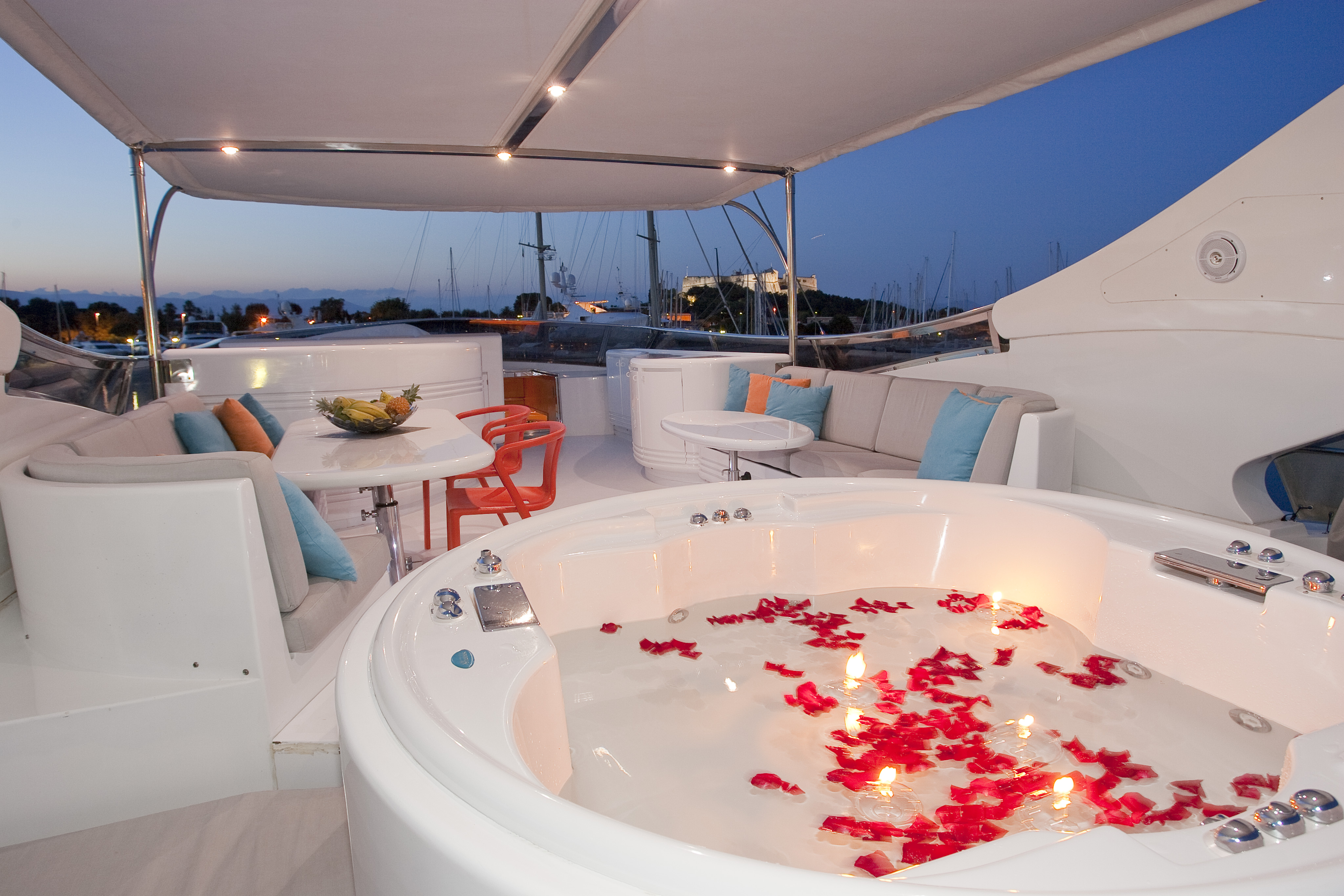

Flybridge
• Teak deck
• Aft Jacuzzi and Sunbathing
• 2 x seating with table
• STB furniture
• Barbeque
• Stainless steel rigid Bimini top
• Port bar with sink, ice maker, 2 x fridge
• Covers for all flybridge furniture and instruments
Flybridge Instruments
• Furuno autopilot repeater
• Furuno VHF
• Furuno Navnet chartplotter
• Furuno depth sounder repeater
Safety & Security Equipment
Full Safety Equipment
Fire extinguisher system:
Semi-automatic system with direct control in engine room
Hand operated portable powder extinguishers installed in all rooms including the engine room and
radio room.
Sea-water system
Smoke and heat detectors in all rooms.
Exclusions
A complete list of exclusions is available upon request.
