Tender & toys
Zodiac 4.2m RIB (centre console) (2009) with 50hp 4 stroke Yamaha outboard
Zodiac 2.9m RIB (2009) with 4hp Johnson outboard
Toys:
2 x Paddle Kayaks
1 x Yamaha Pair Skis
Diving Equipment:
2 x Scuba tanks with Bauer Junior Compressor
Equipment
MACHINERY
Generators:
Northern Lights 30kW - 3.3L Toyota (consumption 6.5L/h at 40 amps) Northern Lights 20kW - 2.2L Shibaura (consumption 5L/h at 40 amps) Engine mounted alternator 12V 20 kW: 950
(08/2011) 30kW: 24,000 (08/2011)
Propulsion Steering: Hydraulic
Propellers: 2 x 3-blade feathering Maxprop propellers
Cruising 9 knots at 1550 RPM
Gearbox: ZF hydraulic gear box
Fuel Control
Duplex Racor Filter to engine
Simplex Racor filter to generator
Flexible armoured hose used for all pipe work.
Manually operated fuel cut offs to feeds and returns
Duplex Racor fuel cleaning system
SAFETY EQUIPMENT
Life rafts: 2 x Viking 6 person valice type coastal liferafts (in service) with grab bag
Life jackets: 12 x PFD inflatable lifejackets (manual type) with 6 x harness tethers
Fire .fighting equipment: FM200 manual fire protection system in engine room
Exhaust ventilation system
Heat detector in engine room
Heat and smoke detectors in aft hallway, galley
Smoke detectors in galley and crew area
13 certified handheld extinguishers located throughout vessel, various types
Bilge pumps: 2 x 24v 3500GPH electric submersible bilge pumps
Main Engine Driven 2. bilge pump(to bilge manifold)
Electric Motor Driven 1. bilge pump (to bilge manifold)
Edson 2.25. manual bilge pump for engine room
NAVIGATION & ELECTRONICS
Maxsea charting software
Garmin and Leica GPS units
Simrad AI50 AIS
Furuno 72NM (black and white) Radar
COM NAV 2001 autopilot system
ICOM M602 and ICOM IC M80 VHF units with independent aerials
Standard Horizon DS150 depth sounders (two units)
Danforth 150mm steering compass
Extensive catalogue of world charts, paper and electronic
B&G Hydra 2000 wind speed and depth system with repeaters
MECHANICAL EQUIPMENT
Winches:
2 x Lewmar 77 2SP ST Electric
2 x Barient 36 2SP ST Manual
1 x Barient 36 2SP ST Electric
2 x Lewmar 64 2SP ST Electric
2 x Lewmar 54 2SP ST Electric/Manual
2 x Barient 28 2SP ST
ELECTRICAL EQUIPMENT
24v DC
4 x 200ah Gel batteries for house power system
4 x N200 batteries supplying 2 x 24v banks for crank power system
2 x 24v phase 3 and 1 x 12v phase 3 battery charging system
2 x 220v to 110v transformers
Victron 2500W and TRACE 1500W inverters
Engine/Services separated with parallel switch
DECK EQUIPMENT
Anchors:
Plough Type Anchor approx 240lb
Plough Type Anchor approx 140lb
16mm Galvinised chain x 140m
Windlass: Ideal Hydraulic - Chain Gypsy , Vertical and Horizontal Capstan
Passarelle: Yes
Bathing ladder: Yes

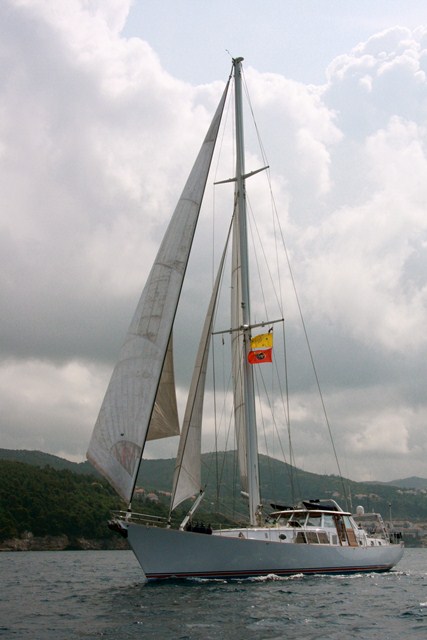

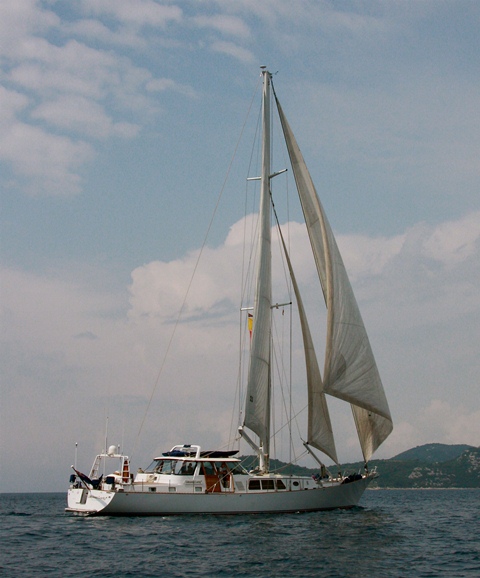

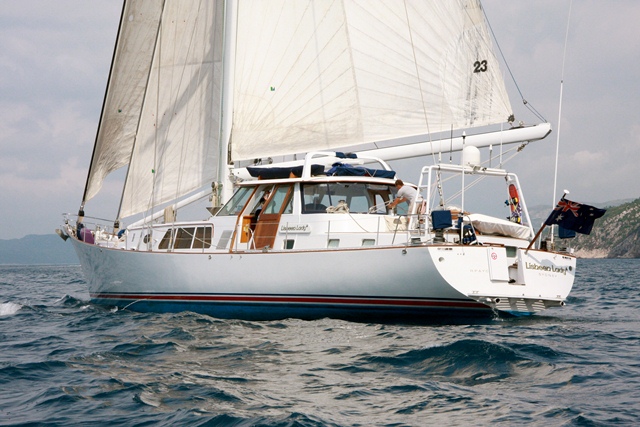

SAILS & RIGGING
Sails:
Total 354m2
Halsey-Lidgard Furling Main (2001) 130 m2
Quantum Fusion C Yankee Jib (2010) 154 m2
Halsey-Lidgard Staysail (2001) 70 m2
Rigging:
New 2011 Formula Spars 550 x 278 aluminium section, two sets spreaders
Fitted with in mast RECHMANN hydraulic mainsail furling system
Headstays RECHMANN hydraulic furling systems

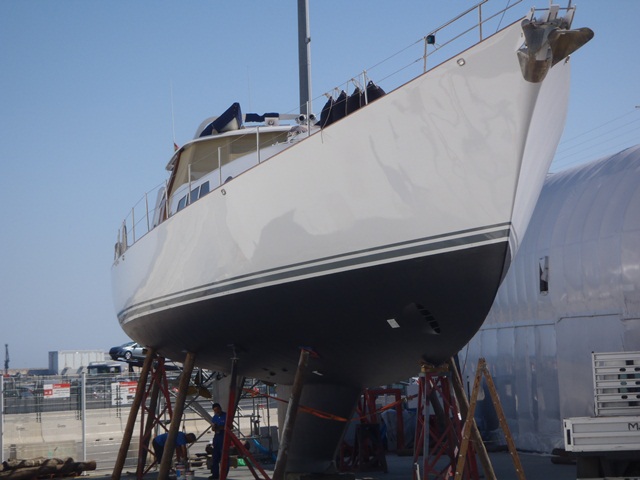

Keel:
Long Keel + Rudder Skeg
Galley Equipment Refrigerator: Isotherm 300 lt (New 2010)
Freezer: Isotherm 2 x 140 lt (New 2010)
Oven & Stove: Korting 220 vlt
Microwave: Sharp
Icemaker: Ulime
Washing machine: Malber Front Load (New 2009)
Dryer: Malber (New 2009)
Sound & Video TV/ DVD: Toshiba/Panasonic
Music system: Sony Surround Sound

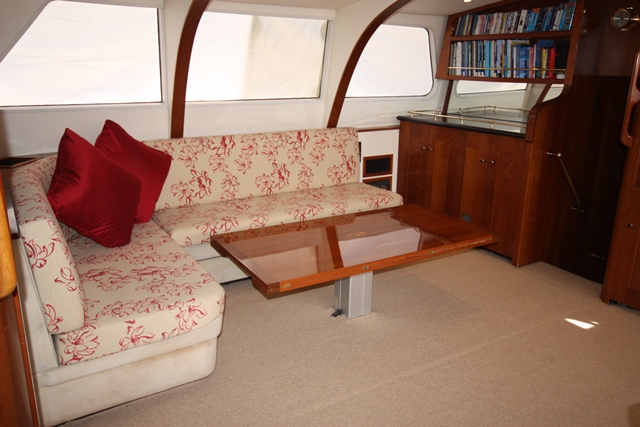

Accommodation

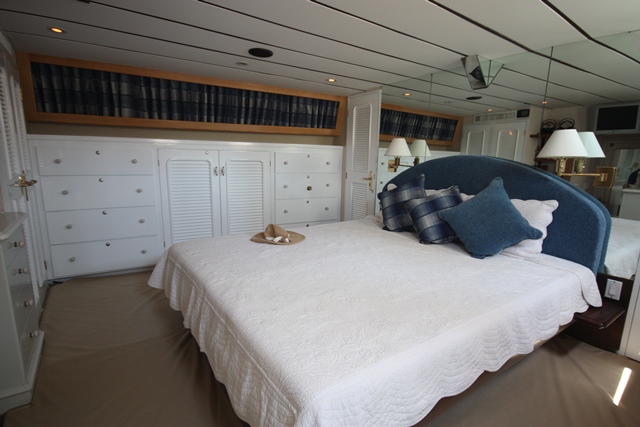

Owner Cabin: Spacious aft, Twin wardrobes, lots of storage
Berths: King size on centre line
Bathroom: 2 head, 1 shower, access to aft cockpit
Guests x 2

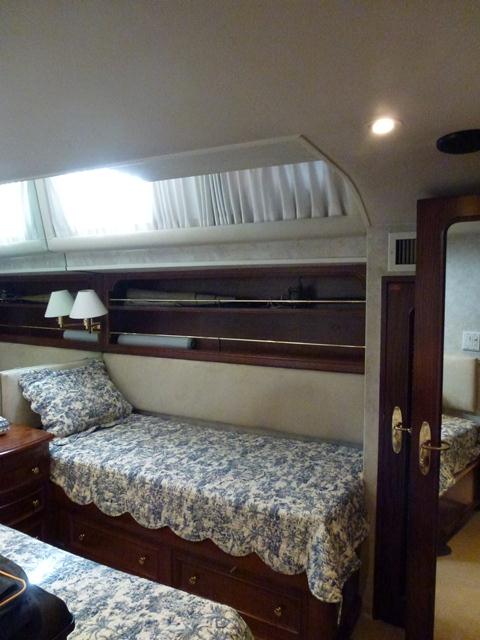

Cabin: Twin Cabin
Berths: 2 singles
Bathroom: 2 x en-suite
Crew: 4
Cabins: 2
Crew Mess: Yes
